HINGE WITH THROUGH HOLES MADE FROM BLUE FOOD-GRADE MATERIAL
15
O400ID
Cerniere in plastica con fori passanti
Description

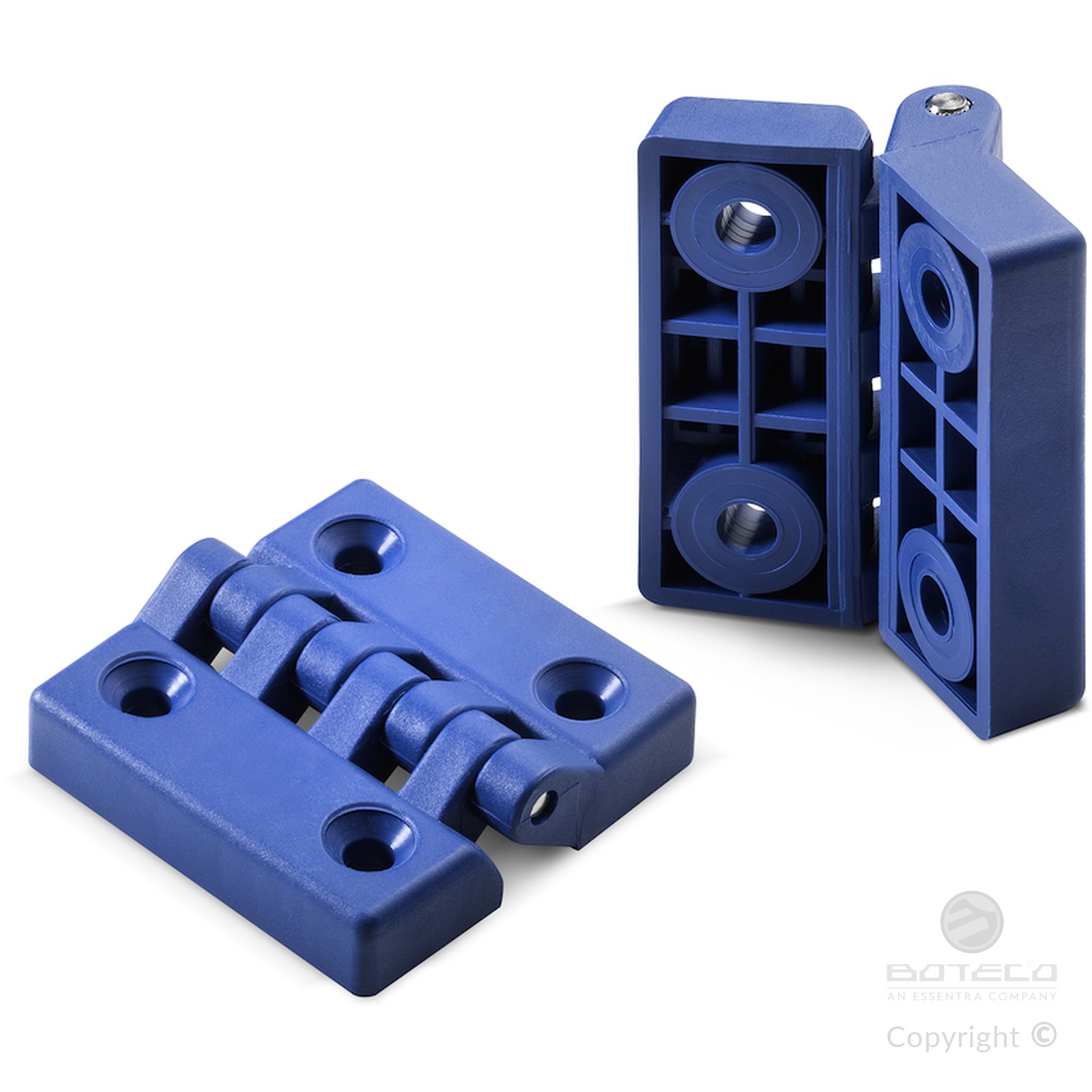

Notes: Articles produced with materials suitable for contact with foodstuffs; they are used in machinery and equipment for the food industry. The Blue RAL 5005 colour makes it easy to identify an article, or part of an article, that has accidentally ended up in a food processing procedure and can be immediately removed. The inserts are all made of Aisi 303, or Aisi 304 on request.
Materials:
Food-grade reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Blue: (RAL 5005 cod. 95).
Inserts:
Stainless steel pin (Aisi 303).
Hole:
Version TS:
Through hole obtained by moulding the plastic. Seat for countersunk screw DIN 7991 / UNI 5933.
Version TC:
Through hole obtained by moulding the plastic. Seat for cylindrical head screw DIN 912 / UNI 5931.
Special Requests:
None.

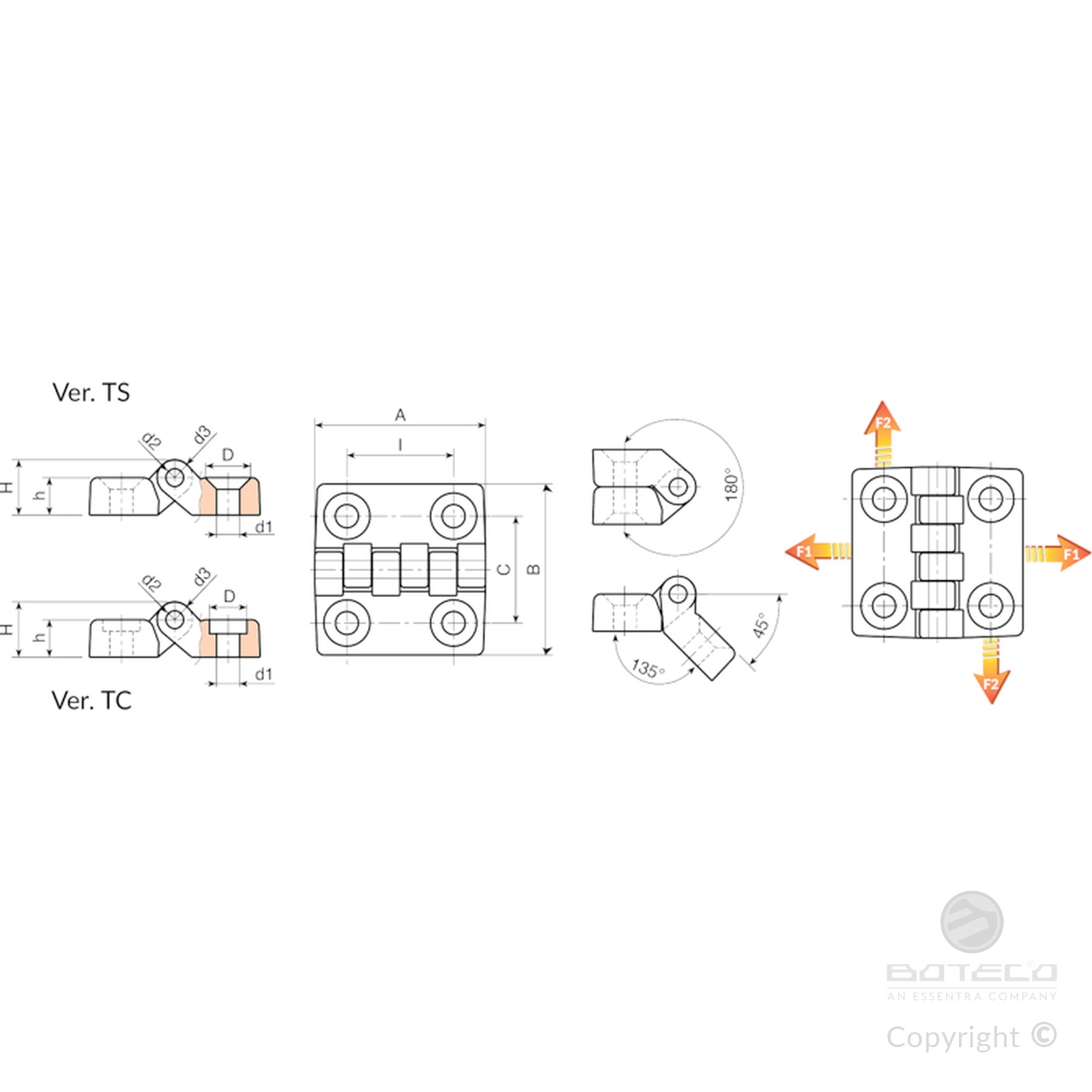

Version O400ID-TS: with holes for countersunk head screws
| Code | art. | I | C | A | B | h | H | D | d2 | d3 | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O40020.0006 | O40020.TG04.595TSID | 20 | 20 | 32 | 32 | 7 | 10,5 | 8,5 | 3 | 7 | 4,5 | 9 | 1440 | 490 |
| O40030.0012 | O40030.TG05.595TSID | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 12,5 | 5 | 10 | 5,5 | 27 | 1960 | 1470 |
| O40030.0013 | O40030.TG06.595TSID | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 12,5 | 5 | 10 | 6,5 | 27 | 1960 | 1470 |
| O40040.0007 | O40040.TG06.595TSID | 40 | 40 | 64 | 64 | 13 | 19 | 12,5 | 5 | 12 | 6,5 | 53 | 2850 | 1520 |
| O40060.0010 | O40060.TG08.595TSID | 60 | 63 | 96 | 96 | 16 | 24 | 16,5 | 8 | 16 | 8,5 | 152 | 4300 | 1810 |
| O40060.0009 | O40060.TG10.595TSID | 60 | 63 | 96 | 96 | 16 | 24 | 20.5 | 8 | 16 | 10.5 | 152 | 4300 | 1810 |
Version O400ID-TC: with holes for cylindrical head screws
| Code | art. | I | C | A | B | h | H | D | d2 | d3 | d1 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O40020.0007 | O40020.TG04.595TCID | 20 | 20 | 32 | 32 | 7 | 10,5 | 7,5 | 3 | 7 | 4,5 | 9 | 1440 | 490 |
| O40030.0014 | O40030.TG05.595TCID | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 10,5 | 5 | 10 | 5,5 | 27 | 1960 | 1470 |
| O40030.0015 | O40030.TG06.595TCID | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 10,5 | 5 | 10 | 6,5 | 27 | 1960 | 1470 |
| O40040.0008 | O40040.TG06.595TCID | 40 | 40 | 64 | 64 | 13 | 19 | 10,5 | 5 | 12 | 6,5 | 53 | 2850 | 1520 |
| O40060.0011 | O40060.TG08.595TCID | 60 | 63 | 96 | 96 | 16 | 24 | 13,5 | 8 | 16 | 8,5 | 152 | 4300 | 1810 |
| O40060.0012 | O40060.TG10.595TCID | 60 | 63 | 96 | 96 | 16 | 24 | 16,5 | 8 | 16 | 10,5 | 152 | 4300 | 1810 |
