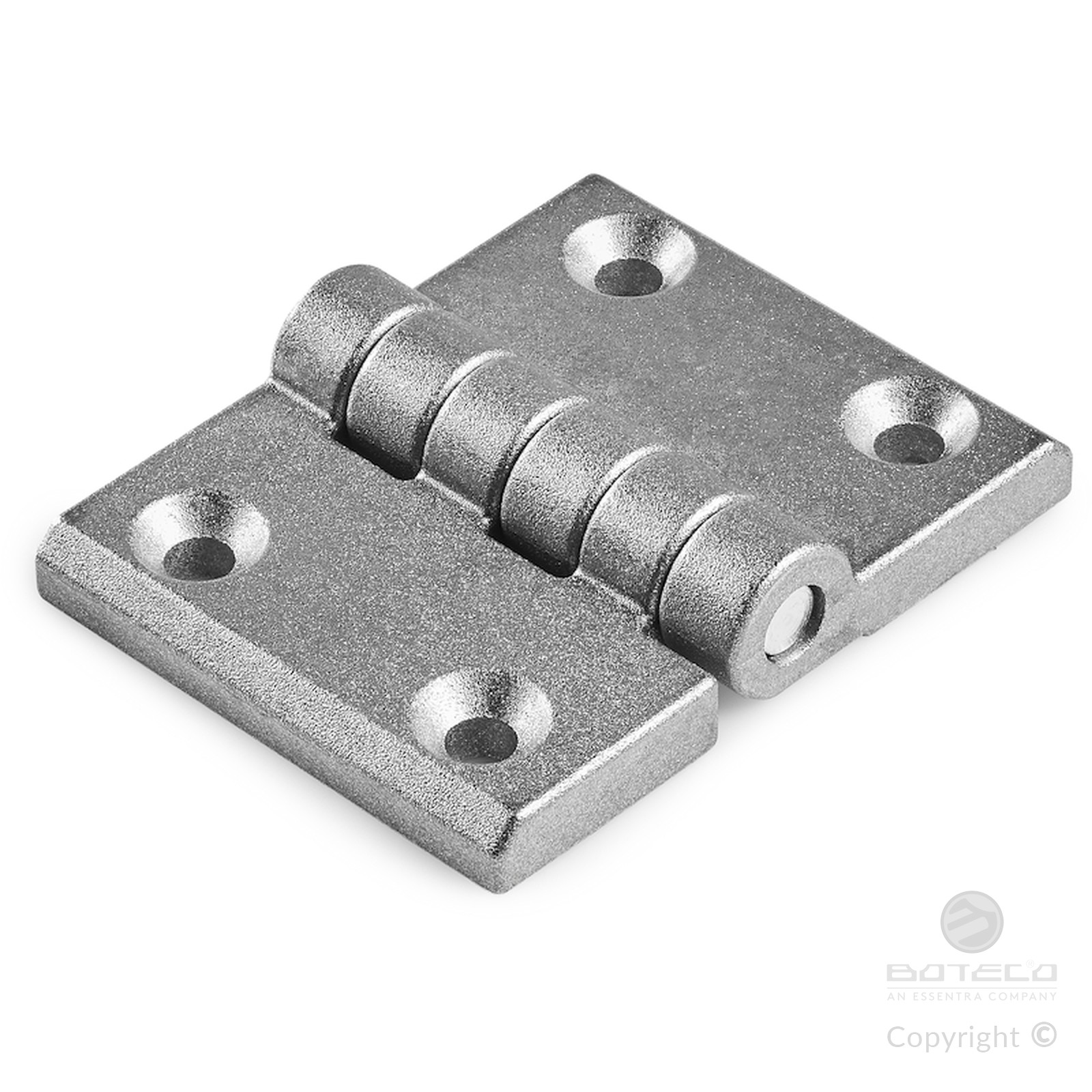

FLAT ZAMAK HINGE WITH THROUGH HOLES
15
O305
Cerniere in zama
Materials:
Die-cast zamak alloy (zinc, aluminium and copper alloy).
Surface finish:
Satin.
Colour:
Natural.
Inserts:
Galvanised steel pivot pin (C45).
Holes:
Through holes obtained by moulding. 90° countersunk hole for UNI 5933 – UNI 6109 screws.
Special Requests:
None.

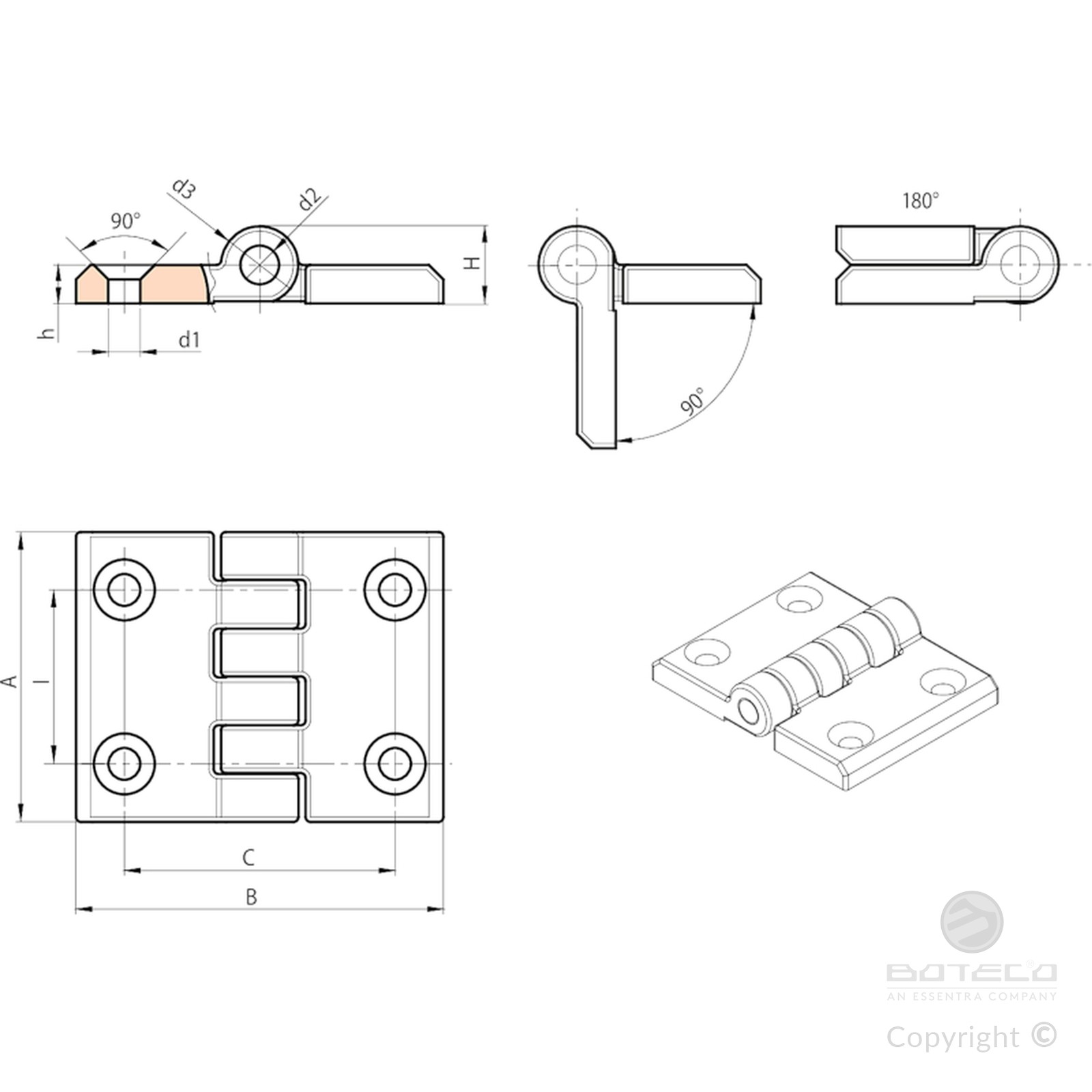

Code | Art. | I | C | A | B | H | h | d2 | d3 | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|
O30536.0001 | O30536.ZG06.5PAL | 36 | 56 | 60 | 76 | 16 | 8 | 8 | 16 | 6,5 | 250 |
