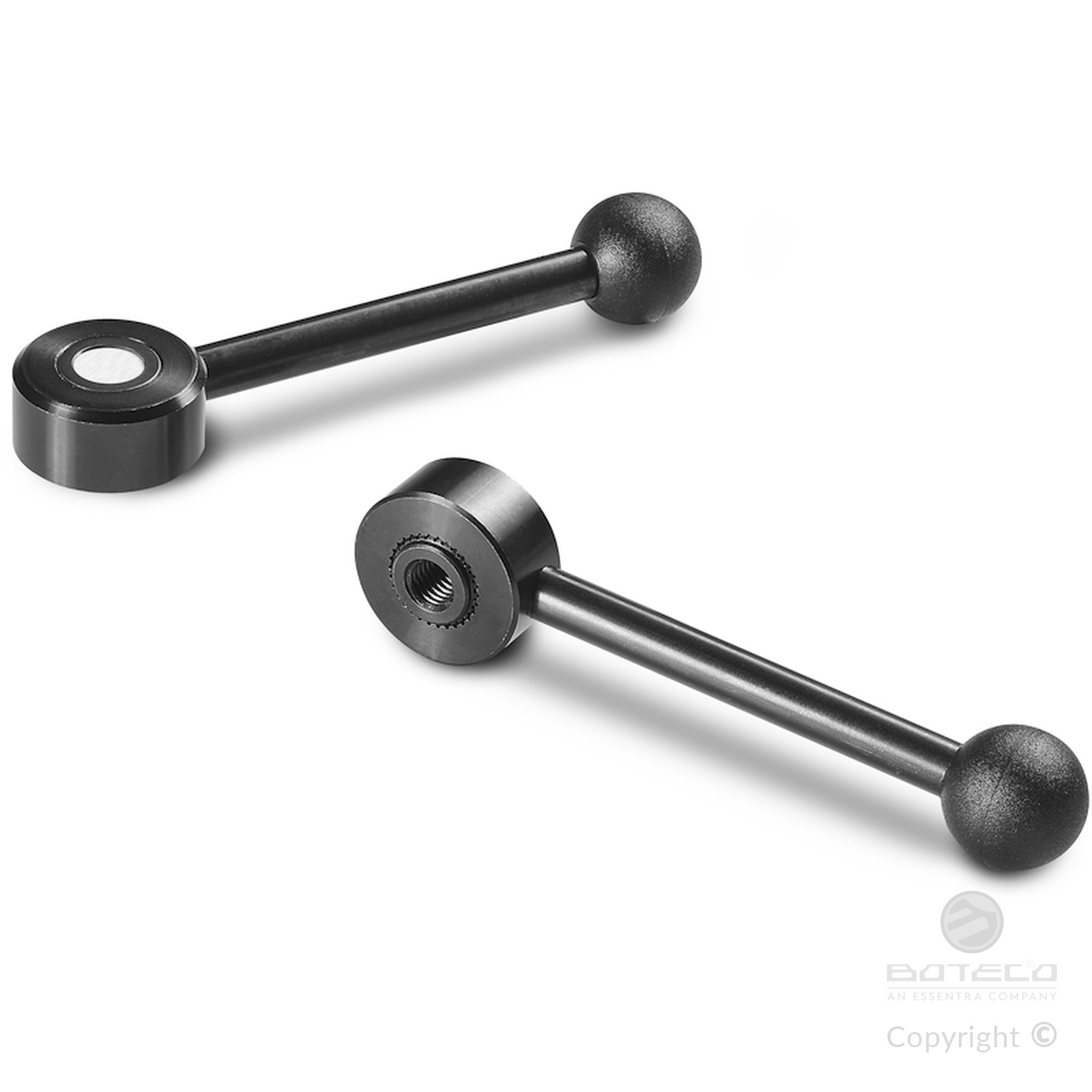

METAL INDEXED CLAMPING LEVER WITH STRAIGHT ARM AND THREADED HOLE INSERT
01
W515
Leve a scatto con vite
Materials:
(1-2-5) Lever body, arm and indexed insert in steel with strength class 5.8.
Surface finish:
(1-2-5) #tab# Turned with low roughness.
(6) #tab# Satin.
Colour:
(1-2-5) Standard black-oxide treatment.
Handgrip:
(6) Ball knob I103 in reinforced polyamide in black Ral 9011.
Handgrip fixing method:
Screwed on and glued.
Hole:
Female threaded hole machined from the insert (hole tolerance 6H).
Spring:
(3) Stainless steel spring (Aisi 302).
Cap:
(4) Aluminium hole cover cap, glued.
Special requests:
None.

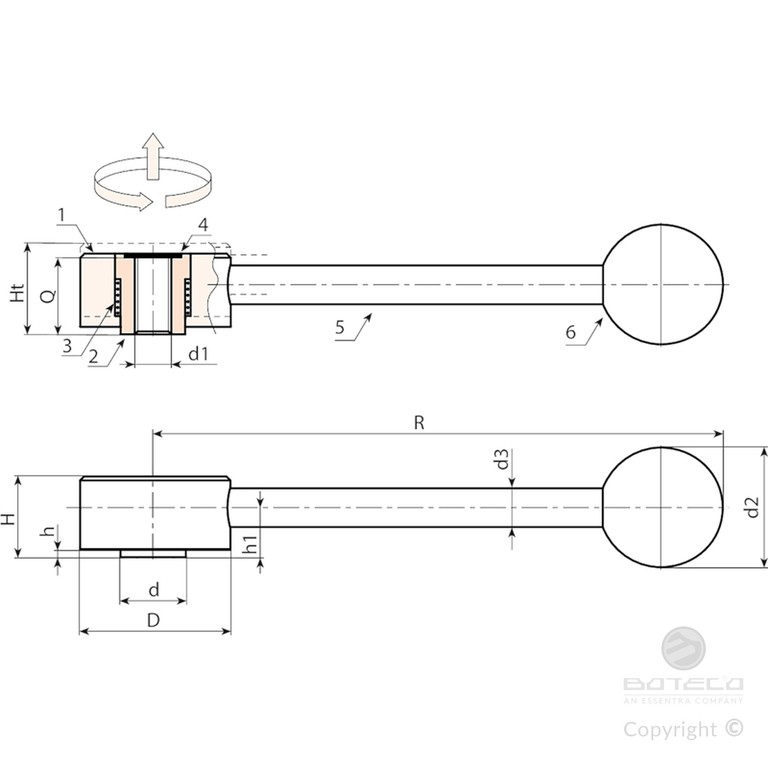

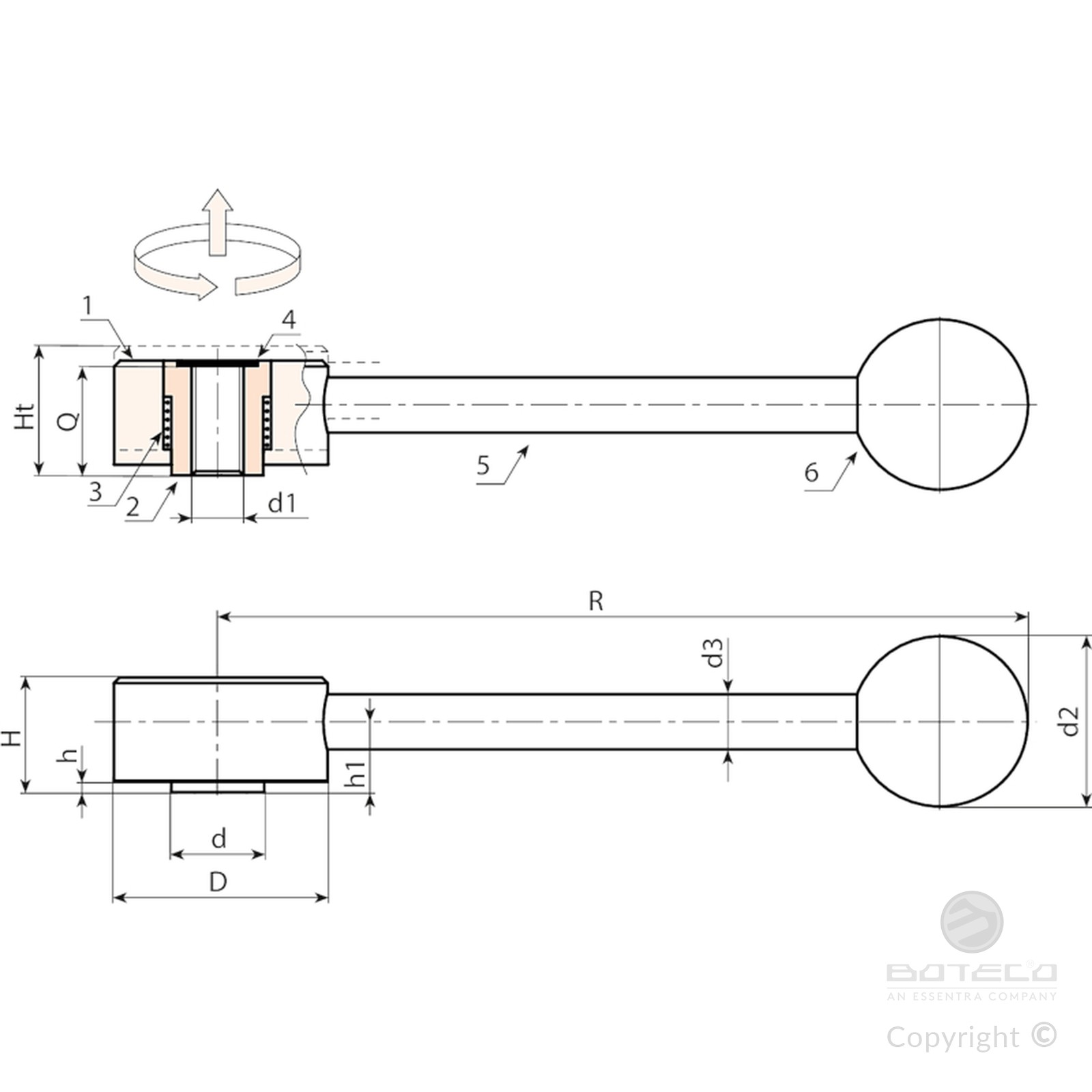

| Code | Art. | D | R | d | H | Ht | h | h1 | d2 | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W515114.0001 | W515114.VBM0601 | 33 | 114 | 13,5 | 19 | 23 | 2 | 12 | 25 | 10 | M6 | 18 | 166 |
| W515114.0002 | W515114.VBM0801 | 33 | 114 | 13,5 | 19 | 23 | 2 | 12 | 25 | 10 | M8 | 18 | 164 |
| W515146.0001 | W515146.VBM1001 | 41 | 146 | 19 | 22 | 26 | 2 | 13,5 | 30 | 12 | M10 | 21 | 295 |
| W515146.0002 | W515146.VBM1201 | 41 | 146 | 19 | 22 | 26 | 2 | 13,5 | 30 | 12 | M12 | 21 | 291 |
| W515165.0001 | W515165.VBM1201 | 45 | 165 | 23 | 28 | 33 | 2 | 17 | 35 | 14 | M12 | 27 | 466 |
| W515165.0002 | W515165.VBM1601 | 45 | 165 | 23 | 28 | 33 | 2 | 17 | 35 | 14 | M16 | 27 | 450 |
