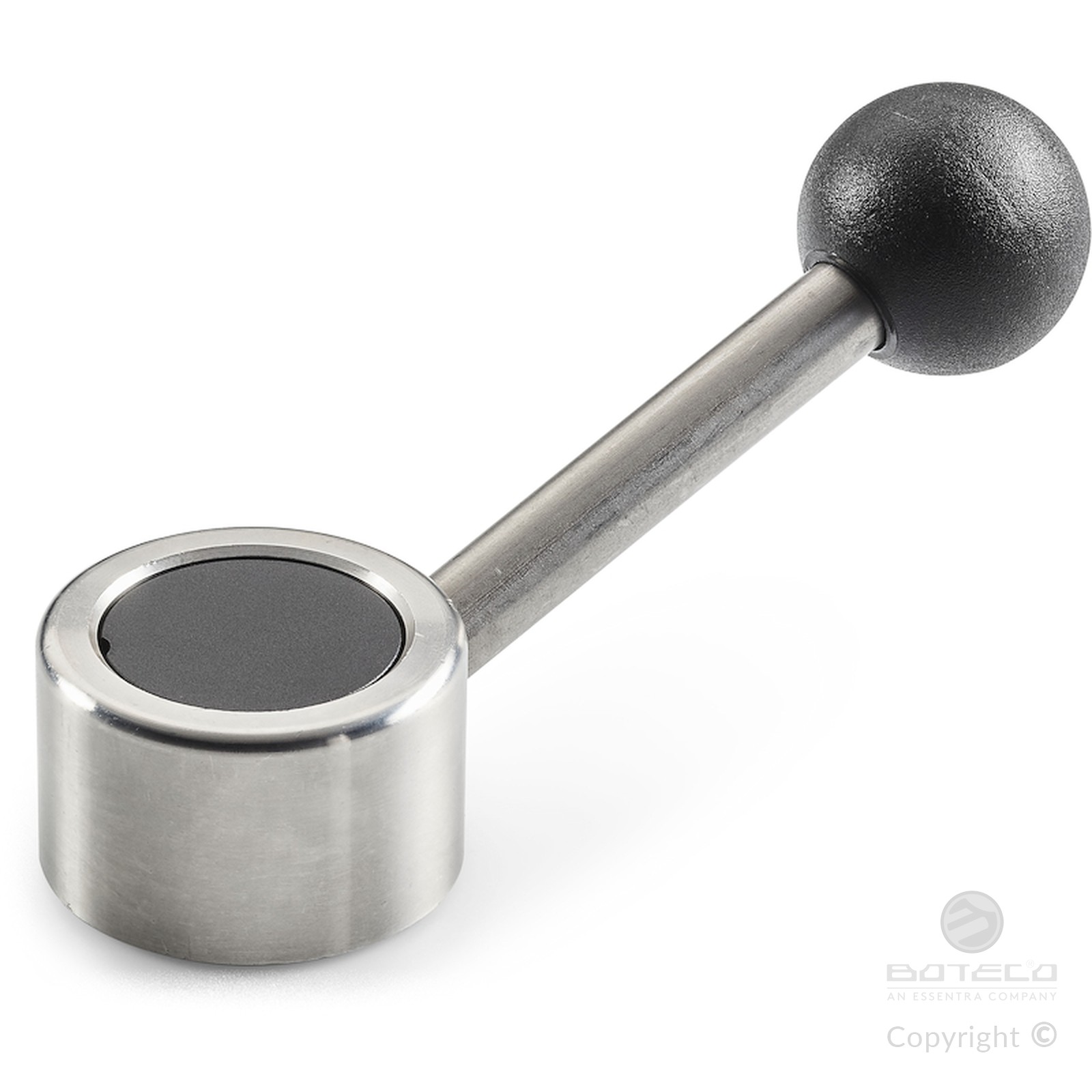

FLAT STAINLESS STEEL FIXED LEVER WITH INCLINED HANDLE
01
W510CIN
Leve fisse
Materials:
Stainless steel (Aisi 303).
Surface finish:
Turned with low roughness.
Colour:
Natural.
Handgrip:
Ball knob I104 in reinforced PA6 in black (Ral 9011).
Handgrip fixing method:
Push-fit, removable.
Hole:
Blind smooth bore machined from solid metal (bore tolerance H10).
Central Cap:
Black polyamide (RAL 9001 code 01).
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
Upon request and for special quantities levers can be supplied with custom hole diameter d1.
Upon request and for special quantities handgrip available in the colours indicated in the chart.

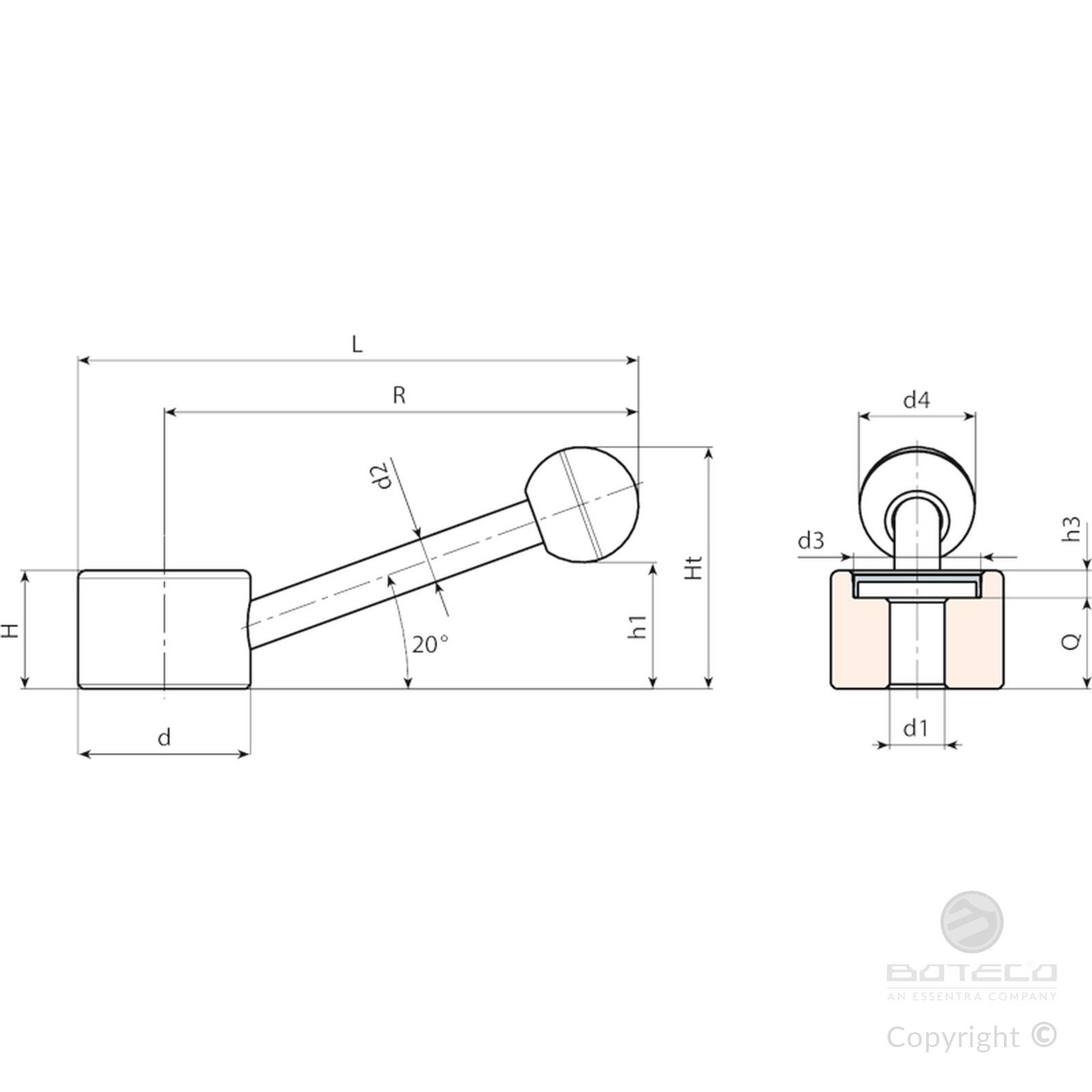

| Code | Art. | d | R | L | H | Ht | h1 | h3 | d2 | d3 | d4 | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W510082.0004 | W510082.ID1001CIN | 30 | 82 | 97 | 22 | 43 | 23 | 6 | 8 | 22 | 20 | 10 | 16 | 118 |
| W510104.0002 | W510104.ID1001CIN | 38 | 104 | 123 | 26 | 53 | 28 | 6 | 10 | 28 | 25 | 10 | 20 | 235 |
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H10 galvanised and H7 black-oxide treated).
