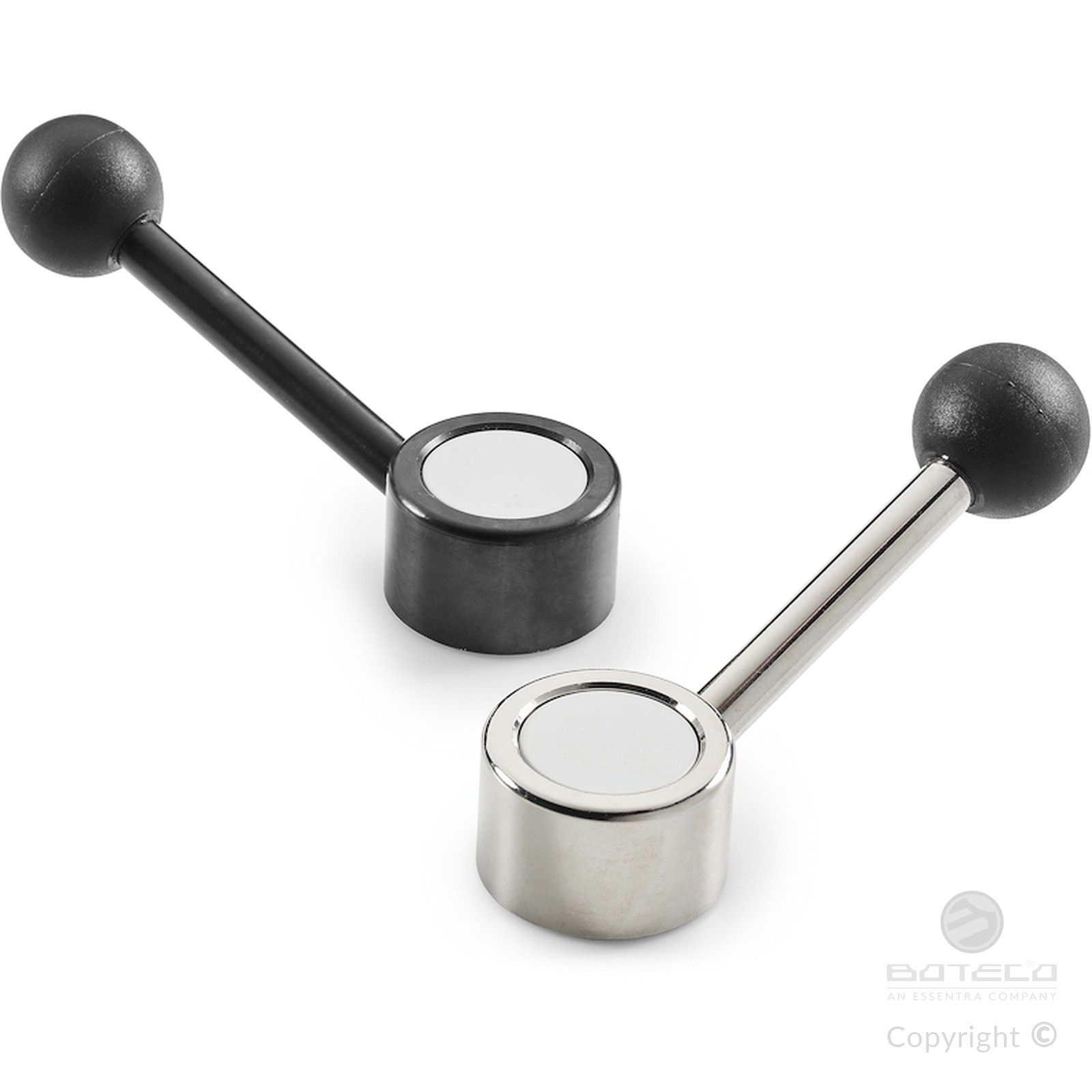

FLAT METAL FIXED LEVER WITH INCLINED HANDLE
W510
Leve fisse
Materials:
Steel with strength class 5.8.
Surface finish:
Turned with low roughness.
Colour:
Nickel plated (galvanic treatment).
Alternative finishes:
Black-oxide treatment:
(replace the final letter of the code (H) with letter B (W510082.SD0801B).
Galvanising:
(replace the final letter of the code (H) with letter Z (W510082.SD0801Z).
Handgrip:
Ball knob I104 in reinforced PA6 in black (Ral 9011).
Handgrip fixing method:
Push-fit, removable.
Hole:
Blind smooth bore machined from solid metal (bore tolerance H10).
Central Cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Levers with black oxide treated finish will be supplied with central cap in grey (RAL 7035 code 13).
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
Upon request and for special quantities levers can be supplied with custom hole diameter d1.
Upon request and for special quantities handgrip available in the colours indicated in the chart.

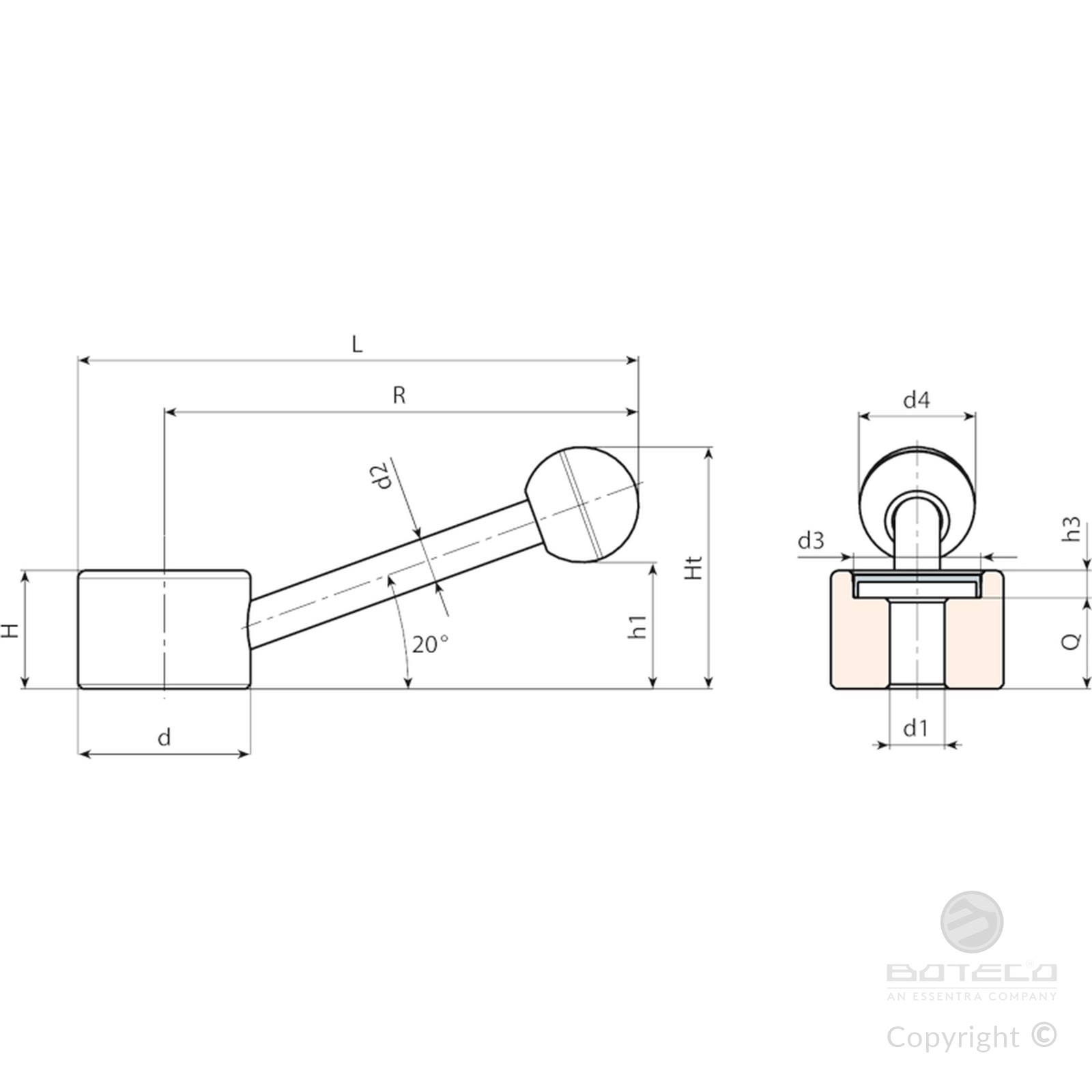

| Code | Art. | d | R | L | H | Ht | h1 | h3 | d2 | d3 | d4 | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W510082.0005 | W510082.SD1001H | 30 | 82 | 97 | 22 | 43 | 23 | 6 | 8 | 22 | 20 | 10 | 16 | 118 |
| W510104.0003 | W510104.SD1001H | 38 | 104 | 123 | 26 | 53 | 28 | 6 | 10 | 28 | 25 | 10 | 20 | 235 |
| W510104.0004 | W510104.SD1201H | 38 | 104 | 123 | 26 | 53 | 28 | 6 | 10 | 28 | 25 | 12 | 20 | 230 |
