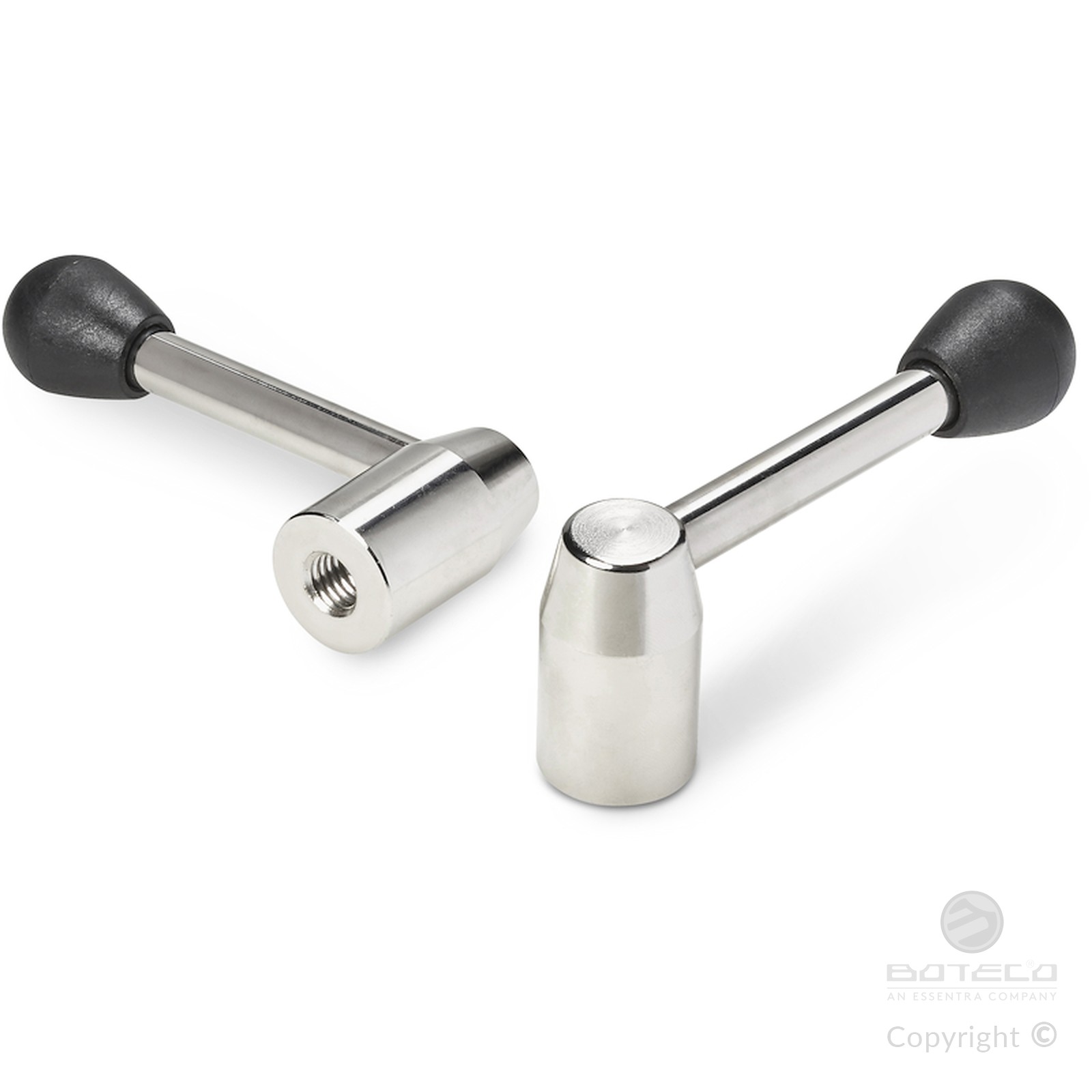

METAL FIXED LEVER WITH HORIZONTAL HANDLE AND THREADED HOLE
W501
Leve fisse
Materials:
W501:
Steel with strength class 5.8.
W501CIN:
Stainless steel (Aisi 303).
Surface finish:
Turned with low roughness.
Colour:
W501:
Nickel plated (galvanic treatment).
W501CIN:
Natural.
Alternative finishes:
Black-oxide treatment:
(replace the final letter of the code (H) with letter B (W501070.SM0801B).
Galvanising:
(replace the final letter of the code (H) with letter Z (W501070.SM0801Z).
Handgrip:
Conical knob I500 in reinforced PA6 in black (Ral 9011).
Handgrip fixing method:
Push-fit, removable.
Hole:
Female threaded hole machined from solid metal (thread tolerance 6H).
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.
Special requests:
Upon request and for special quantities levers can be supplied with custom hole diameter d1.
Upon request and for special quantities handgrip available in the colours indicated in the chart.







Version W501 - nickel-plated steel

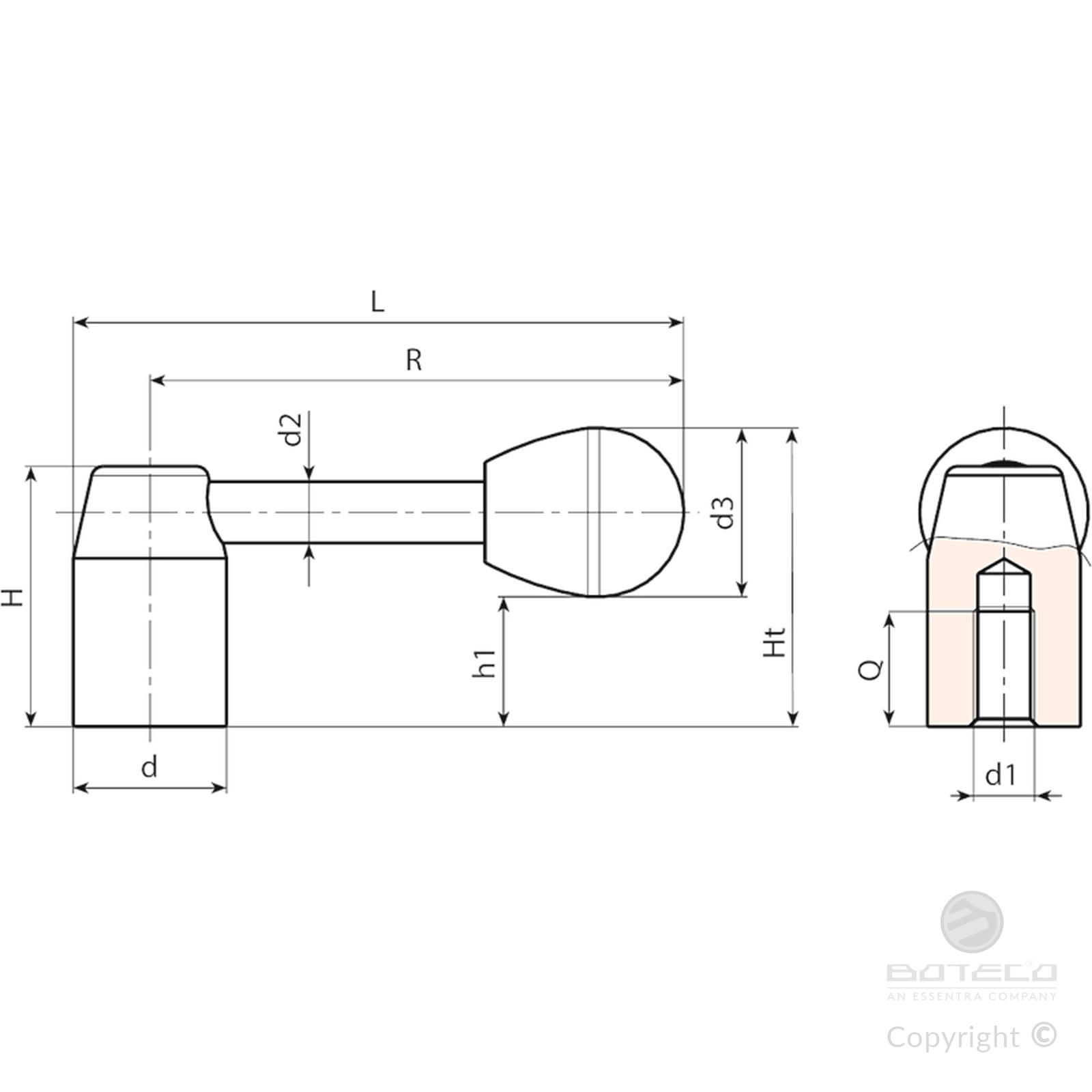

Code | art. | d | R | L | H | Ht | h1 | d2 | d3 | d1 6H | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
W501070.0002 | W501070.SM0801H | 20 | 70 | 80 | 34 | 39 | 17 | 8 | 22 | M8 | 15 | 89 |
W501080.0002 | W501080.SM1001H | 22 | 80 | 91 | 38 | 43 | 21 | 8 | 22 | M10 | 15 | 111 |
W501095.0002 | W501095.SM1201H | 24 | 95 | 107 | 42 | 49 | 21 | 10 | 28 | M12 | 18 | 160 |
W501110.0002 | W501110.SM1201H | 28 | 110 | 124 | 48 | 54 | 26 | 12 | 28 | M12 | 18 | 280 |
W501125.0002 | W501125.SM1601H | 32 | 125 | 141 | 52 | 59 | 27 | 12 | 32 | M16 | 22 | 340 |
W501140.0002 | W501140.SM1601H | 36 | 140 | 158 | 58 | 64 | 32 | 14 | 32 | M16 | 23 | 513 |
W501150.0002 | W501150.SM2001H | 40 | 150 | 170 | 64 | 71 | 34 | 16 | 37 | M20 | 25 | 687 |
W501170.0001 | W501170.SM2001H | 45 | 170 | 192.5 | 70 | 77 | 40 | 16 | 37 | M20 | 28 | 890 |
Version W501CIN - stainless steel (Aisi 303)
Code | art. | d | R | L | H | Ht | h1 | d2 | d3 | d1 6H | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
W501070.0001 | W501070.IM0801CIN | 20 | 70 | 80 | 34 | 39 | 17 | 8 | 22 | M8 | 15 | 89 |
W501080.0001 | W501080.IM1001CIN | 22 | 80 | 91 | 38 | 43 | 21 | 8 | 22 | M10 | 15 | 111 |
W501095.0001 | W501095.IM1201CIN | 24 | 95 | 107 | 42 | 49 | 21 | 10 | 28 | M12 | 18 | 160 |
W501110.0001 | W501110.IM1201CIN | 28 | 110 | 124 | 48 | 54 | 26 | 12 | 28 | M12 | 18 | 280 |
W501125.0001 | W501125.IM1601CIN | 32 | 125 | 141 | 52 | 59 | 27 | 12 | 32 | M16 | 22 | 340 |
W501140.0001 | W501140.IM1601CIN | 36 | 140 | 158 | 58 | 64 | 32 | 14 | 32 | M16 | 23 | 513 |
W501150.0001 | W501150.IM2001CIN | 40 | 150 | 170 | 64 | 71 | 34 | 16 | 37 | M20 | 25 | 687 |
