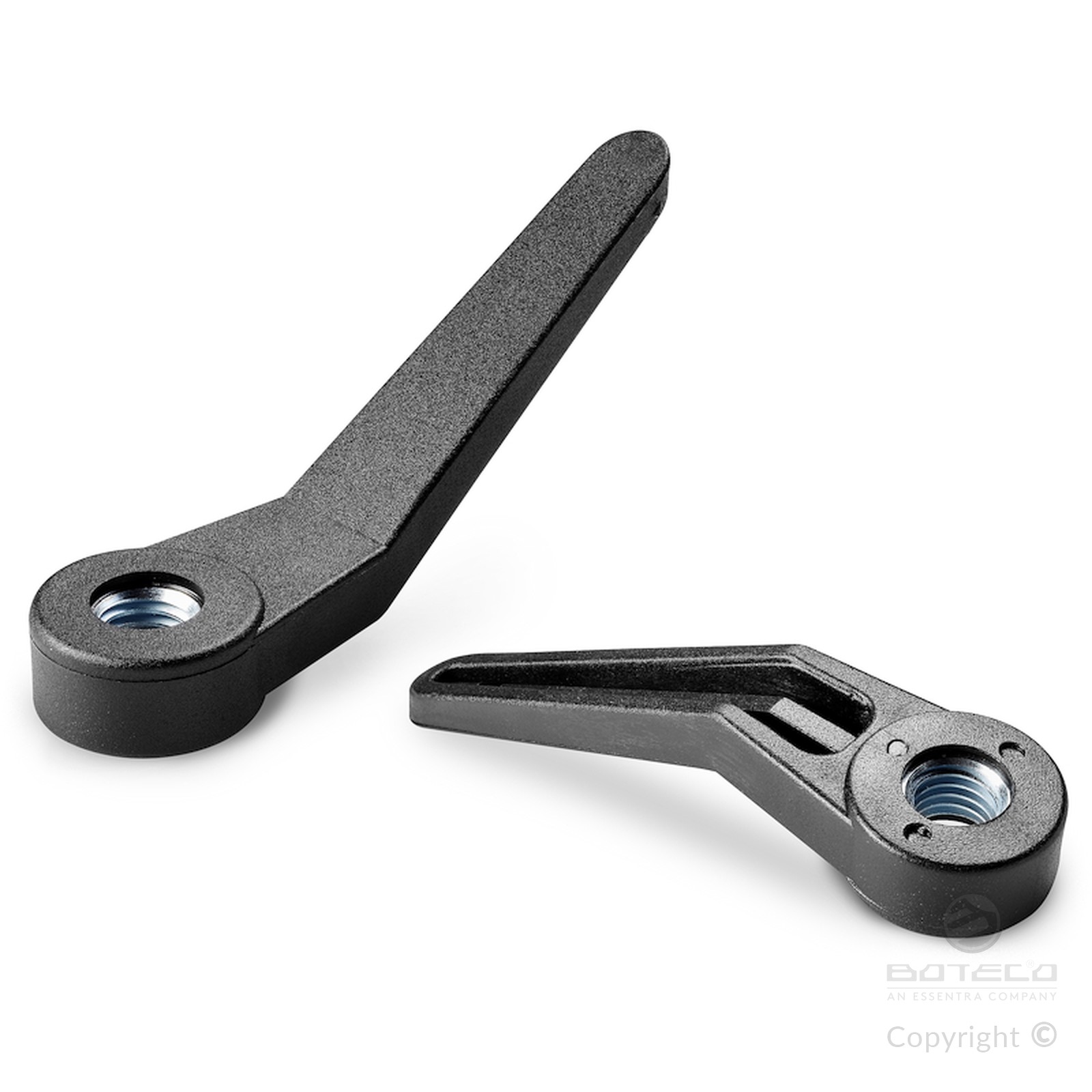

RING NUT WITH HANDLE
01
T710
Leve fisse
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded through-hole insert (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

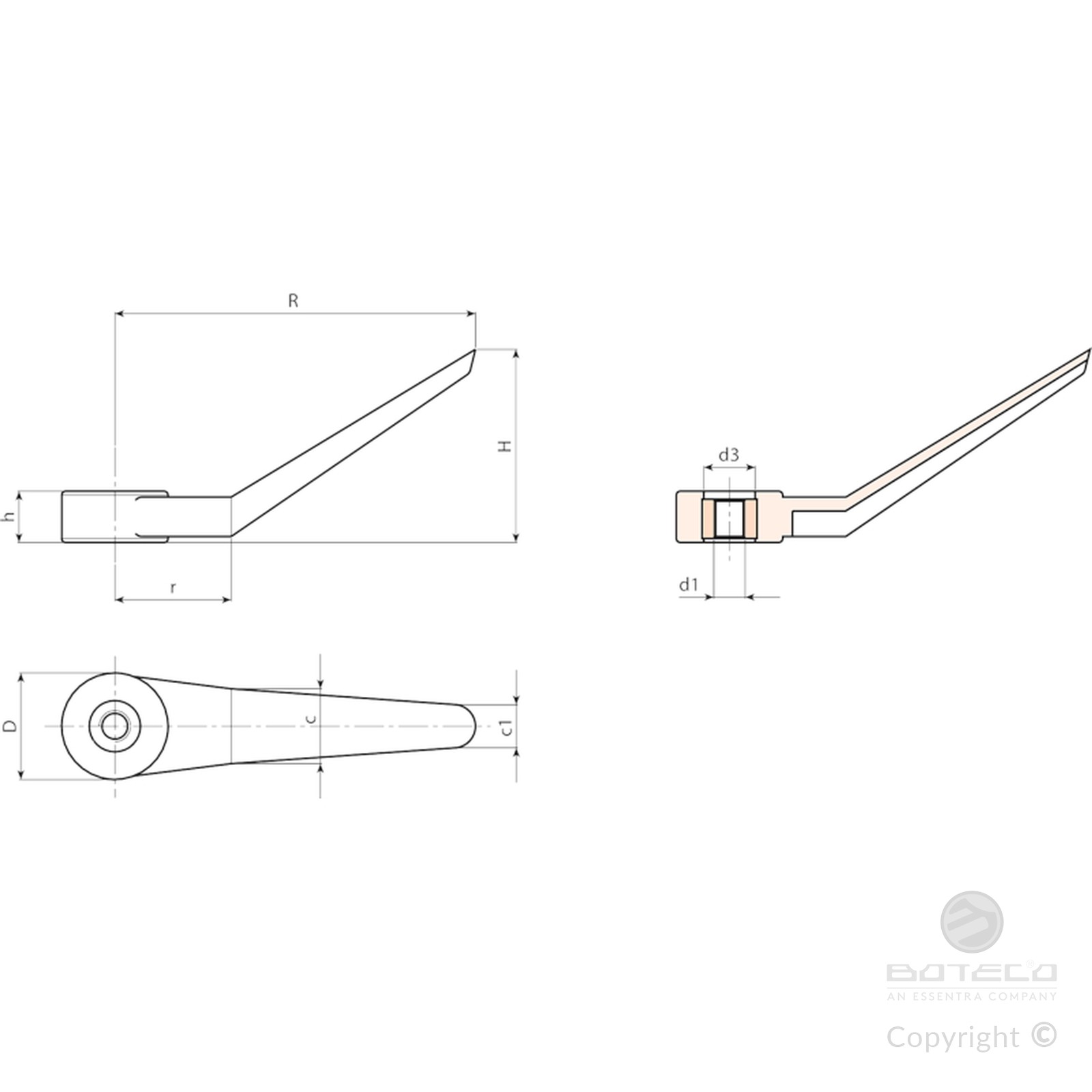

| Code | Art. | R | D | H | h | r | c | c1 | d3 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T71090.0001 | T71090.TM0801 | 90 | 27 | 48 | 14 | 29 | 19 | 12 | 13.5 | M8 | 27 |
| T71090.0002 | T71090.TM1001 | 90 | 27 | 48 | 14 | 29 | 19 | 12 | 13.5 | M10 | 26 |
| T71090.0003 | T71090.TM1201 | 90 | 27 | 48 | 14 | 29 | 19 | 12 | 13.5 | M12 | 28 |
