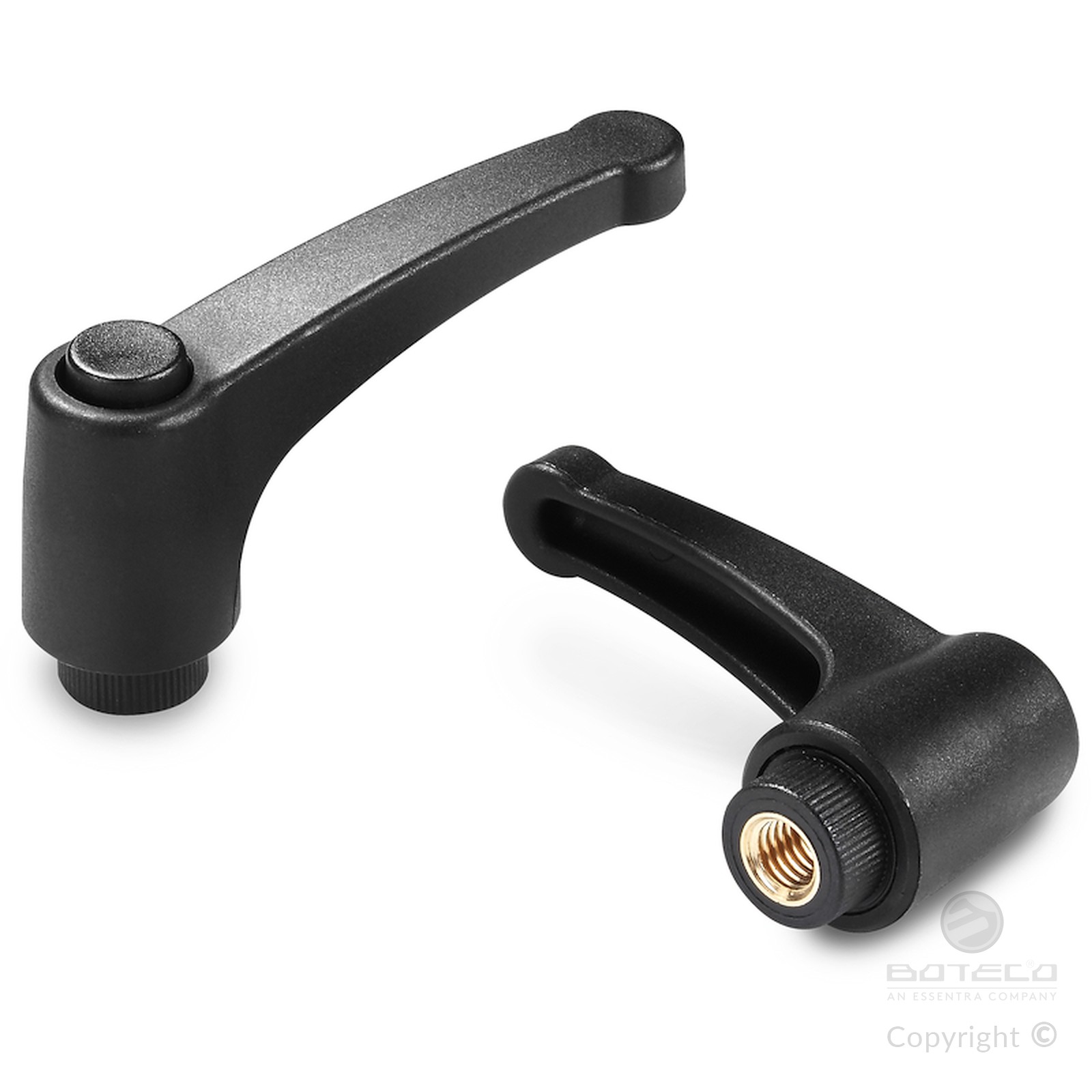

“EUROMODEL” INDEXED CLAMPING LEVER WITH PLASTIC BUTTON AND THREADED INSERT
A582
Leve a scatto con pulsante
Description
The indexed clamping lever with button is more economical than the version fixed with a screw. However, the sturdiness and closure strength are the same. Its shape and the possibility of raising the handle body and positioning it at a different angle means it can be used in confined spaces where there is no room for full rotation such as on machine tools, woodworking machines, packaging machines, or other equipment or machinery. Ideal in sectors such as industrial lighting and professional fitness (gym equipment and bicycles).
Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Lever body and insert colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Button:
Black polyamide button (RAL 9011).
Spring:
Stainless steel spring (Aisi 302).
Alternative lever body and button colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Grey (RAL 7035 cod. 13).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
Video:

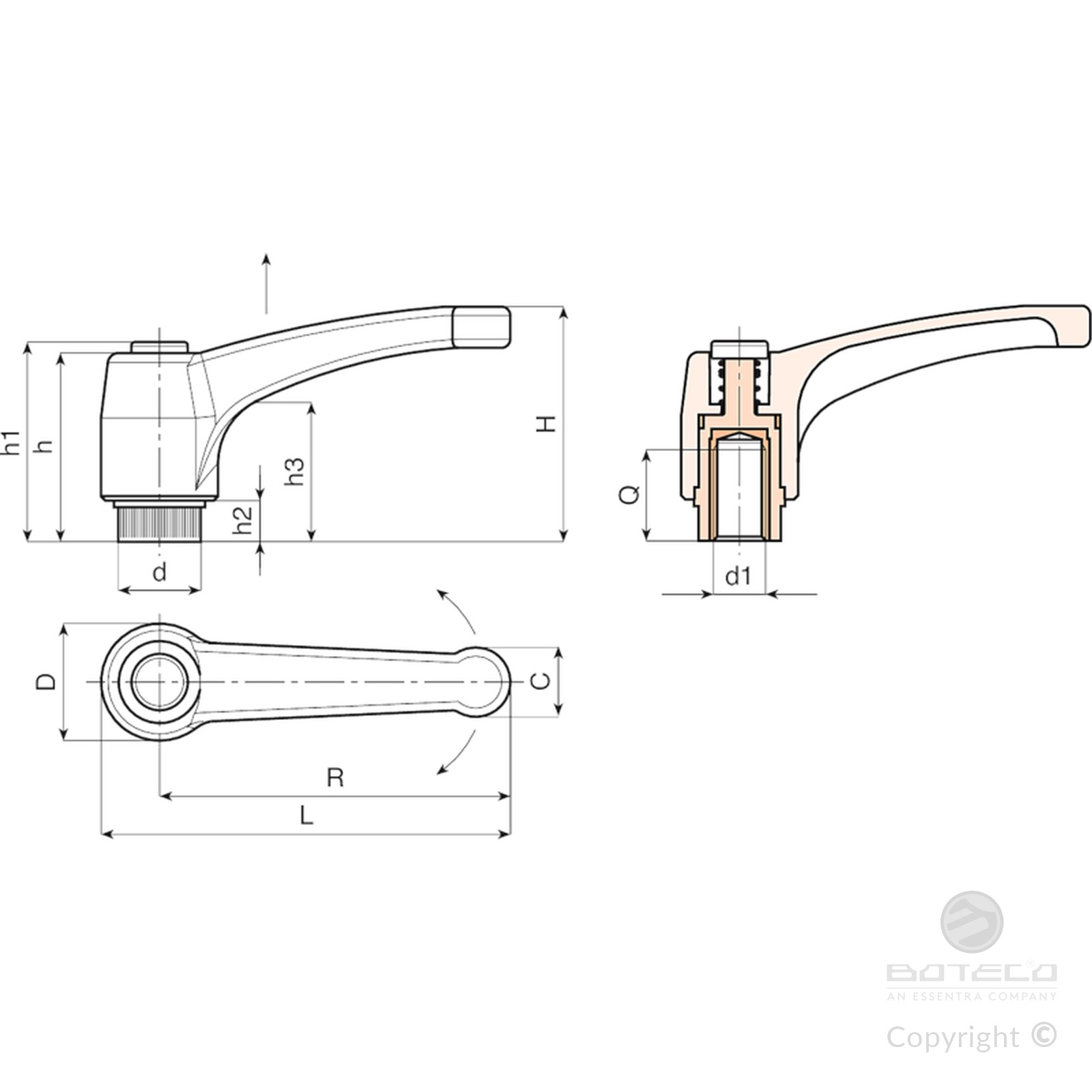

| Code | Art. | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A582043.0001 | A582043.TM0401 | 51 | 43 | 33 | 17 | 11.5 | 9 | 29 | 32 | 6 | 18 | M4 | 8 | 15 |
| A582043.0004 | A582043.TM0501 | 51 | 43 | 33 | 17 | 11.5 | 9 | 29 | 32 | 6 | 18 | M5 | 10 | 15 |
| A582043.0011 | A582043.TM0601 | 51 | 43 | 33 | 17 | 11.5 | 9 | 29 | 32 | 6 | 18 | M6 | 10 | 14 |
| A582052.0002 | A582052.TM0601 | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M6 | 14 | 31 |
| A582052.0006 | A582052.TM0801 | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M8 | 14 | 30 |
| A582052.0018 | A582052.TM1001 | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M10 | 14 | 30 |
| A582065.0001 | A582065.TM0601 | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M6 | 14 | 36 |
| A582065.0006 | A582065.TM0801 | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M8 | 14 | 35 |
| A582065.0022 | A582065.TM1001 | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M10 | 14 | 35 |
| A582080.0001 | A582080.TM0801 | 93 | 80 | 54 | 27 | 19 | 15.5 | 44 | 48 | 8.5 | 29 | M8 | 19 | 55 |
| A582080.0012 | A582080.TM1001 | 93 | 80 | 54 | 27 | 19 | 15.5 | 44 | 48 | 8.5 | 29 | M10 | 19 | 54 |
| A582080.0032 | A582080.TM1201 | 93 | 80 | 54 | 27 | 19 | 15.5 | 44 | 48 | 8.5 | 29 | M12 | 19 | 54 |
| A582094.0001 | A582094.TM0801 | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M8 | 19 | 80 |
| A582094.0004 | A582094.TM1001 | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M10 | 19 | 81 |
| A582094.0009 | A582094.TM1201 | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M12 | 19 | 83 |
| A582108.0002 | A582108.TM1201 | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M12 | 22 | 144 |
| A582108.0006 | A582108.TM1401 | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M14 | 21 | 146 |
| A582108.0008 | A582108.TM1601 | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M16 | 23 | 149 |
