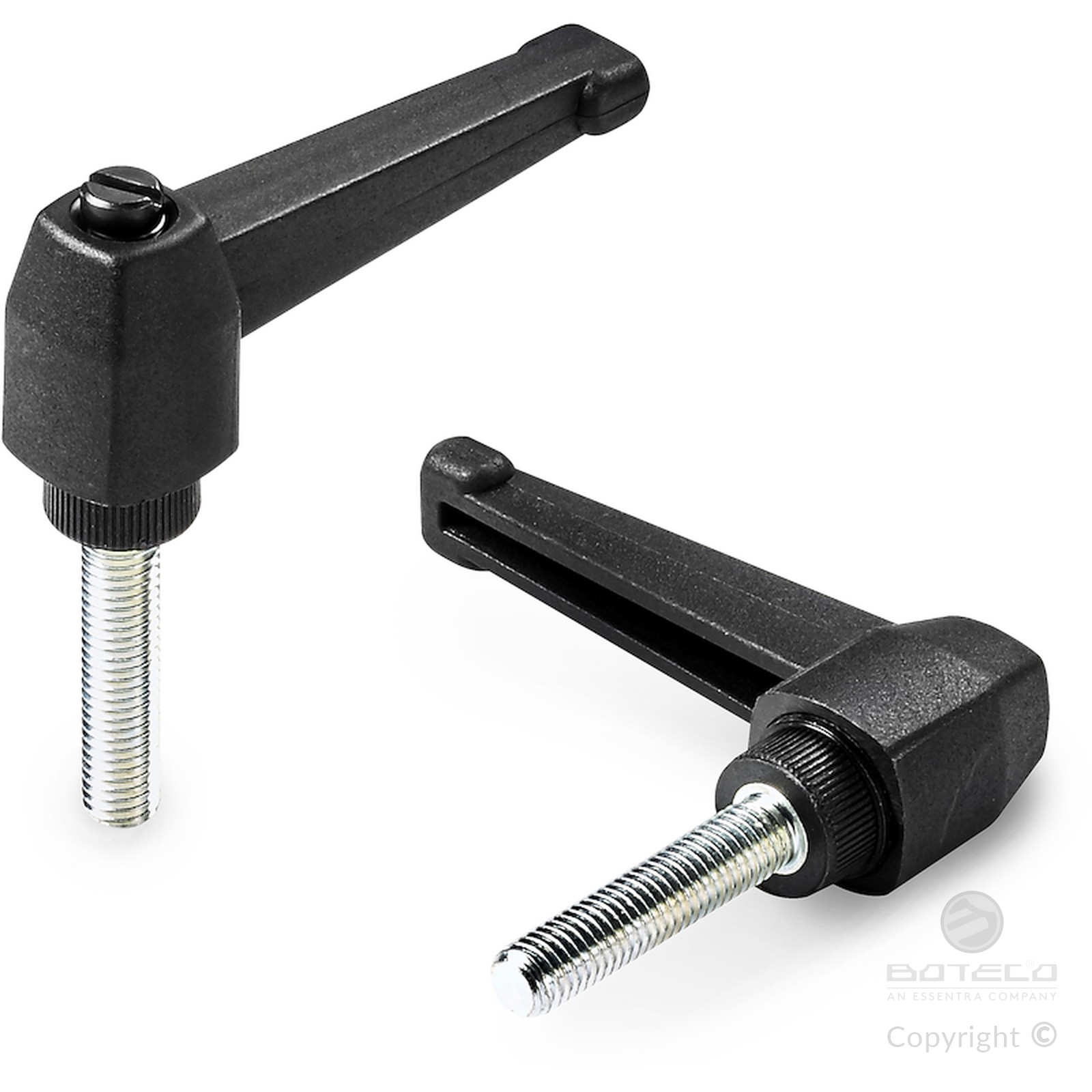

INDEXED CLAMPING LEVER WITH 90° ARM AND THREADED STUD
01
A573
Leve a scatto con vite
Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Lever body and insert colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Fixing screw:
Black oxide treated steel screw with slotted head.
Spring:
Stainless steel spring (Aisi 302).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

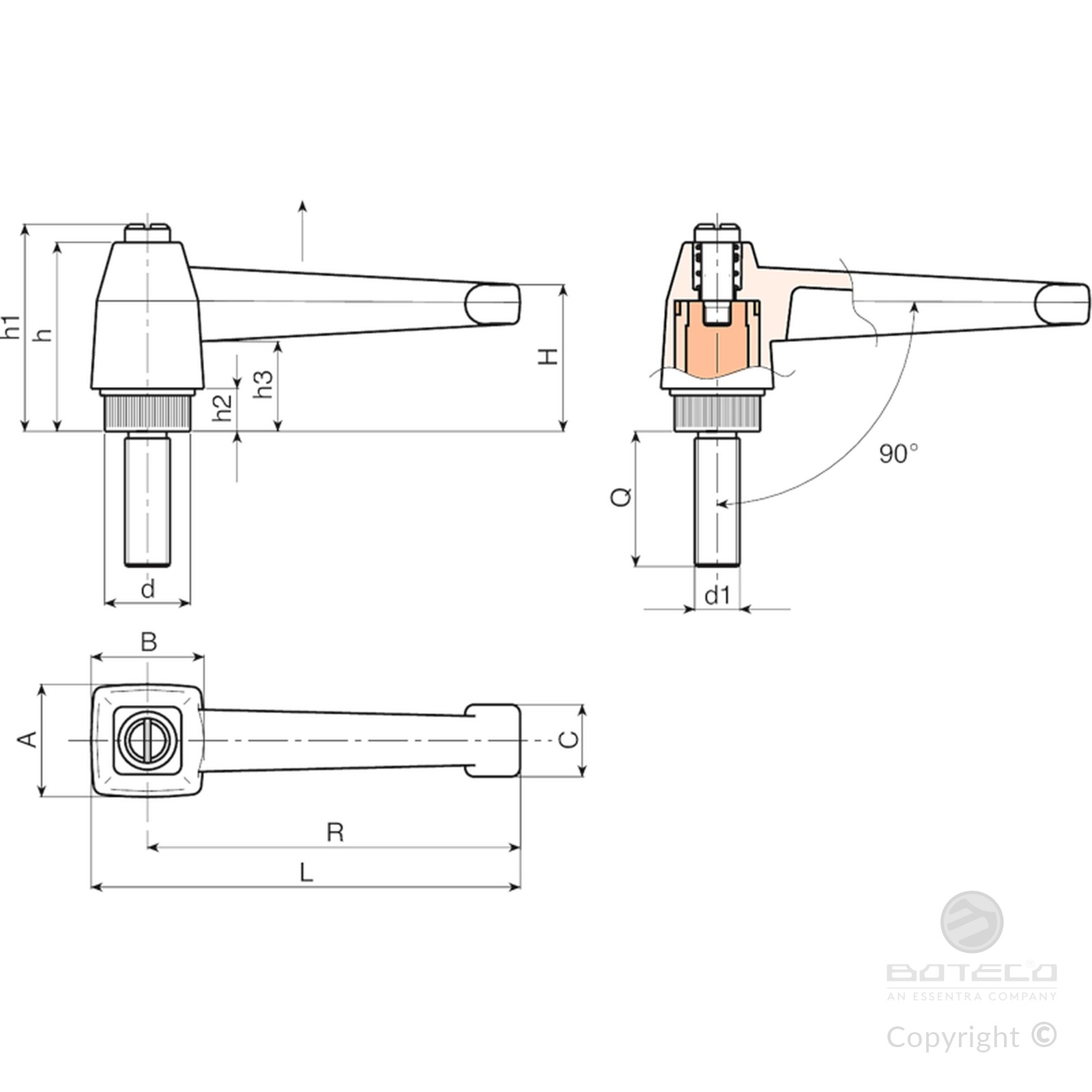

| Code | Art. | L | R | H | A | B | c | h | h1 | h2 | h3 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A573083.0001 | A573083.TM08X2001 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | 90 | M8 | 20 | 58 |
| A573083.0004 | A573083.TM08X4001 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | 90 | M8 | 40 | 64 |
| A573083.0009 | A573083.TM10X2001 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | 90 | M10 | 20 | 68 |
| A573083.0012 | A573083.TM10X4001 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | 90 | M10 | 40 | 76 |
| A573083.0021 | A573083.TM12X4001 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | 90 | M12 | 40 | 82 |
LM = Maximum mouldable length.
