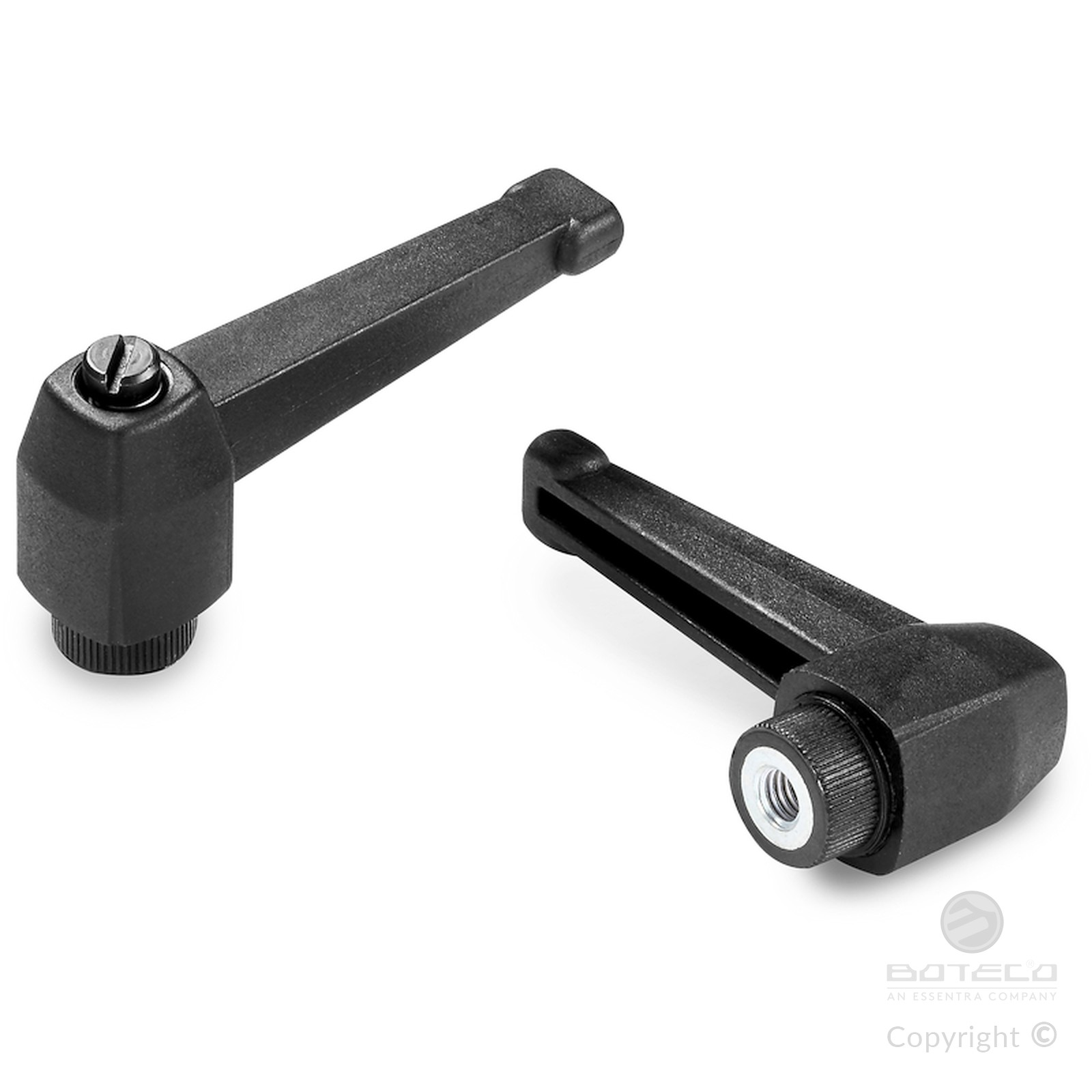

INDEXED CLAMPING LEVER WITH 90° ARM AND THREADED INSERT
01
A572
Leve a scatto con vite
Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Lever body and insert colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with female threaded hole (thread tolerance 6H).
Fixing screw:
Black oxide treated steel screw with slotted head.
Spring:
Stainless steel spring (Aisi 302).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

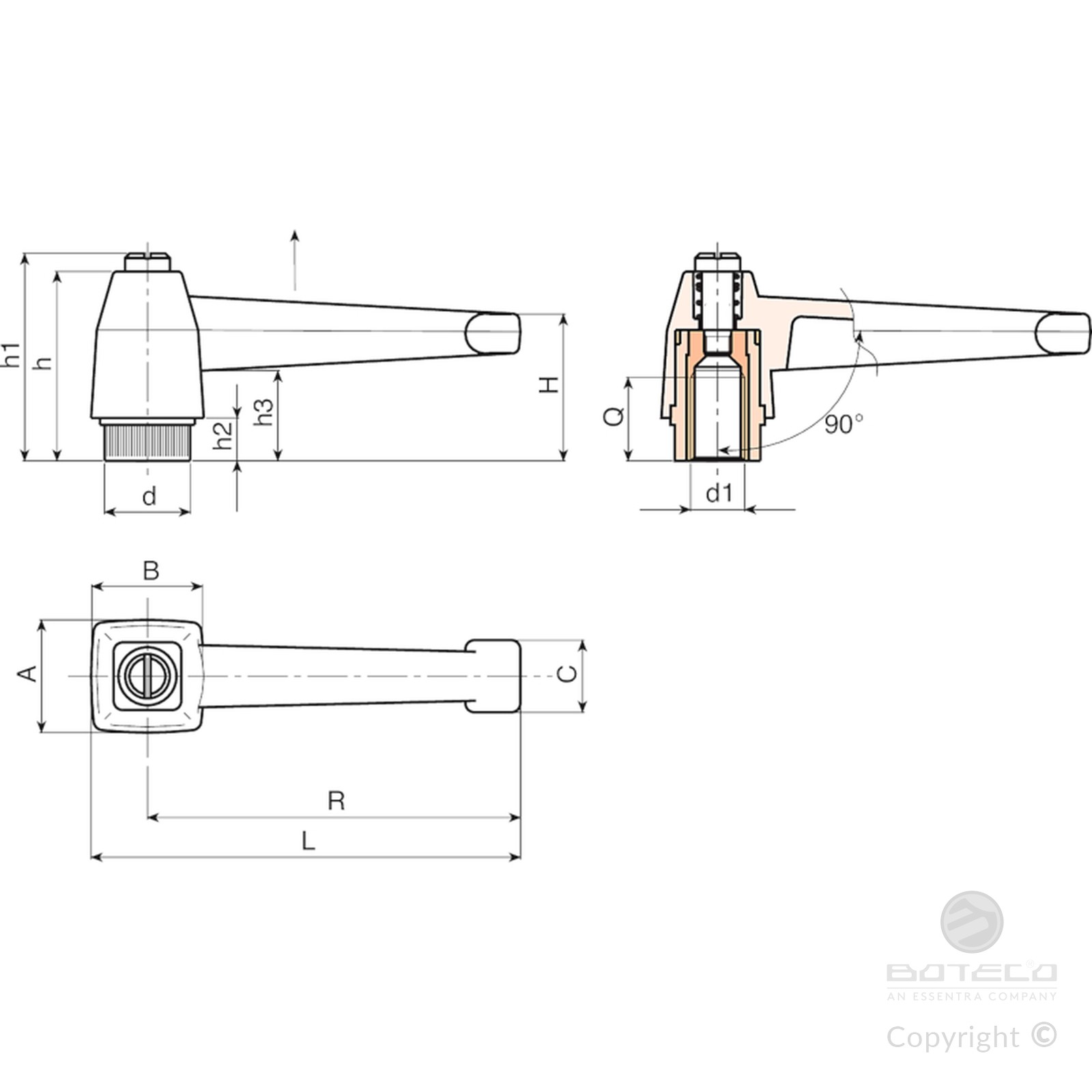

| Code | Art. | L | R | H | A | B | c | h | h1 | h2 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A572083.0001 | A572083.TM0801 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | M8 | 17 | 52 |
| A572083.0002 | A572083.TM1001 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | M10 | 17 | 48 |
| A572083.0003 | A572083.TM1201 | 94 | 83 | 33.5 | 25 | 25 | 16 | 42 | 47 | 10 | 21 | M12 | 16 | 48 |
