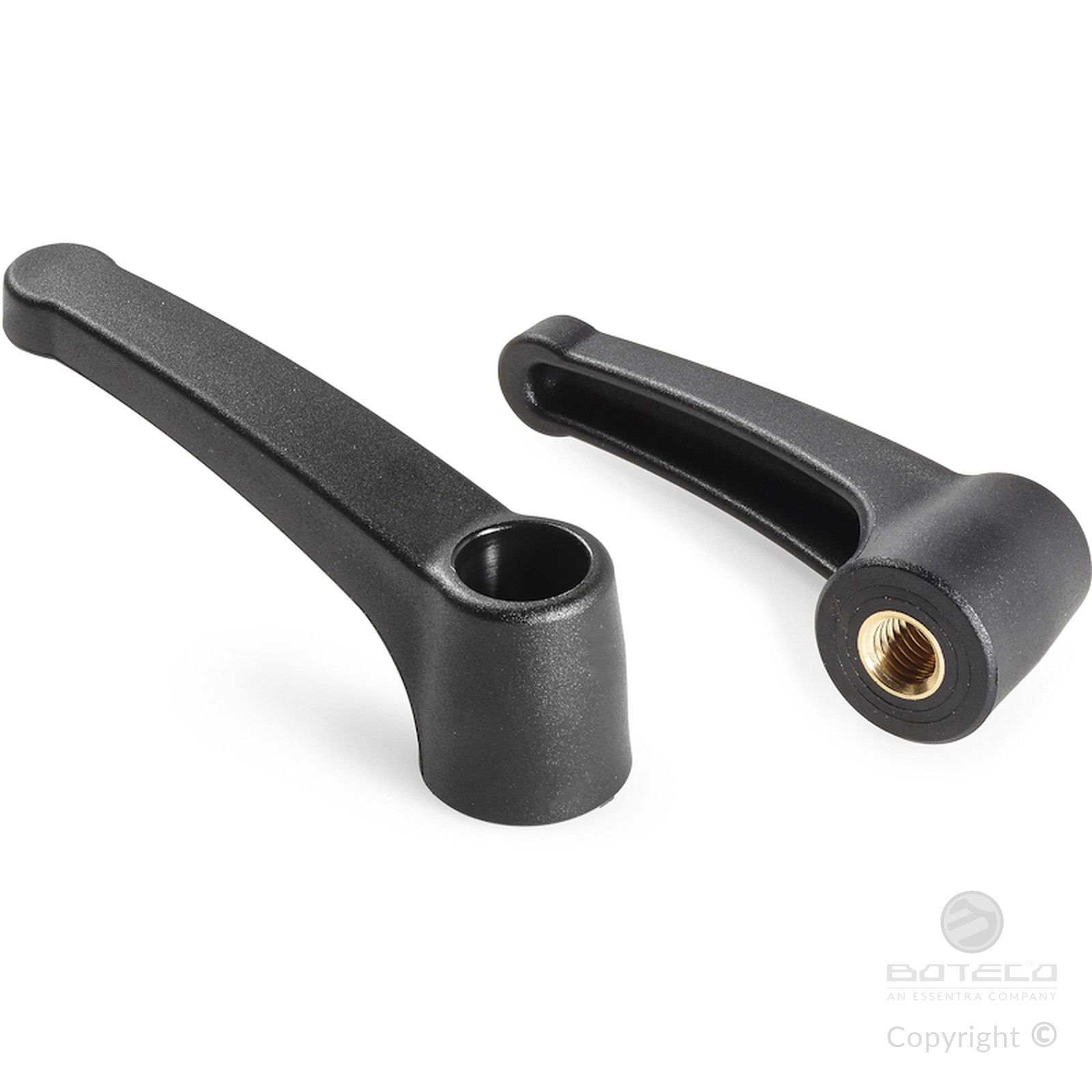

“EUROMODEL” FIXED LEVER WITH THREADED INSERT
01
A530
Leve fisse
Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

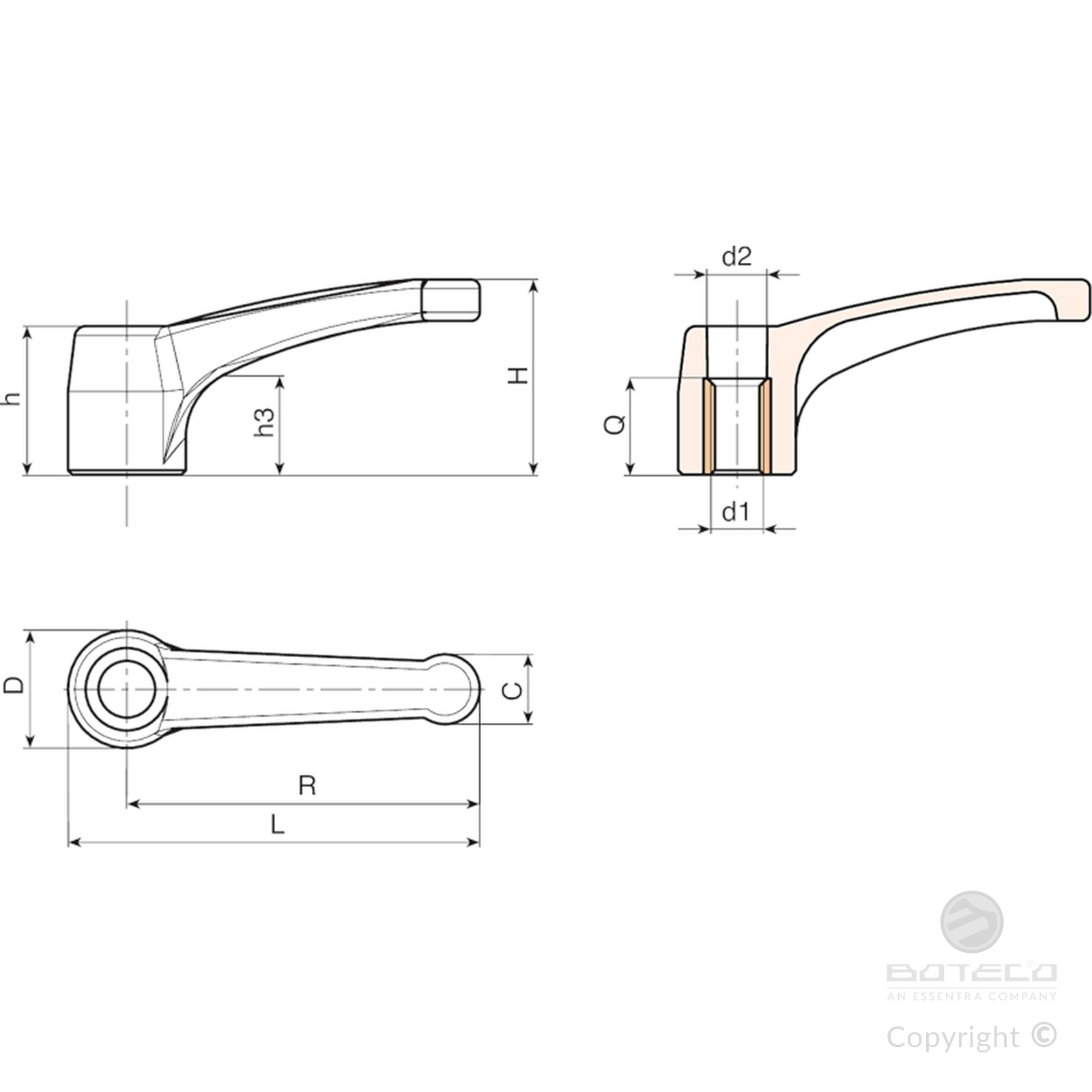

Code | Art. | L | R | H | D | c | h | h1 | d2 | d1 6H | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
A530094.0001 | A530094.TM1201 | 109 | 94 | 48.5 | 30 | 18 | 35.5 | 49 | 16 | M12 | 22 | 81 |
