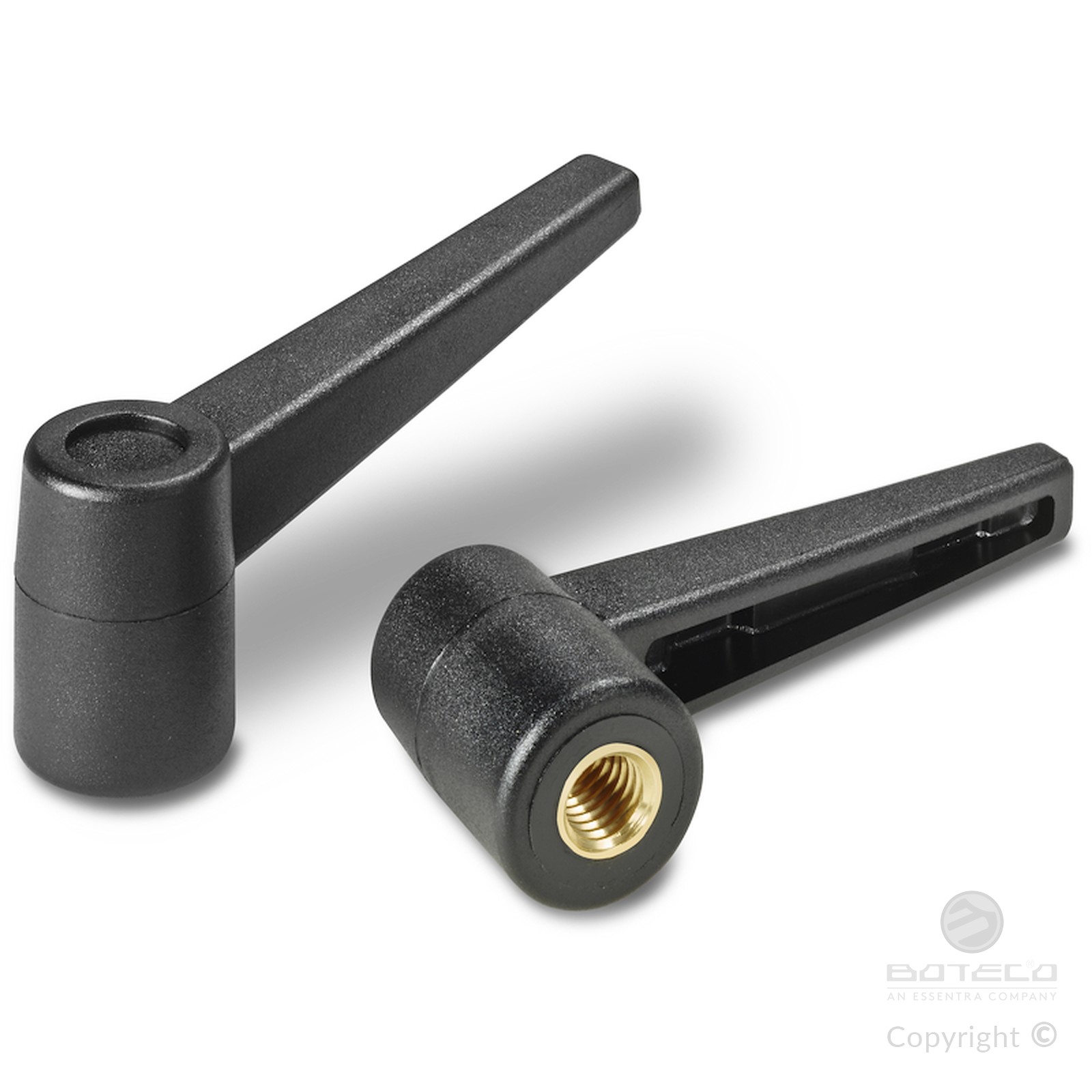

FIXED LEVER WITH THREADED INSERT
01
A528
Leve fisse
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

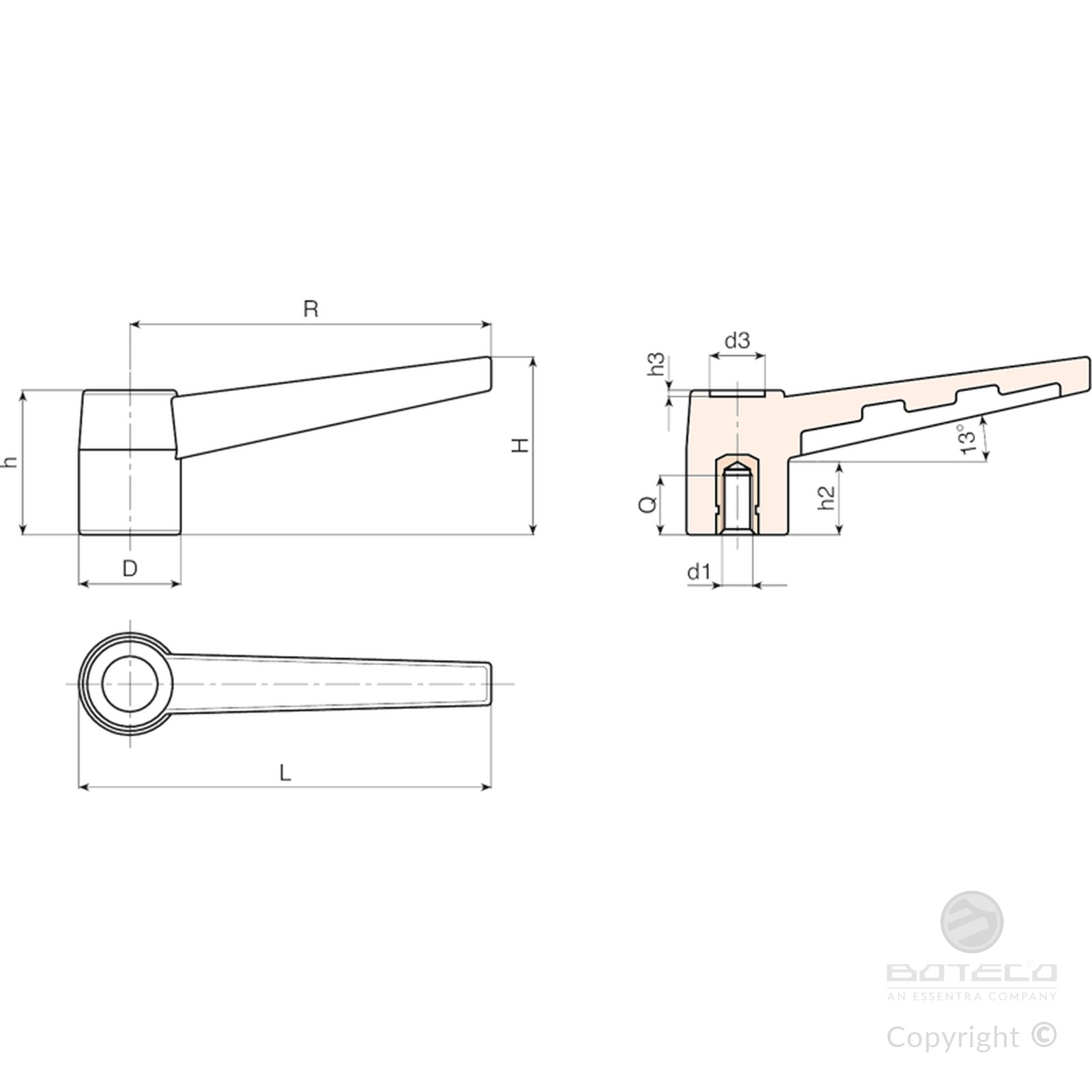

| Code | Art. | L | R | H | D | h | h2 | h3 | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A52843.0001 | A52843.TM0501 | 50 | 43 | 21.5 | 15 | 19 | 9 | 1 | 7 | M5 | 10 | 8 |
| A52843.0002 | A52843.TM0601 | 50 | 43 | 21.5 | 15 | 19 | 9 | 1 | 7 | M6 | 10 | 8 |
| A52868.0001 | A52868.TM0601 | 78 | 68 | 36 | 21 | 28.5 | 11 | 2 | 10 | M6 | 10 | 24 |
| A52868.0002 | A52868.TM0801 | 78 | 68 | 36 | 21 | 28.5 | 11 | 2 | 10 | M8 | 15 | 22 |
| A52883.0001 | A52883.TM0601 | 93 | 83 | 40 | 24 | 34 | 18 | 2 | 13 | M6 | 10 | 30 |
| A52883.0002 | A52883.TM0801 | 93 | 83 | 40 | 24 | 34 | 18 | 2 | 13 | M8 | 15 | 32 |
| A52883.0003 | A52883.TM1001 | 93 | 83 | 40 | 24 | 34 | 18 | 2 | 13 | M10 | 14 | 32 |
