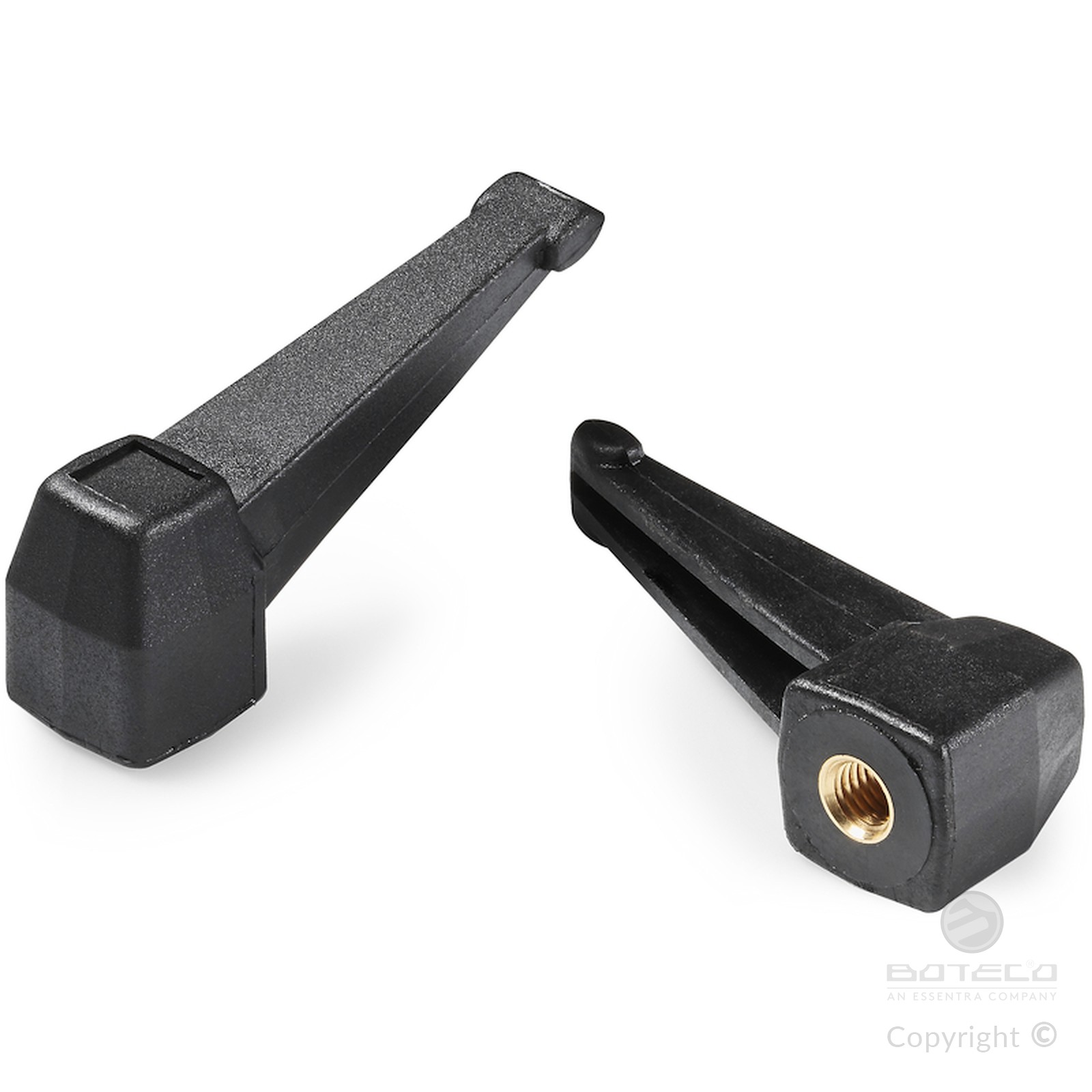

FIXED LEVER WITH THREADED INSERT
01
A524
Leve fisse
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
(*) Galvanised steel insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.

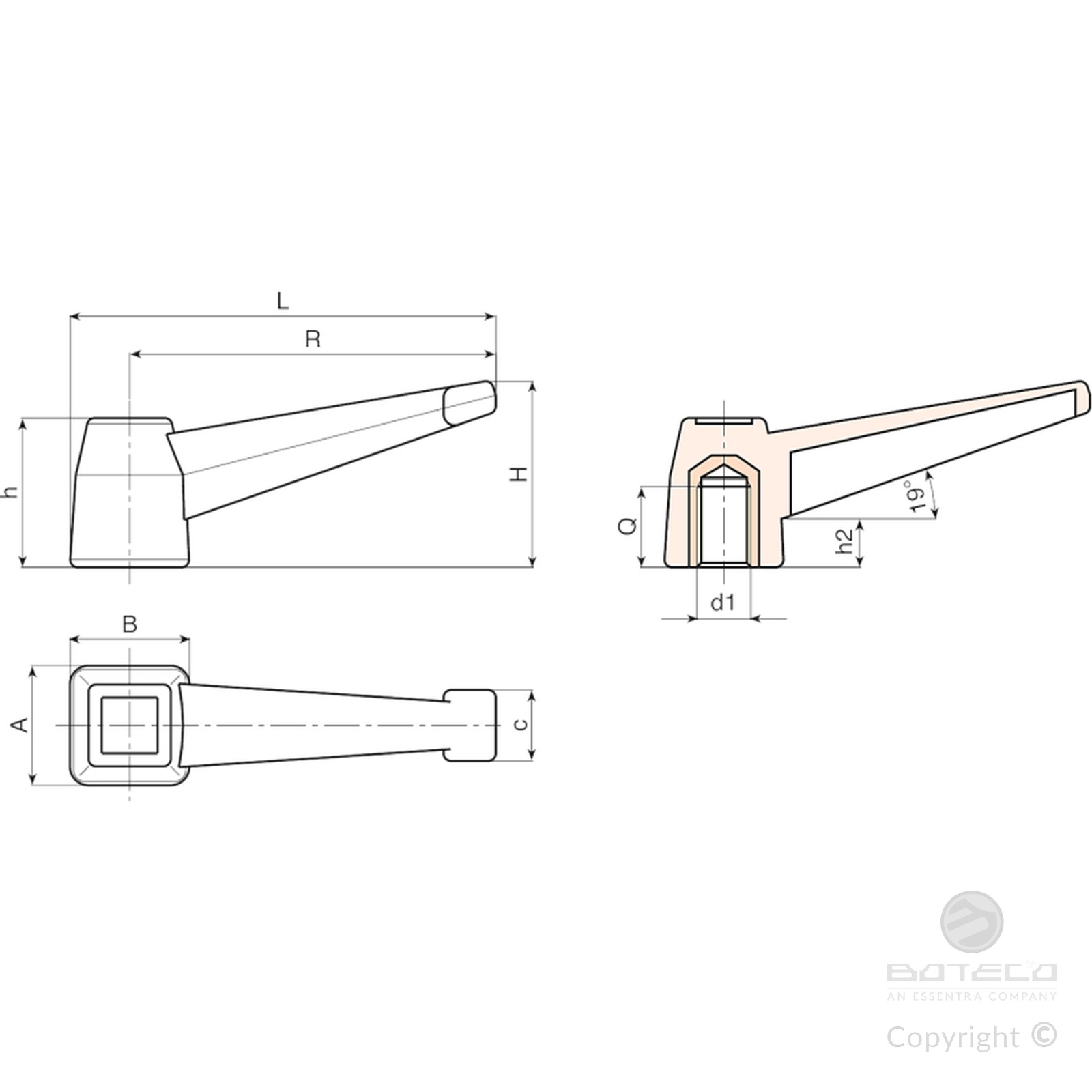

| Code | Art. | L | R | H | A | B | c | h | h2 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A52498.0001 | A52498.TM1201 | 112 | 96 | 51 | 32 | 32 | 19 | 40 | 12 | M12 | 19 | 64 |
| A52498.0002 | A52498.TM1401 | 112 | 96 | 51 | 32 | 32 | 19 | 40 | 12 | M14 | 19 | 68 |
| A52498.0003 | A52498.TM1601 | 112 | 96 | 51 | 32 | 32 | 19 | 40 | 12 | (*) M16 | 16 | 80 |
