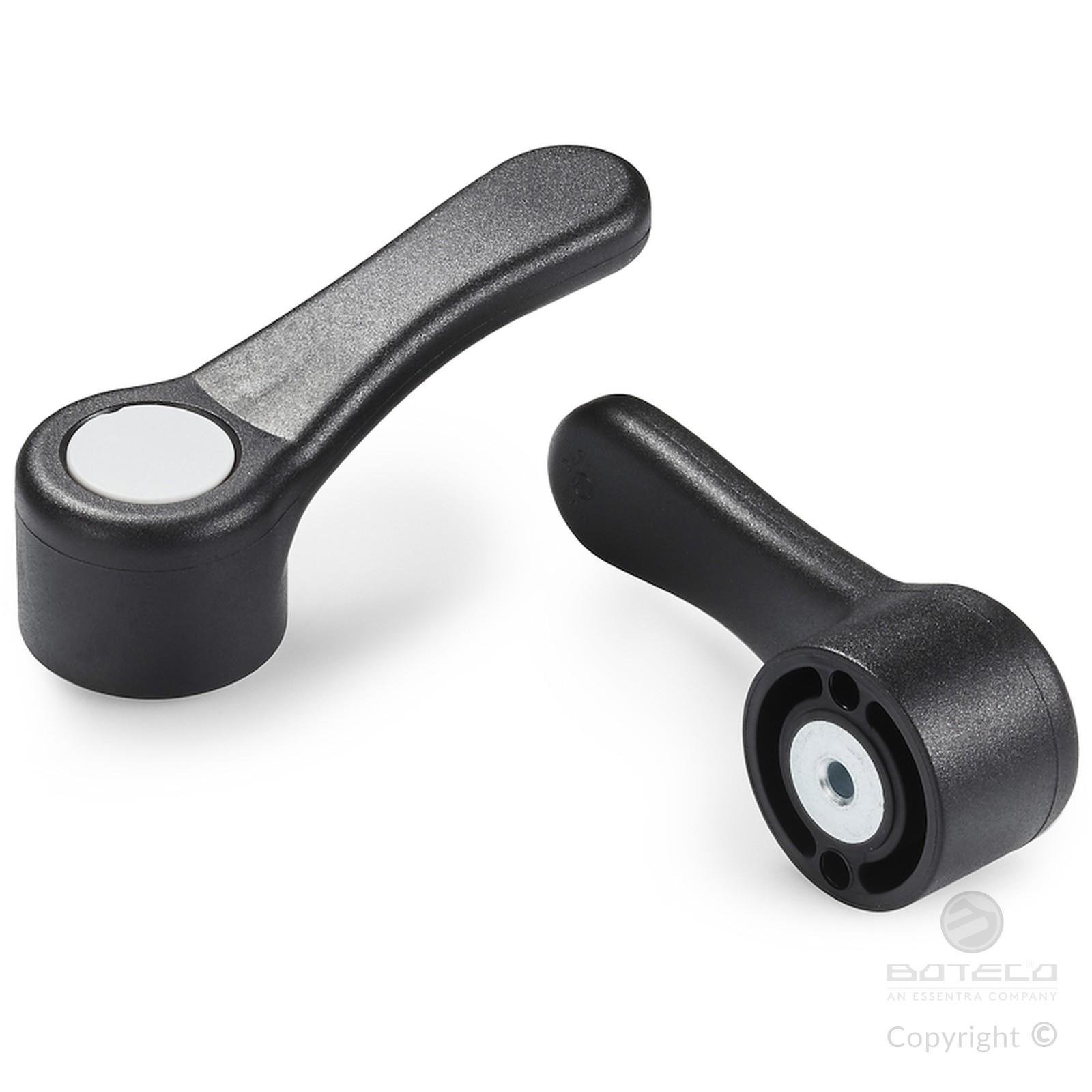

“EUROMODEL” FIXED LEVER WITH SMOOTH INSERT
A151
Leve fisse
Materials:
Special technopolymer reinforced with high-strength glass fiber.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Central cap in grey polyamide (RAL 7035).
Inserts:
Galvanised steel insert with smooth through bore (tolerance H10).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Special requests:
Upon request balls and fixing springs (galvanised steel).
Upon request and for special quantities inserts can be supplied with custom diameter d1.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities inserts can be supplied with a different treatment.
Upon request and for special quantities available in the colours indicated in the chart.

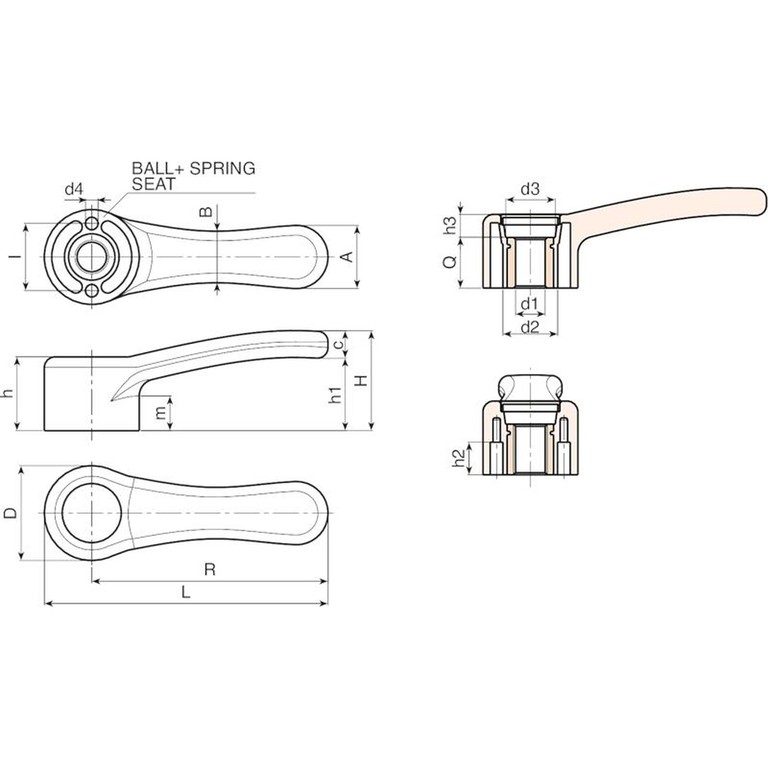

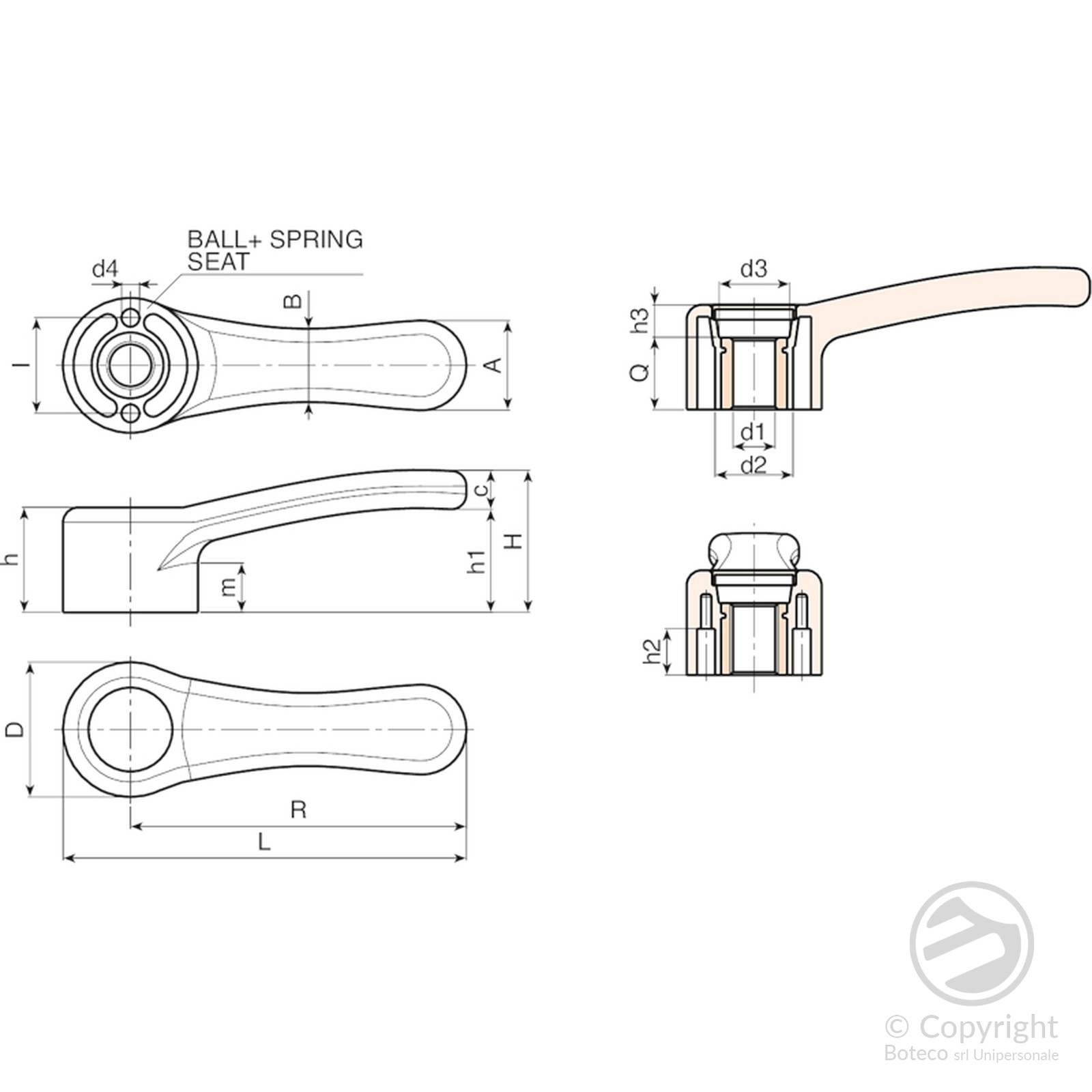

Code | Art. | L | R | D | H | h | h1 | h2 | h3 | m | I | A | B | c | d2 | d3 | d4 | dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A151068.0001 | A151068.TD0501 | 84.5 | 68 | 33 | 37 | 25 | 27 | 11.5 | 9 | 12 | 24 | 20 | 17 | 10 | 20 | 16 | 4 | 10 | 5 | 16 | 45 |
A151068.0009 | A151068.TD1001 | 84.5 | 68 | 33 | 37 | 25 | 27 | 11.5 | 9 | 12 | 24 | 20 | 17 | 10 | 20 | 16 | 4 | 10 | 10 | 16 | 44 |
A151086.0001 | A151086.TD0501 | 104 | 86 | 36 | 40 | 28 | 29 | 14 | 12 | 13 | 26 | 24 | 19 | 11 | 22 | 18 | 5 | 12 | 5 | 16 | 65 |
A151086.0003 | A151086.TD0801 | 104 | 86 | 36 | 40 | 28 | 29 | 14 | 12 | 13 | 26 | 24 | 19 | 11 | 22 | 18 | 5 | 12 | 8 | 16 | 63 |
A151086.0006 | A151086.TD1001 | 104 | 86 | 36 | 40 | 28 | 29 | 14 | 12 | 13 | 26 | 24 | 19 | 11 | 22 | 18 | 5 | 12 | 10 | 16 | 61 |
A151086.0008 | A151086.TD1201 | 104 | 86 | 36 | 40 | 28 | 29 | 14 | 12 | 13 | 26 | 24 | 19 | 11 | 22 | 18 | 5 | 12 | 12 | 16 | 59 |
A151112.0001 | A151112.TD0501 | 134.5 | 112 | 45 | 47 | 36 | 35 | 14.5 | 12 | 16 | 32 | 30 | 24 | 13 | 26 | 23.5 | 6 | 16 | 5 | 24 | 128 |
A151112.0005 | A151112.TD1201 | 134.5 | 112 | 45 | 47 | 36 | 35 | 14.5 | 12 | 16 | 32 | 30 | 24 | 13 | 26 | 23.5 | 6 | 16 | 12 | 24 | 124 |
A151142.0001 | A151142.TD0501 | 169.5 | 142 | 55 | 52 | 40 | 36 | 18 | 13 | 17.5 | 40 | 37 | 30 | 16 | 32 | 28 | 8 | 20 | 5 | 27 | 250 |
