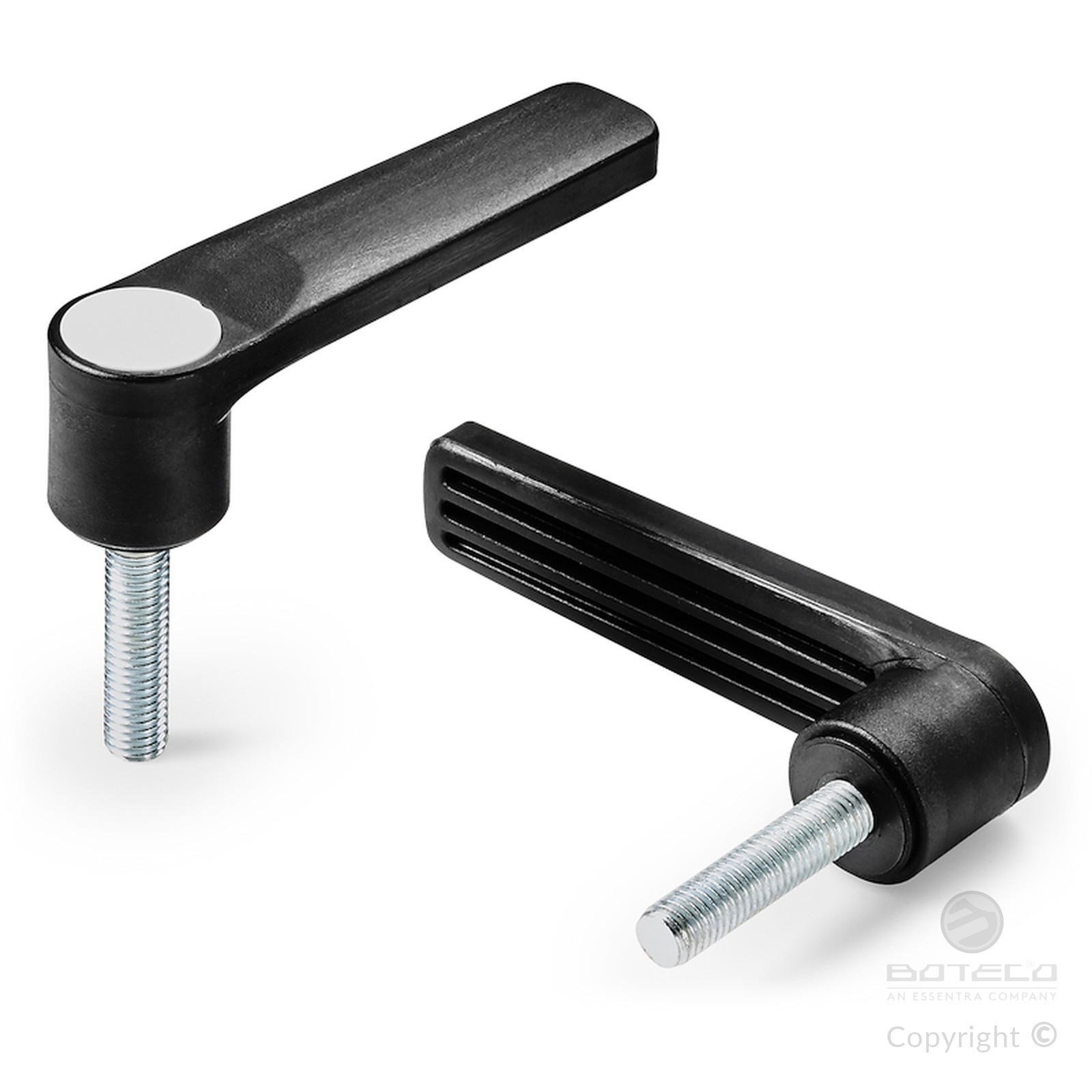

LOCKING HANDLE WITH THREADED STUD
01
A149
Leve fisse
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Central cap in grey polyamide (RAL 7035).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.

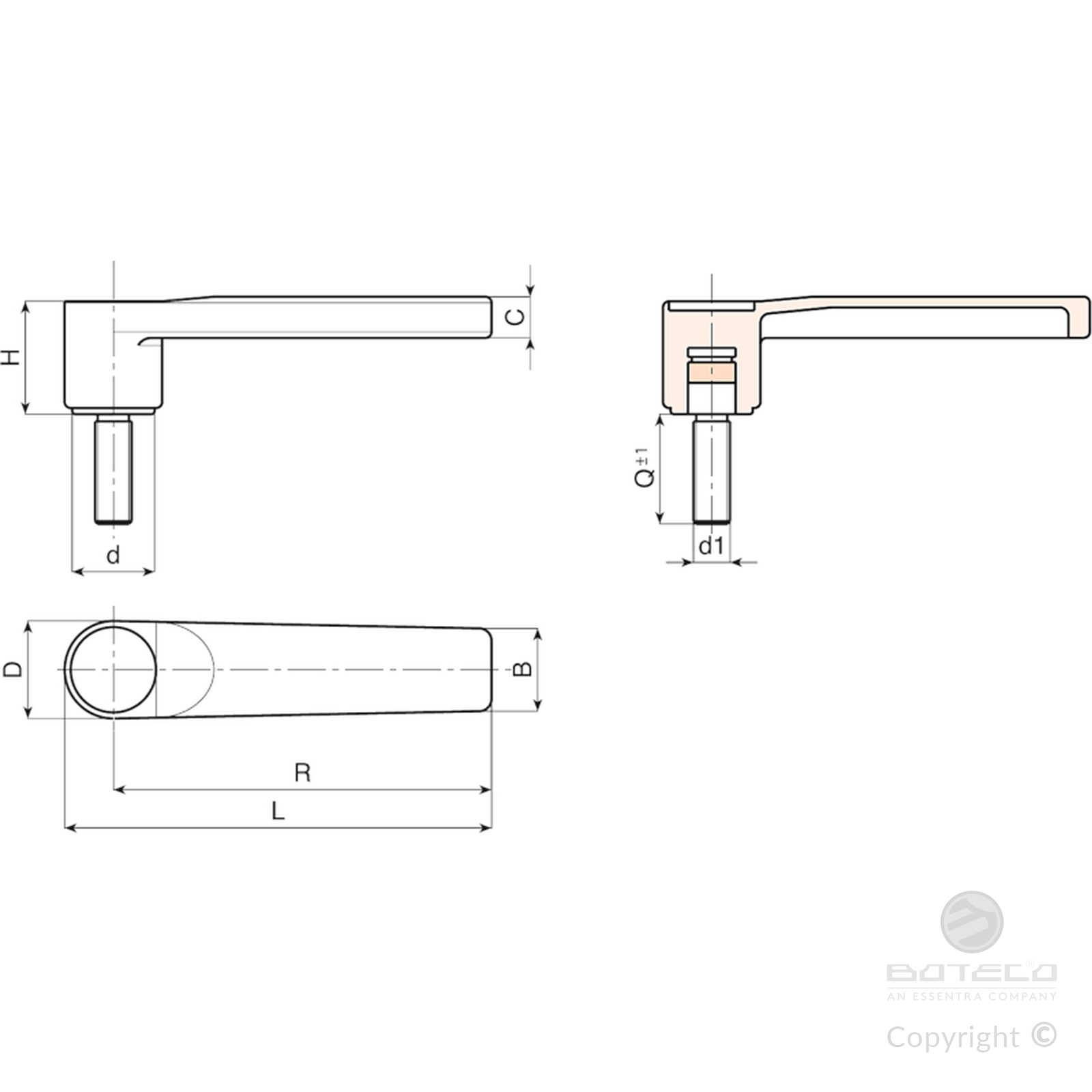

| Code | Art. | L | R | H | D | c | B | h1 | d | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A149125.0005 | A149125.TM12X2001 | 139 | 125 | 37 | 31 | 13 | 26 | 35 | 27.5 | 50 | M12 | 20 | 111 |
Customised stud length available for a minimum of 150 pieces.
LM = Maximum mouldable length.
