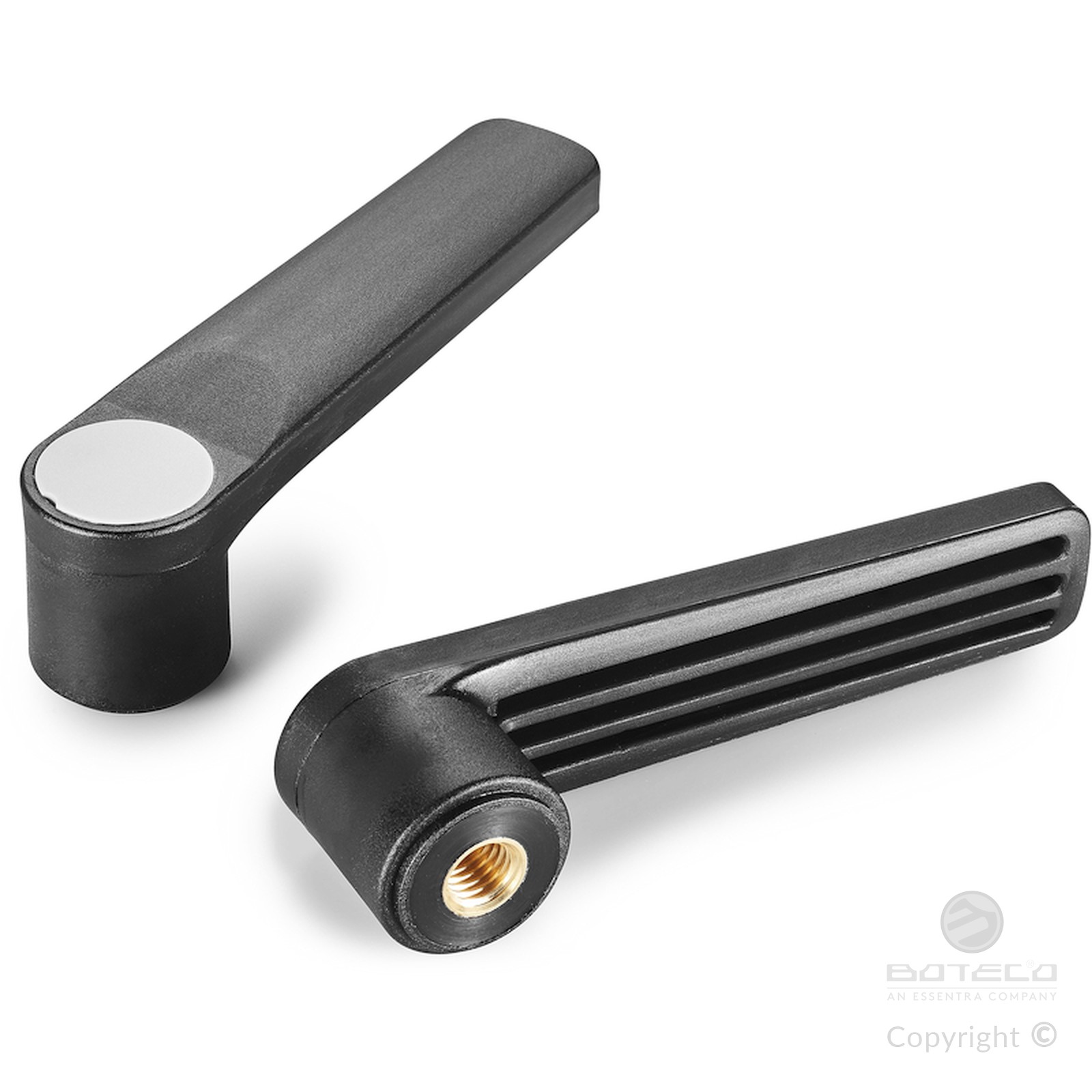

LOCKING HANDLE WITH THREADED INSERT
01
A148
Leve fisse
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Central cap in grey polyamide (RAL 7035).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.

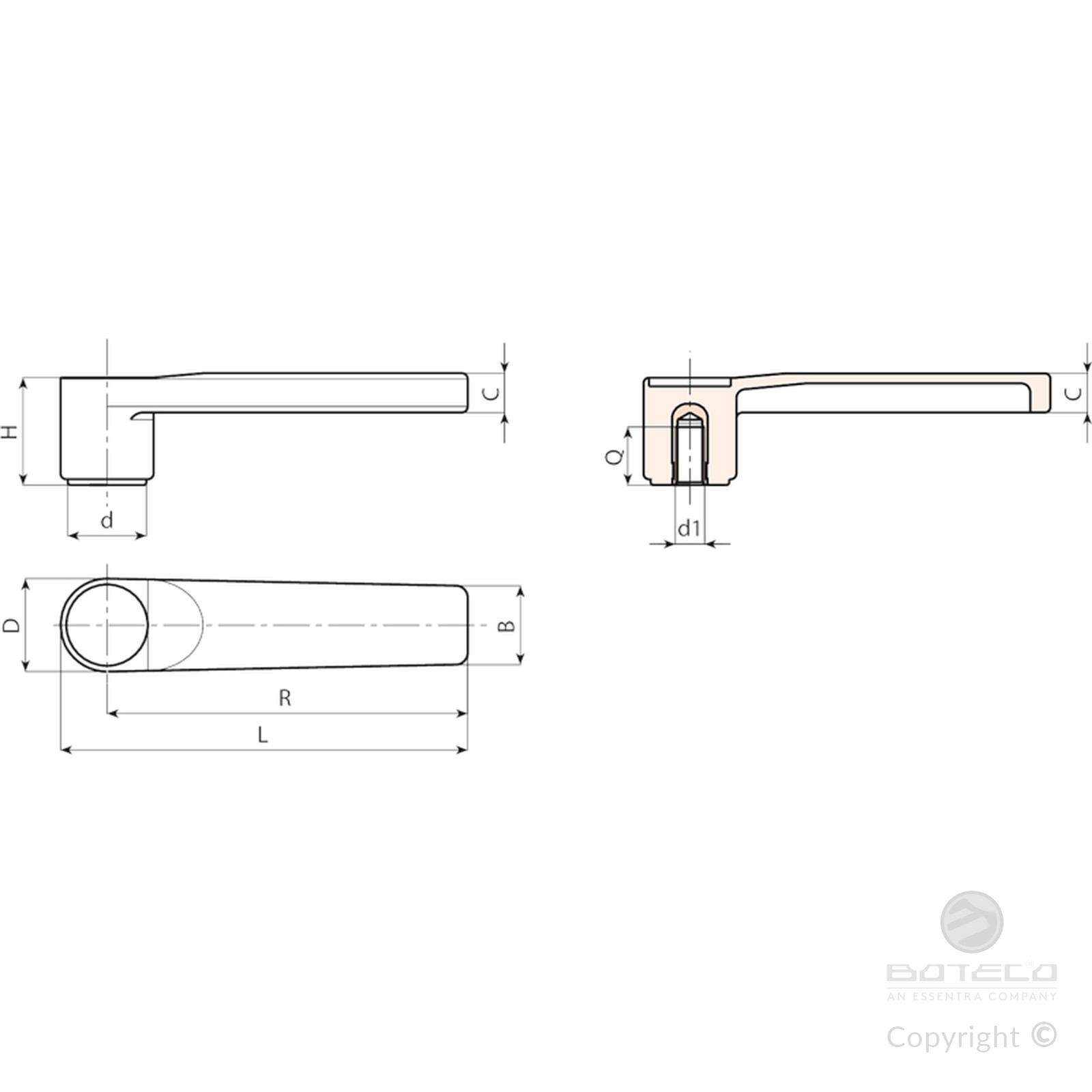

| Code | Art. | L | R | H | D | c | B | h1 | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A148125.0002 | A148125.TM1001 | 139 | 125 | 37 | 31 | 13 | 26 | 35 | 27.5 | M10 | 20 | 78 |
| A148125.0004 | A148125.TM1201 | 139 | 125 | 37 | 31 | 13 | 26 | 35 | 27.5 | M12 | 18 | 84 |
