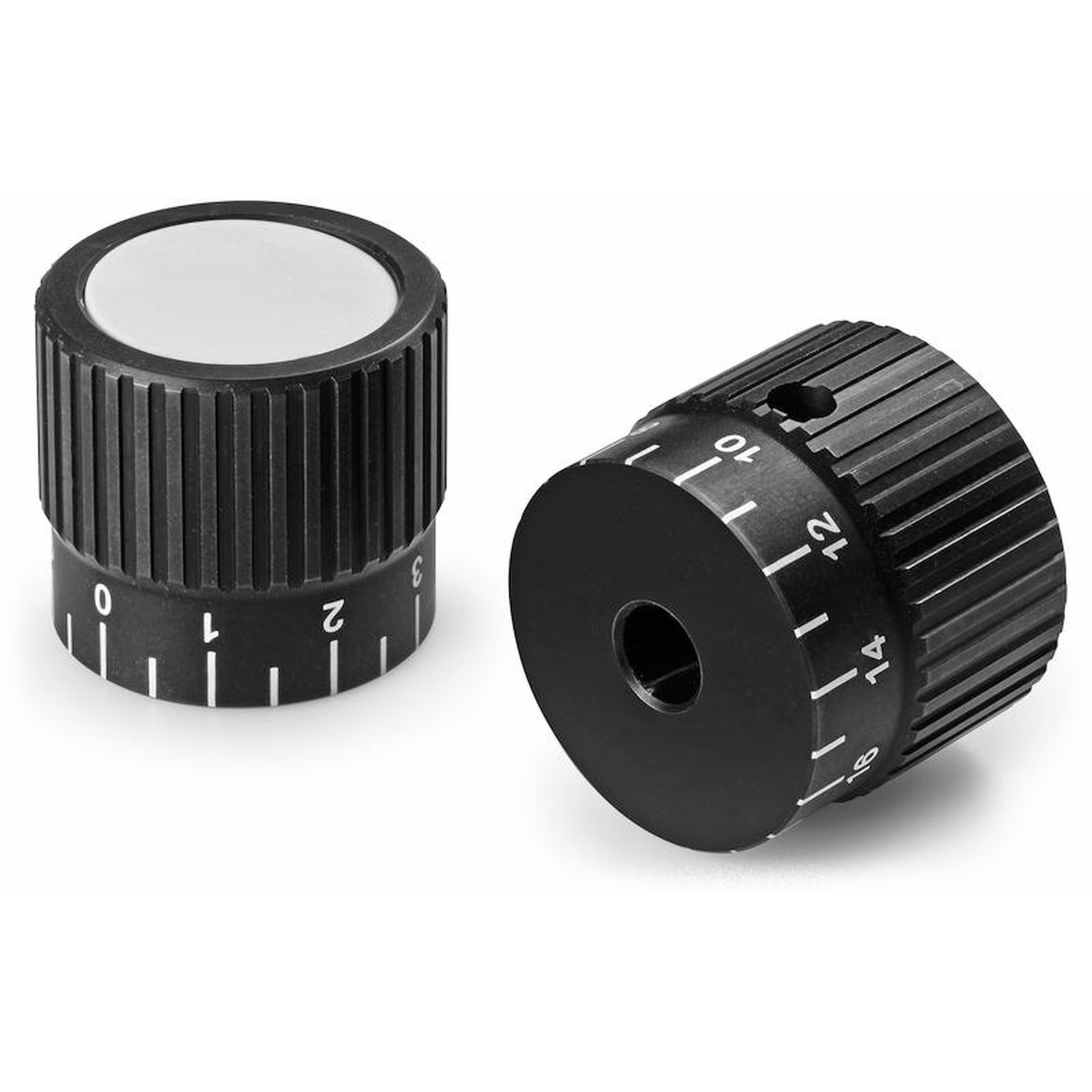

KNURLED ALUMINIUM CONTROL KNOB WITH NUMBERS
14
W995
Metalline Pomelli
Materials:
Aluminium (alloy AL 6060).
Surface finish:
Turned with low roughness.
Colour:
Anodized black.
Cap:
Central cap in grey polyamide (RAL 7035 code 13).
Grub screw:
Stainless steel 304 grub screw M05x6 with cup point DIN 916.
Hole:
Smooth through hole, remachined with H7 tolerance.
Graduations and numbers:
Graduations and numbers engraved on the smooth part of the knob. Natural aluminium colour.
Z1= Scale 0-10 with 20 graduations.
Z2= Scale 0-20 with 20 graduations.
Special Requests:
Upon request and for special quantities control knobs can be supplied to customer’s drawing with hole diameter d1.

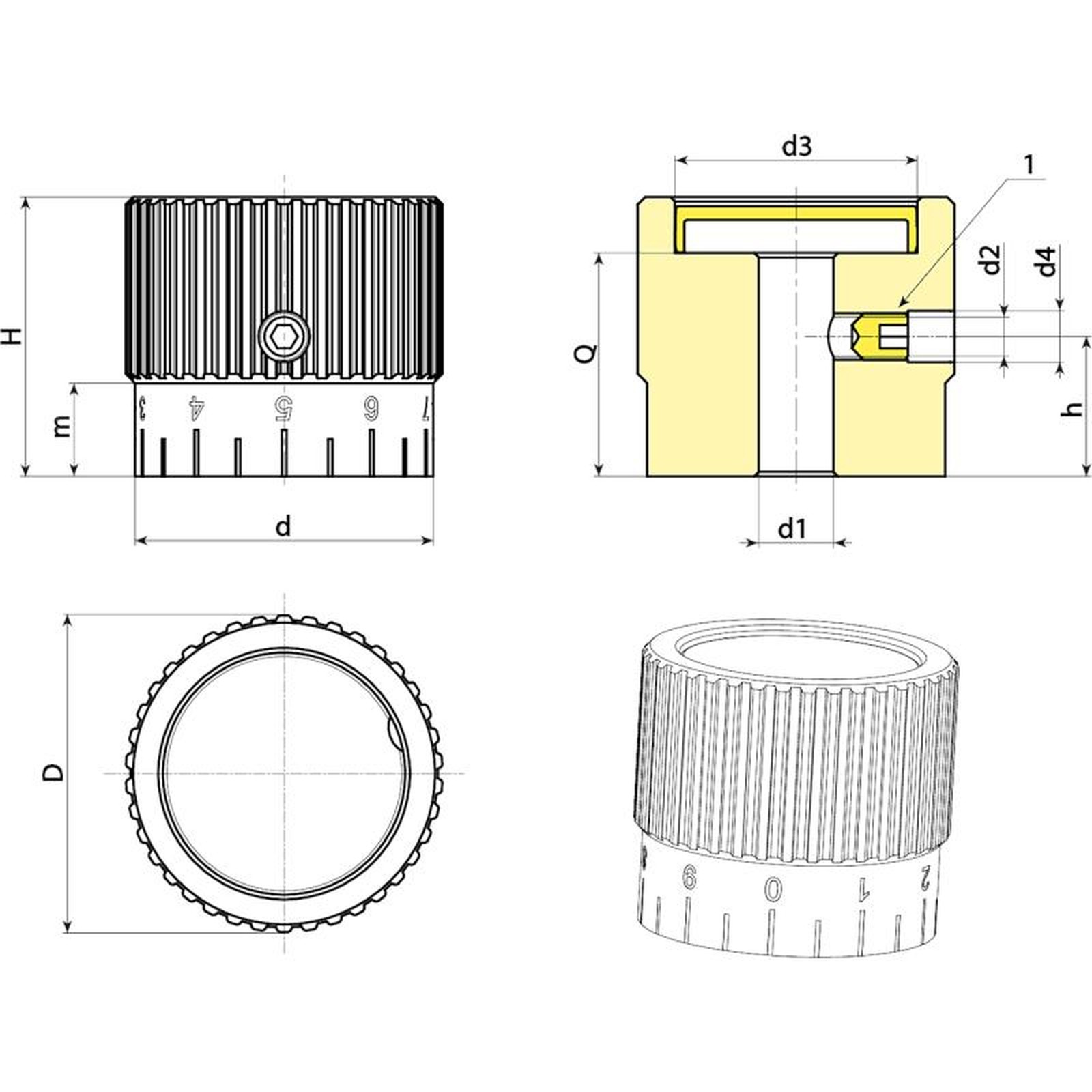

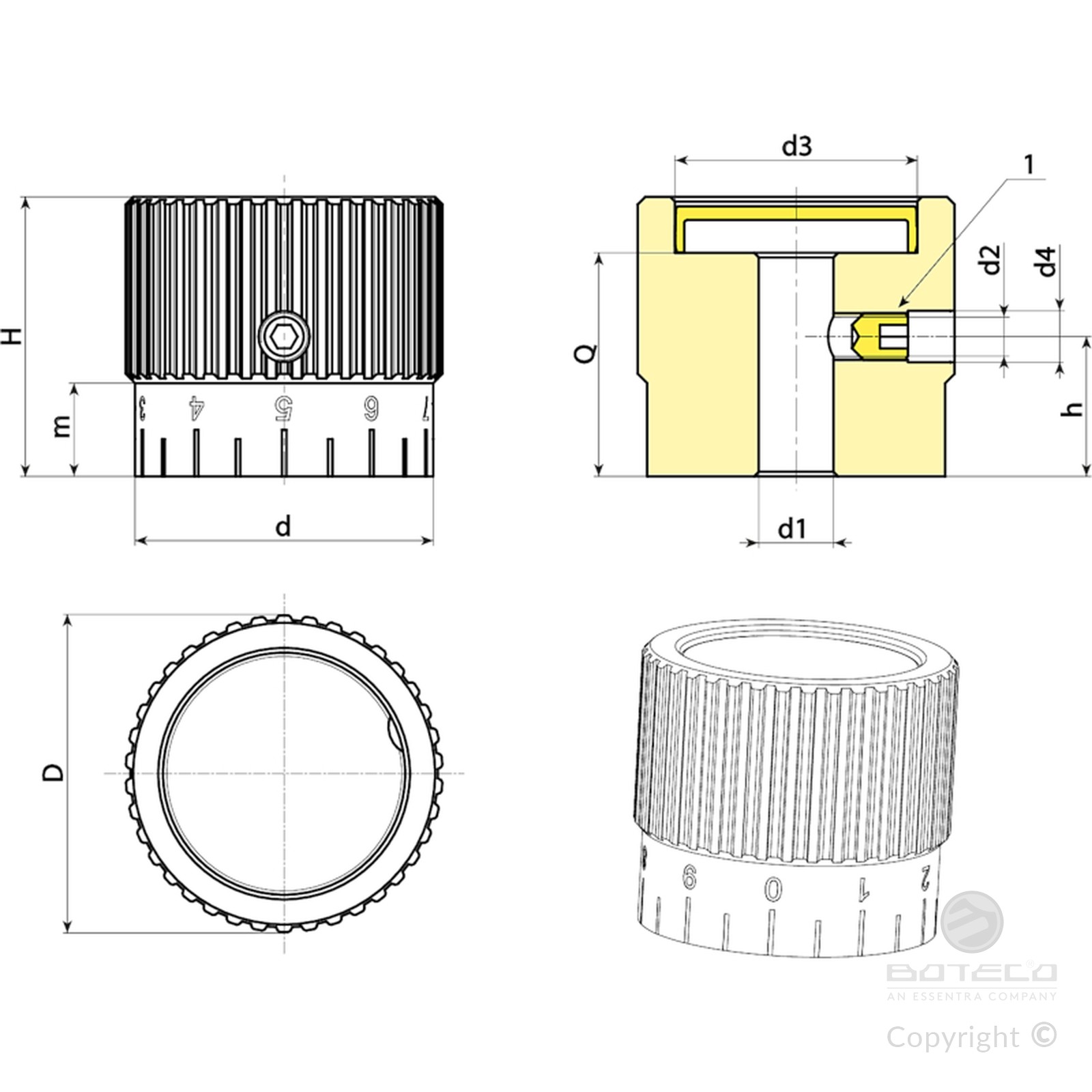

| Code | Art. | D | d | H | m | h | d2 | d3 | d4 | d1 H7 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W99534.0004 | W99534.AD0813Z1 | 34 | 32 | 30 | 10 | 15 | M5 | 26 | 5.5 | 8 | 24 | 100 |
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H7).
