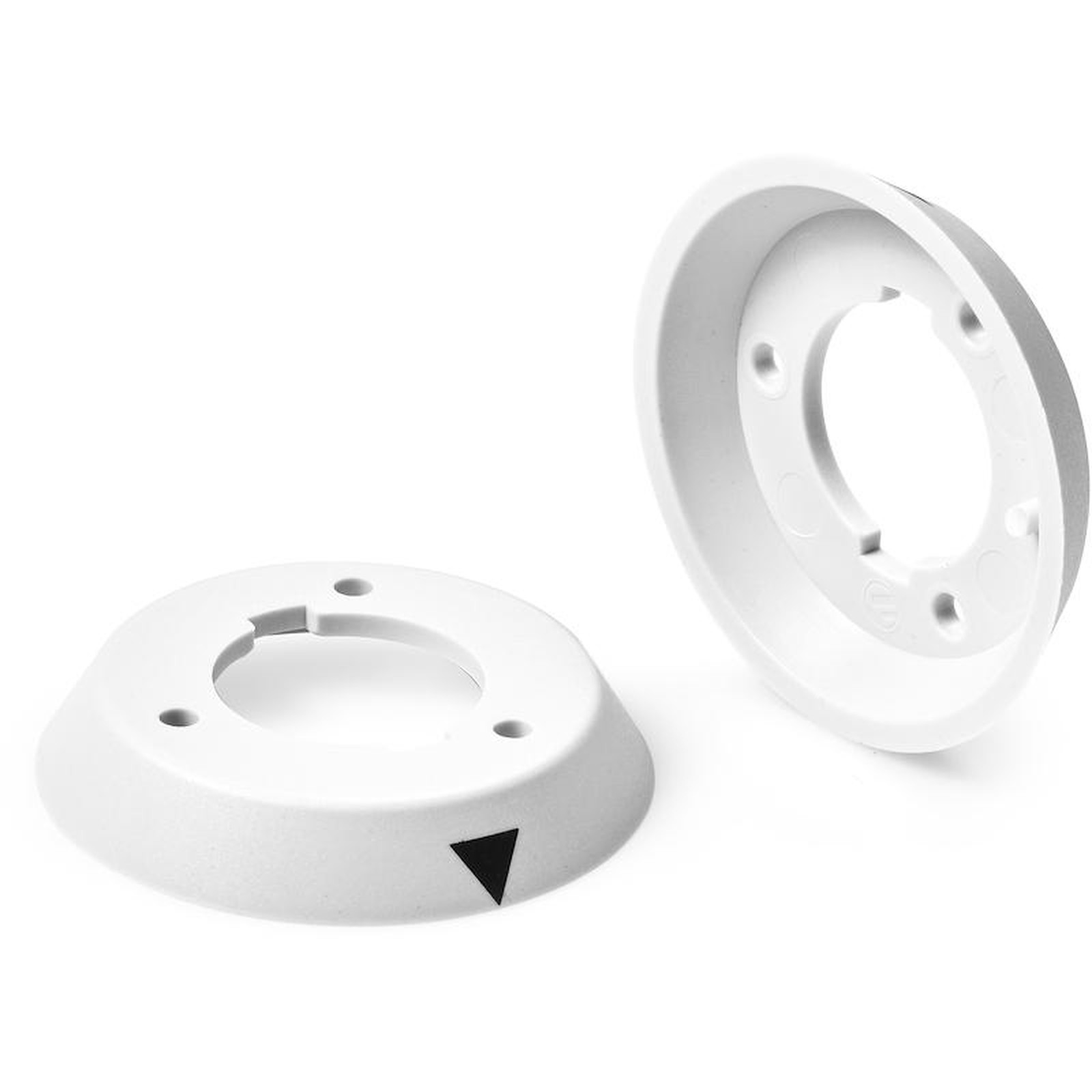

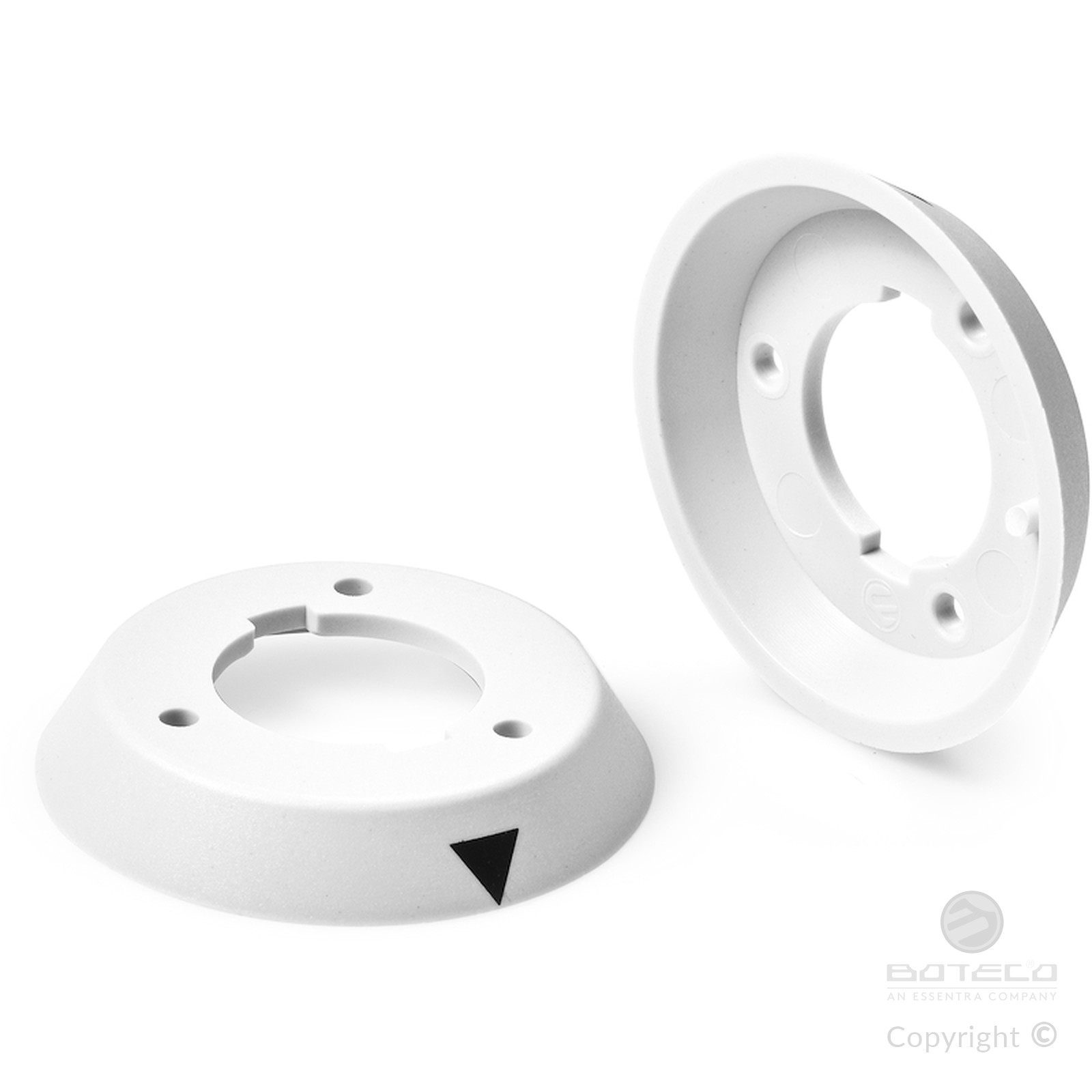

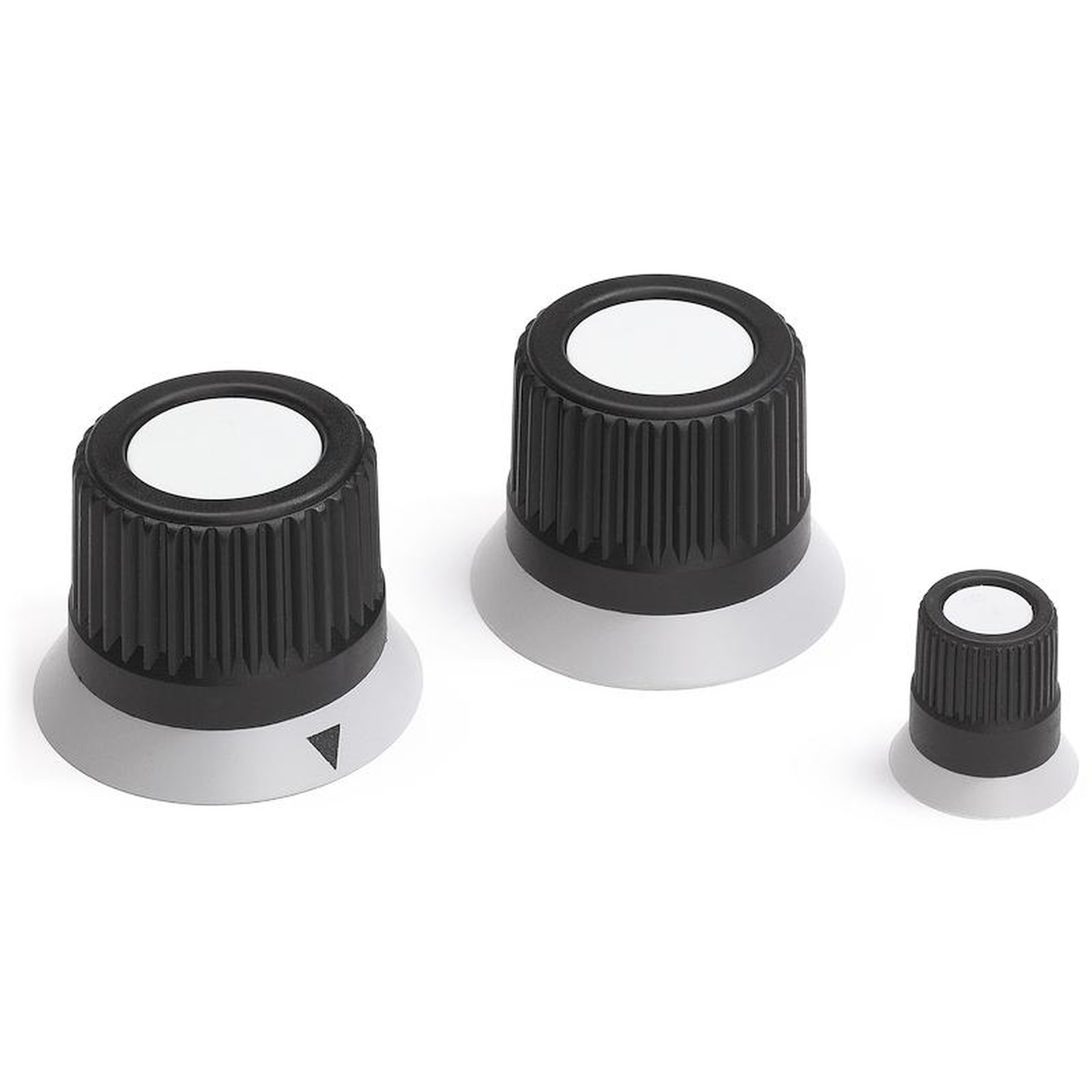

FLANGE FOR CONTROL KNOB (N245-N246-N248)
14
NFLAN
Manicotti con numerazione
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Grey (RAL 7035 cod. 13).

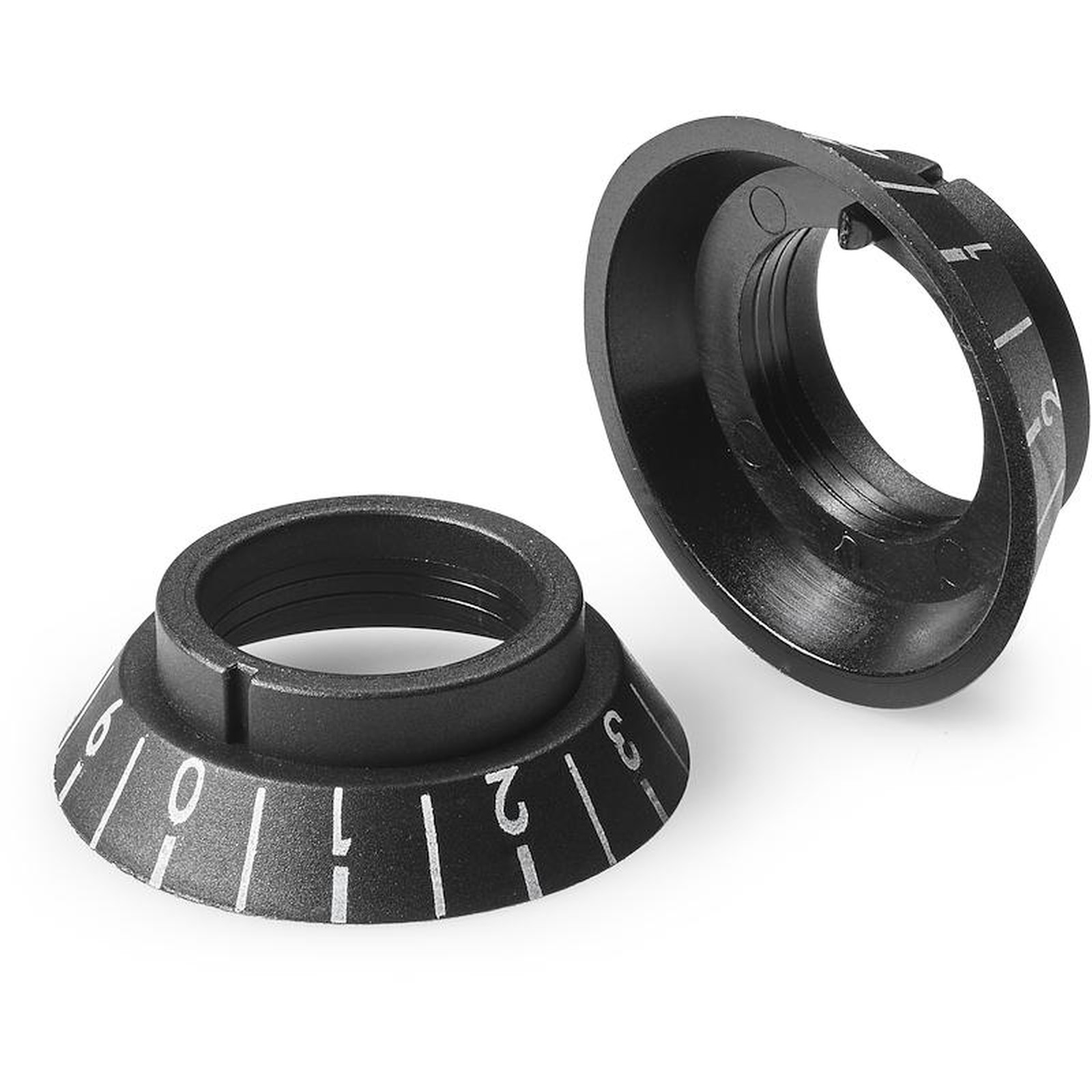

Scale:
Black pad-printed.
Fixing screws:
3 galvanised self-tapping screws 2.9x9.5 UNI6954.
Special requests:
Upon request the flange can be supplied in black. With white graduated scale.
Upon request and for special quantities graduated scale to customer’s drawing.

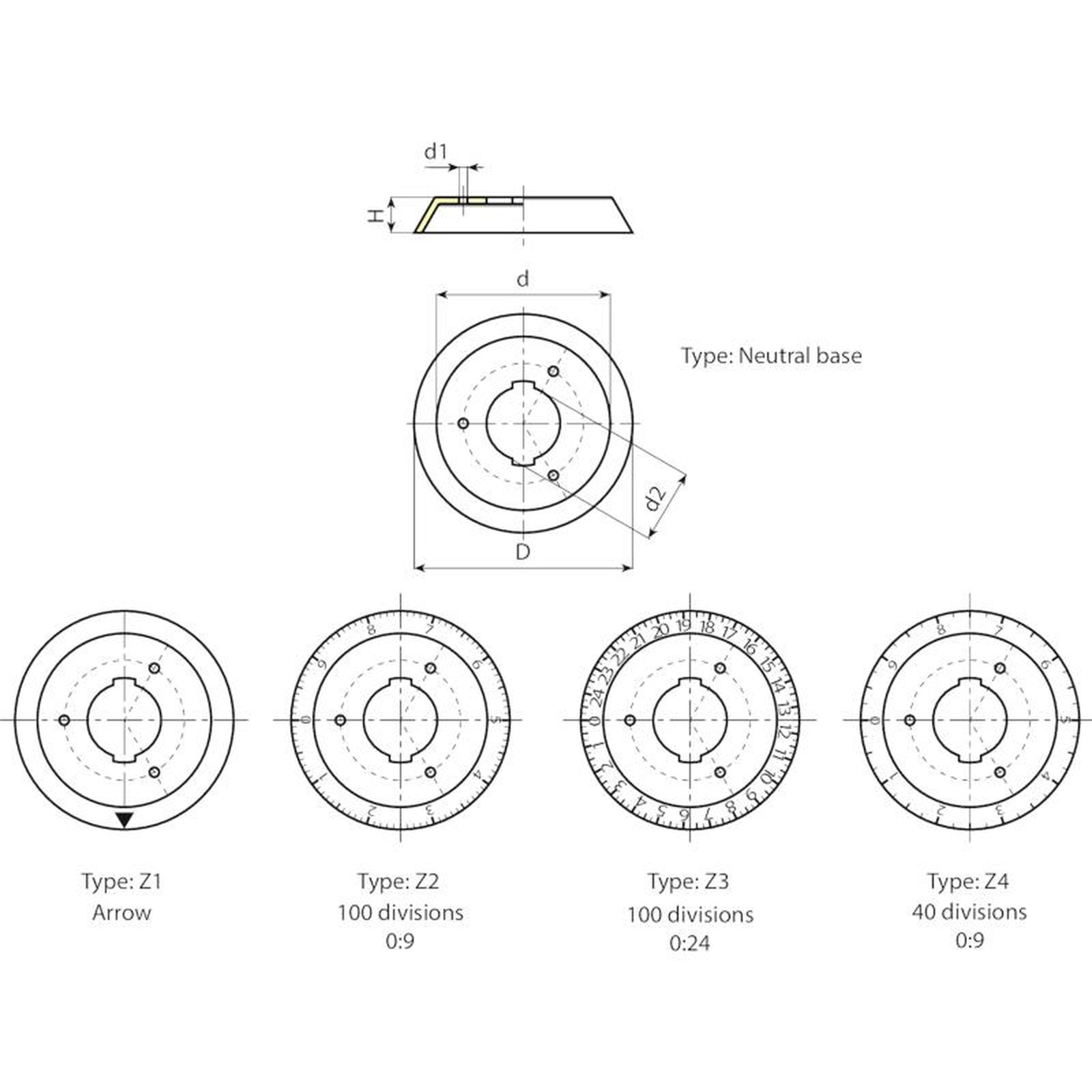

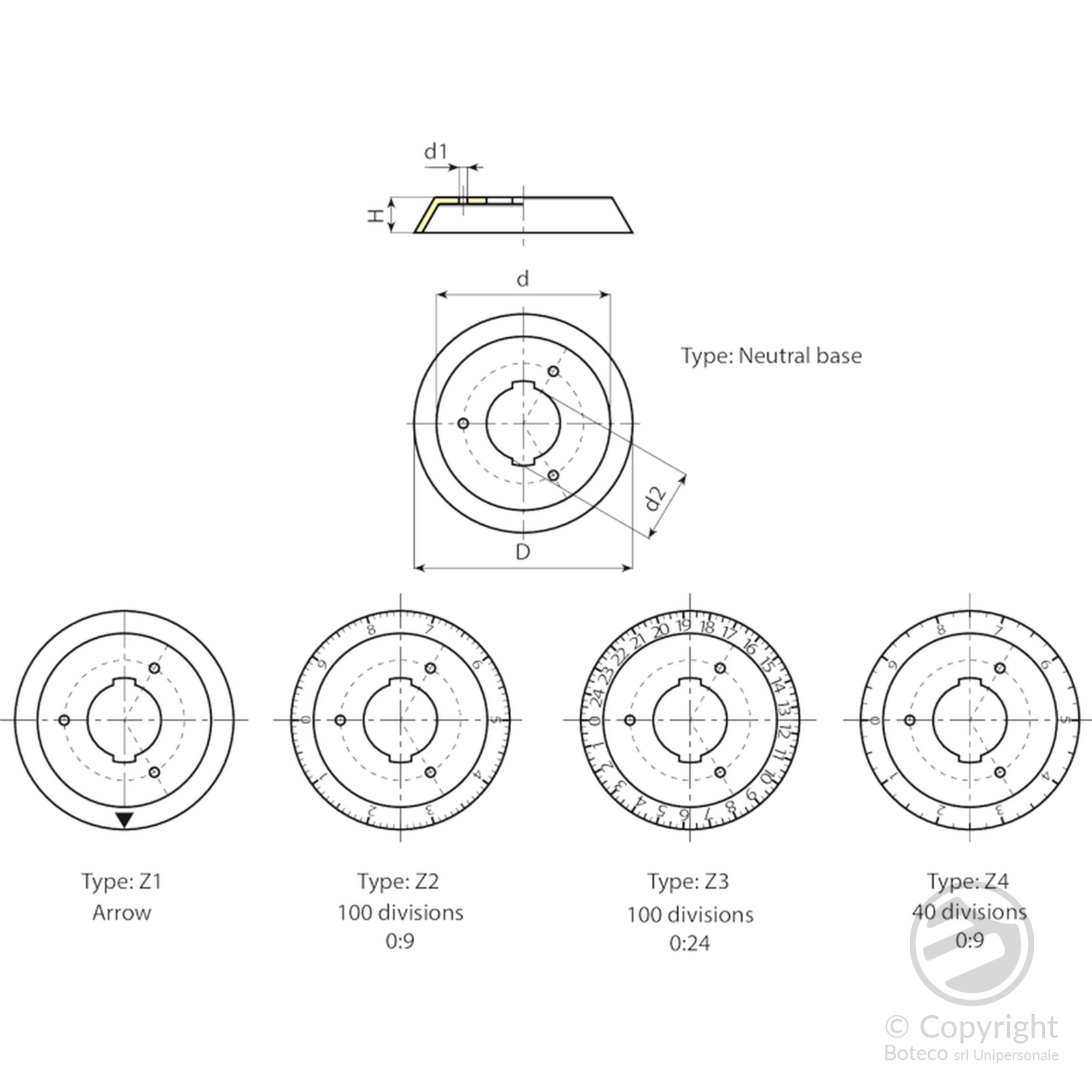

| Code | Art. | D | H | d/N246/N248 | d1 | d2 | TYPE | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| NFLAN.T3013 | NFLAN.T3013 | 38 | 7 | 30 | - | 20 | - | 5 |
| NFLAN.0005 | NFLAN.T3013Z1 | 38 | 7 | 30 | - | 20 | Z1 | 5 |
| NFLAN.T4313 | NFLAN.T4313 | 53,5 | 9 | 43 | 3,5 | 23,5 | - | 8 |
| NFLAN.0009 | NFLAN.T4313Z1 | 53,5 | 9 | 43 | 3,5 | 23,5 | Z1 | 8 |
| NFLAN.T5413 | NFLAN.T5413 | 67 | 11 | 54 | 3,5 | 27,5 | - | 13 |
| NFLAN.0012 | NFLAN.T5413Z1 | 67 | 11 | 54 | 3,5 | 27,5 | Z1 | 13 |
| NFLAN.T6513 | NFLAN.T6513 | 80 | 13 | 65 | 3,5 | 27,5 | - | 20 |
| NFLAN.0015 | NFLAN.T6513Z1 | 80 | 13 | 65 | 3,5 | 27,5 | Z1 | 20 |
| NFLAN.0016 | NFLAN.T6513Z2 | 80 | 13 | 65 | 3,5 | 27,5 | Z2 - 0:9 100 | 20 |
| NFLAN.0017 | NFLAN.T6513Z3 | 80 | 13 | 65 | 3,5 | 27,5 | Z3 - 0:24 100 | 20 |
| NFLAN.0018 | NFLAN.T6513Z4 | 80 | 13 | 65 | 3,5 | 27,5 | Z4 - 0:9 40 | 20 |
| NFLAN.T7813 | NFLAN.T7813 | 93 | 13 | 78 | 3,5 | 31,5 | - | 27 |
| NFLAN.0019 | NFLAN.T7813Z1 | 93 | 13 | 78 | 3,5 | 31,5 | Z1 | 27 |
