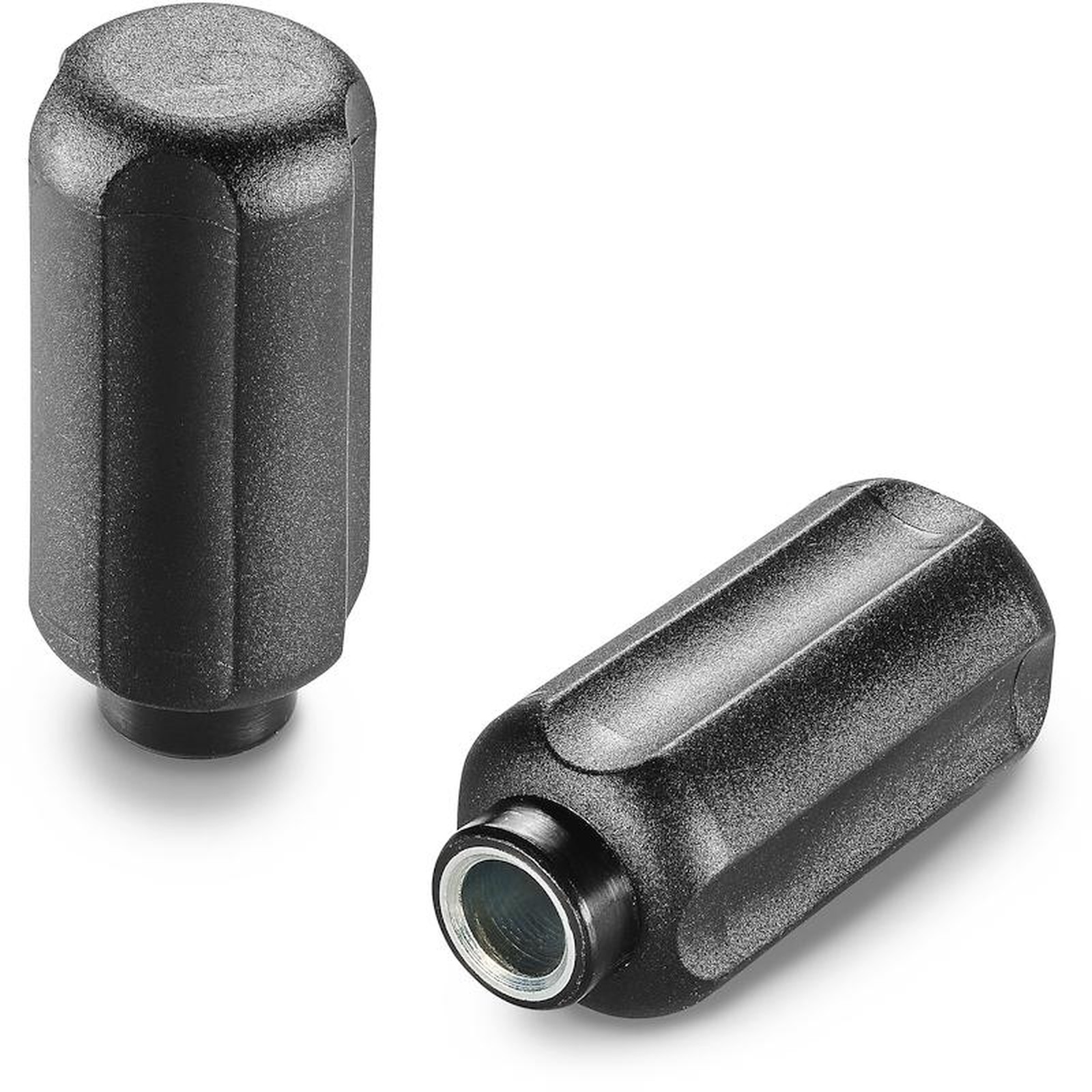

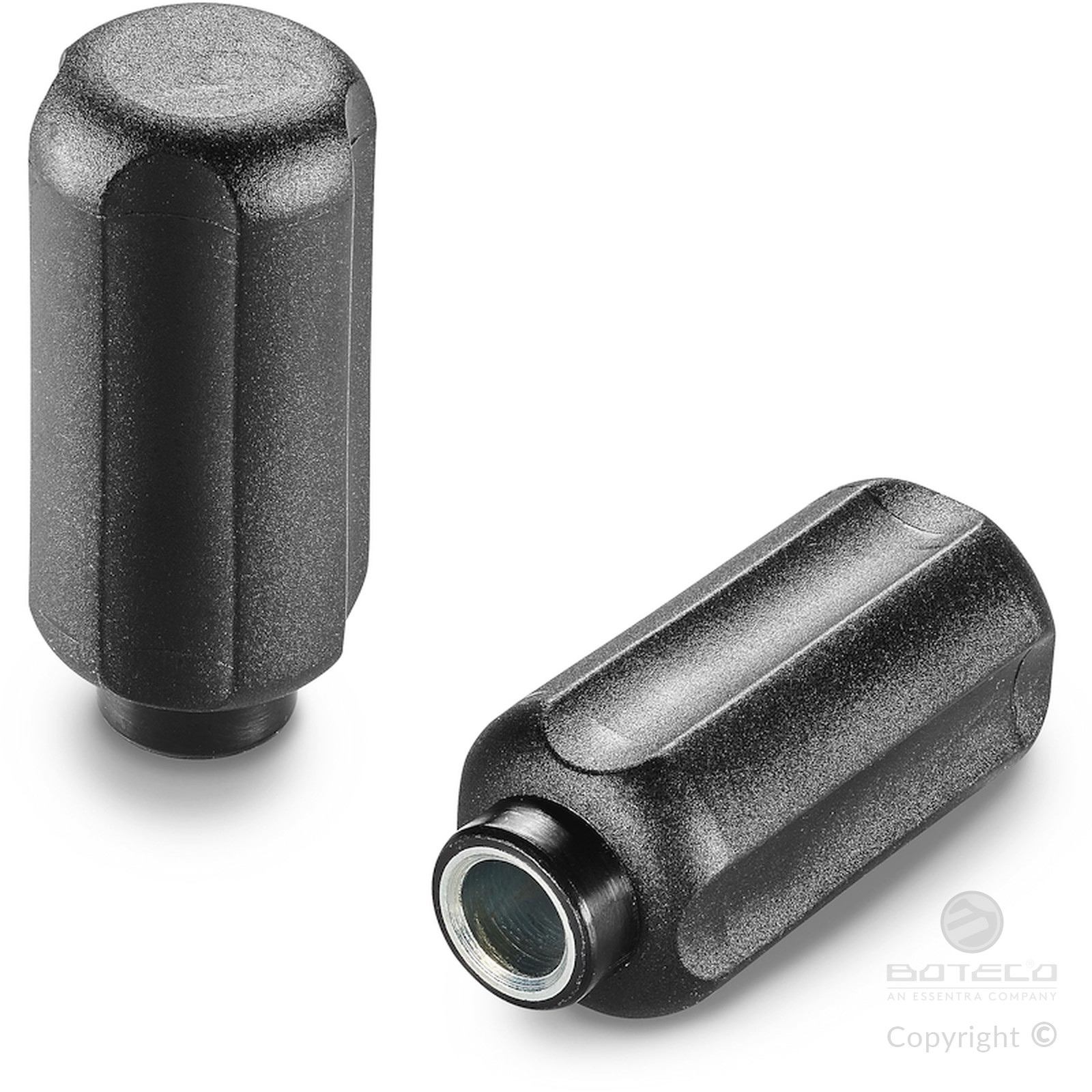

4-LOBE CONTROL KNOB WITH SMOOTH BORE INSERT
14
N777
Manicotti lobati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with blind smooth bore (bore tolerance H10).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.

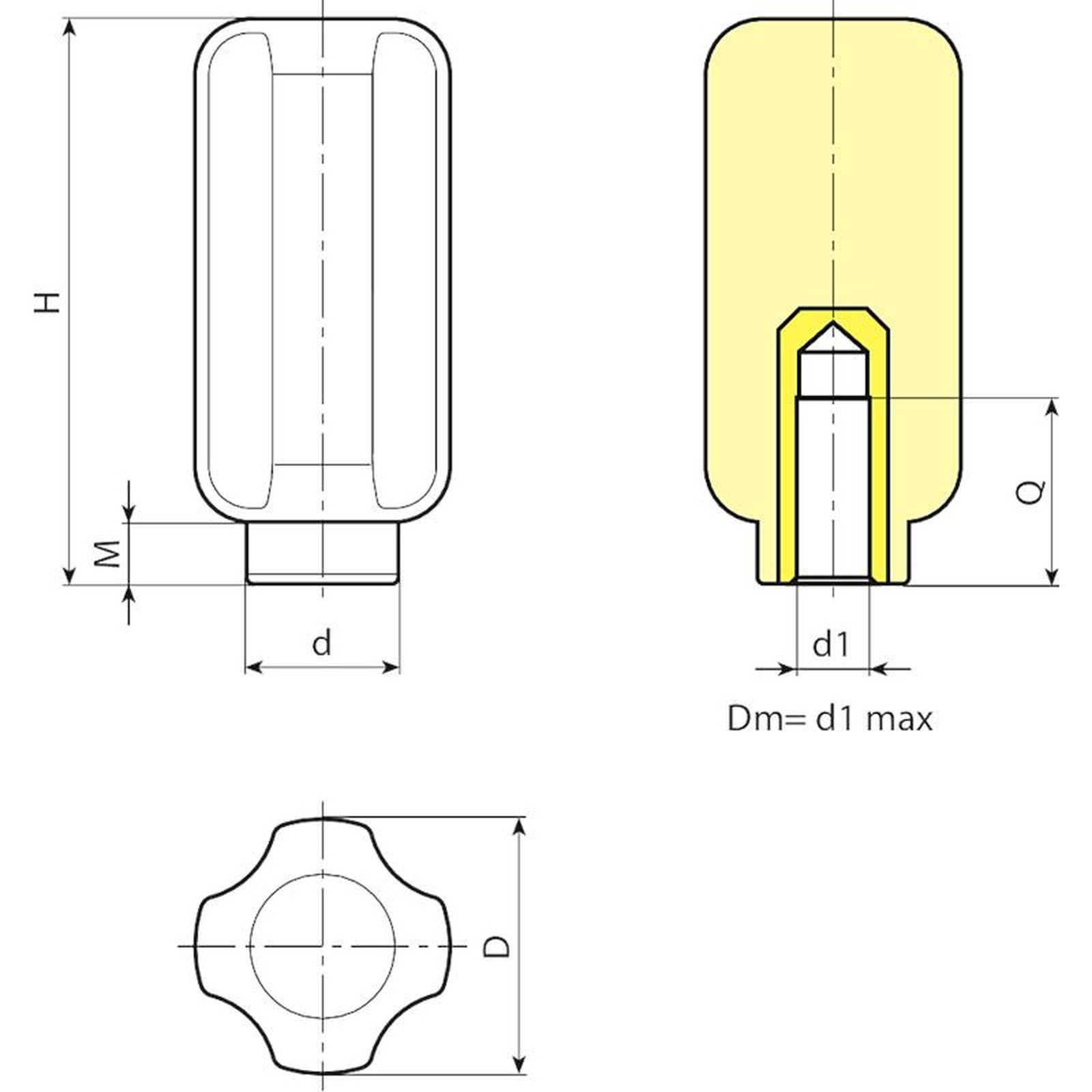

| Code | Art. | D | H | M | d | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| N77738.0001 | N77738.TD0801 | 37 | 81 | 9 | 22 | 12 | 8 | 19 | 108 |
| N77738.0003 | N77738.TD1201 | 37 | 81 | 9 | 22 | 12 | 12 | 19 | 130 |
Attention: For a minimum of 100 pieces the diameter d1 can be produced with the requested diameter with H10 tolerance.
Dm = Maximum obtainable diameter for subsequent machining (widening).
