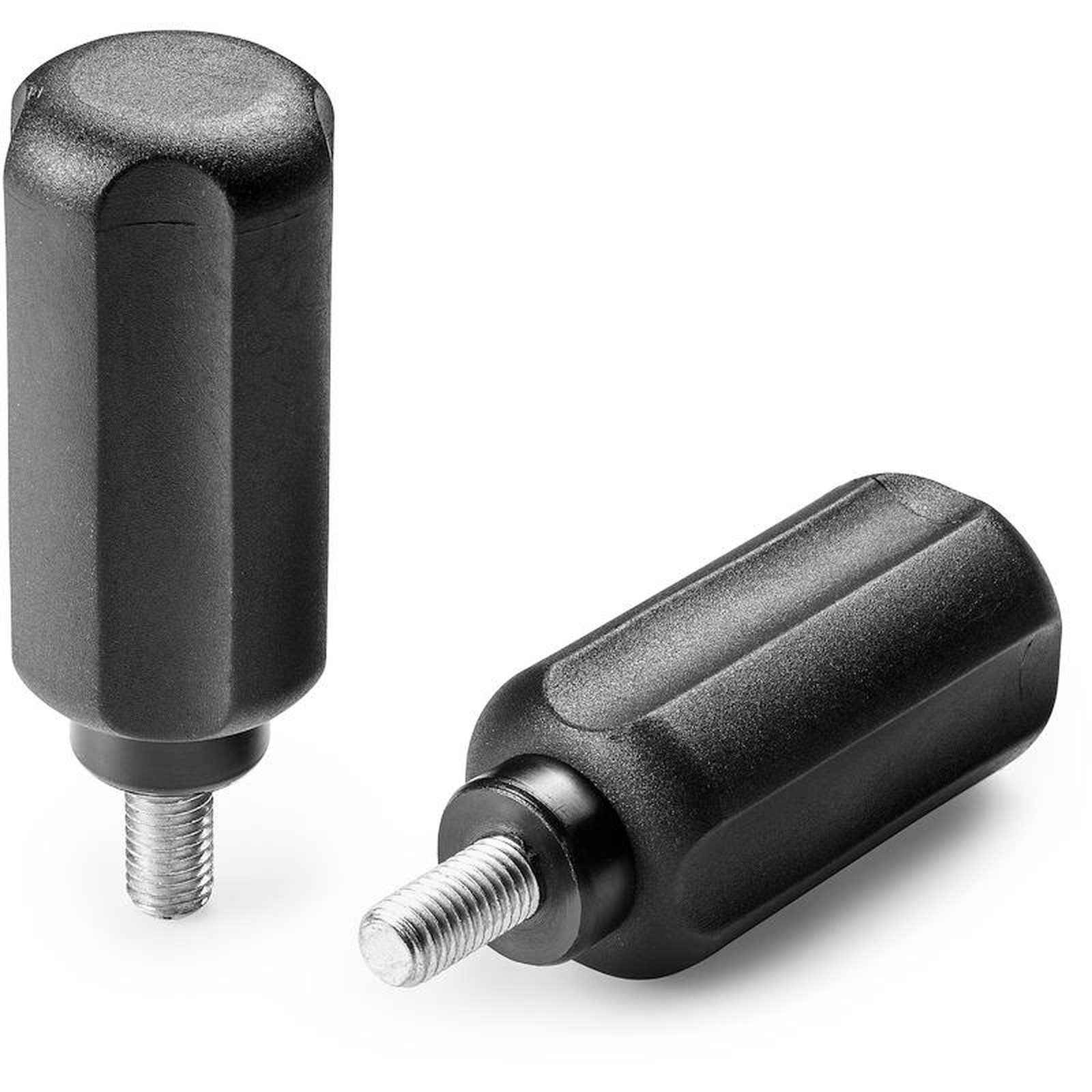

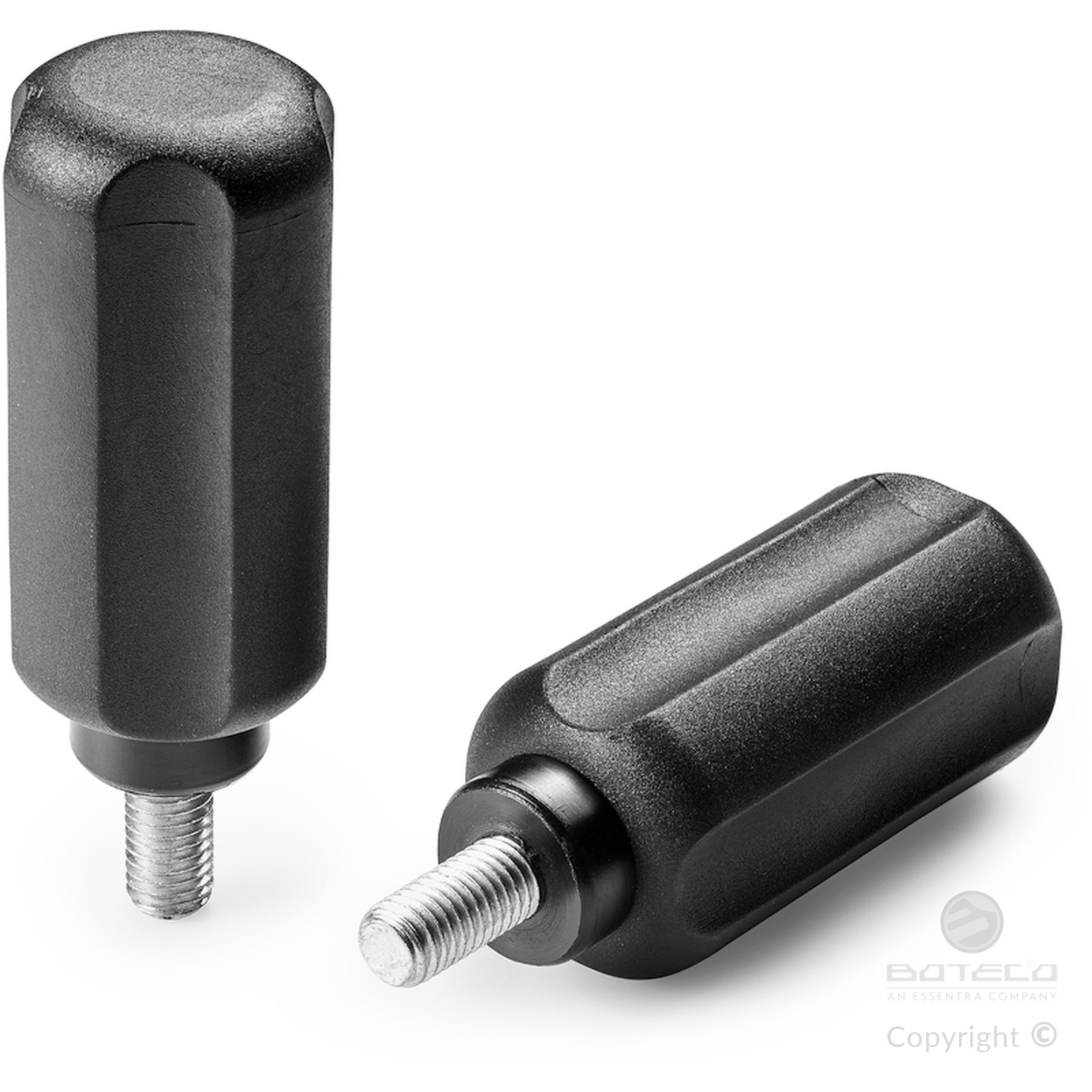

4-LOBE CONTROL KNOB WITH THREADED STUD
14
N776
Manicotti lobati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.

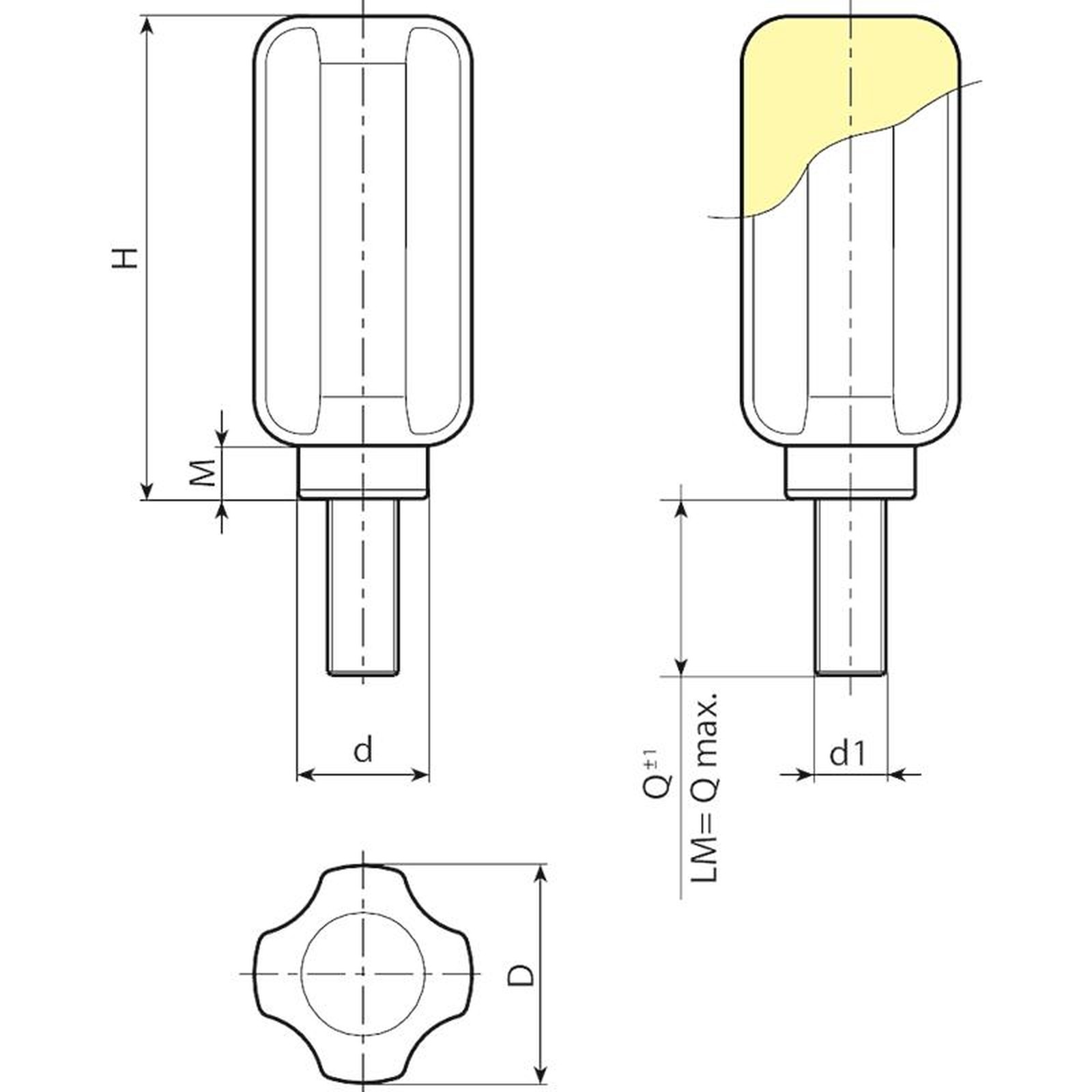

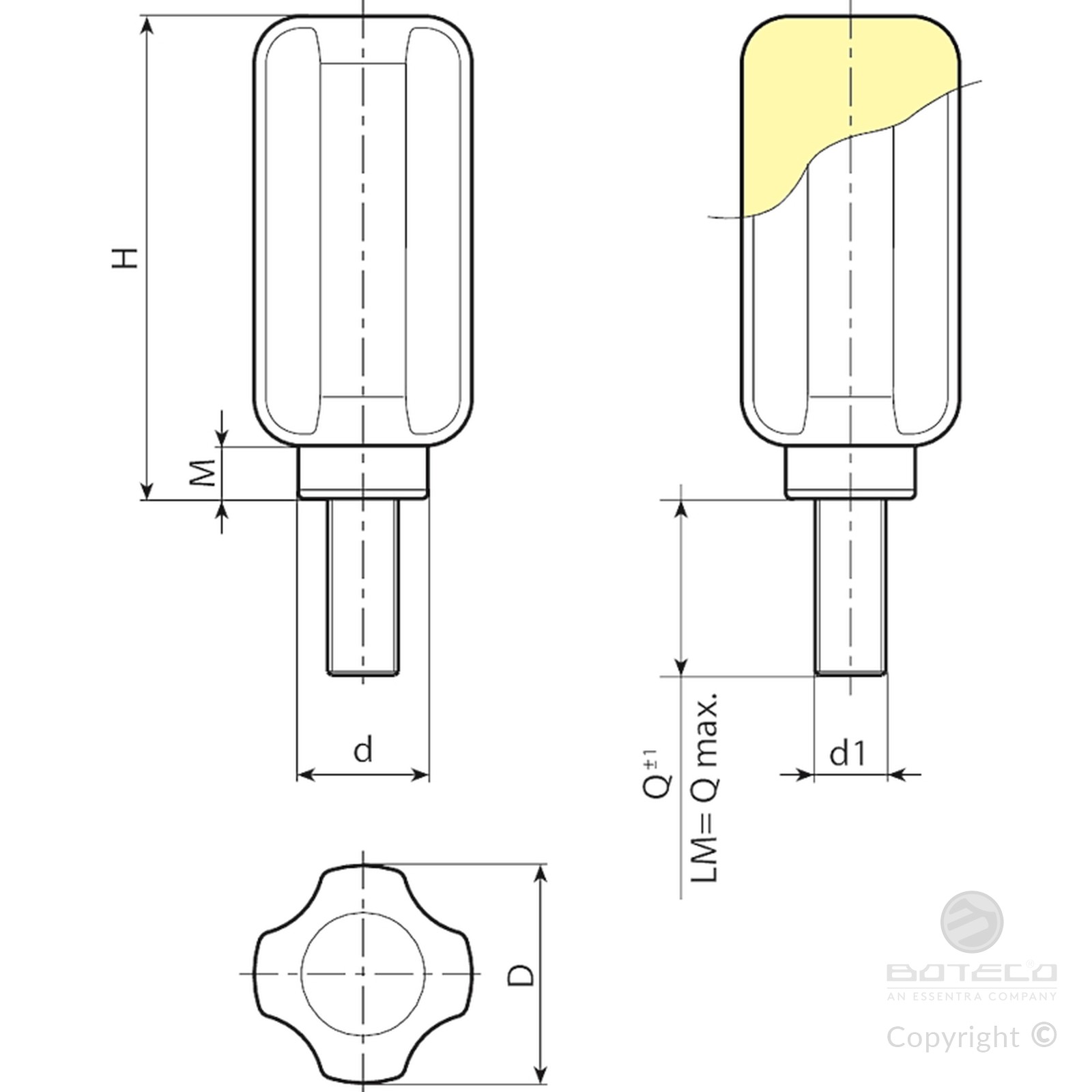

| Code | Art. | D | H | M | d | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| N77638.0002 | N77638.TM10X2001 | 37 | 81 | 9 | 22 | 130 | M10 | 20 | 127 |
| N77638.0005 | N77638.TM12X3001 | 37 | 81 | 9 | 22 | 130 | M12 | 30 | 135 |
Customised stud length available for a minimum of 100 pieces.
LM = Maximum mouldable length.
