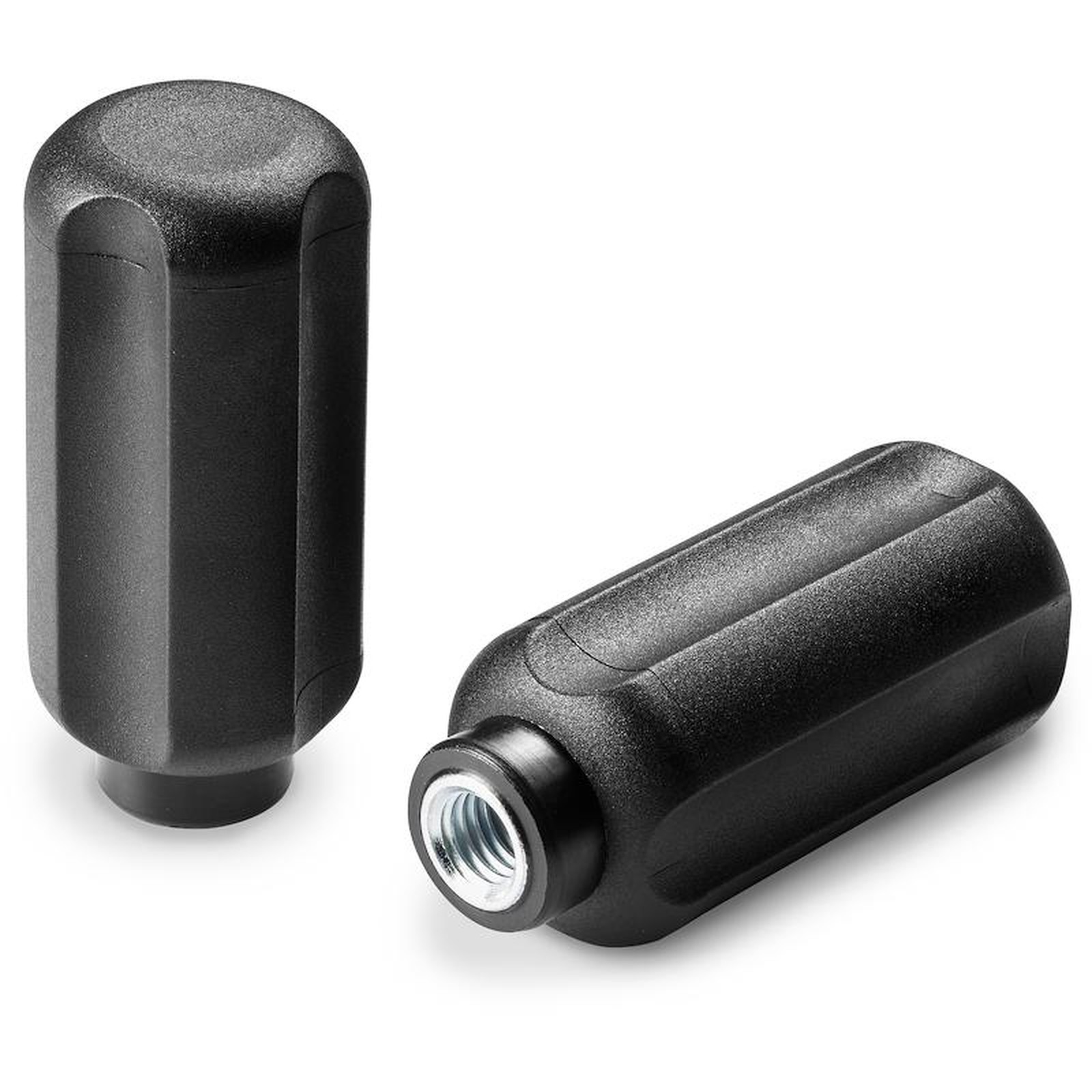

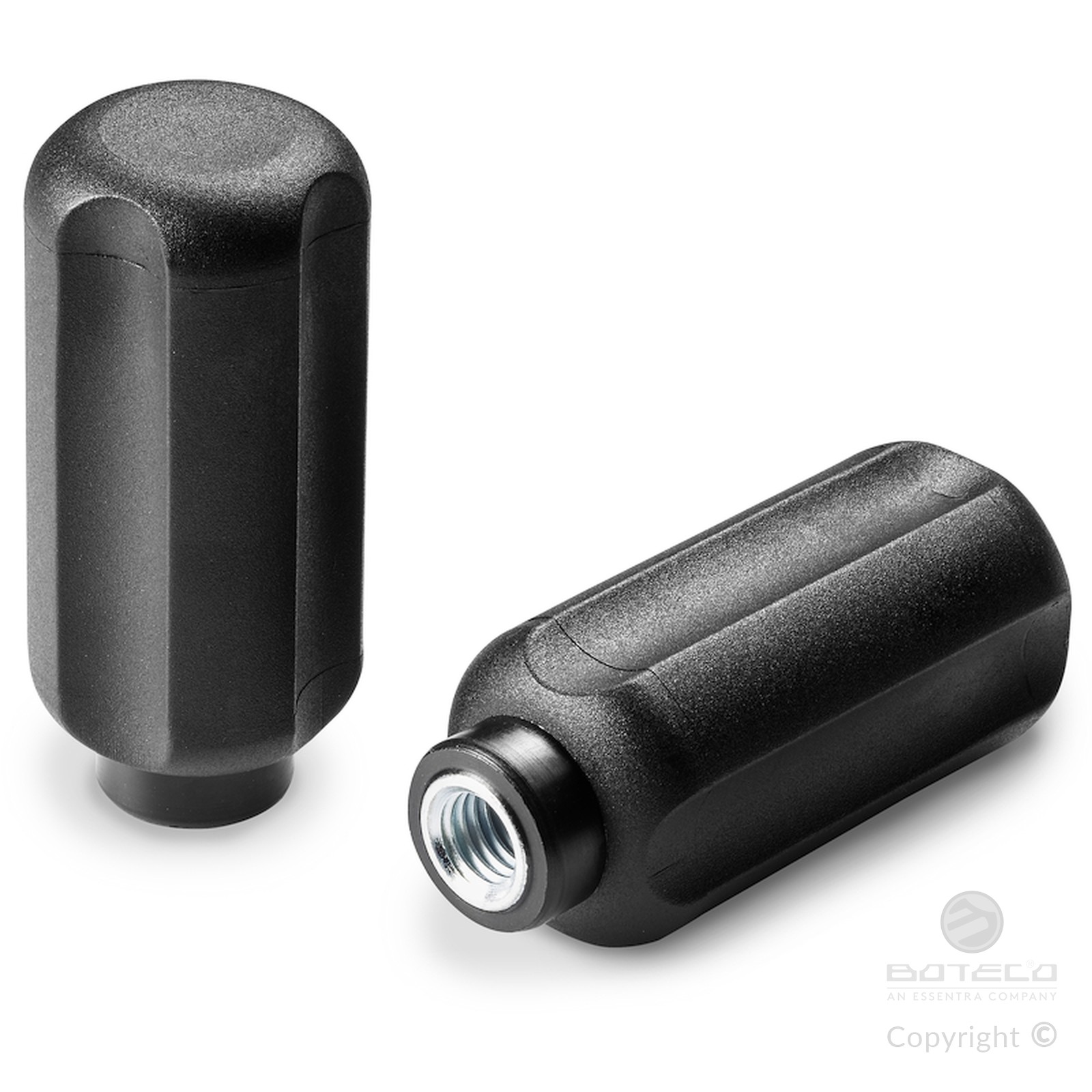

4-LOBE CONTROL KNOB WITH THREADED HOLE INSERT
14
N775
Manicotti lobati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.

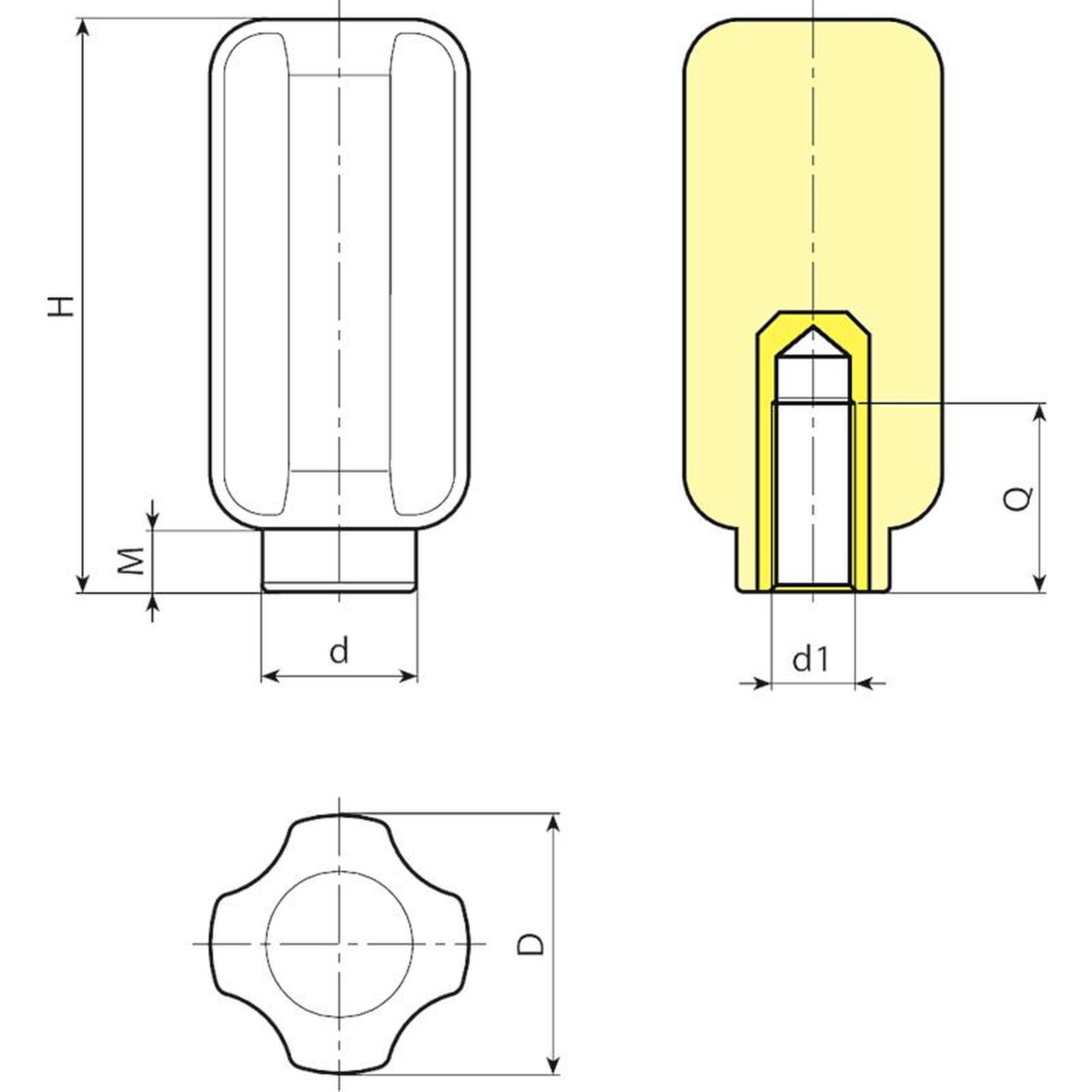

| Code | Art. | D | H | M | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| N77538.0001 | N77538.TM0801 | 37 | 81 | 9 | 22 | M8 | 20 | 94 |
| N77538.0002 | N77538.TM1001 | 37 | 81 | 9 | 22 | M10 | 20 | 128 |
| N77538.0003 | N77538.TM1201 | 37 | 81 | 9 | 22 | M12 | 30 | 142 |
| N77538.0004 | N77538.TM1401 | 37 | 81 | 9 | 22 | M14 | 29 | 135 |
| N77538.0007 | N77538.TM1601 | 37 | 81 | 9 | 22 | M16 | 18 | 116 |
