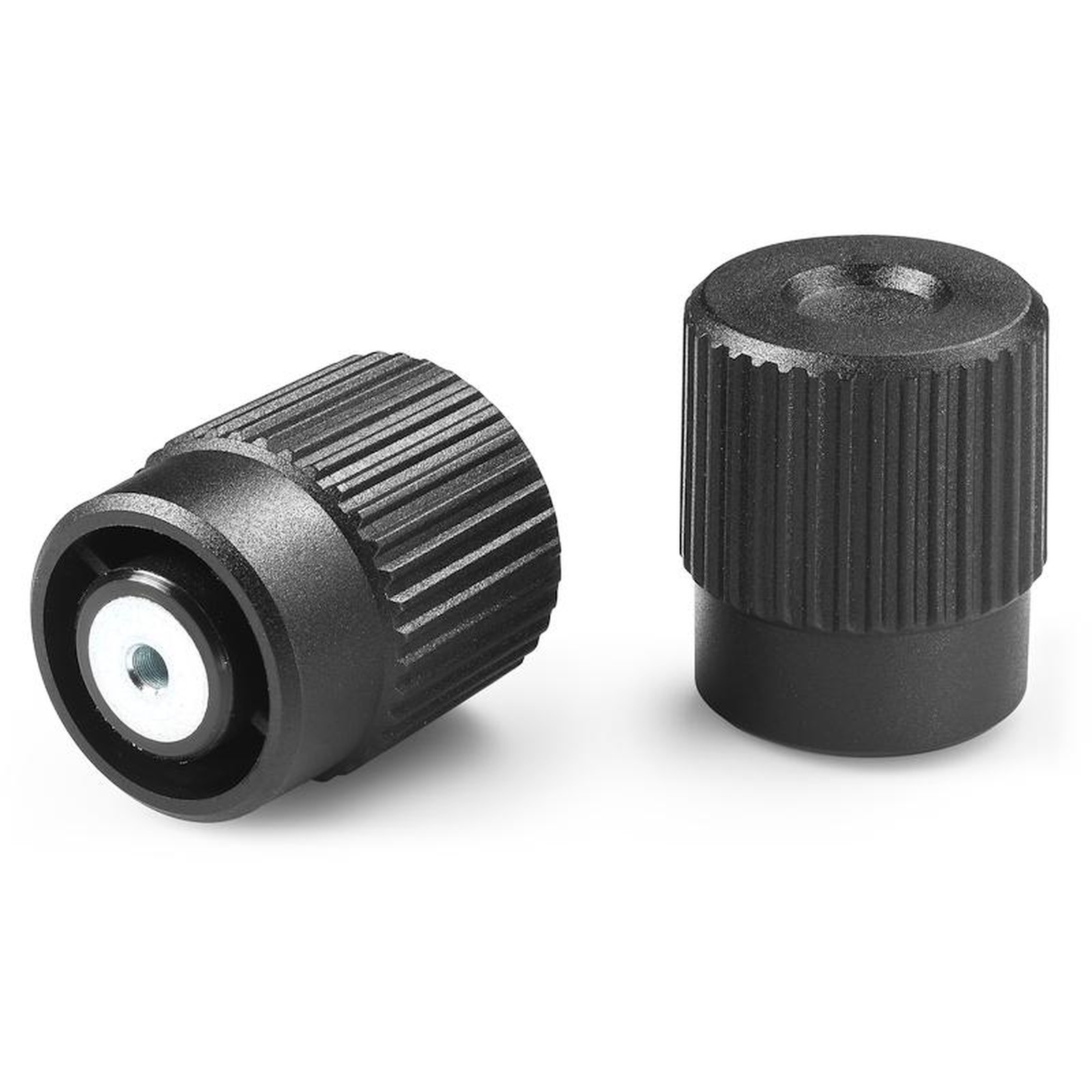

KNURLED KNOB WITH INSERT WITH SMOOTH HOLE
14
N742
Manicotti zigrinati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with blind smooth bore (bore tolerance H10).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.

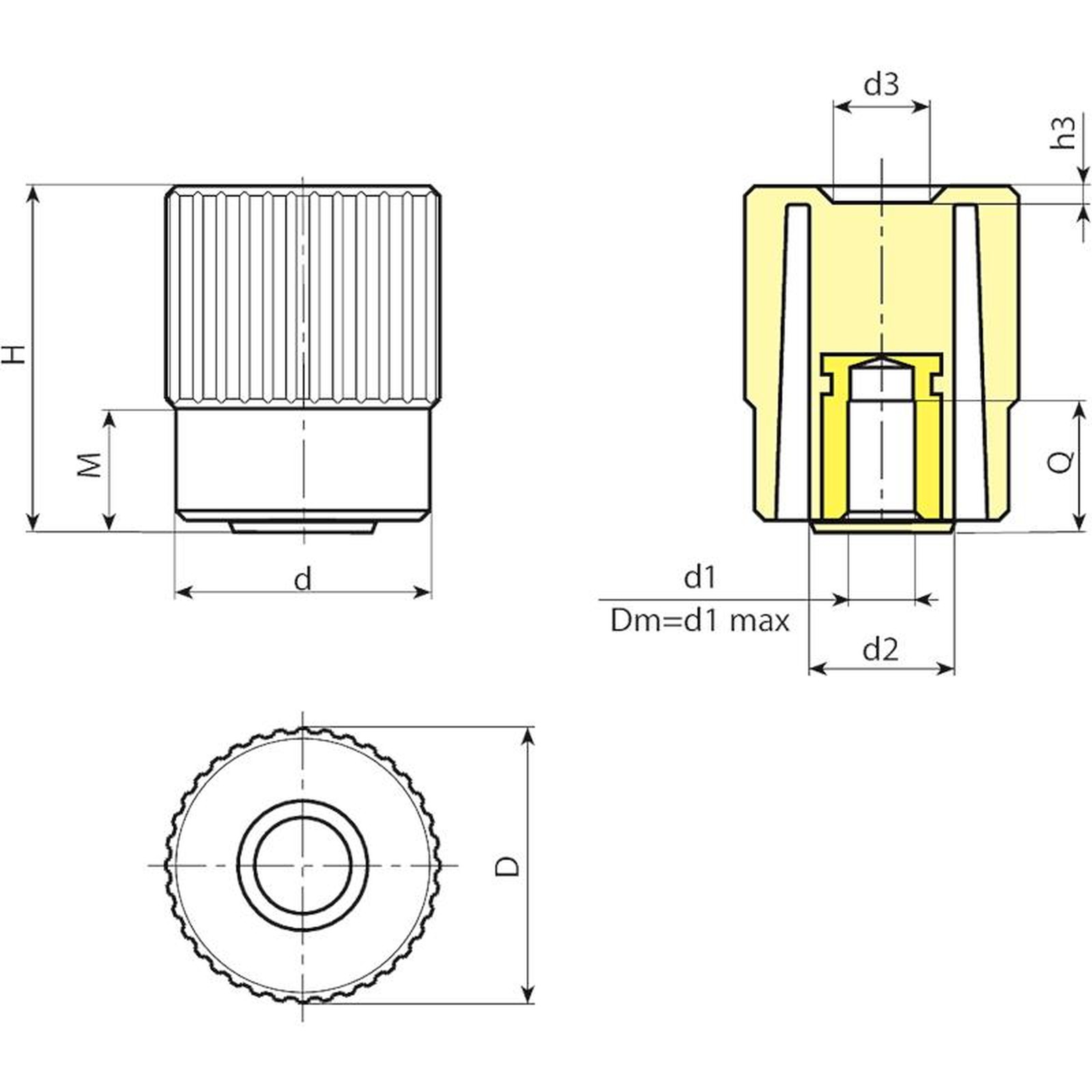

| Code | Art. | D | H | M | d | d2 | d3 | h3 | Dm | d1 H10 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N74240.0006 | N74240.TP0501 | 41,5 | 50,5 | 17 | 38 | 22 | 15,5 | 2,5 | 12 | 5 | 20 | 90 |
| N74240.0002 | N74240.TD1001 | 41,5 | 50,5 | 17 | 38 | 22 | 15,5 | 2,5 | 12 | 10 | 18 | 85 |
Attention: For a minimum of 100 pieces the diameter d1 can be produced with the requested diameter with H10 tolerance.
Dm = Maximum obtainable diameter for subsequent machining. (widening)
