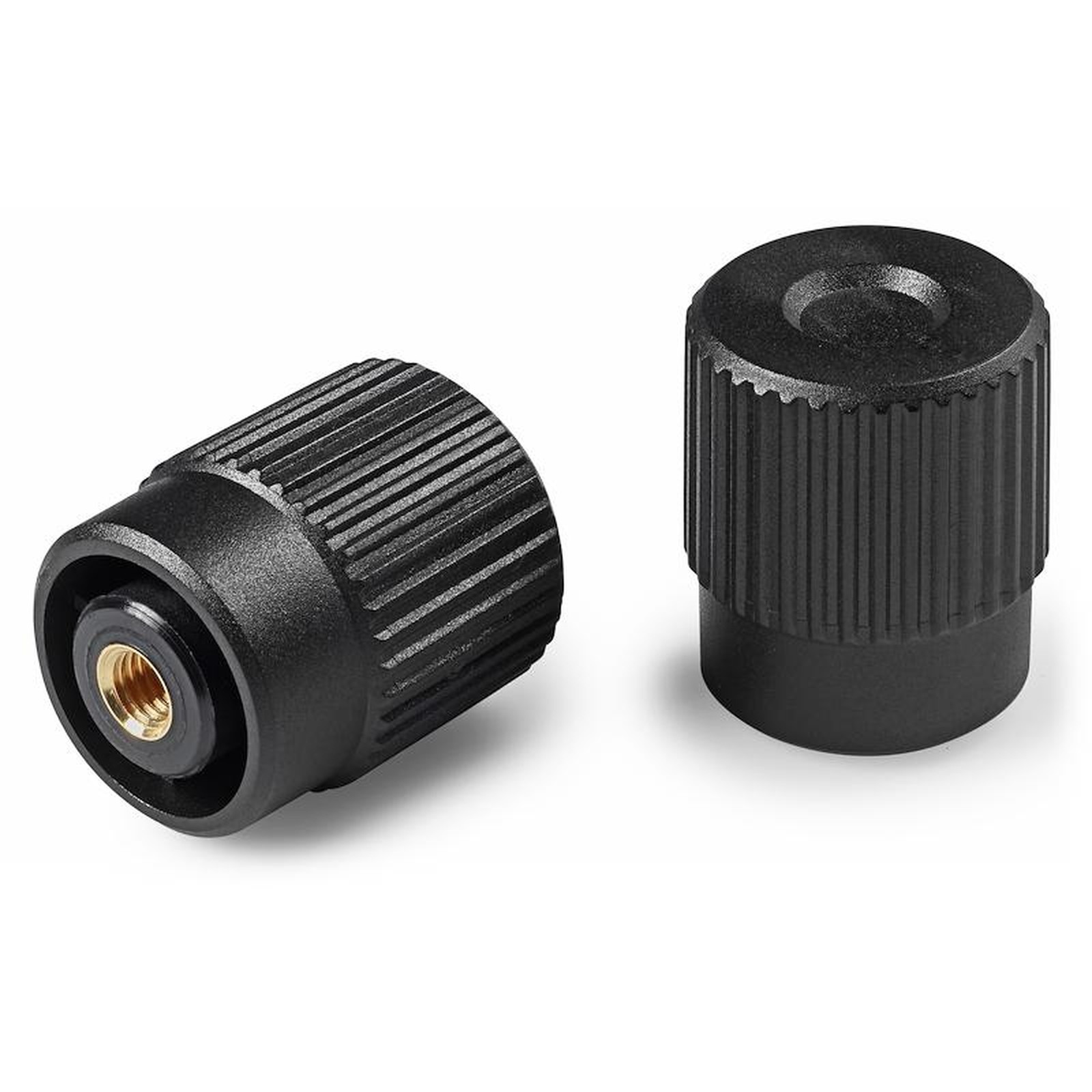

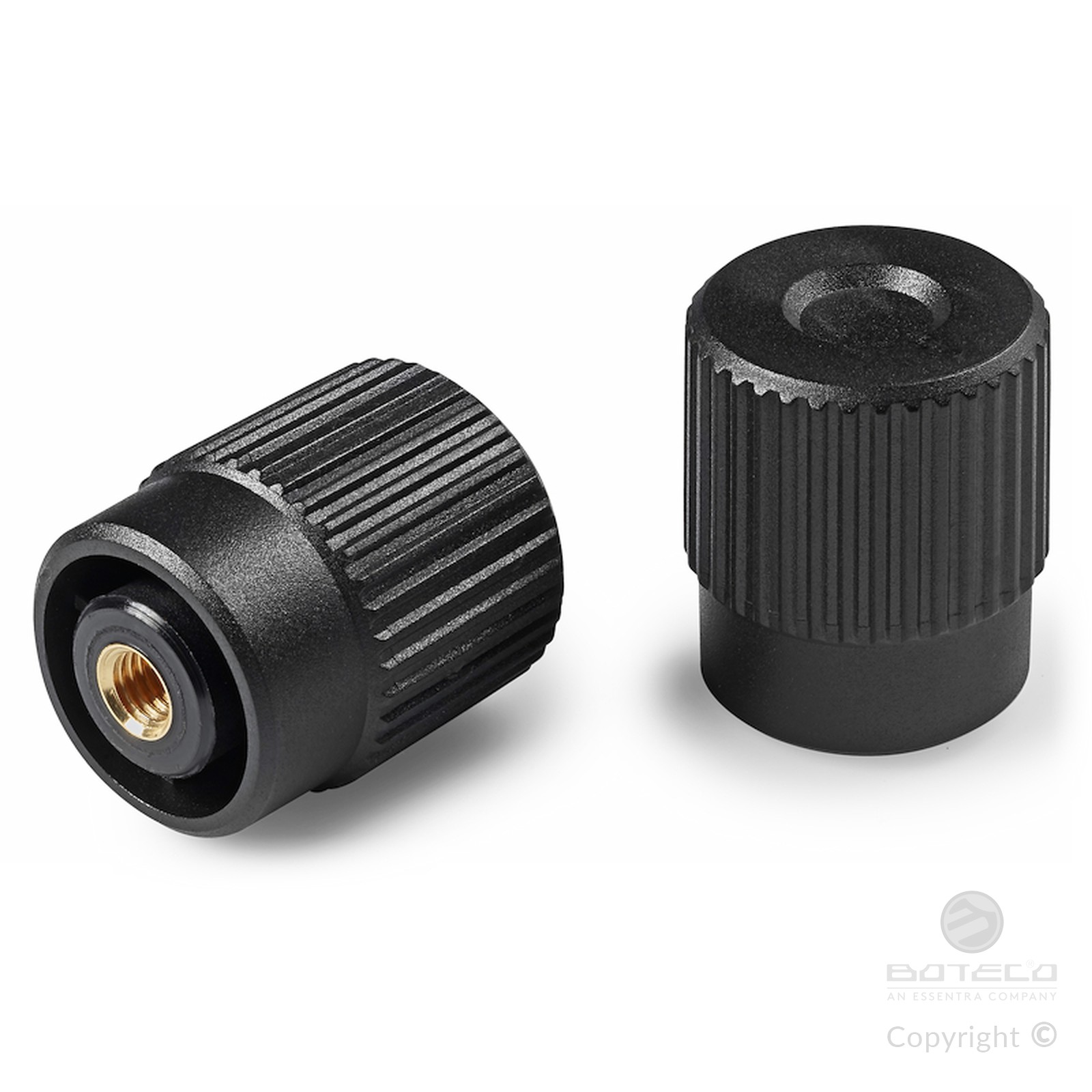

KNURLED CONTROL KNOB WITH THREADED HOLE INSERT

14

N740


Manicotti zigrinati

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Inserts:

Brass insert with female threaded hole (thread tolerance 6H).

Special requests:

Upon request and for special quantities inserts can be supplied in different materials.

Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

Data sheet

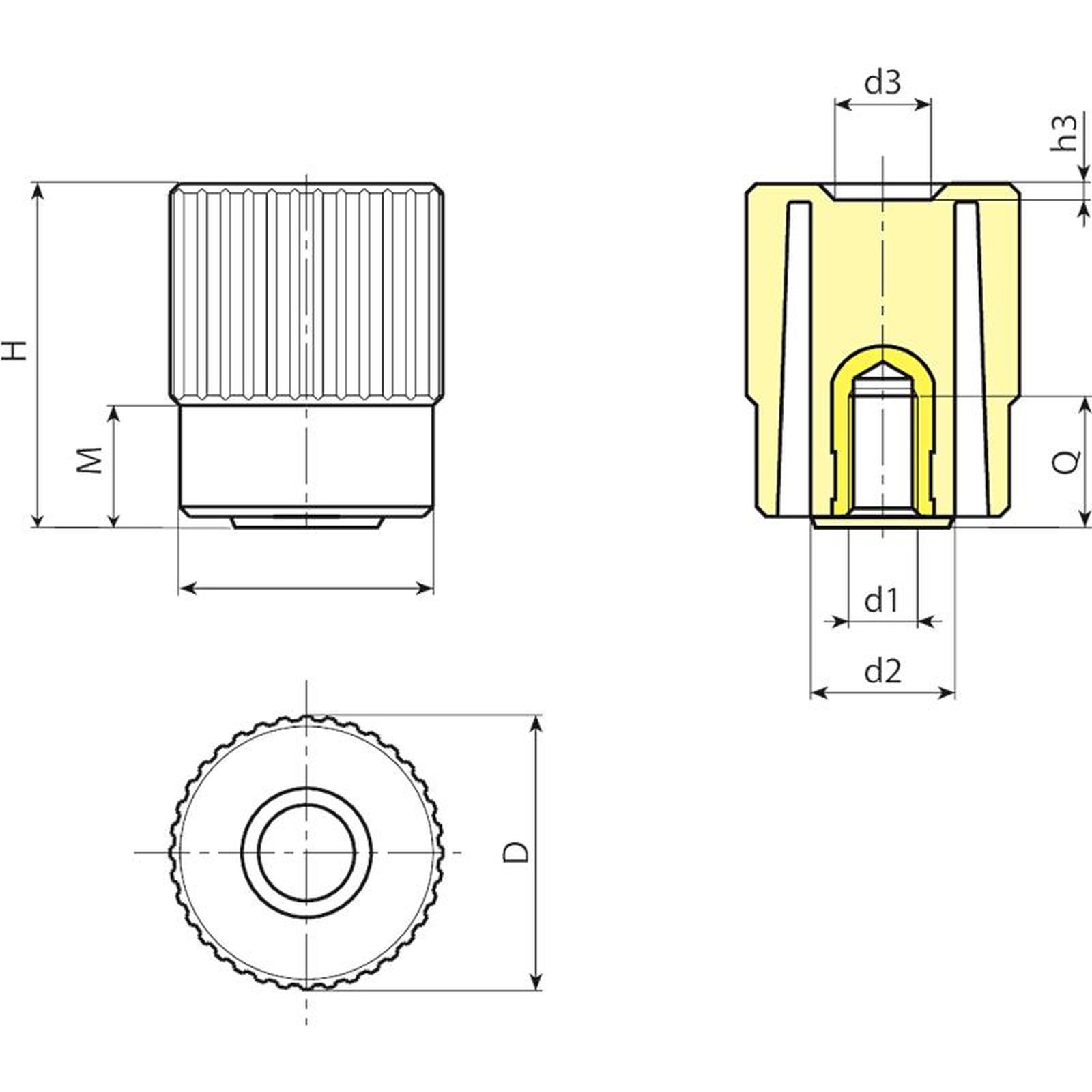

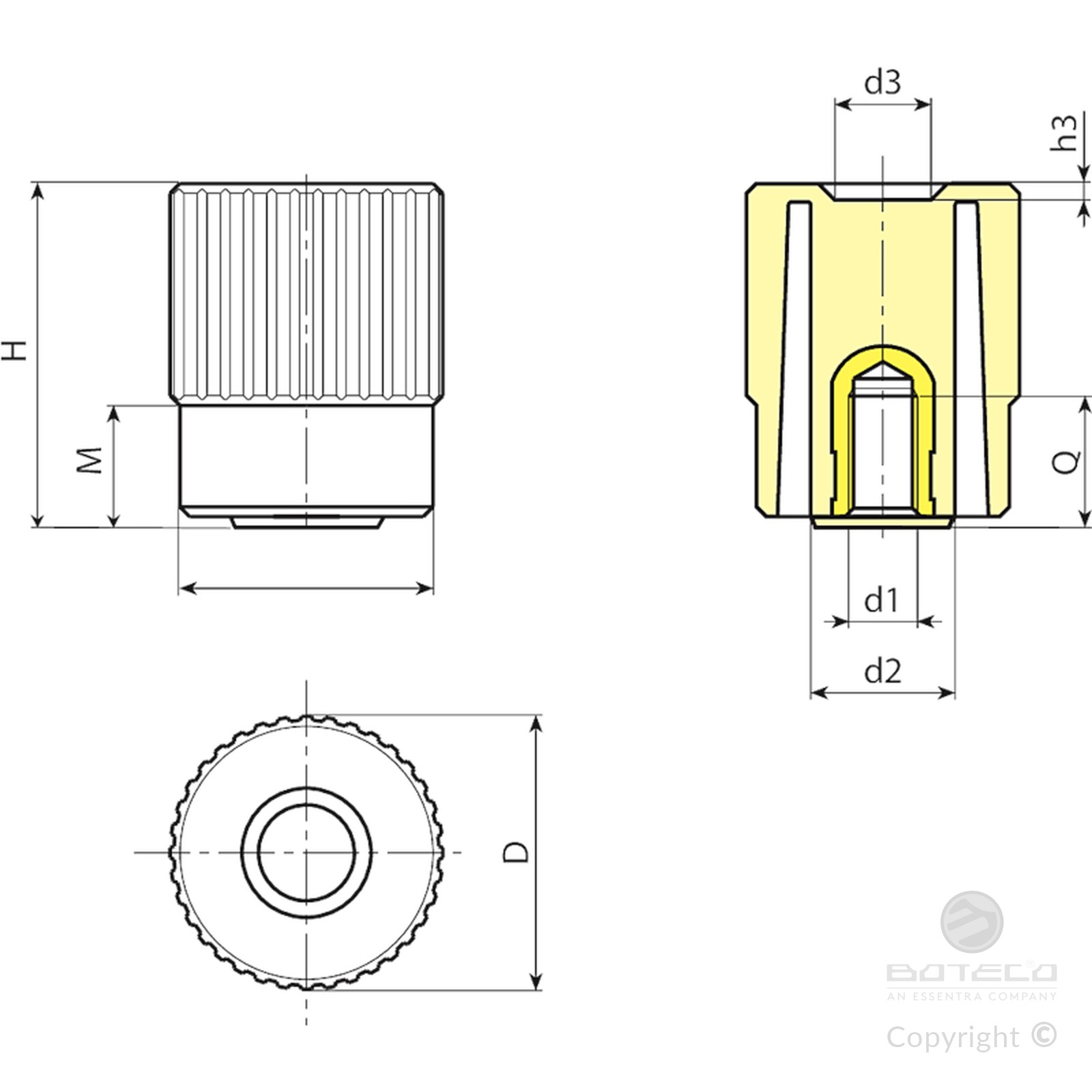

Code Art. D H M d d2 d3 h3 d1 6H Q Weight (g)
N74040.0002 N74040.TM0801 41,5 50,5 17 38 22 15,5 2,5 M8 18 65
N74040.0003 N74040.TM1001 41,5 50,5 17 38 22 15,5 2,5 M10 22 66
N74040.0005 N74040.TM1201 41,5 50,5 17 38 22 15,5 2,5 M12 17 68
N74040.0006 N74040.TM1401 41,5 50,5 17 38 22 15,5 2,5 M14 17 69
