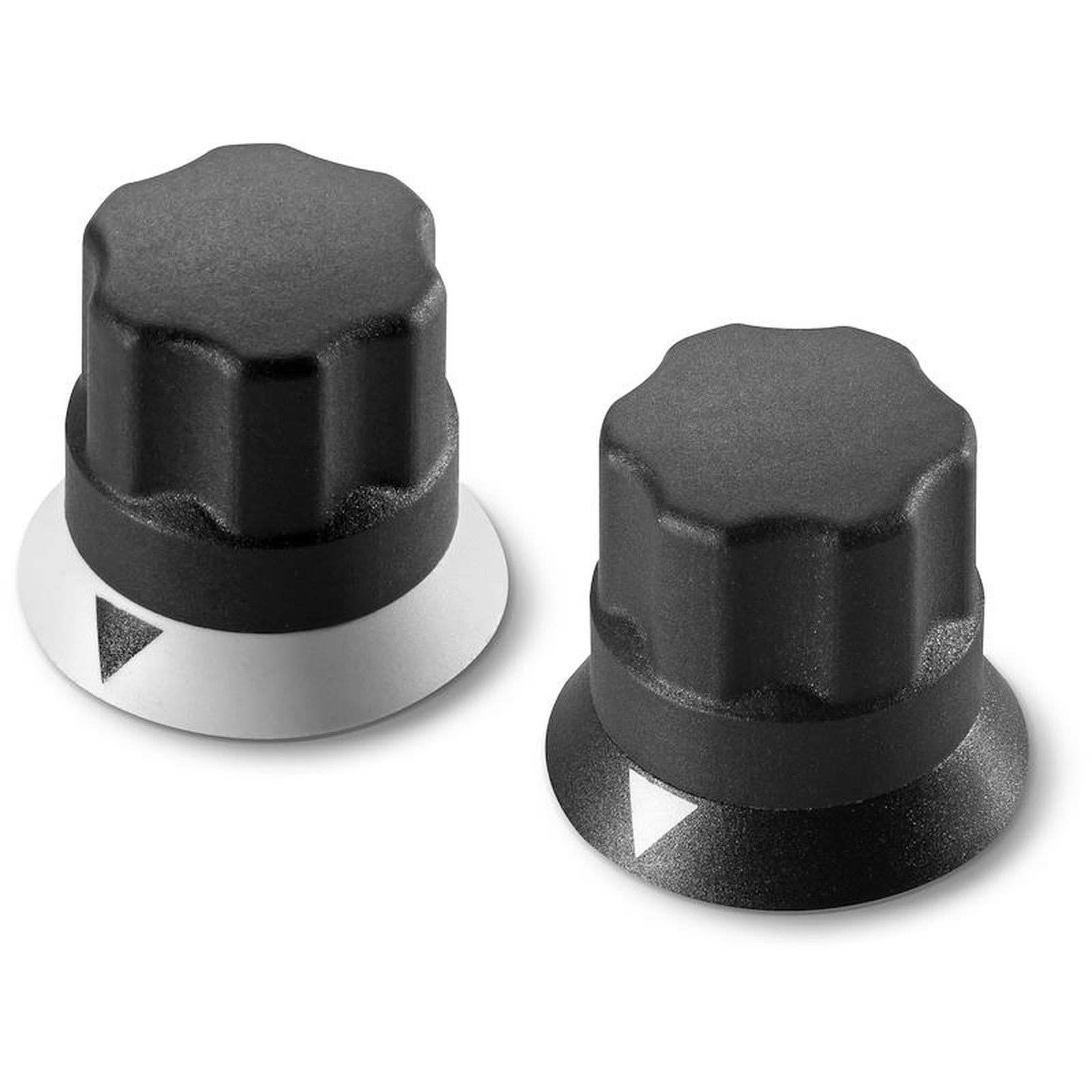

LOBED CONTROL KNOB FOR POTENTIOMETER WITH FLANGE
14
N251
Manicotti con numerazione
Materials:
Control knob and flange:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Control knob and flange:
Satin.
Colour:
Knob:
Black (RAL 9011 code 01).
Flange:
Black (RAL 9011 code 01).
Grey (RAL 7035 code 13).
Special requests:
Upon request and for special quantities available in the colours indicated in the chart.
Version with grey flange (RAL 7035 code no. 13), and black arrow.

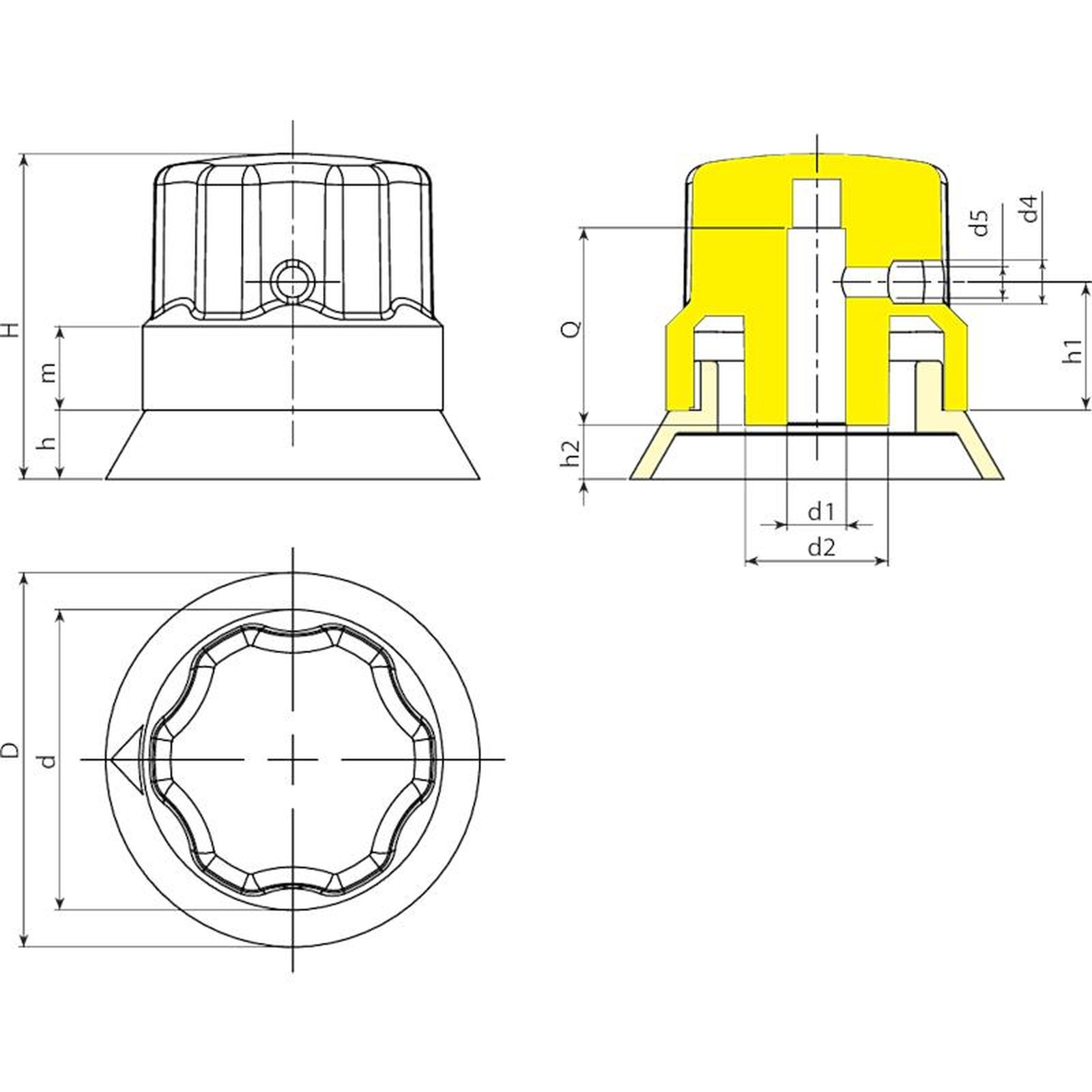

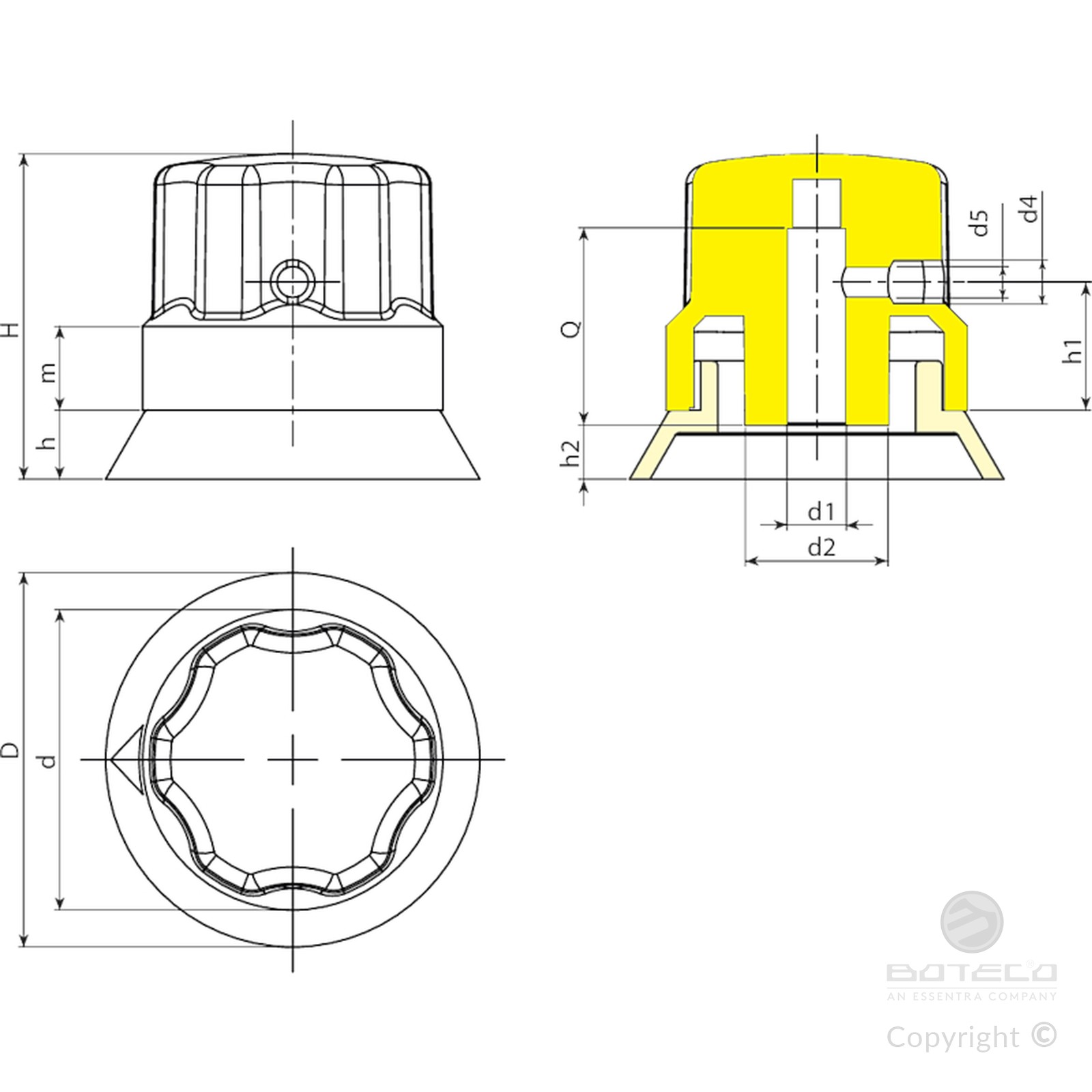

| Code | Art. | D | H | h | m | d | d2 | d4 | d5 | h1 | h2 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N25130.0002 | N25130.TG060113Z1 | 38 | 33 | 7 | 8,5 | 30,5 | 14,5 | 4,5 | M4 | 13 | 5,5 | 6 | 20 | 17 |
| N25130.0001 | N25130.TG080113Z1 | 38 | 33 | 7 | 8,5 | 30,5 | 14,5 | 4,5 | M4 | 13 | 5,5 | 8 | 20 | 16 |
Version with black flange (RAL 9011 code no. 01), and grey arrow.
| Code | Art. | D | H | h | m | d | d2 | d4 | d5 | h1 | h2 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N25130.0004 | N25130.TG060101Z1 | 38 | 33 | 7 | 8,5 | 30,5 | 14,5 | 4,5 | M4 | 13 | 5,5 | 6 | 20 | 17 |
| N25130.0003 | N25130.TG080101Z1 | 38 | 33 | 7 | 8,5 | 30,5 | 14,5 | 4,5 | M4 | 13 | 5,5 | 8 | 20 | 16 |
