KNURLED KNOB WITH INSERT WITH SMOOTH HOLE AND FLANGE
N250
Manicotti con numerazione
Materials:
Control knob and flange:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Control knob and flange:
Satin.
Colour:
Knob:
Black (RAL 9011 code 01).
Flange and cap:
Black (RAL 9011 code 01).
Grey (RAL 7035 code 13).
Cap:
Central cap in polyamide.
Inserts:
Galvanised steel insert with smooth through bore (tolerance H10).
Fixing screws:
3 galvanised self-tapping screws 2.9x9.5 UNI6954.
Scale:
Black pad-printed on grey flange;
Grey pad-printed on black flange;

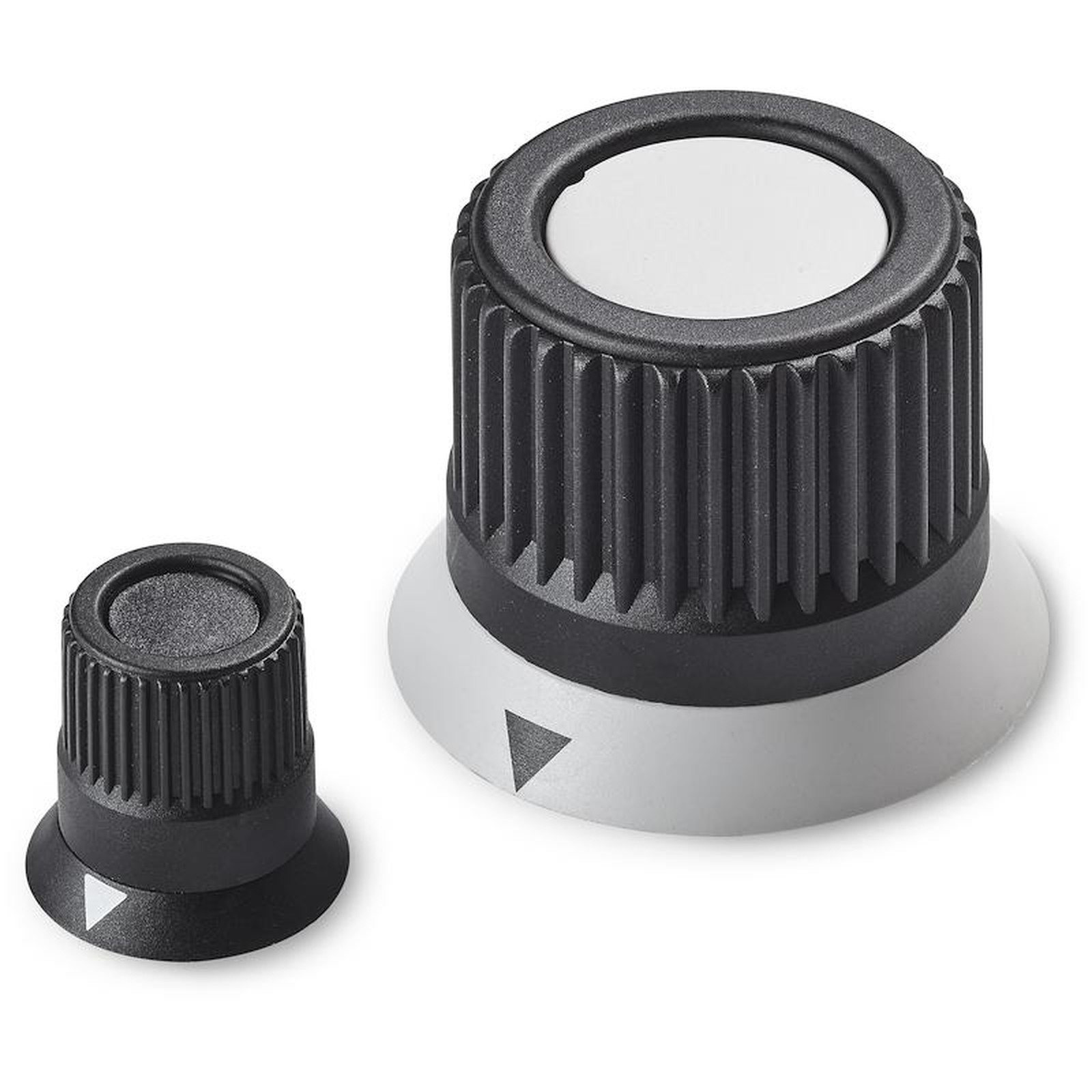

For flange with arrow only: version Z1.

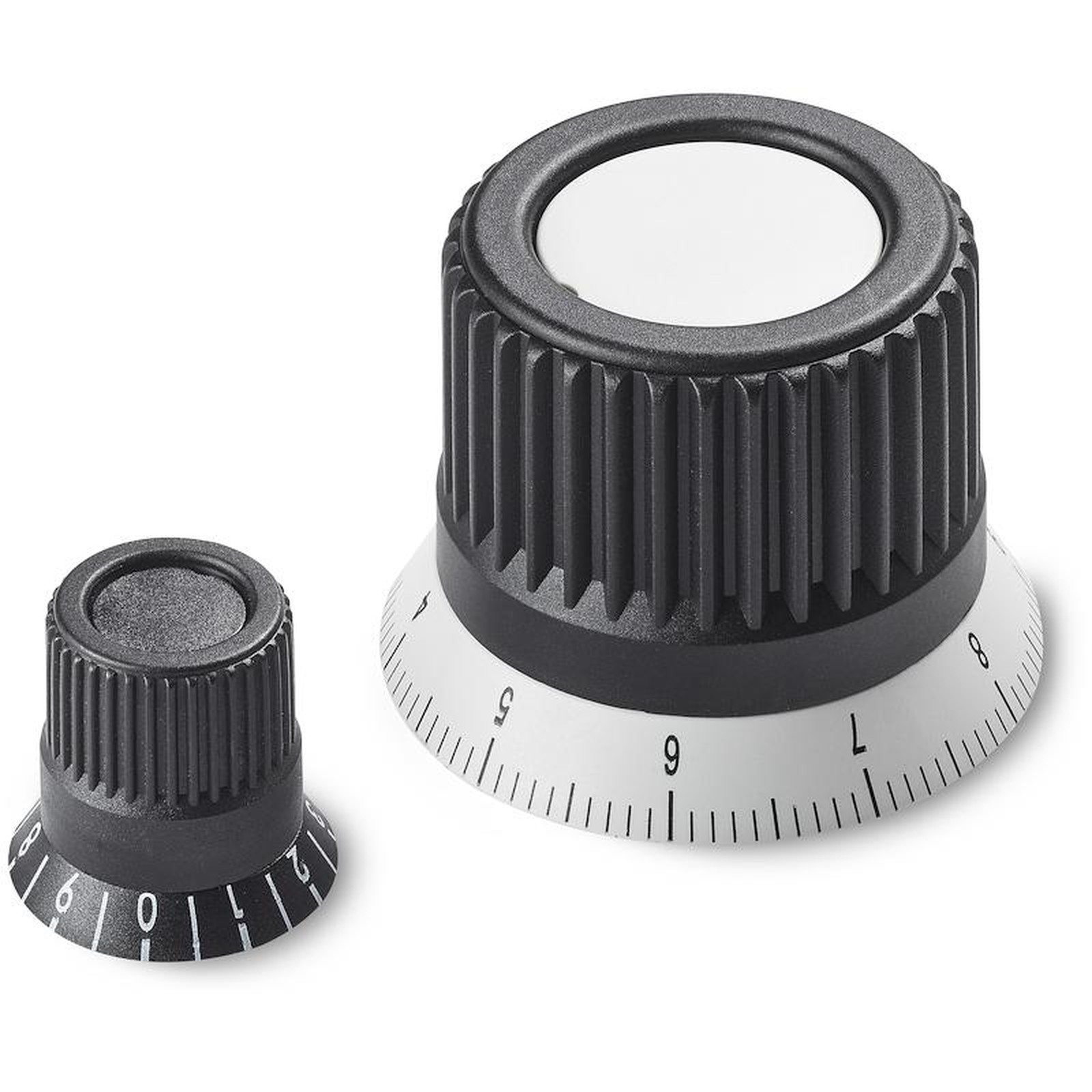

For flange with numbers from 0 to 9 with 100 graduations: version Z2.
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart.








Version with grey (RAL 7035 code no. 13) flange and cap, and black arrow.

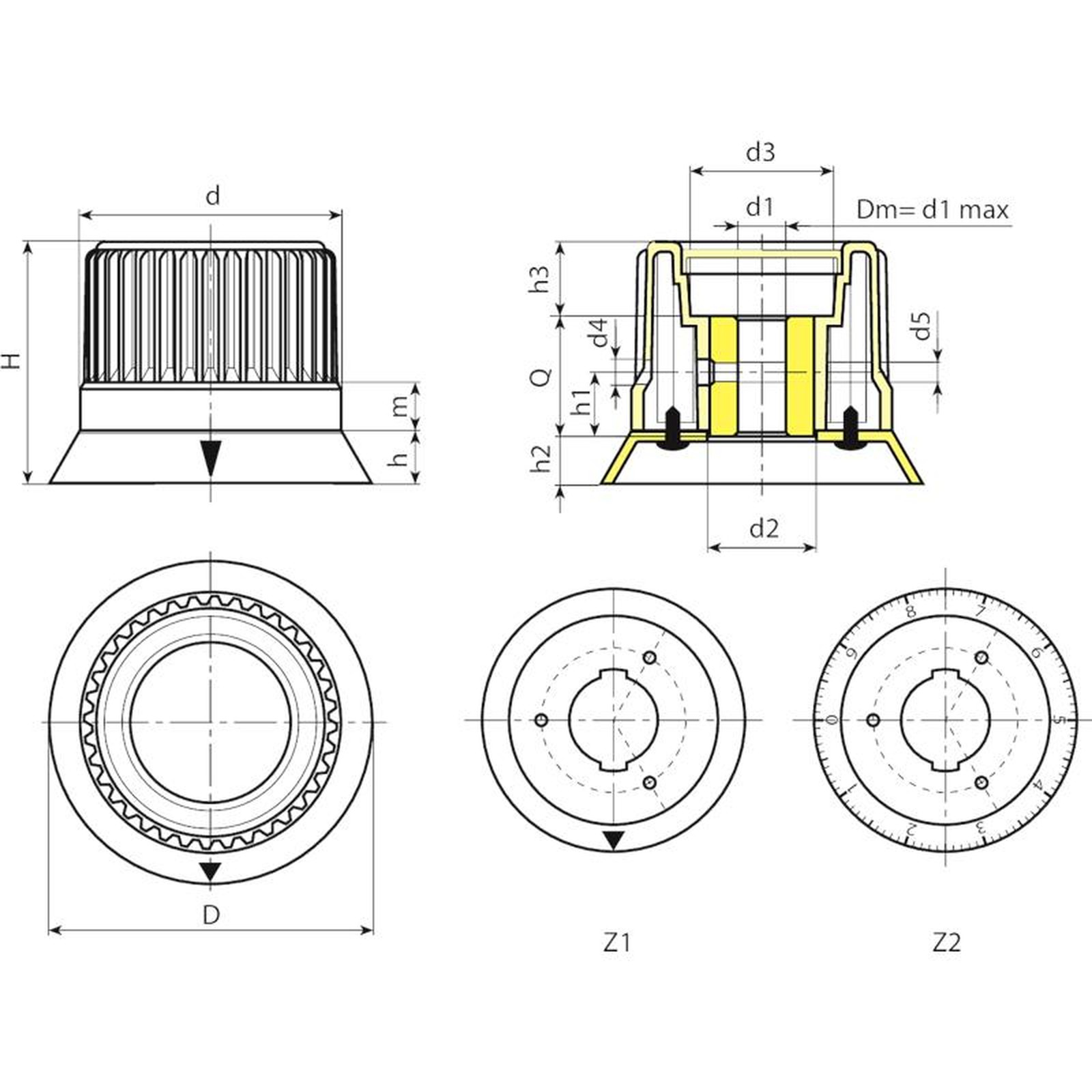

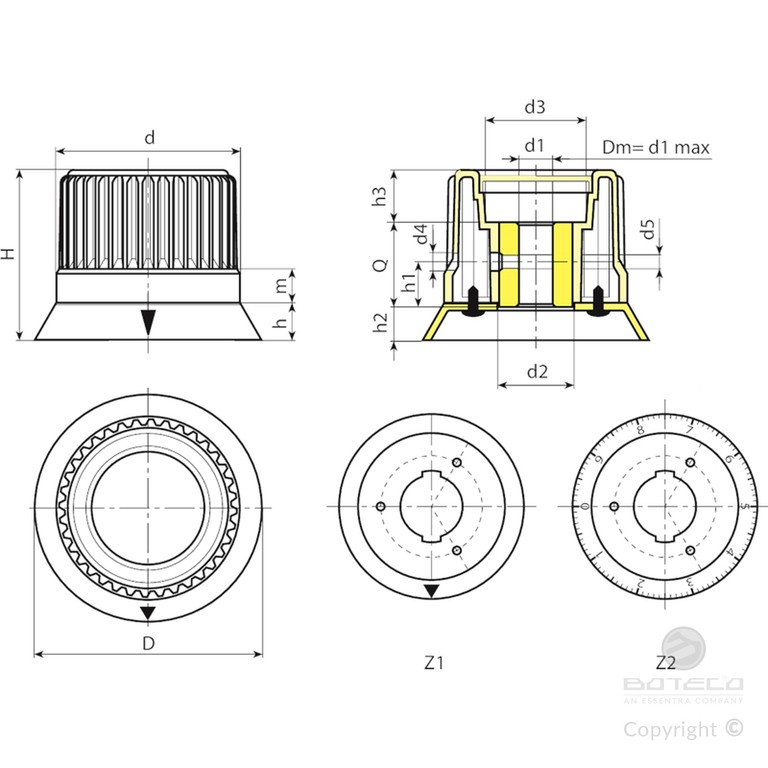

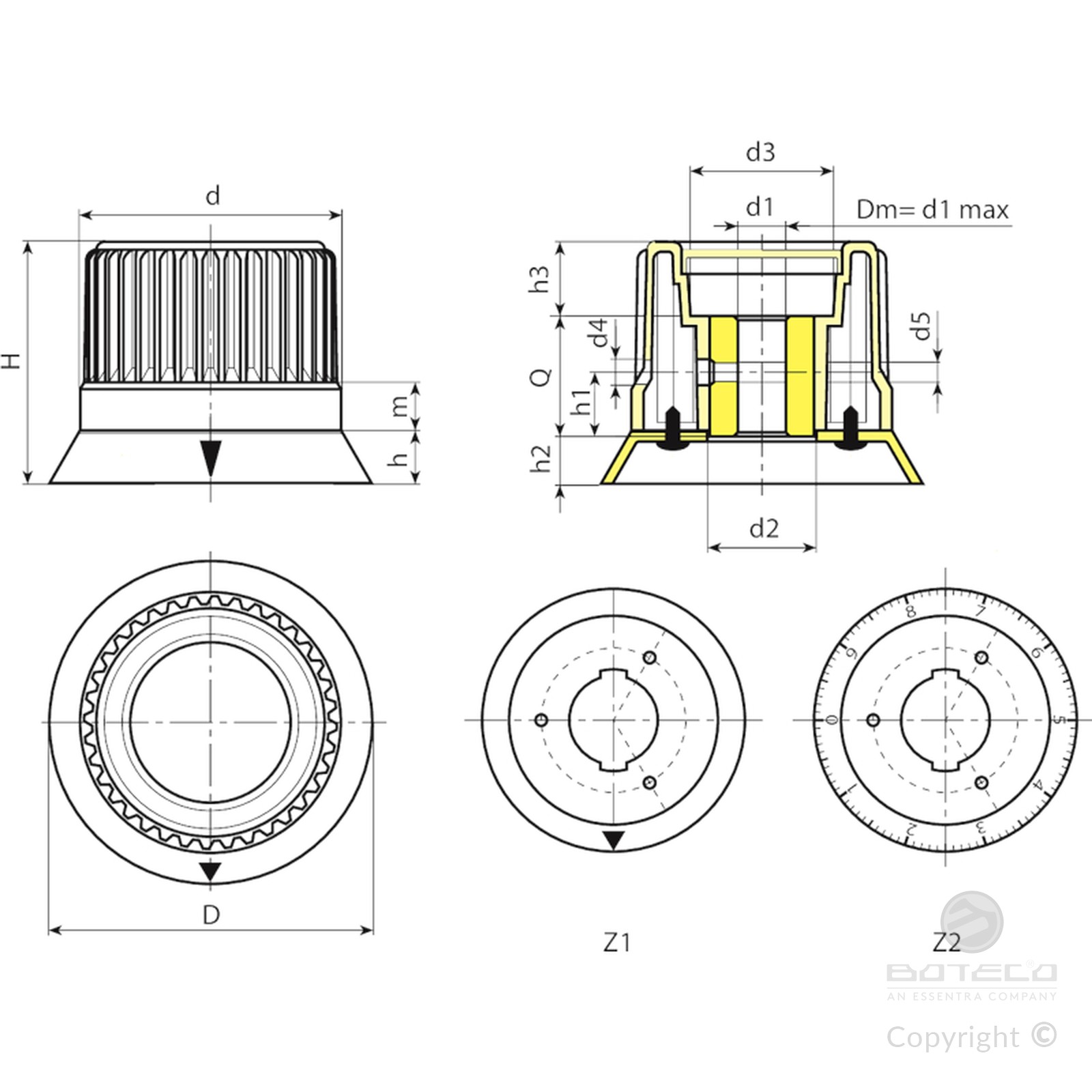

Code | Art. | D | H | h | m | d | d2 | d3 | d4 | d5 | h1 | h2 | h3 | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N25030.0001 | N25030.TD060113Z1 | 38 | 37 | 7 | 11,5 | 30 | 20 | 18 | 4,5 | M4 | 16 | 5,5 | 5,5 | 12 | 6 | 26 | 85 |
N25043.0002 | N25043.TD080113Z1 | 53,5 | 45 | 9 | 11,5 | 43 | 23,5 | 23 | 5,5 | M5 | 16 | 7,5 | 13,5 | 12 | 8 | 24 | 98 |
N25054.0001 | N25054.TD080113Z1 | 67 | 53 | 11 | 12 | 54 | 27,5 | 31 | 5,5 | M5 | 16 | 9,5 | 13,5 | 14 | 8 | 30 | 170 |
N25065.0001 | N25065.TD080113Z1 | 80 | 60 | 13 | 12 | 65 | 27,5 | 36 | 5,5 | M5 | 16 | 11,5 | 19 | 16 | 8 | 30 | 190 |
N25078.0001 | N25078.TD080113Z1 | 93 | 67 | 13 | 12,5 | 78 | 31,5 | 50 | 6,5 | M6 | 18 | 11,5 | 23,5 | 18 | 8 | 32 | 290 |
Version with black flange and cap, and grey arrow
Code | Art. | D | H | h | m | d | d2 | d3 | d4 | d5 | h1 | h2 | h3 | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N25030.0003 | N25030.TD0601Z1 | 38 | 37 | 7 | 11,5 | 30 | 20 | 18 | 4,5 | M4 | 16 | 5,5 | 5,5 | 12 | 6 | 26 | 85 |
N25043.0004 | N25043.TD0801Z1 | 53,5 | 45 | 9 | 11,5 | 43 | 23,5 | 23 | 5,5 | M5 | 16 | 7,5 | 13,5 | 12 | 8 | 24 | 98 |
N25054.0003 | N25054.TD0801Z1 | 67 | 53 | 11 | 12 | 54 | 27,5 | 31 | 5,5 | M5 | 16 | 9,5 | 13,5 | 14 | 8 | 30 | 170 |
N25065.0003 | N25065.TD0801Z1 | 80 | 60 | 13 | 12 | 65 | 27,5 | 36 | 5,5 | M5 | 16 | 11,5 | 19 | 16 | 8 | 30 | 190 |
N25078.0003 | N25078.TD0801Z1 | 93 | 67 | 13 | 12,5 | 78 | 31,5 | 50 | 6,5 | M6 | 18 | 11,5 | 23,5 | 18 | 8 | 32 | 290 |
Version with grey (RAL 7035 code no. 13) flange and cap, and black graduated scale.
Code | Art. | D | H | h | m | d | d2 | d3 | d4 | d5 | h1 | h2 | h3 | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N25030.0002 | N25030.TD060113Z2 | 38 | 37 | 7 | 11,5 | 30 | 20 | 18 | 4,5 | M4 | 16 | 5,5 | 5,5 | 12 | 6 | 26 | 85 |
N25043.0003 | N25043.TD080113Z2 | 53,5 | 45 | 9 | 11,5 | 43 | 23,5 | 23 | 5,5 | M5 | 16 | 7,5 | 13,5 | 12 | 8 | 24 | 98 |
N25054.0002 | N25054.TD080113Z2 | 67 | 53 | 11 | 12 | 54 | 27,5 | 31 | 5,5 | M5 | 16 | 9,5 | 13,5 | 14 | 8 | 30 | 170 |
N25065.0002 | N25065.TD080113Z2 | 80 | 60 | 13 | 12 | 65 | 27,5 | 36 | 5,5 | M5 | 16 | 11,5 | 19 | 16 | 8 | 30 | 190 |
N25078.0002 | N25078.TD080113Z2 | 93 | 67 | 13 | 12,5 | 78 | 31,5 | 50 | 6,5 | M6 | 18 | 11,5 | 23,5 | 18 | 8 | 32 | 290 |
Version with black flange and cap, and grey graduated scale
Code | Art. | D | H | h | m | d | d2 | d3 | d4 | d5 | h1 | h2 | h3 | Dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N25030.0004 | N25030.TD0601Z2 | 38 | 37 | 7 | 11,5 | 30 | 20 | 18 | 4,5 | M4 | 16 | 5,5 | 5,5 | 12 | 6 | 26 | 85 |
N25043.0005 | N25043.TD0801Z2 | 53,5 | 45 | 9 | 11,5 | 43 | 23,5 | 23 | 5,5 | M5 | 16 | 7,5 | 13,5 | 12 | 8 | 24 | 98 |
N25054.0004 | N25054.TD0801Z2 | 67 | 53 | 11 | 12 | 54 | 27,5 | 31 | 5,5 | M5 | 16 | 9,5 | 13,5 | 14 | 8 | 30 | 170 |
N25065.0004 | N25065.TD0801Z2 | 80 | 60 | 13 | 12 | 65 | 27,5 | 36 | 5,5 | M5 | 16 | 11,5 | 19 | 16 | 8 | 30 | 190 |
N25078.0004 | N25078.TD0801Z2 | 93 | 67 | 13 | 12,5 | 78 | 31,5 | 50 | 6,5 | M6 | 18 | 11,5 | 23,5 | 18 | 8 | 32 | 290 |
