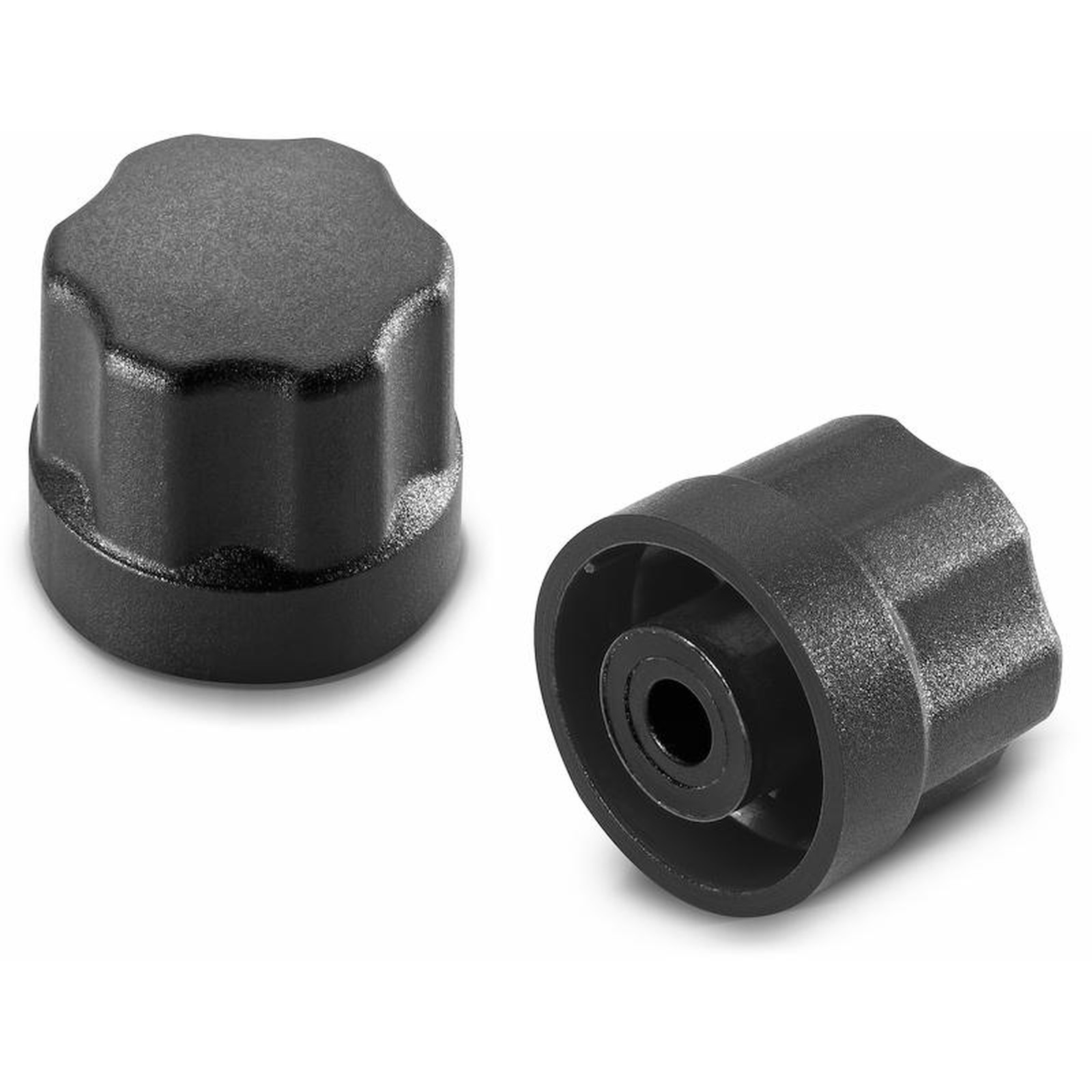

LOBED CONTROL KNOB FOR POTENTIOMETER WITH SMOOTH BORE
14
N249
Manicotti zigrinati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Special requests:
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

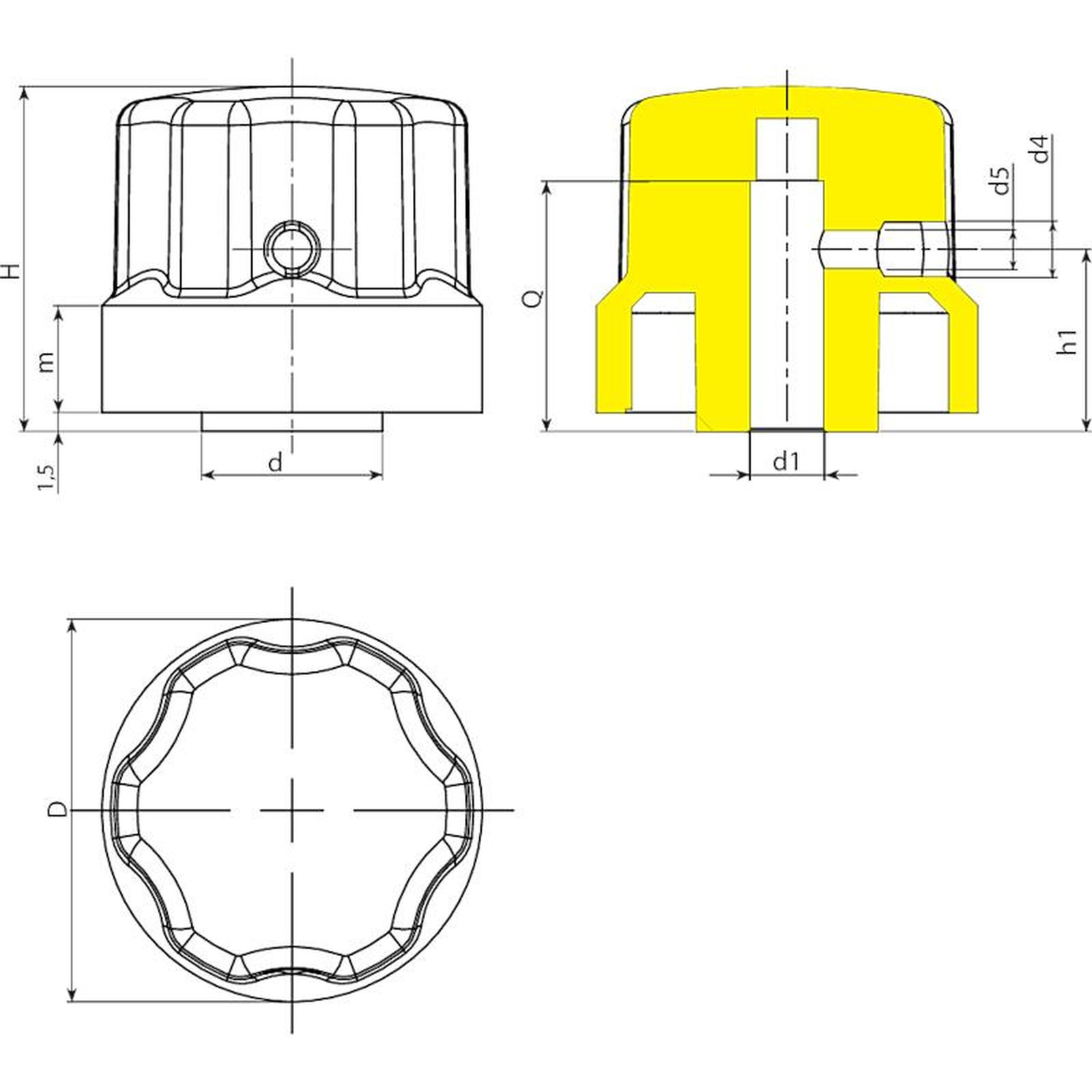

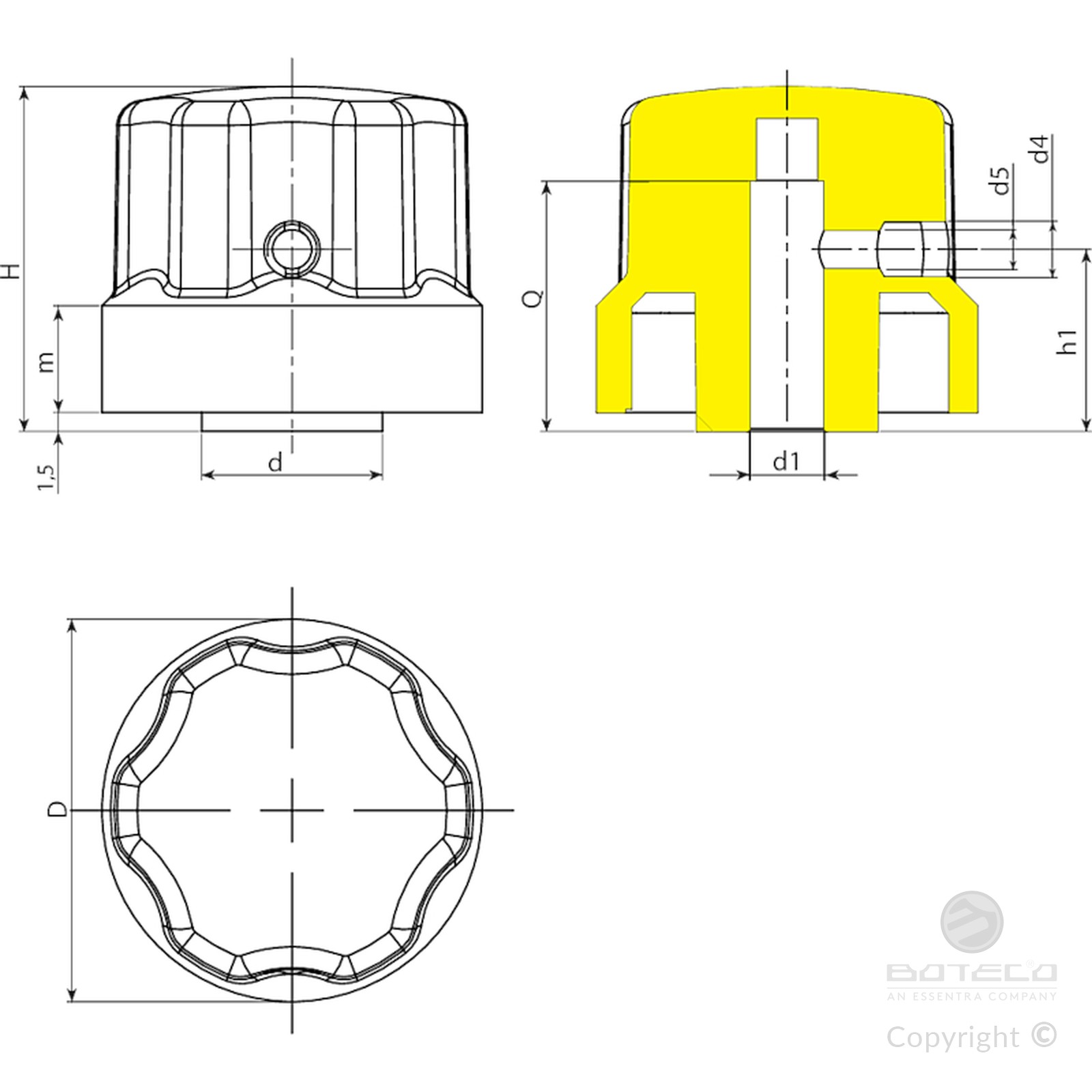

| Code | Art. | D | H | m | d | d4 | d5 | h1 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| N24930.0002 | N24930.TG0601NM04X14.5 | 30,5 | 27,5 | 8,5 | 14,5 | 4,5 | M4 | 14,5 | 6 | 20 | 13 |
| N24930.0001 | N24930.TG0801NM04X14.5 | 30,5 | 27,5 | 8,5 | 14,5 | 4,5 | M4 | 14,5 | 8 | 20 | 12 |
