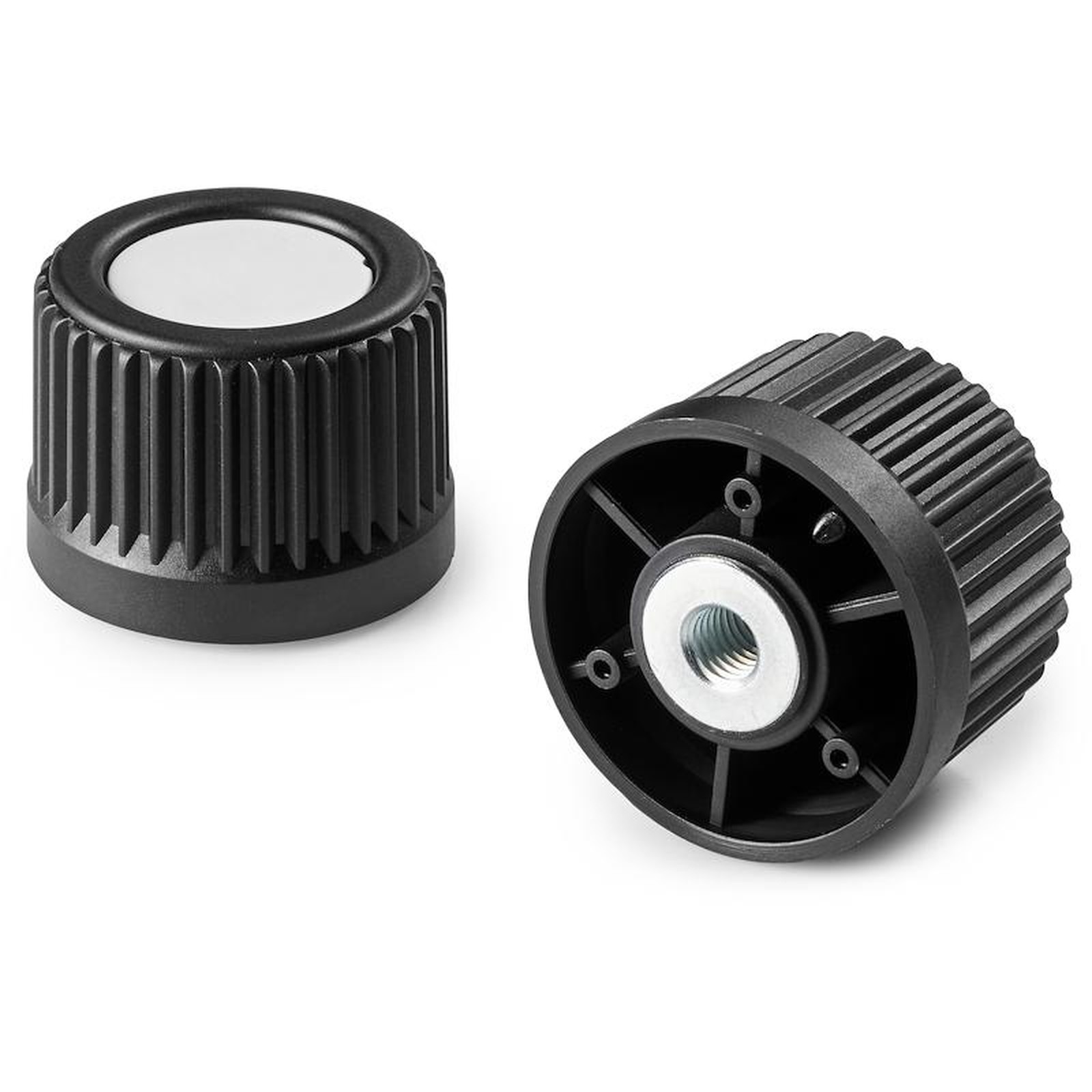

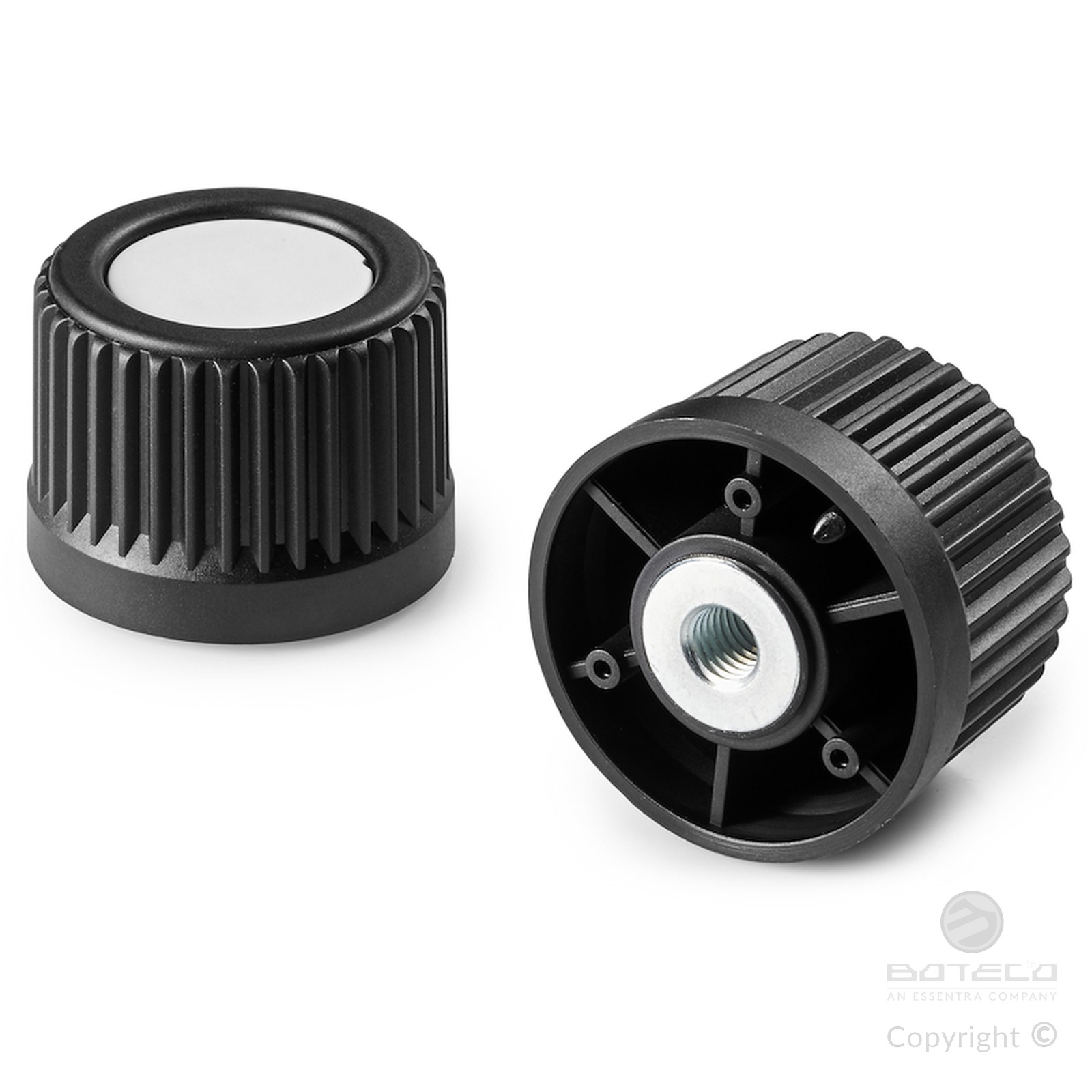

KNURLED CONTROL KNOB WITH THREADED HOLE INSERT
14
N248
Manicotti zigrinati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Cap:
Central cap in grey polyamide (RAL 7035).
Inserts:
Galvanised steel insert with threaded through hole (thread tolerance 6H).
Notes:

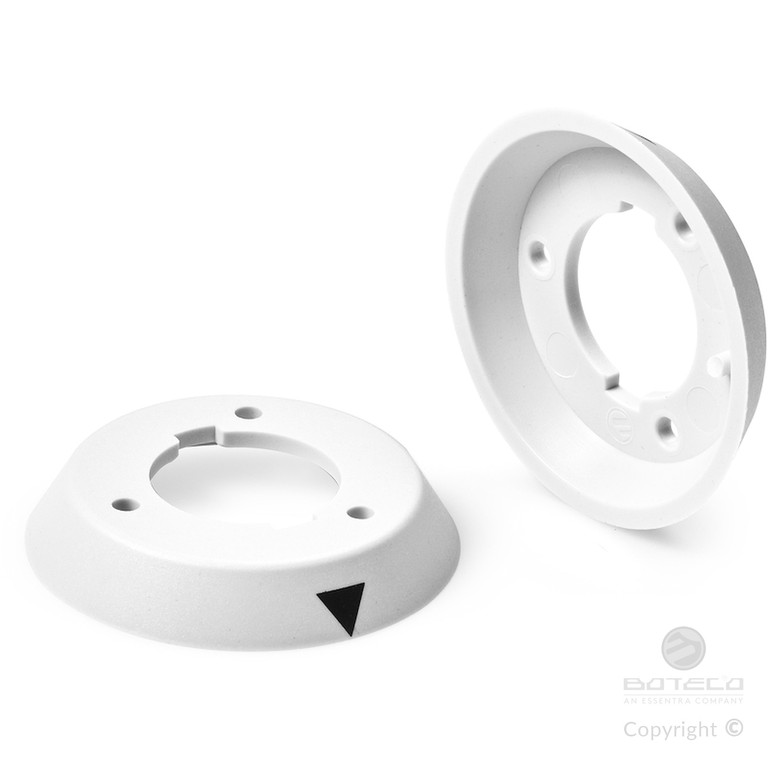

(*) Side NFLAN flange fixing (optional).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

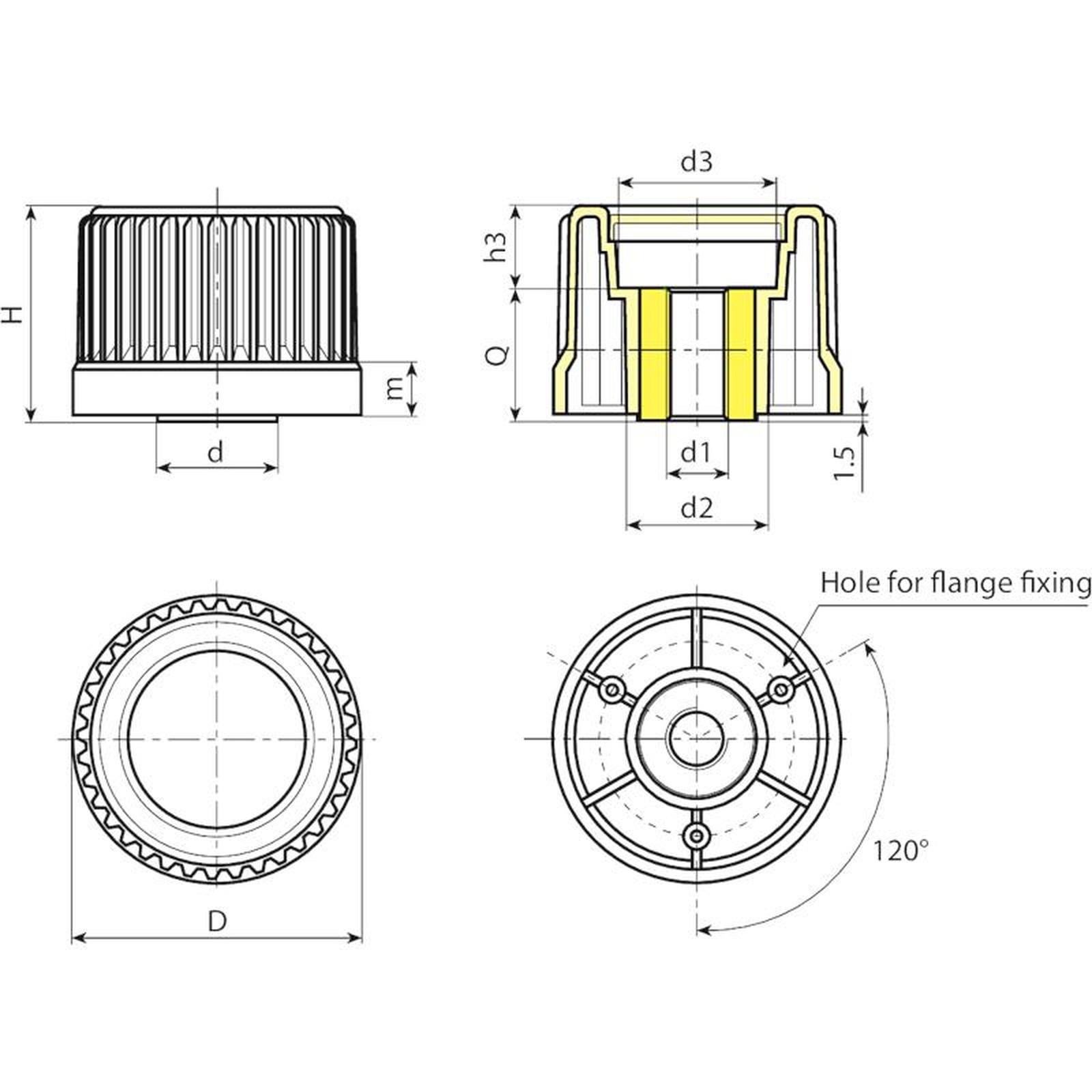

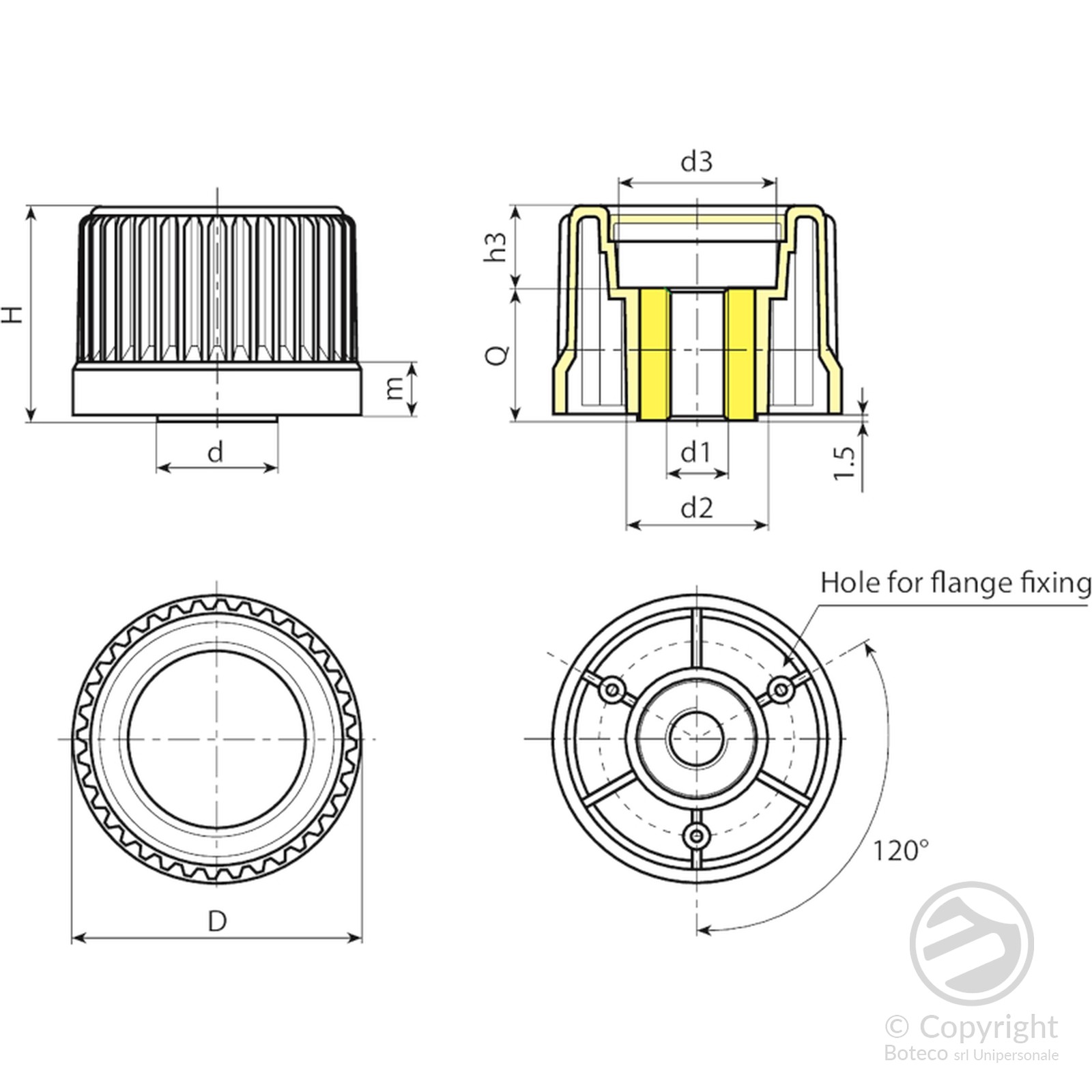

| Code | Art. | D | H | m | d | d2 | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| N24830.0001 | N24830.TM0801 (*) | 30 | 31,5 | 11,5 | 20 | 20 | 18 | 5,5 | M8 | 26 | 79 |
| N24843.0002 | N24843.TM1001 | 43 | 37,5 | 11,5 | 22 | 27,5 | 23 | 13,5 | M10 | 24 | 85 |
| N24854.0002 | N24854.TM1201 | 54 | 43,5 | 12 | 26 | 32 | 31 | 13,5 | M12 | 30 | 155 |
| N24865.0001 | N24865.TM1201 | 65 | 48,5 | 12 | 27 | 32 | 36 | 18,5 | M12 | 30 | 180 |
| N24878.0001 | N24878.TM1401 | 78 | 55,5 | 12,5 | 31 | 36 | 50 | 23,5 | M14 | 32 | 270 |
Threaded holes already provided: N248-30 : M08-M10-M12
Threaded holes already provided: N248-43 : M08-M10-M12
Threaded holes already provided: N248-54 : M08-M10-M12
Threaded holes already provided: N248-65 : M10-M12-M14
Threaded holes already provided: N248-78 : M12-M14-M16
Attention: for a minimum of 100 pieces the diameter d1 can be produced with the requested dimensions.
