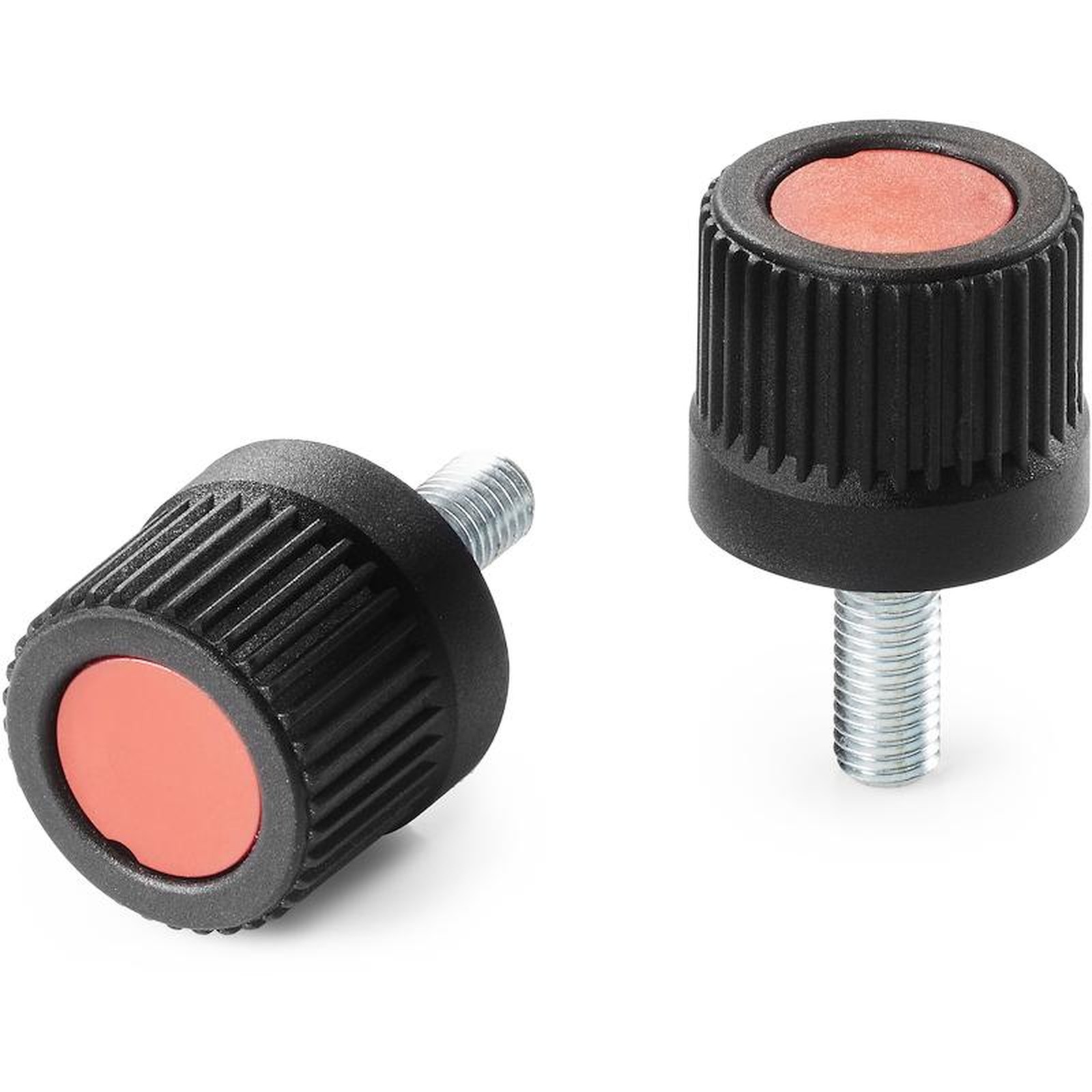

KNURLED CONTROL KNOB WITH THREADED STUD
14
N245
Manicotti zigrinati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Cap:
Central cap in grey polyamide (RAL 7035).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Notes:
(*) Side NFLAN flange fixing (optional).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

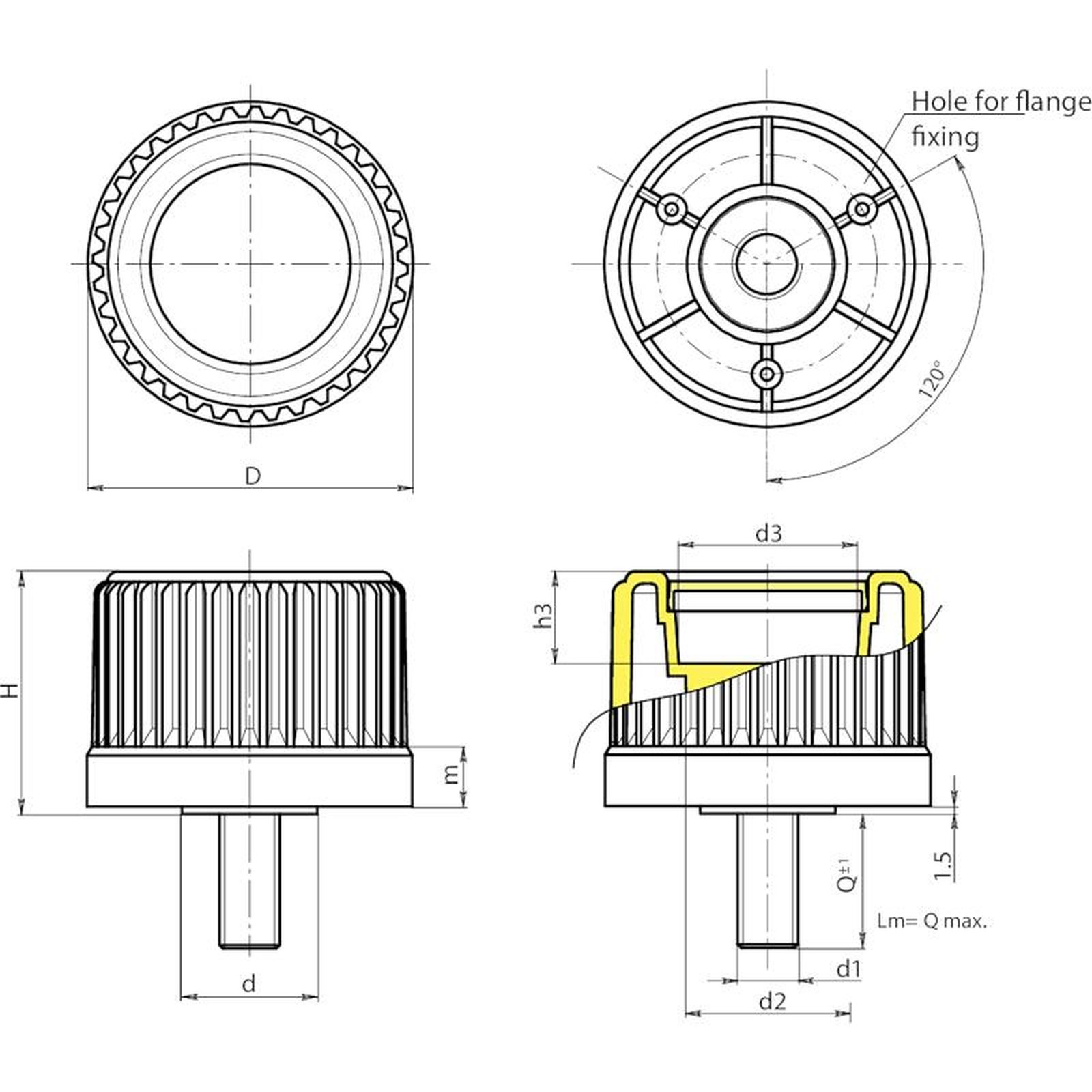

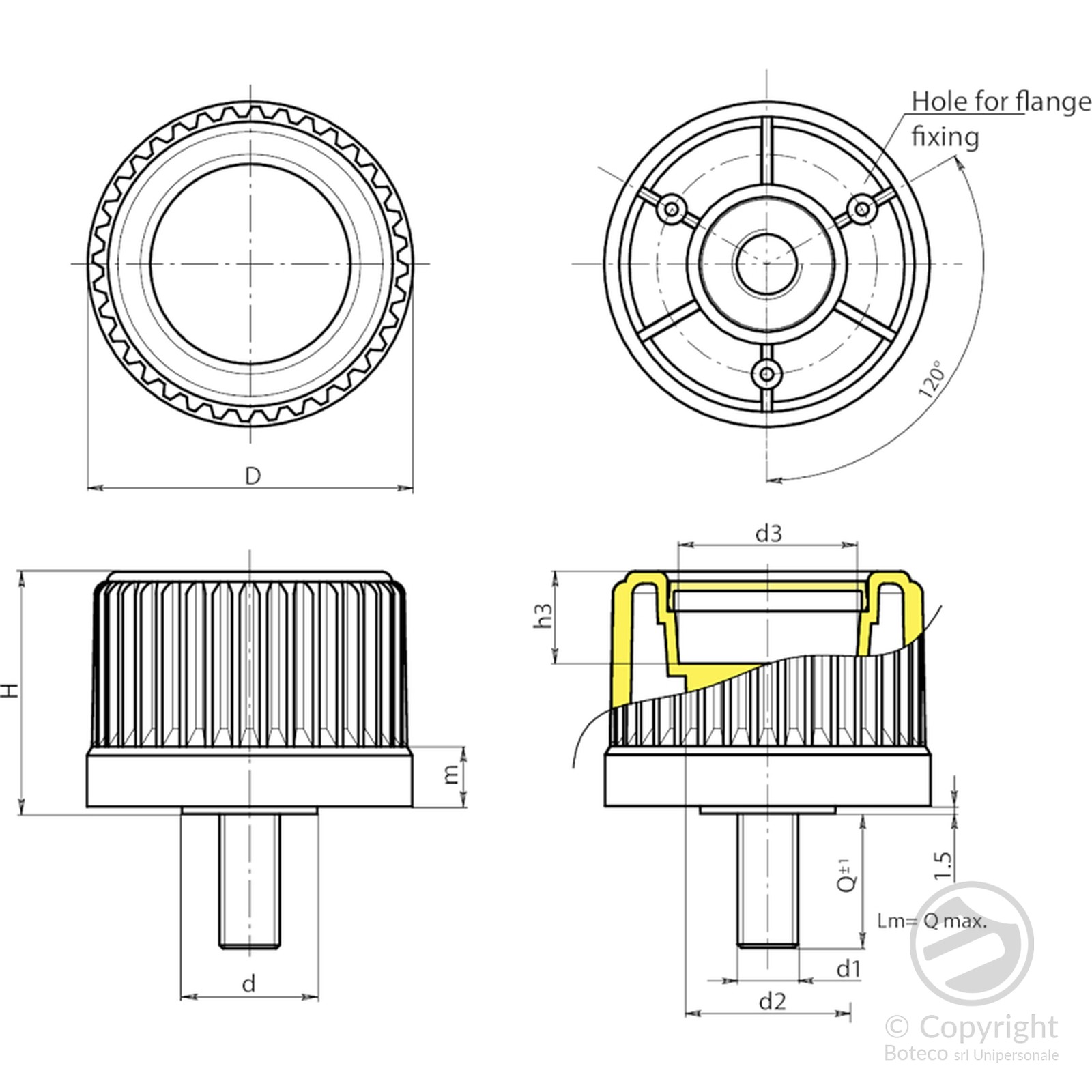

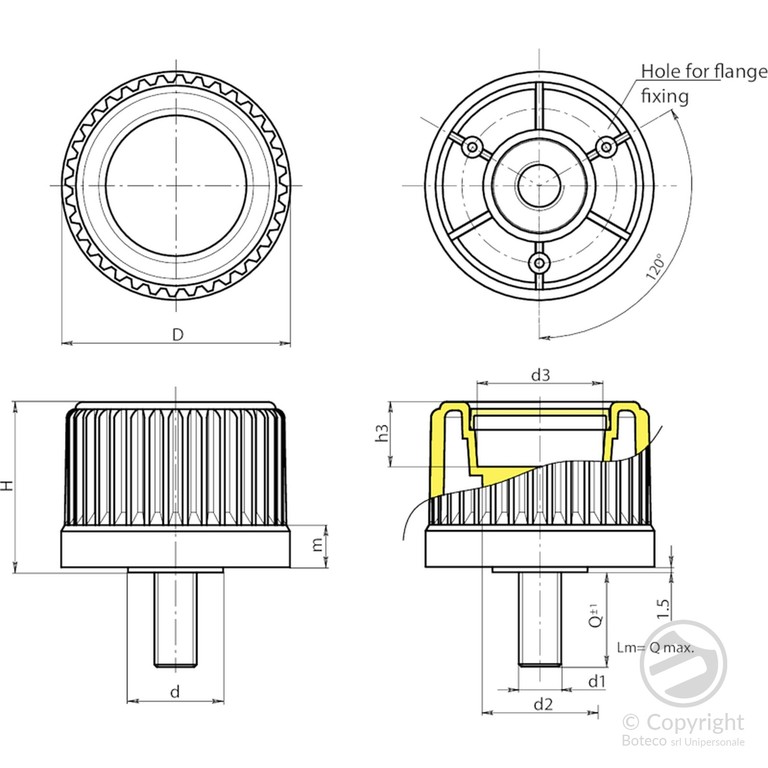

| Code | Art. | D | H | m | d | d2 | d3 | h3 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N24530.0002 | N24530.TM10X200113(*) | 30 | 31,5 | 11,5 | 20 | 20 | 18 | 5,5 | 80 | M10 | 20 | 40 |
| N24543.0001 | N24543.TM12X300113 | 43 | 37,5 | 11,5 | 22 | 27,5 | 23 | 13,5 | 90 | M12 | 30 | - |
| N24554.0001 | N24554.TM12X300113 | 54 | 43.5 | 12 | 26 | 32 | 31 | 13,5 | 100 | M12 | 30 | - |
| N24565.0001 | N24565.TM16X300113 | 65 | 48,5 | 12 | 27 | 32 | 36 | 18,5 | 120 | M16 | 30 | - |
| N24578.0001 | N24578.TM16X300113 | 78 | 55,5 | 12,5 | 31 | 36 | 50 | 23,5 | 120 | M16 | 30 | - |
LM = maximum mouldable length.
Customised stud length available for a minimum of 200 pieces.
