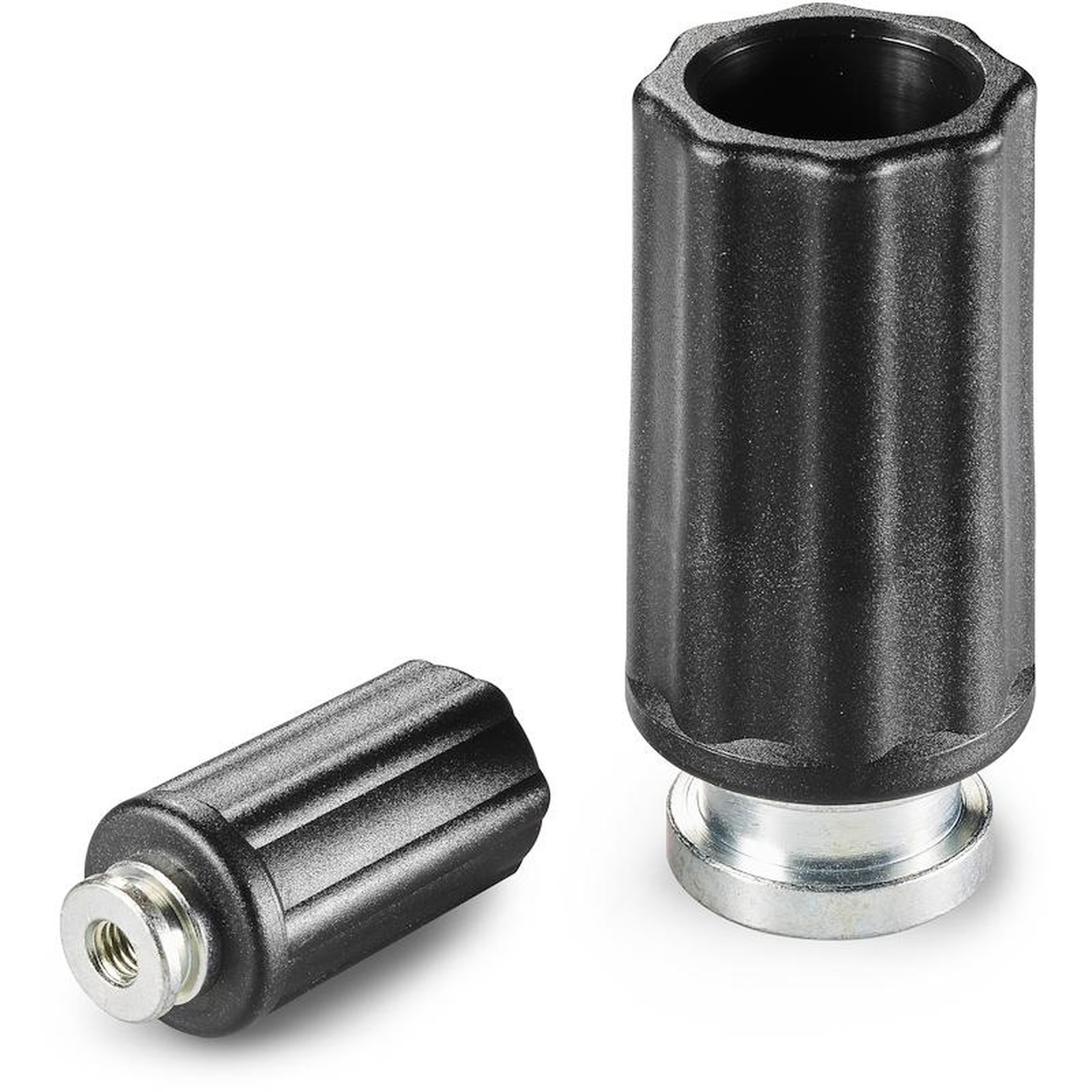

CONTROL KNOB WITH METAL INSERT AND THROUGH HOLE
14
N244
Manicotti lobati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with threaded through hole and empty body top (6H thread tolerance).
Special requests:
None.

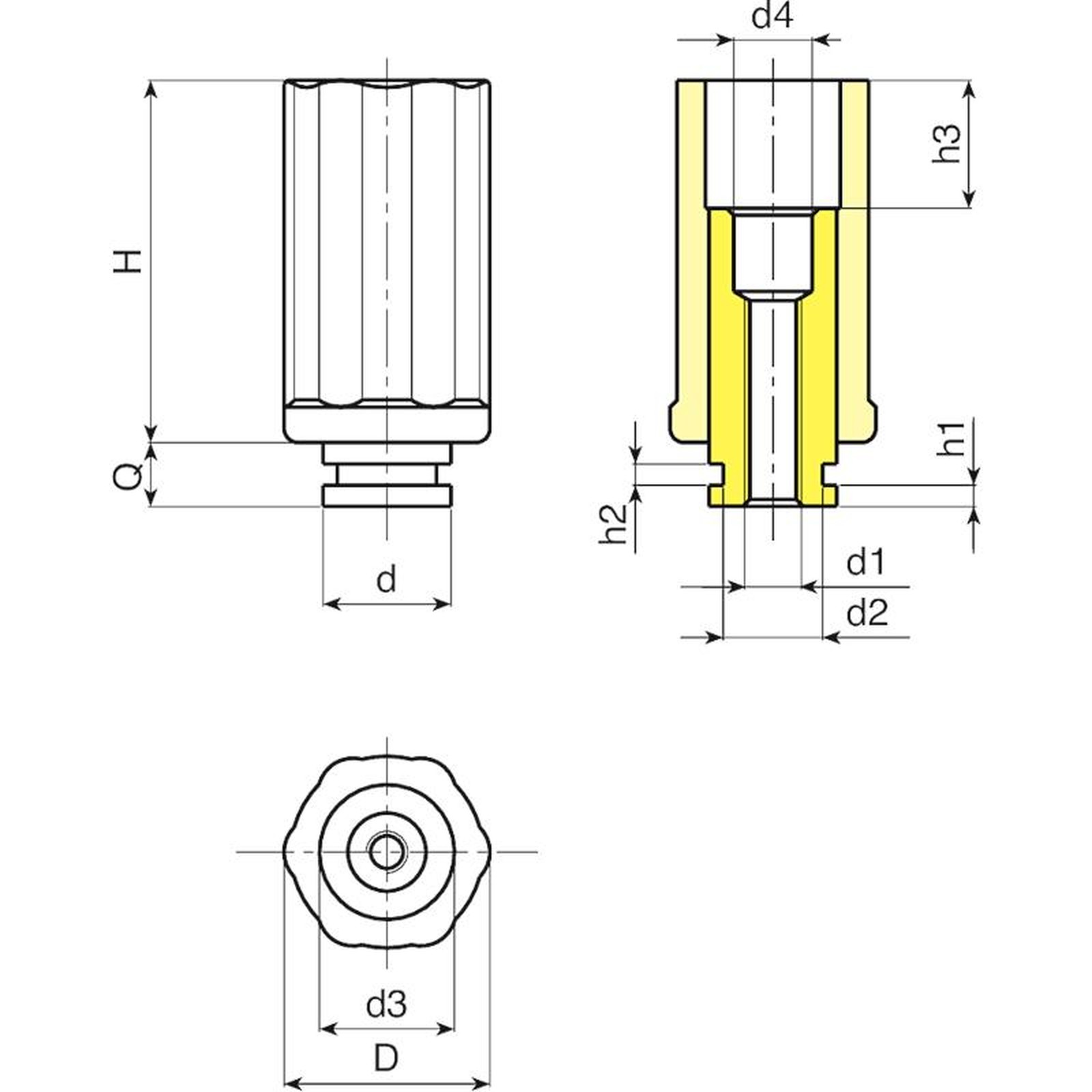

| Code | Art. | D | H | d3 | h3 | Q | d | d1 | d2 | d4 | h1 | h2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | N24430.T.......... | 30 | 21 | 32 | 63 | 33 | 12 | 25÷40 | 20 | A.R. | A.R. | A.R. | - |
| - | N24450.T.......... | 50 | 36 | 41 | 83 | 55 | 29 | 25÷40 | 28÷30 | A.R. | A.R. | A.R. | - |
