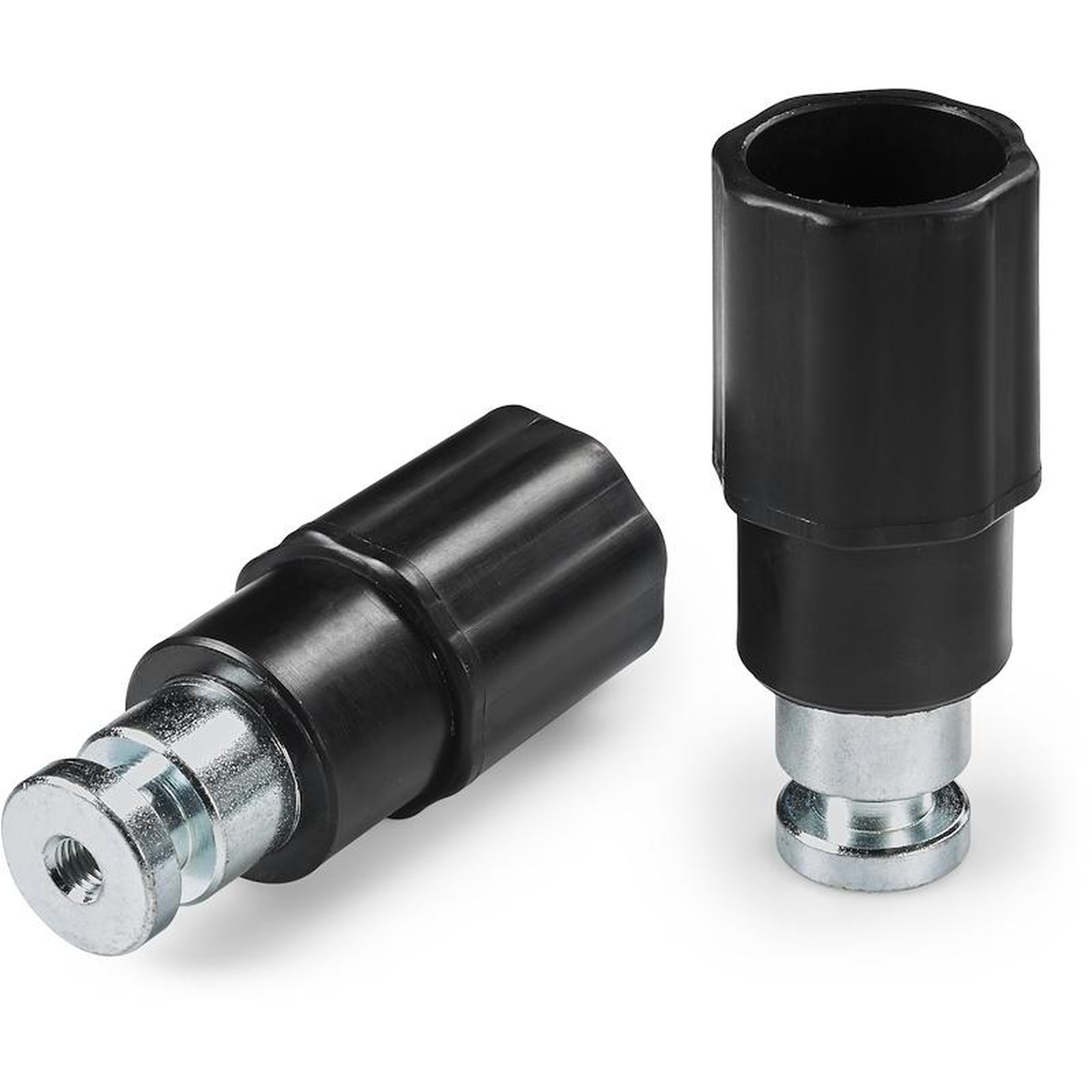

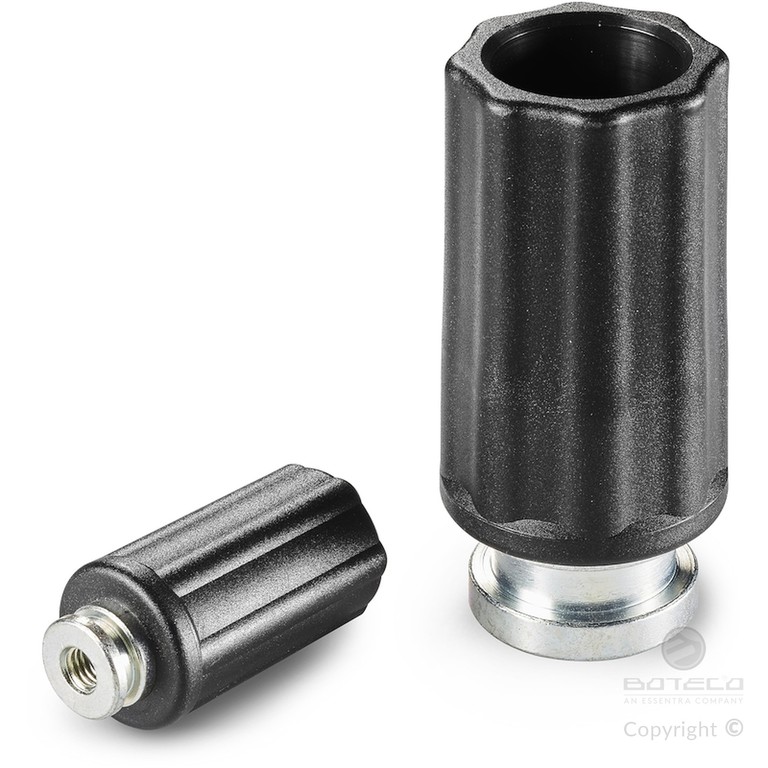

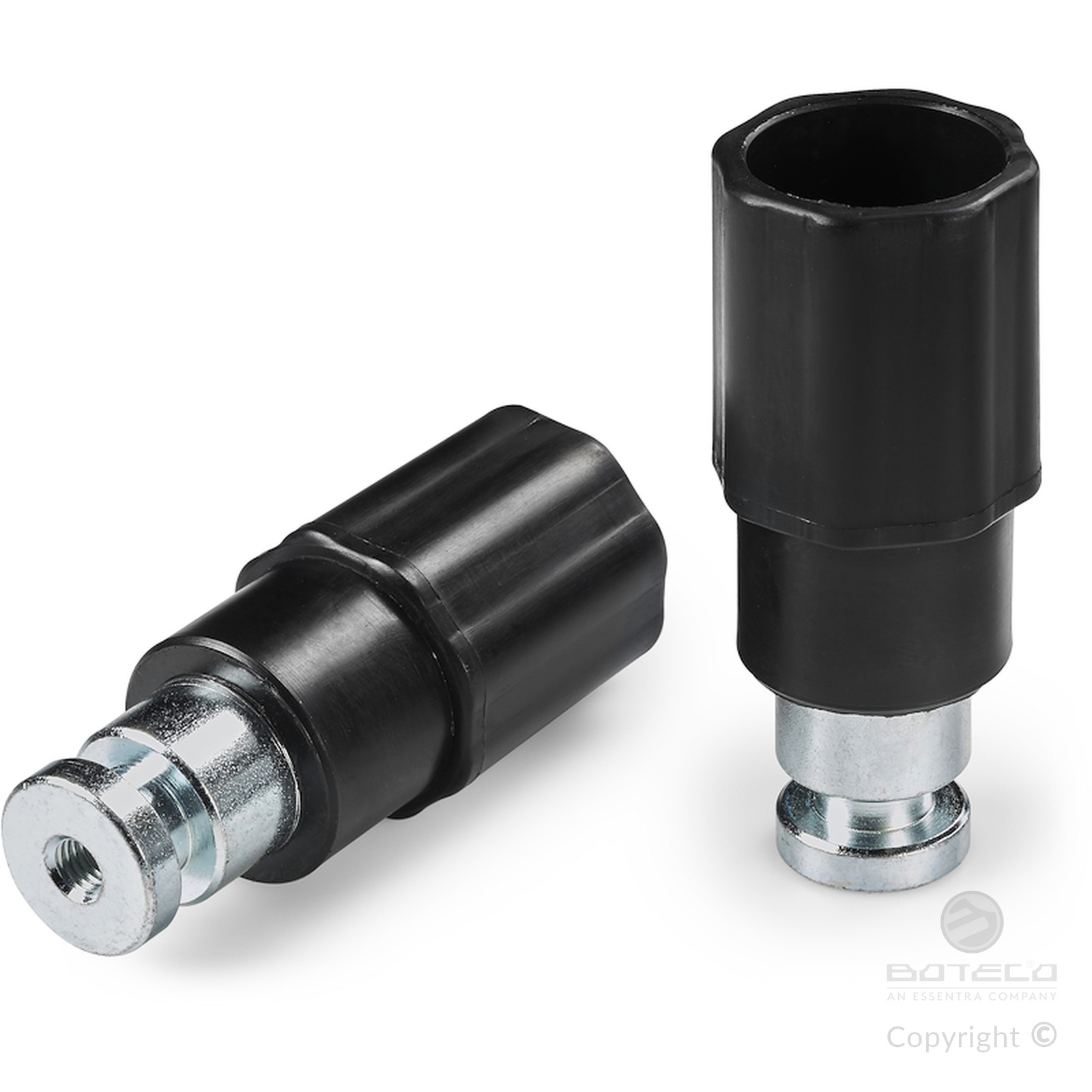

CONTROL KNOB WITH METAL INSERT AND THROUGH HOLE
14
N240
Manicotti lobati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with threaded through hole and empty body top (6H thread tolerance).
Special requests:
None.

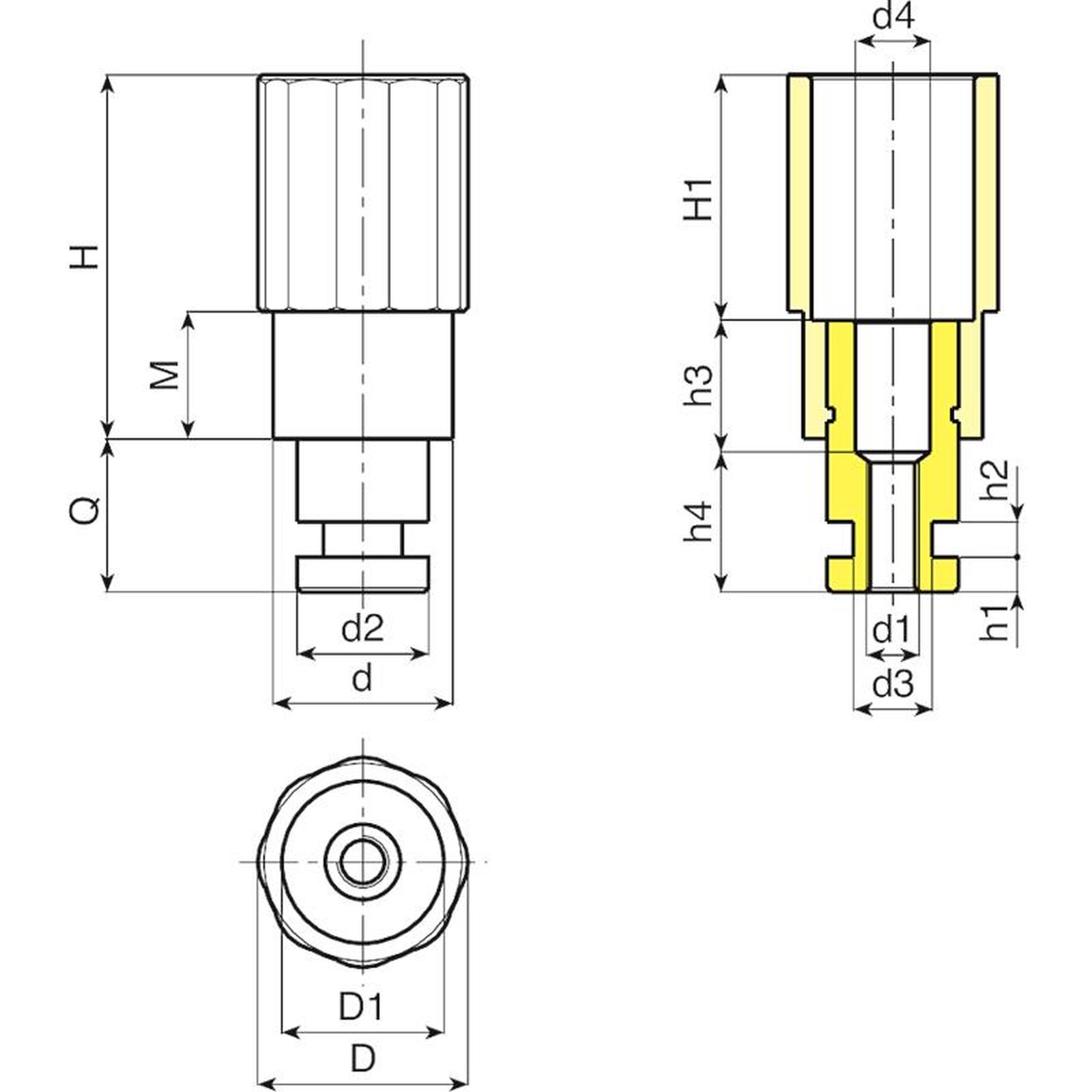

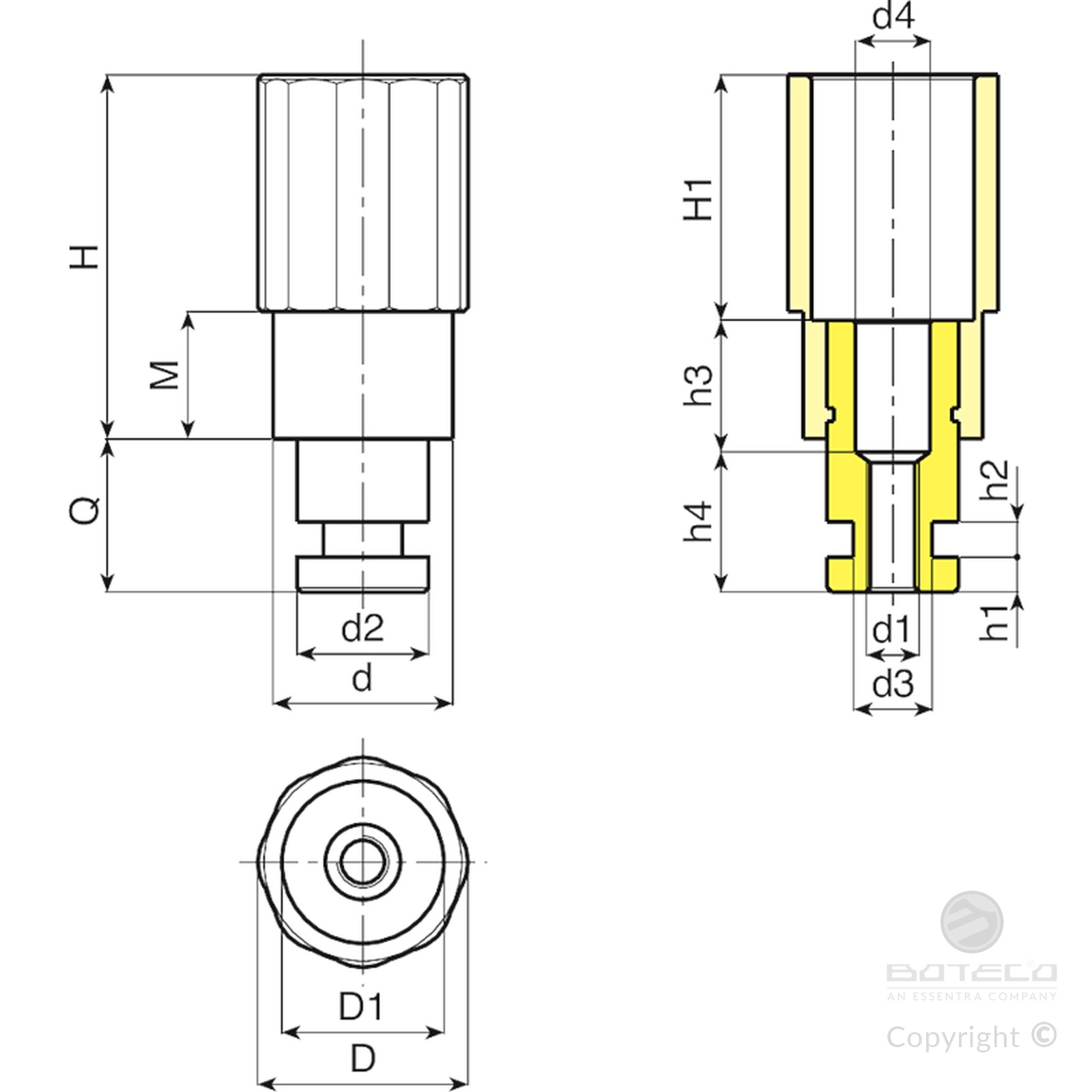

| Code | Art. | D | D1 | d | H | H1 | M | Q | d2 | d1 | d3 | d4 | h1 | h2 | h3 | h4 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | N24040.T........01 | 39 | 21 | 32 | 63 | 33 | 12 | 25÷40 | 20 | A.R. | A.R. | A.R. | A.R. | A.R. | A.R. | A.R. | - |
| - | N24050.T........01 | 48 | 36 | 41 | 83 | 55 | 29 | 25÷40 | 28÷30 | A.R. | A.R. | A.R. | A.R. | A.R. | A.R. | A.R. | - |
