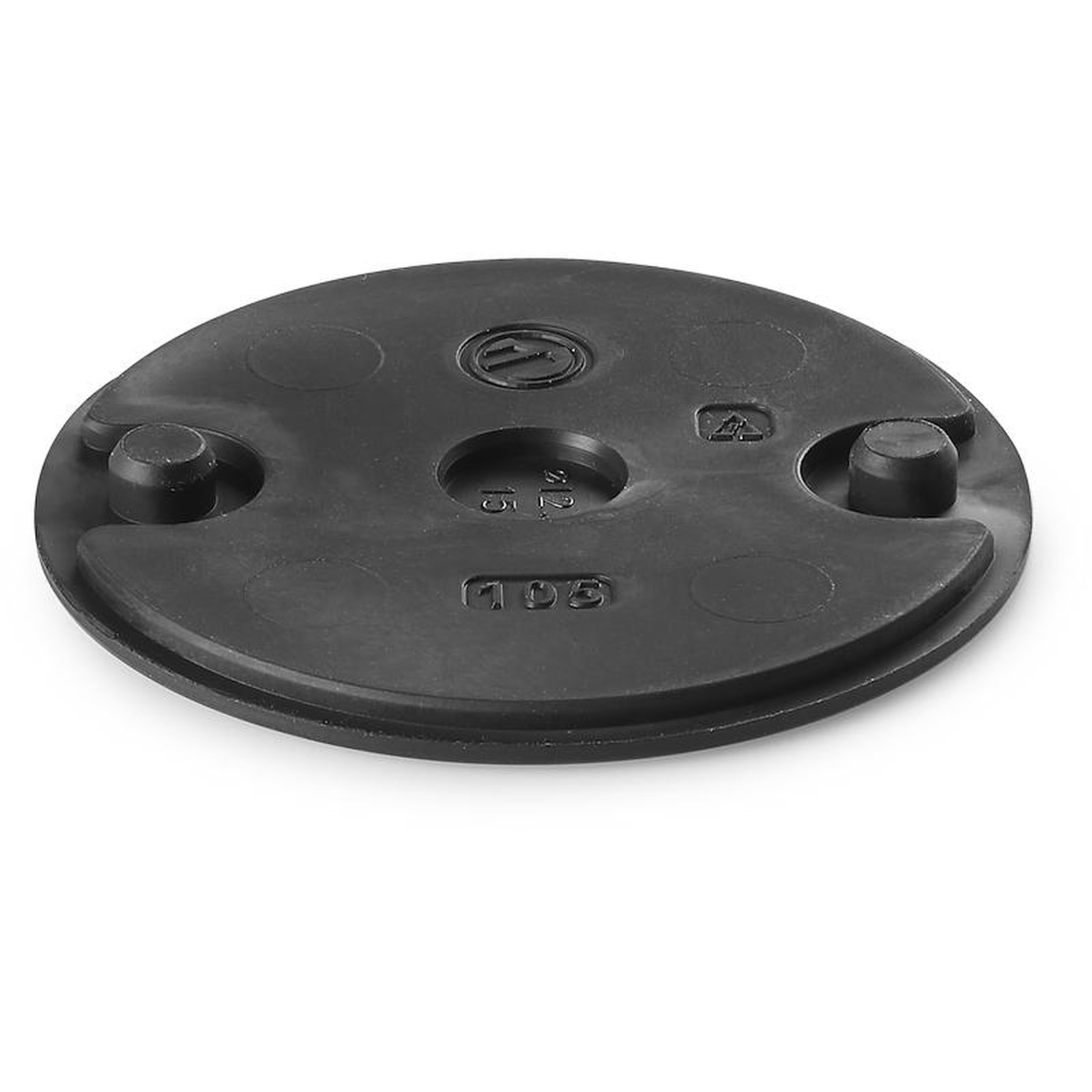

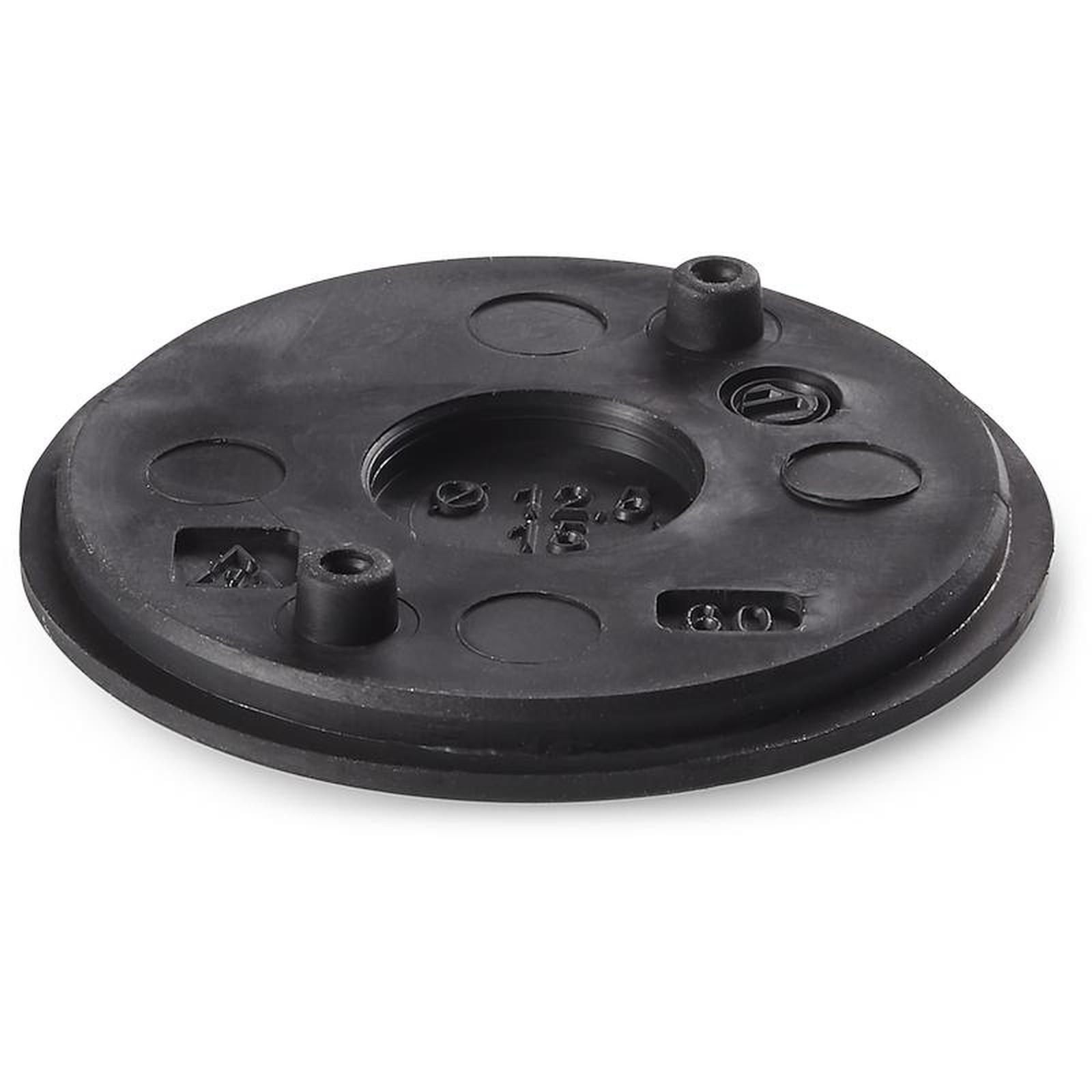

NON-SLIP BASE FOR MOUNTING FOOT BASE (40-50-60-80-105-130)
16
PIEANT
Basi in plastica
Materials:
Thermoplastic rubber SBS 75 Shore (only in black RAL 9011).
Resistant to oils and greases.
Surface finish:
Smooth.
Colour:
Black (RAL 9011).
Assembly:
Push-fit.
Special requests:
On request the non-slip base can be glued on.

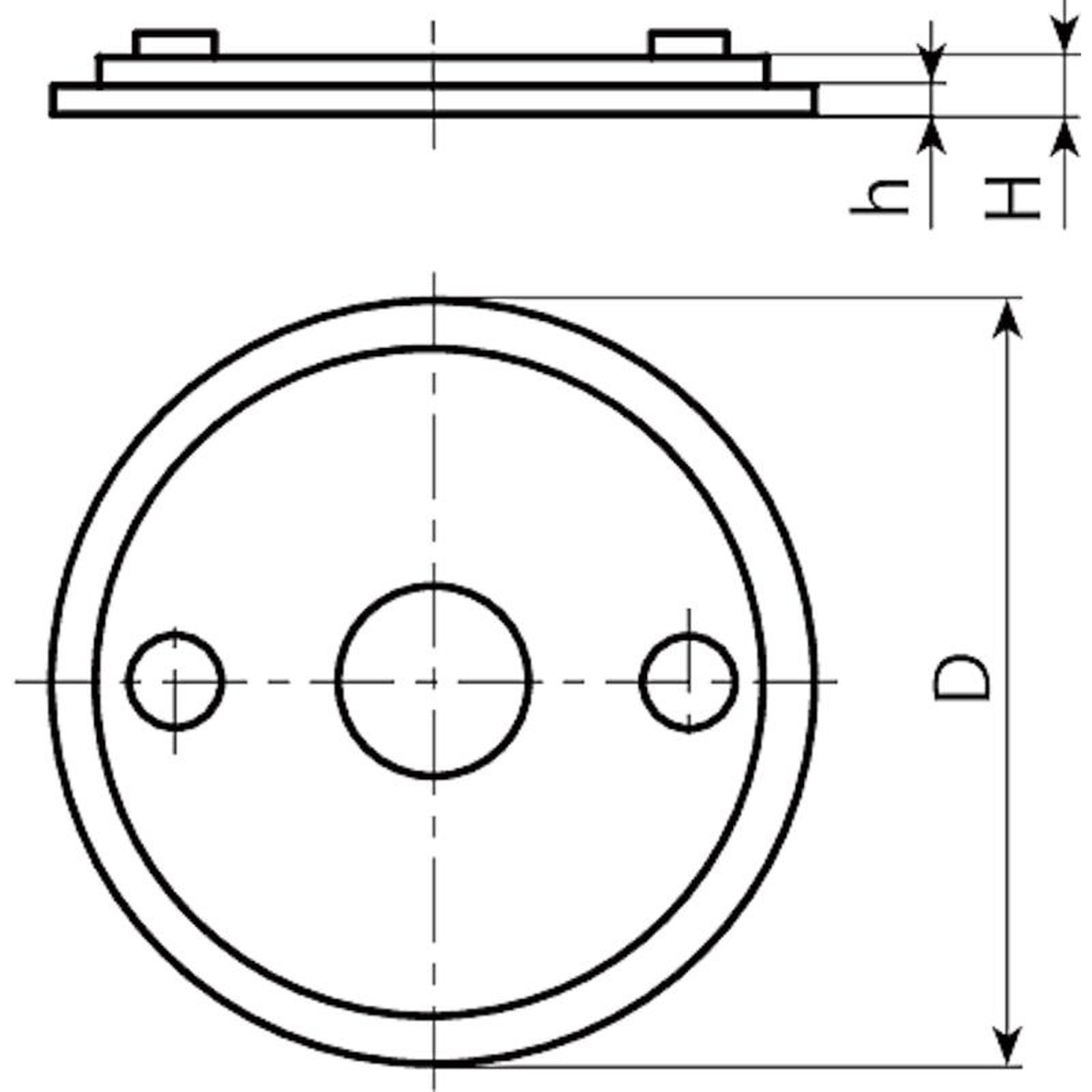

| Code | Art. | FOR FOOT BASE | D | H | h | Weight (g) |
|---|---|---|---|---|---|---|
| PIE.ANT040S12.5SBS | PIE.ANT040S12.5SBS | PIE.040S12.4 | 38 | 8,5 | 3 | 5 |
| PIE.ANT050S12.5SBS | PIE.ANT050S12.5SBS | PIE.050S12.4 | 48 | 8,5 | 5 | 6.5 |
| PIE.ANT060S12.5SBS | PIE.ANT060S12.5SBS | PIE.060S12.4 - PIE.060S15 | 58 | 8,5 | 5 | 10 |
| PIE.ANT080S1215SBS | PIE.ANT080S1215SBS | PIE.080S12,4 - PIE.080S | 76 | 9,5 | 5,5 | 17 |
| PIE.ANT080S24SBS | PIE.ANT080S24SBS | PIE.080S24 | 76 | 9,5 | 5,5 | 25 |
| PIE.ANT105S15SBS | PIE.ANT105S15SBS | PIE.105S15 | 100 | 9 | 5,5 | 33 |
| PIE.ANT105S24SBS | PIE.ANT105S24SBS | PIE.105S24 | 100 | 9 | 5,5 | 69 |
| PIE.ANT130S15SBS | PIE.ANT130S15SBS | PIE.130S15 | 125 | 9 | 5,5 | 74 |
| PIE.ANT130S24SBS | PIE.ANT130S24SBS | PIE.130S24 | 125 | 9 | 5,5 | 112 |
