TEARDROP MOUNTING FOOT BASE WITH LATERAL GROUND FIXING
16
PIE.700080
Basi in plastica
Description

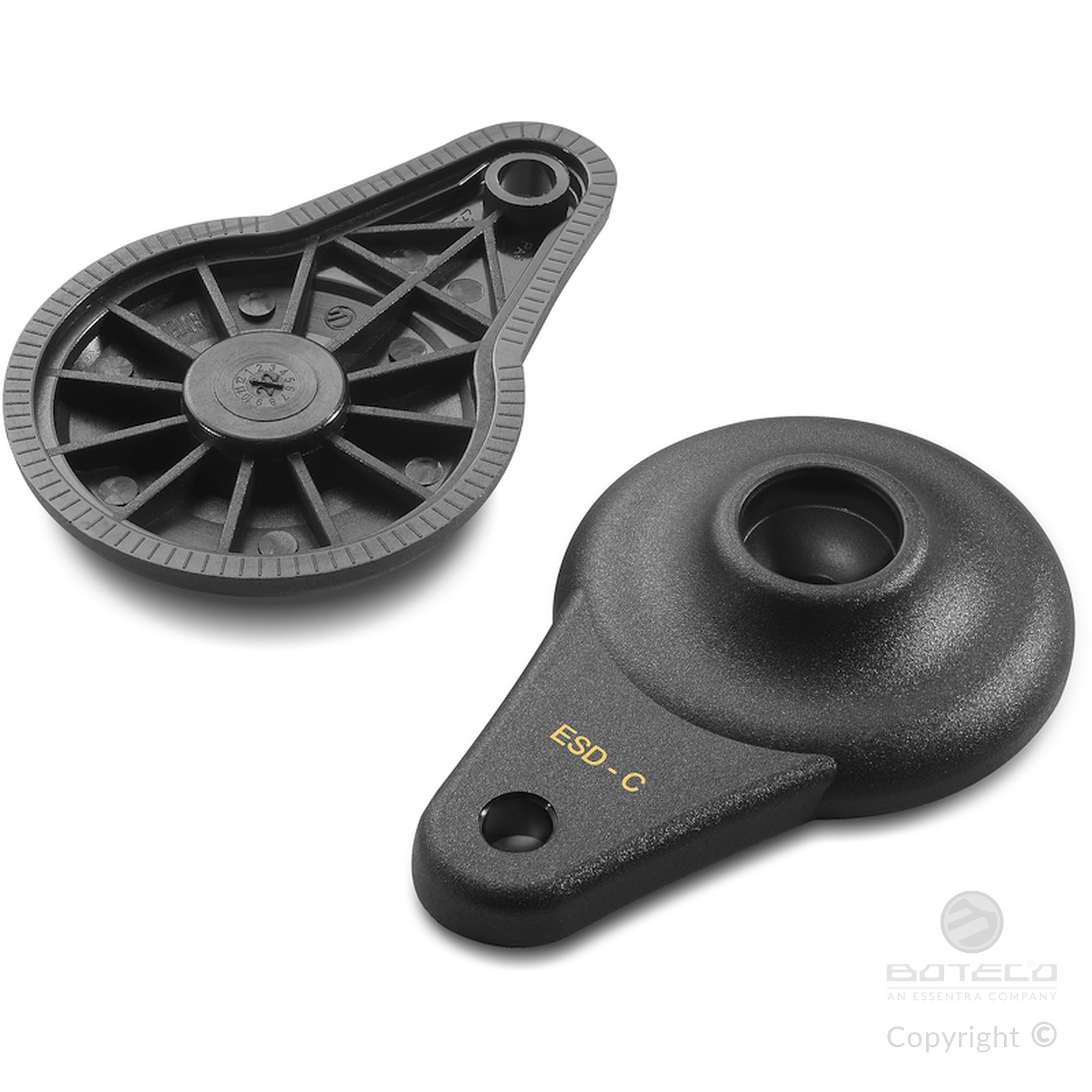

Note: Questo articolo è prodotto con materiale additivato ESD-C (Electro Static Discharge – Conductive) secondo la norma EN 100015/1 e IEC 61340-5-1. Il prodotto risulta conduttivo e previene la formazione di scariche elettrostatiche facilitandone il passaggio a terra. Una tampografia in colore giallo (ESD-C) aiuta la sua identificazione. Prodotto adatto per linee di produzione di materiale elettronico e per uso su atmosfere esplosive.
Materials:
PIE.700080:

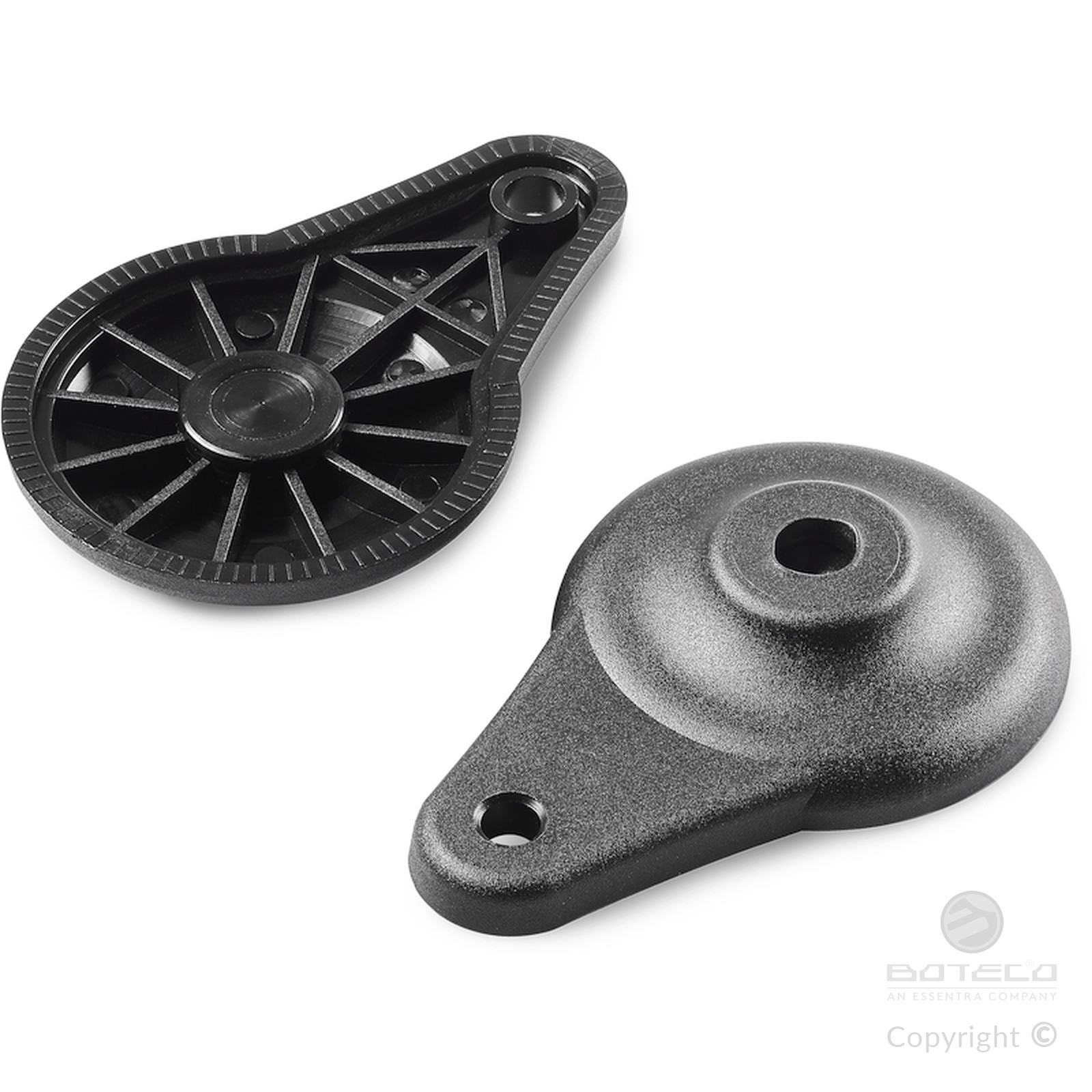

Reinforced polyamide. Resistant to oils and greases.
PIE.700080ESD:
Reinforced polyamide, with conductive fillers (ESD-C). Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Special requests:
PIE.700080: Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
PIE.700080ESD: None.
Standard version

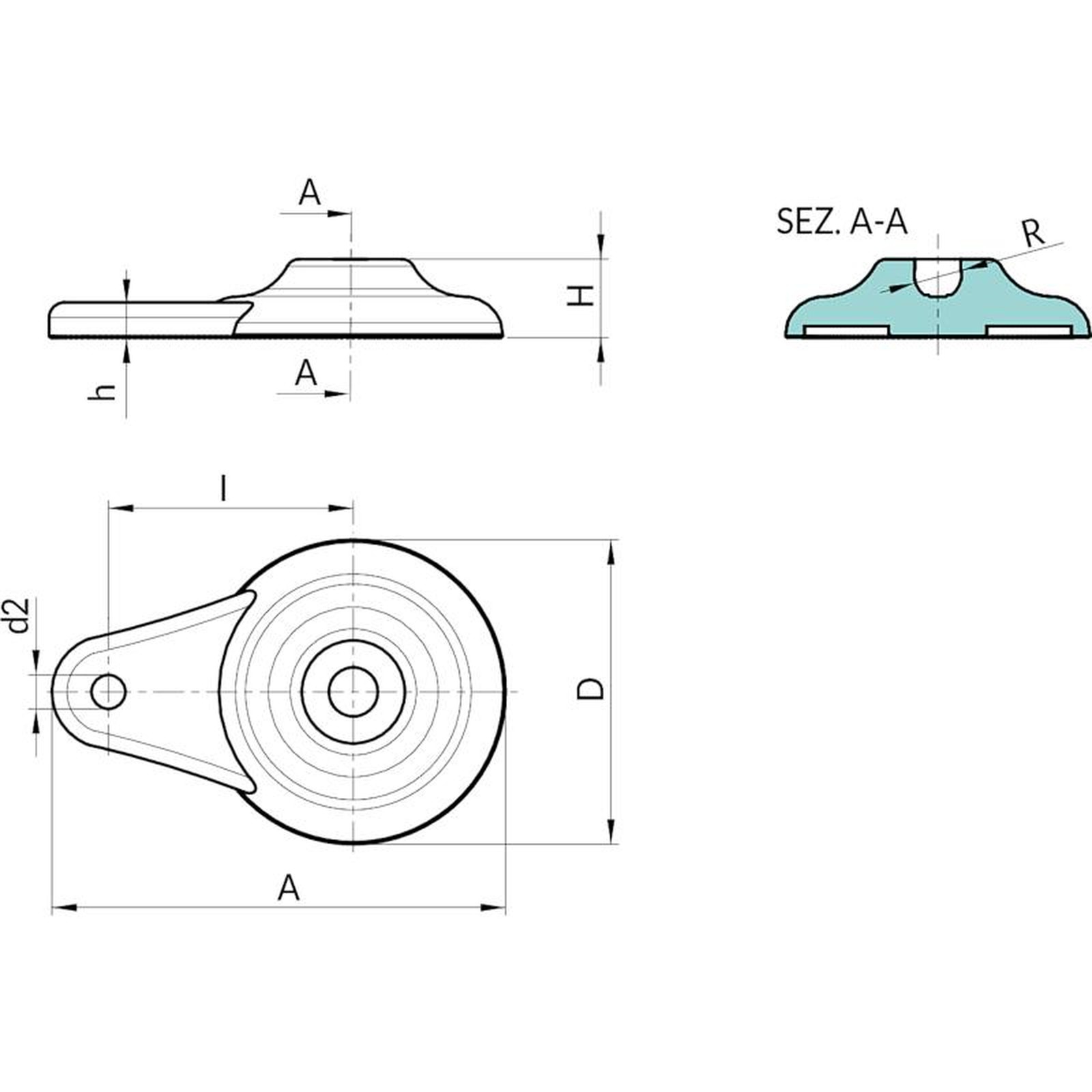

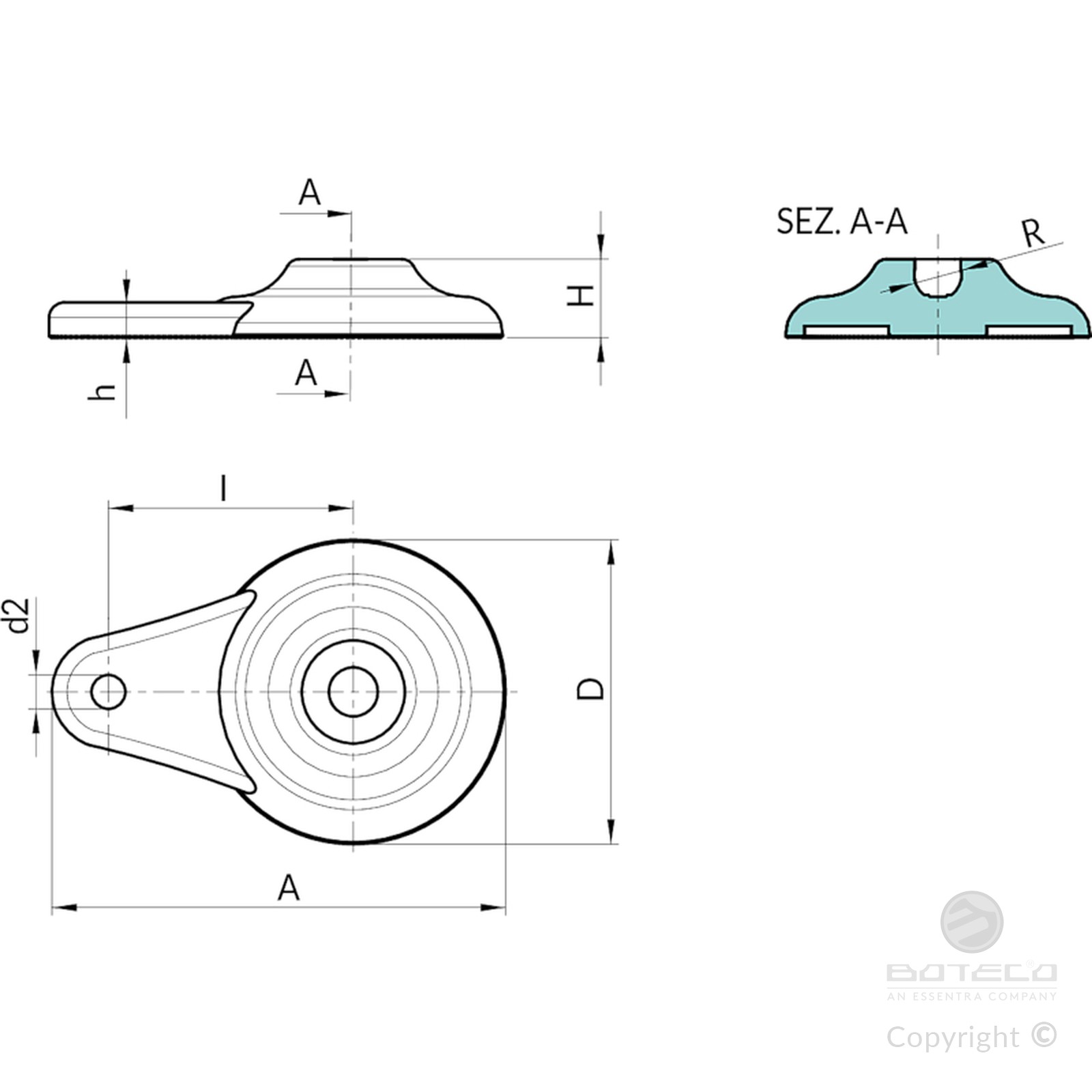

| Code | Art. | D | H | h | A | d2 | I | R | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| PIE.700080S125 | PIE.700080S125 | 80 | 20 | 9 | 120 | 9,5 | 65 | 12,4 | 58 | 10.000 |
| PIE.700080S15 | PIE.700080S15 | 80 | 20 | 9 | 120 | 9,5 | 65 | 15 | 57 | 13.000 |
| PIE.700080S24 | PIE.700080S24 | 80 | 20 | 9 | 120 | 9,5 | 65 | 24 | 56 | 25.000 |
Version ESD
| Code | Art. | D | H | h | A | d2 | I | R | Weight (g) | F1 (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| PIE.700080S125ESD | PIE.700080S125ESD | 80 | 20 | 9 | 120 | 9,5 | 65 | 12,4 | 58 | 10.000 |
| PIE.700080S15ESD | PIE.700080S15ESD | 80 | 20 | 9 | 120 | 9,5 | 65 | 15 | 57 | 13.000 |
| PIE.700080S24ESD | PIE.700080S24ESD | 80 | 20 | 9 | 120 | 9,5 | 65 | 24 | 56 | 25.000 |
