PEPVZTM

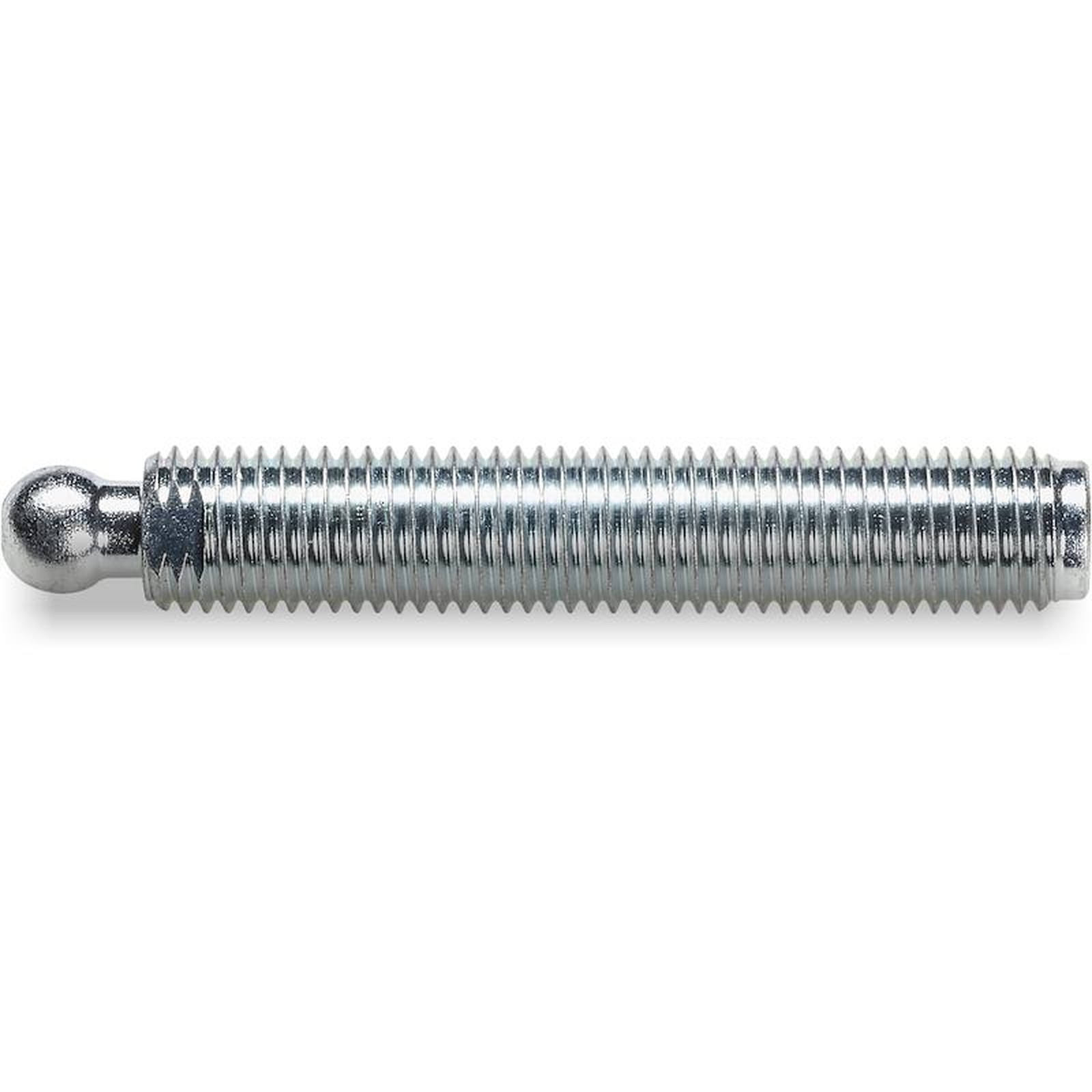

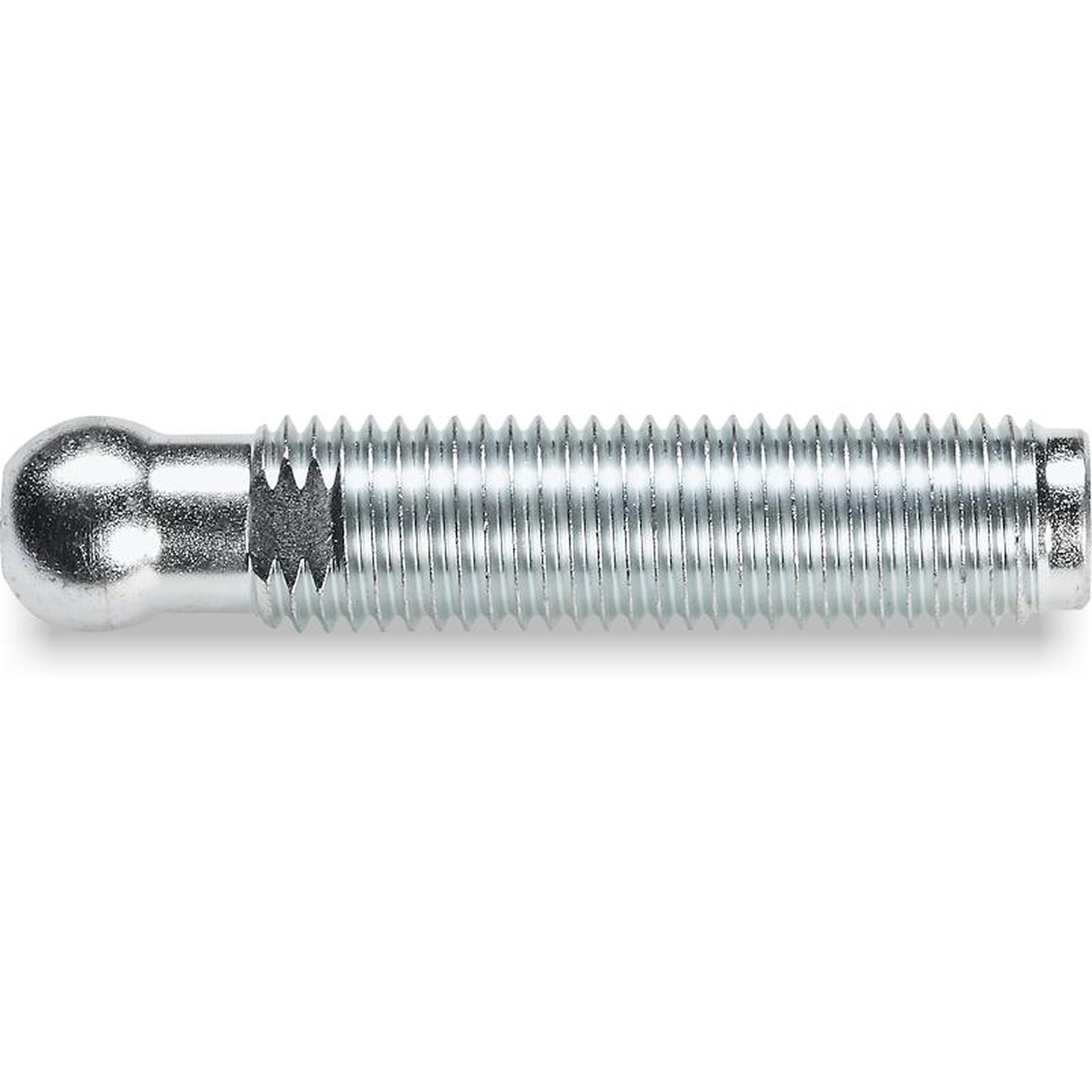

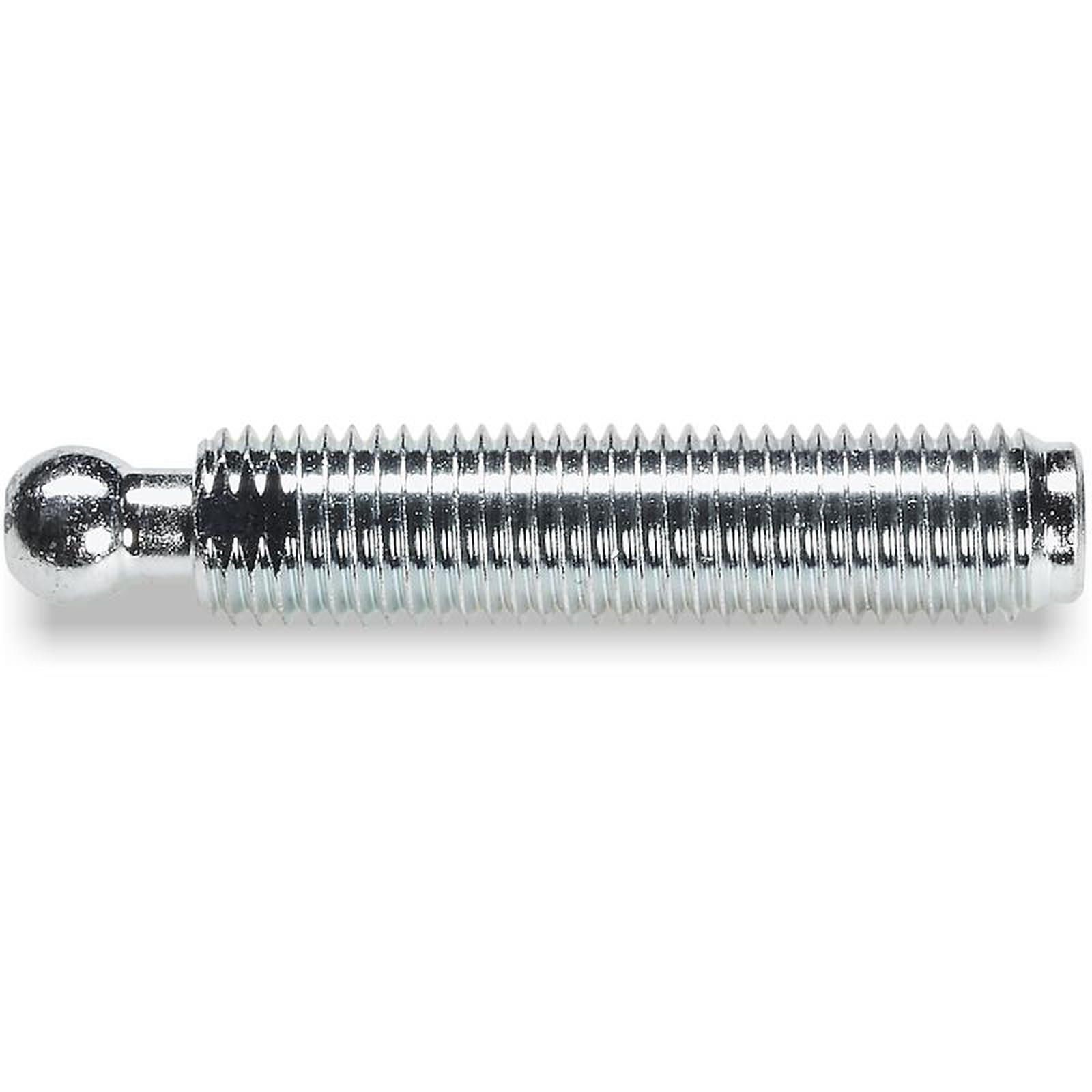

GALVANISED STEEL THREADED STEM TYPE B - WITH MILLED SEAT FOR WRENCH - TURNED

Free-cutting steel (39SMnPb36).

Smooth.

Blue galvanising.

Turned stem with milled seat for wrench (type B) with rolled thread (thread tolerance 6g).

Upon request and for special quantities the length and geometry of the inserts can be supplied to customer’s drawing.

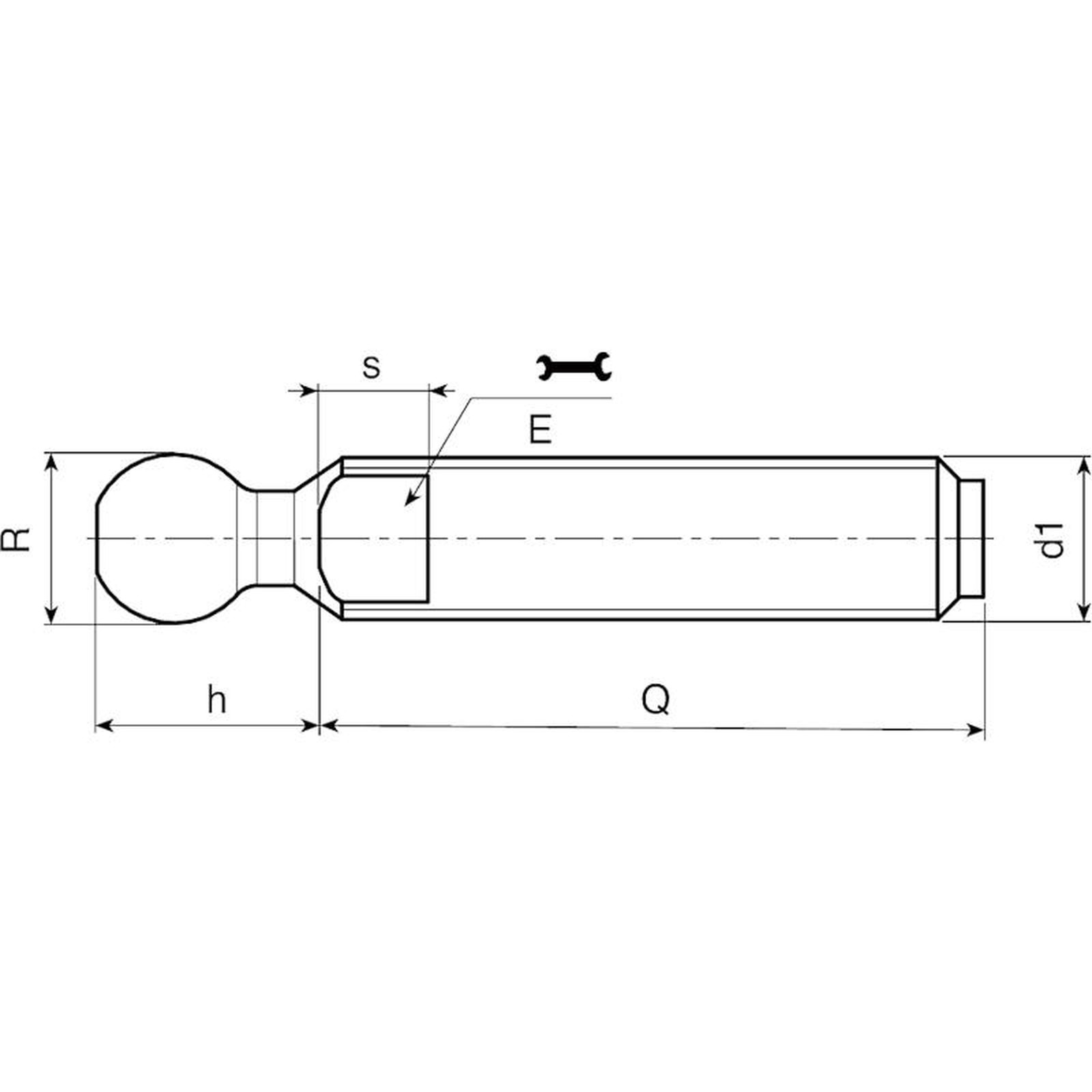

Code	Art.	E	h	s	R ±0,1	d1 6g	Q	Weight (g)
PEP.VZTM16X70Z3	PEP.VZTM16X70Z3	13	15	7	12.4	M16	70	98
PEP.VZTM16X90Z3	PEP.VZTM16X90Z3	13	15	7	12.4	M16	90	124
PEP.VZTM16X110Z3	PEP.VZTM16X110Z3	13	15	7	12.4	M16	110	150
PEP.VZTM16X130Z3	PEP.VZTM16X130Z3	13	15	7	12.4	M16	130	176
PEP.VZTM16X150Z3	PEP.VZTM16X150Z3	13	15	7	12.4	M16	150	202
PEP.VZTM16X170Z3	PEP.VZTM16X170Z3	13	15	7	12.4	M16	170	228

These stems are compatible with the following foot bases: • PIE.040S12,4 • PIE.050S12,4 • PIE.060S12,4 • PIE.080S12,4 • PIE.700080S125

Customised stud length available for a minimum of 100 pieces.

Code	Art.	E	h	s	R	d1 6g	Q	Weight (g)
PEP.VZTM20X50Z3	PEP.VZTM20X50Z3	16	17	7	15	M20	50	142
PEP.VZTM20X70Z3	PEP.VZTM20X70Z3	16	17	7	15	M20	70	174
PEP.VZTM20X90Z3	PEP.VZTM20X90Z3	16	17	7	15	M20	90	206
PEP.VZTM20X110Z3	PEP.VZTM20X110Z3	16	17	7	15	M20	110	238
PEP.VZTM20X130Z3	PEP.VZTM20X130Z3	16	17	7	15	M20	130	270
PEP.VZTM20X150Z3	PEP.VZTM20X150Z3	16	17	7	15	M20	150	305
PEP.VZTM20X170Z3	PEP.VZTM20X170Z3	16	17	7	15	M20	170	337
PEP.VZTM20X190Z3	PEP.VZTM20X190Z3	16	17	7	15	M20	190	370
PEP.VZTM20X210Z3	PEP.VZTM20X210Z3	16	17	7	15	M20	210	405
PEP.VZTM24X150Z3	PEP.VZTM24X150Z3	19	17	8	15	M24	150	510
PEP.VZTM24X170Z3	PEP.VZTM24X170Z3	19	17	8	15	M24	170	570
PEP.VZTM24X190Z3	PEP.VZTM24X190Z3	19	17	8	15	M24	190	630
PEP.VZTM24X210Z3	PEP.VZTM24X210Z3	19	17	8	15	M24	210	690

These stems are compatible with the following foot bases: • PIE.060S15 • PIE.080S15 • PIE.105S15 • PIE.130S15 • PIE.700080S15

Customised stud length available for a minimum of 100 pieces.

Code	Art.	E	h	s	R	d1 6g	Q	Weight (g)
PEP.VZTM24X110Z5	PEP.VZTM24X110Z5	19	27	10	24	M24	110	390
PEP.VZTM24X130Z5	PEP.VZTM24X130Z5	19	27	10	24	M24	130	450
PEP.VZTM24X150Z5	PEP.VZTM24X150Z5	19	27	10	24	M24	150	510
PEP.VZTM24X170Z5	PEP.VZTM24X170Z5	19	27	10	24	M24	170	570
PEP.VZTM30X110Z5	PEP.VZTM30X110Z5	27	27	11	24	M30	110	550
PEP.VZTM30X130Z5	PEP.VZTM30X130Z5	27	27	11	24	M30	130	637
PEP.VZTM30X150Z5	PEP.VZTM30X150Z5	27	27	11	24	M30	150	725
PEP.VZTM30X170Z5	PEP.VZTM30X170Z5	27	27	11	24	M30	170	813
PEP.VZTM30X190Z5	PEP.VZTM30X190Z5	27	27	11	24	M30	190	900
PEP.VZTM30X210Z5	PEP.VZTM30X210Z5	27	27	11	24	M30	210	990

These stems are compatible with the following foot bases: • PIE.080S24 • PIE.105S24 • PIE.130S24 • PIE.700080S24

Customised stud length available for a minimum of 100 pieces.
