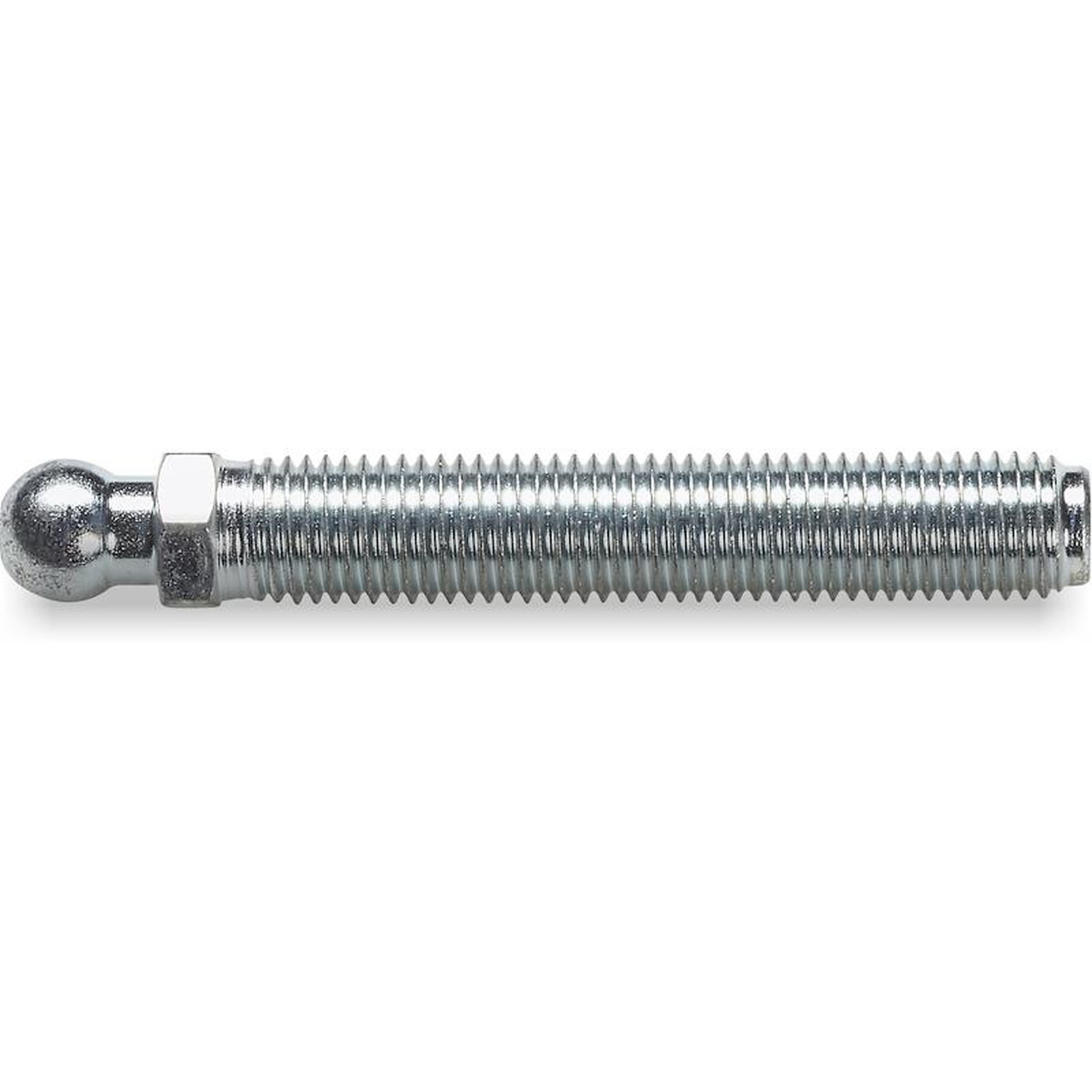

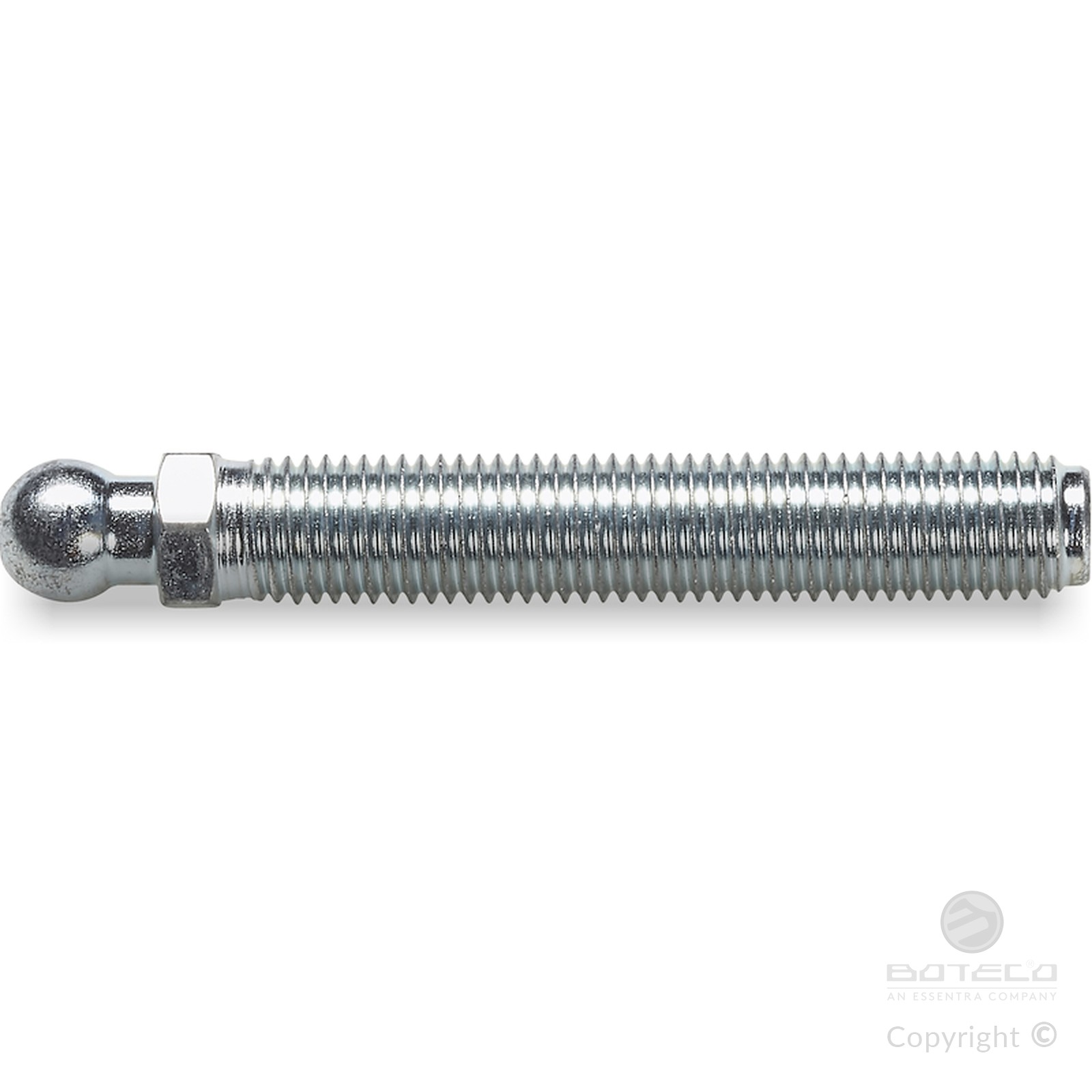

STEEL THREADED STEM TYPE A - WITH JOINT 15 AND HEXAGONAL BASE 16 - TURNED
16
PEPVZE16-PEPINE16
Steli Filettati
Materials:
PEP.VZE16:
Free-cutting steel (39SMnPb36).
PEP.INE16:
Stainless steel (Aisi 303).
Surface finish:
Smooth.
Colour:
PEP.VZE16:
Blue galvanising.
PEP.INE16:
Natural.
Stem:
Turned stem with hexagonal base (type A) with rolled thread (thread tolerance 6g).
Special requests:
Upon request and for special quantities the length and geometry of the inserts can be supplied to customer’s drawing.
Compatibility with bases:
These stems are compatible with the following foot bases:
PIE.060S15 • PIE.080S15 • PIE.105S15 • PIE.130S15 • PIE.700080S15
Version PEP.VZE: galvanised steel

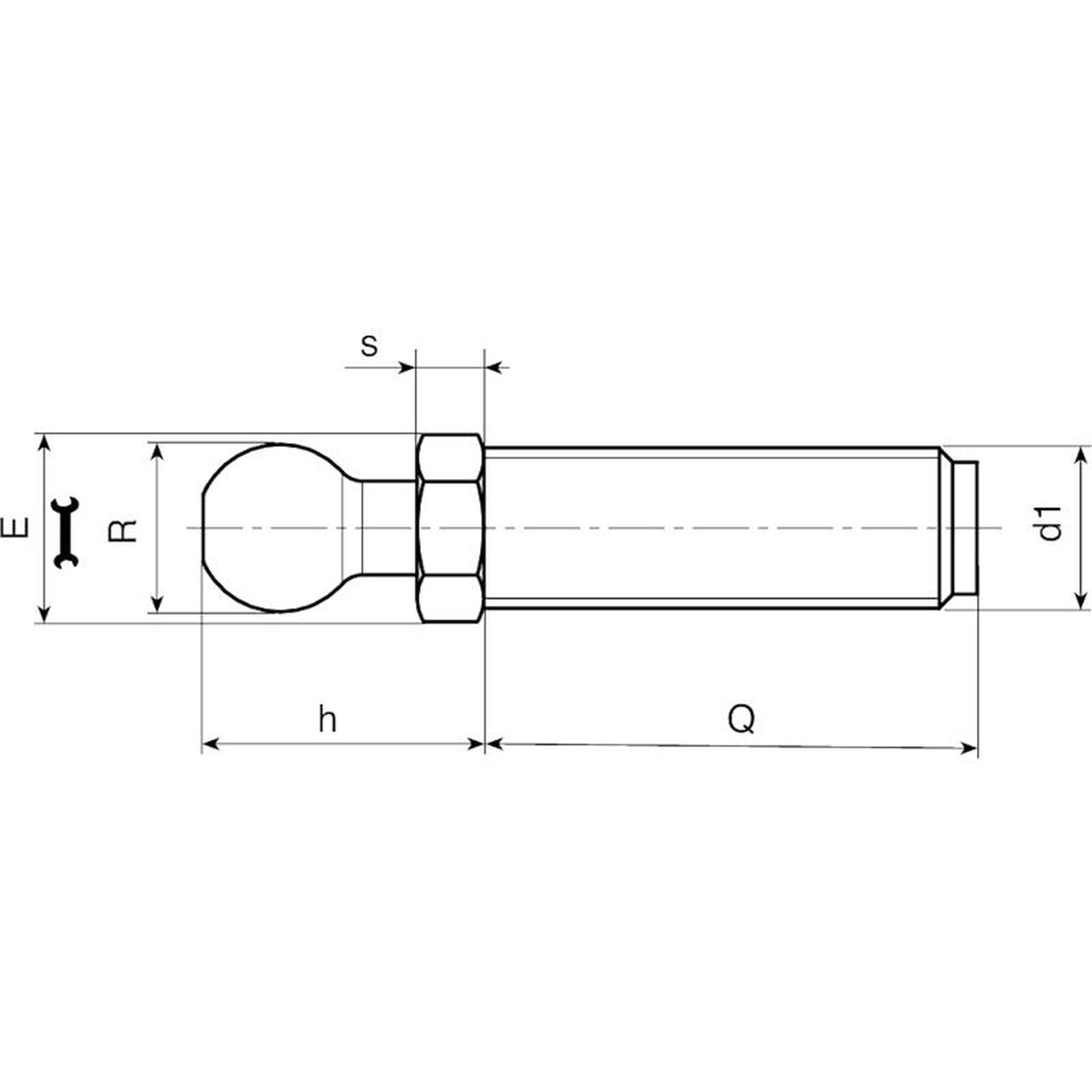

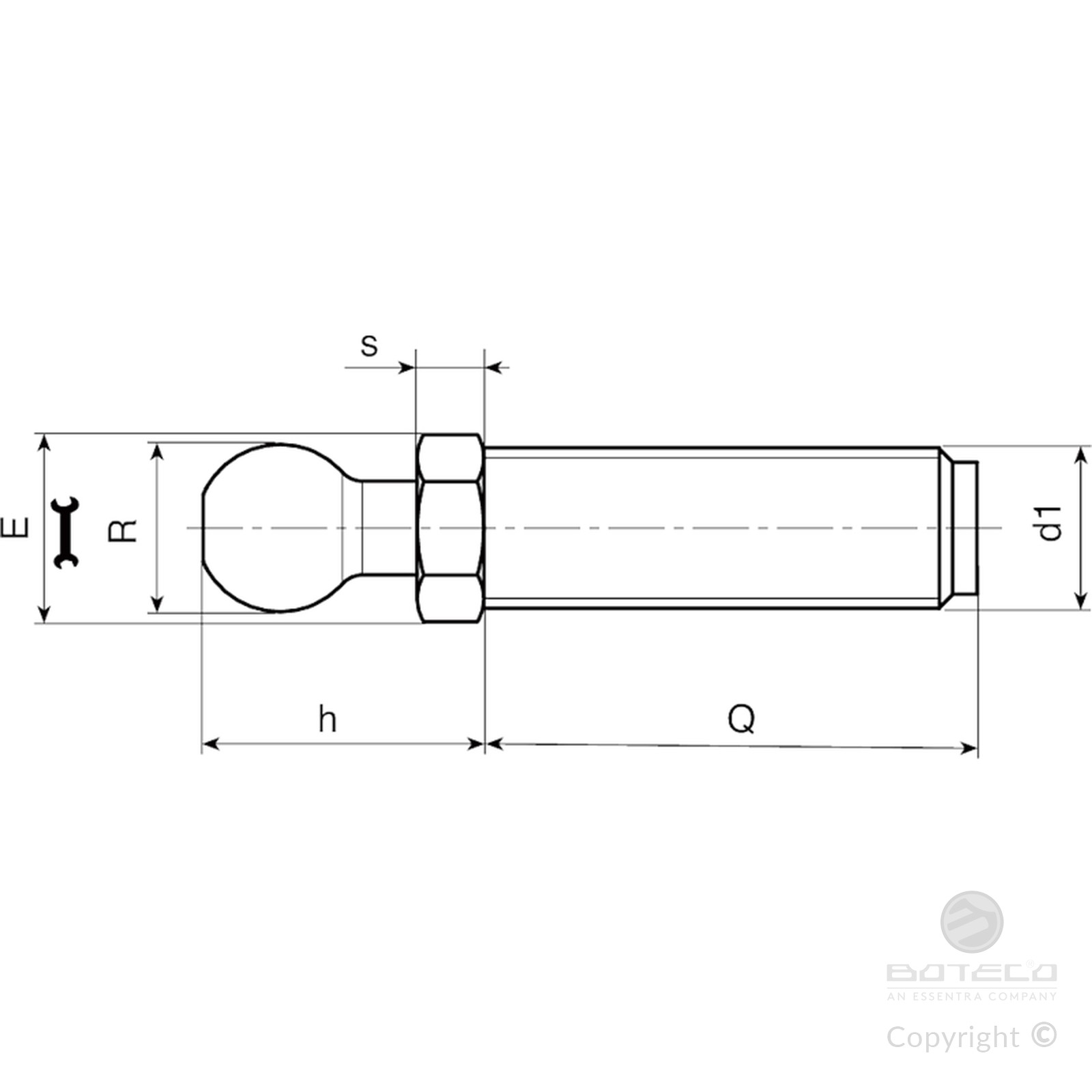

| Code | Art. | E | s | h | R | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PEP.VZE16X6M12X50 | PEP.VZE16X6M12X50 | 16 | 6,5 | 23,5 | 15 | M12 | 50 | 63 |
| PEP.VZE16X6M12X70 | PEP.VZE16X6M12X70 | 16 | 6,5 | 23,5 | 15 | M12 | 70 | 76 |
| PEP.VZE16X6M12X90 | PEP.VZE16X6M12X90 | 16 | 6,5 | 23,5 | 15 | M12 | 90 | 91 |
| PEP.VZE16X6M12X110 | PEP.VZE16X6M12X110 | 16 | 6,5 | 23,5 | 15 | M12 | 110 | 107 |
| PEP.VZE16X6M14X50 | PEP.VZE16X6M14X50 | 16 | 6,5 | 23,5 | 15 | M14 | 50 | 75 |
| PEP.VZE16X6M14X70 | PEP.VZE16X6M14X70 | 16 | 6,5 | 23,5 | 15 | M14 | 70 | 95 |
| PEP.VZE16X6M14X90 | PEP.VZE16X6M14X90 | 16 | 6,5 | 23,5 | 15 | M14 | 90 | 116 |
| PEP.VZE16X6M14X110 | PEP.VZE16X6M14X110 | 16 | 6,5 | 23,5 | 15 | M14 | 110 | 133 |
| PEP.VZE16X6M14X150 | PEP.VZE16X6M14X150 | 16 | 6,5 | 23,5 | 15 | M14 | 150 | 167 |
| PEP.VZE16X6M16X50 | PEP.VZE16X6M16X50 | 16 | 6,5 | 23,5 | 15 | M16 | 50 | 91 |
| PEP.VZE16X6M16X70 | PEP.VZE16X6M16X70 | 16 | 6,5 | 23,5 | 15 | M16 | 70 | 117 |
| PEP.VZE16X6M16X90 | PEP.VZE16X6M16X90 | 16 | 6,5 | 23,5 | 15 | M16 | 90 | 143 |
| PEP.VZE16X6M16X110 | PEP.VZE16X6M16X110 | 16 | 6,5 | 23,5 | 15 | M16 | 110 | 168 |
| PEP.VZE16X6M16X130 | PEP.VZE16X6M16X130 | 16 | 6,5 | 23,5 | 15 | M16 | 130 | 194 |
| PEP.VZE16X6M16X150 | PEP.VZE16X6M16X150 | 16 | 6,5 | 23,5 | 15 | M16 | 150 | 219 |
| PEP.VZE16X6M16X170 | PEP.VZE16X6M16X170 | 16 | 6,5 | 23,5 | 15 | M16 | 170 | 247 |
| PEP.VZE16X6M16X190 | PEP.VZE16X6M16X190 | 16 | 6,5 | 23,5 | 15 | M16 | 190 | 270 |
Customised stud length available for a minimum of 100 pieces.

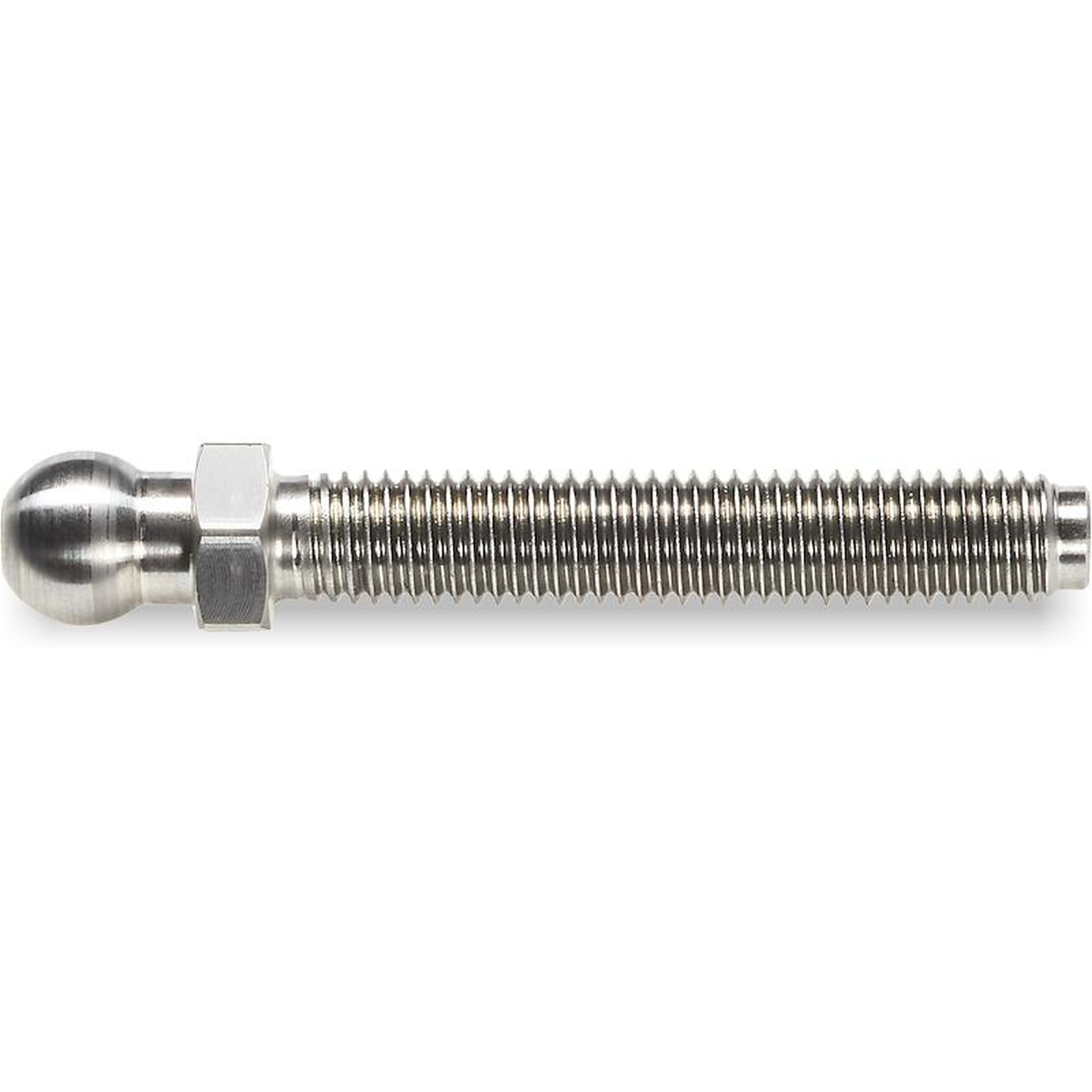

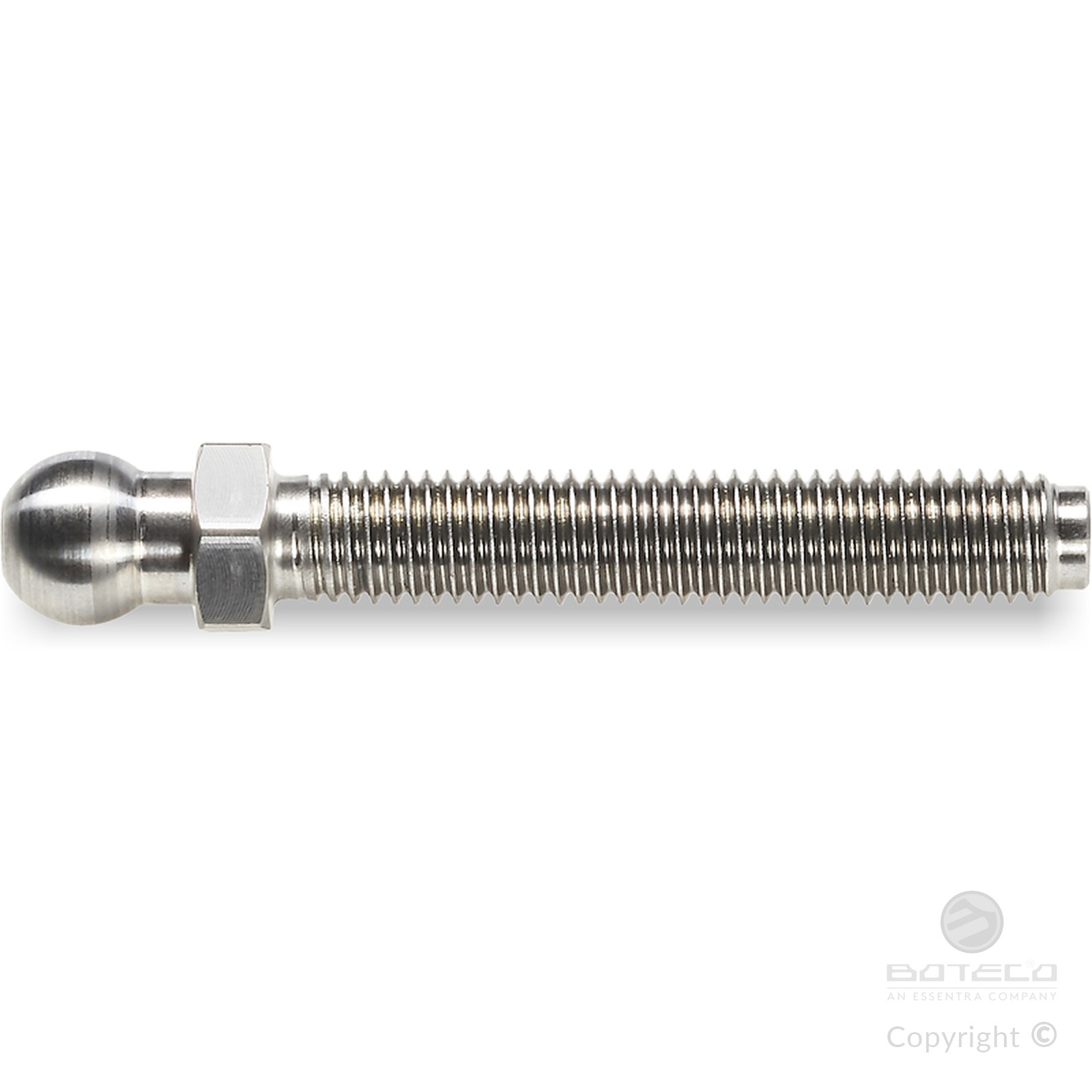

Version PEP.INE: stainless steel (Aisi 303)
| Code | Art. | E | s | h | R | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PEP.INE16X6M12X70 | PEP.INE16X6M12X70 | 16 | 6,5 | 23,5 | 15 | M12 | 70 | 76 |
| PEP.INE16X6M12X90 | PEP.INE16X6M12X90 | 16 | 6,5 | 23,5 | 15 | M12 | 90 | 91 |
| PEP.INE16X6M12X110 | PEP.INE16X6M12X110 | 16 | 6,5 | 23,5 | 15 | M12 | 110 | 116 |
| PEP.INE16X6M14X70 | PEP.INE16X6M14X70 | 16 | 6,5 | 23,5 | 15 | M14 | 70 | 95 |
| PEP.INE16X6M14X110 | PEP.INE16X6M14X110 | 16 | 6,5 | 23,5 | 15 | M14 | 110 | 133 |
| PEP.INE16X6M14X130 | PEP.INE16X6M14X130 | 16 | 6,5 | 23,5 | 15 | M14 | 130 | 150 |
| PEP.INE16X6M16X50 | PEP.INE16X6M16X50 | 16 | 6,5 | 23,5 | 15 | M16 | 50 | 91 |
| PEP.INE16X6M16X70 | PEP.INE16X6M16X70 | 16 | 6,5 | 23,5 | 15 | M16 | 70 | 117 |
| PEP.INE16X6M16X90 | PEP.INE16X6M16X90 | 16 | 6,5 | 23,5 | 15 | M16 | 90 | 143 |
| PEP.INE16X6M16X110 | PEP.INE16X6M16X110 | 16 | 6,5 | 23,5 | 15 | M16 | 110 | 168 |
| PEP.INE16X6M16X130 | PEP.INE16X6M16X130 | 16 | 6,5 | 23,5 | 15 | M16 | 130 | 194 |
| PEP.INE16X6M16X150 | PEP.INE16X6M16X150 | 16 | 6,5 | 23,5 | 15 | M16 | 150 | 219 |
| PEP.INE16X6M16X170 | PEP.INE16X6M16X170 | 16 | 6,5 | 23,5 | 15 | M16 | 170 | 247 |
| PEP.INE16X6M16X190 | PEP.INE16X6M16X190 | 16 | 6,5 | 23,5 | 15 | M16 | 190 | 275 |
Customised stud length available for a minimum of 100 pieces.
