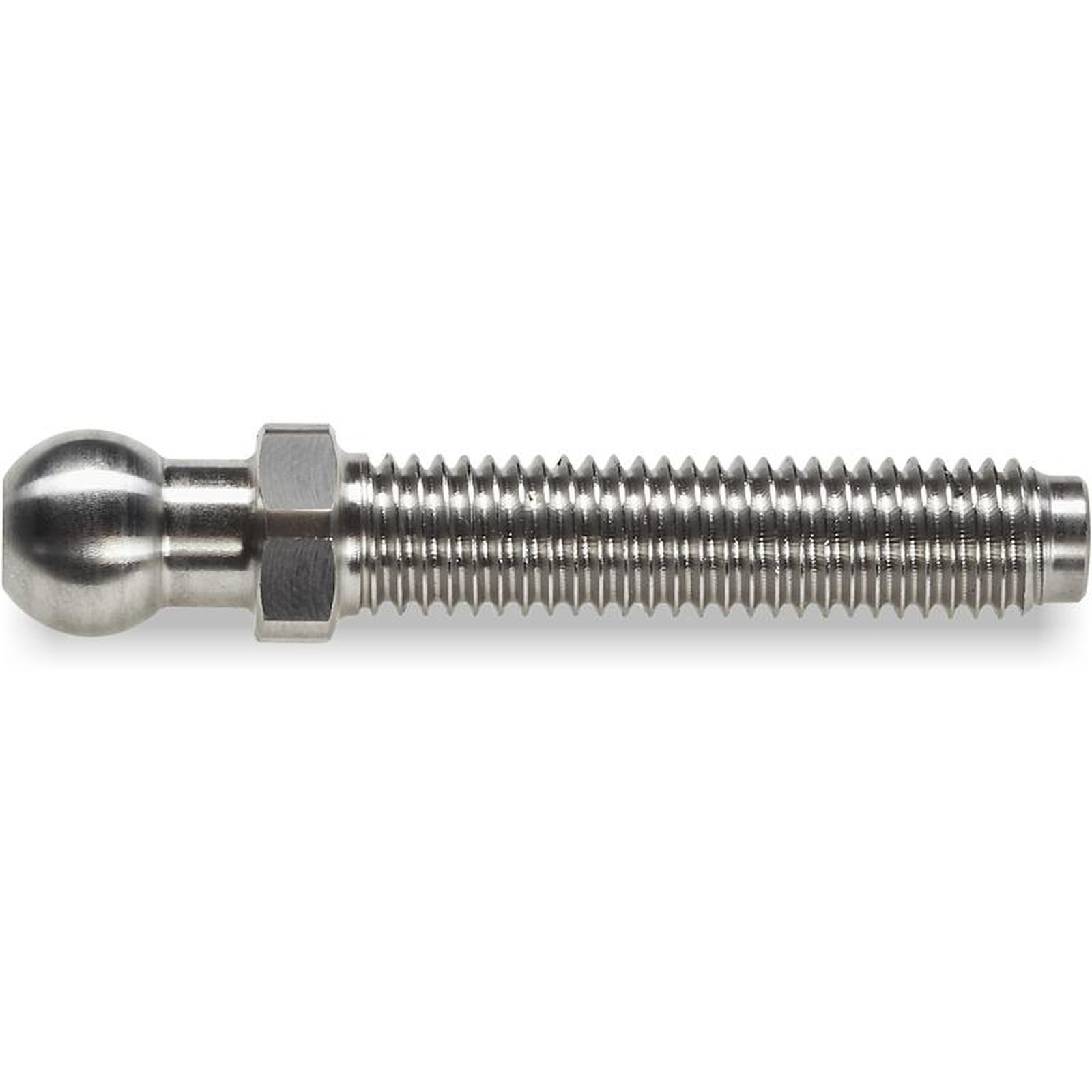

STEEL THREADED STEM TYPE A - WITH JOINT 12.4 AND HEXAGONAL BASE 13 - TURNED
16
PEPVZE13-PEPINE13
Steli Filettati
Materials:
PEP.VZE13:
Free-cutting steel (39SMnPb36).
PEP.INE13:
Stainless steel (Aisi 303).
Surface finish:
Smooth.
Colour:
PEP.VZE16:
Blue galvanising.
PEP.INE16:
Natural.
Stem:
Turned stem with hexagonal base (type A) with rolled thread (thread tolerance 6g).
Special requests:
Upon request and for special quantities the length and geometry of the inserts can be supplied to customer’s drawing.
Compatibility with bases:
These stems are compatible with the following foot bases:
PIE.040S12,4 • PIE.050S12,4 • PIE.060S12,4 • PIE.080S12,4 • PIE.700080S12,8
Version PEP.VZE: galvanised steel

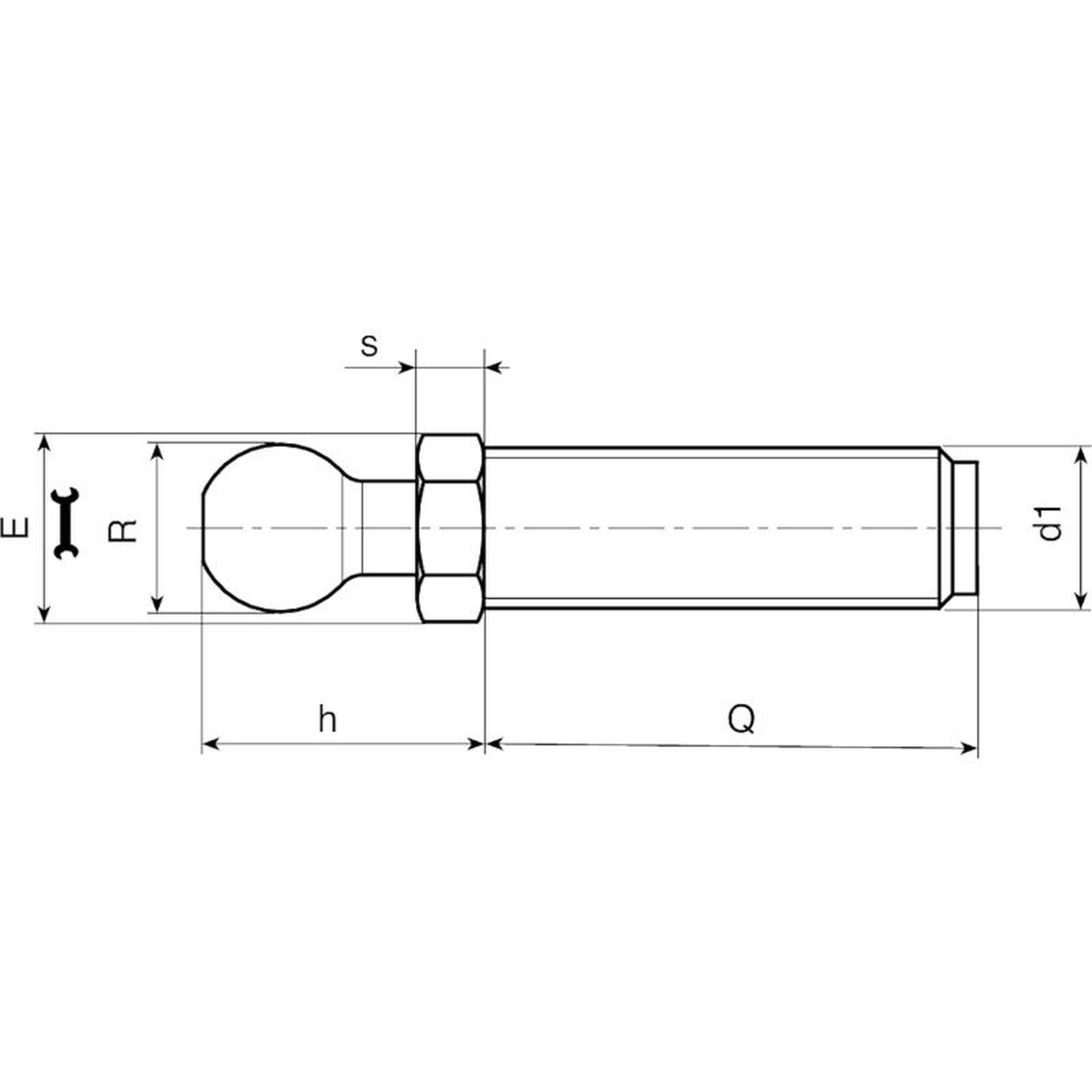

| Code | Art. | E | s | h | R ±0,1 | d1 6g | Q | Q Max | Weight (g) |
|---|
A.R. = Customised stud length available for a minimum of 100 pieces.
Version PEP.INE: stainless steel (Aisi 303)
| Code | Art. | E | s | h | R ±0,1 | d1 6g | Q | Q Max | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| PEP.INE13X5M08X45 | PEP.INE13X5M08X45 | 13 | 5 | 20 | 12.4 | M8 | 45 | 70 | 29 |
| PEP.INE13X5M08X70 | PEP.INE13X5M08X70 | 13 | 5 | 20 | 12.4 | M8 | 70 | 70 | 36 |
| PEP.INE13X5M10X45 | PEP.INE13X5M10X45 | 13 | 5 | 20 | 12.4 | M10 | 45 | 70 | 37 |
| PEP.INE13X5M10X70 | PEP.INE13X5M10X70 | 13 | 5 | 20 | 12.4 | M10 | 70 | 70 | 70 |
| PEP.INE13X5M12X45 | PEP.INE13X5M12X45 | 13 | 5 | 20 | 12.4 | M12 | 45 | 100 | 46 |
| PEP.INE13X5M12X70 | PEP.INE13X5M12X70 | 13 | 5 | 20 | 12.4 | M12 | 70 | 100 | 65 |
| PEP.INE13X5M12X100 | PEP.INE13X5M12X100 | 13 | 5 | 20 | 12.4 | M12 | 100 | 100 | 85 |
Customised stud length available for a minimum of 100 pieces.
