PEPINTM

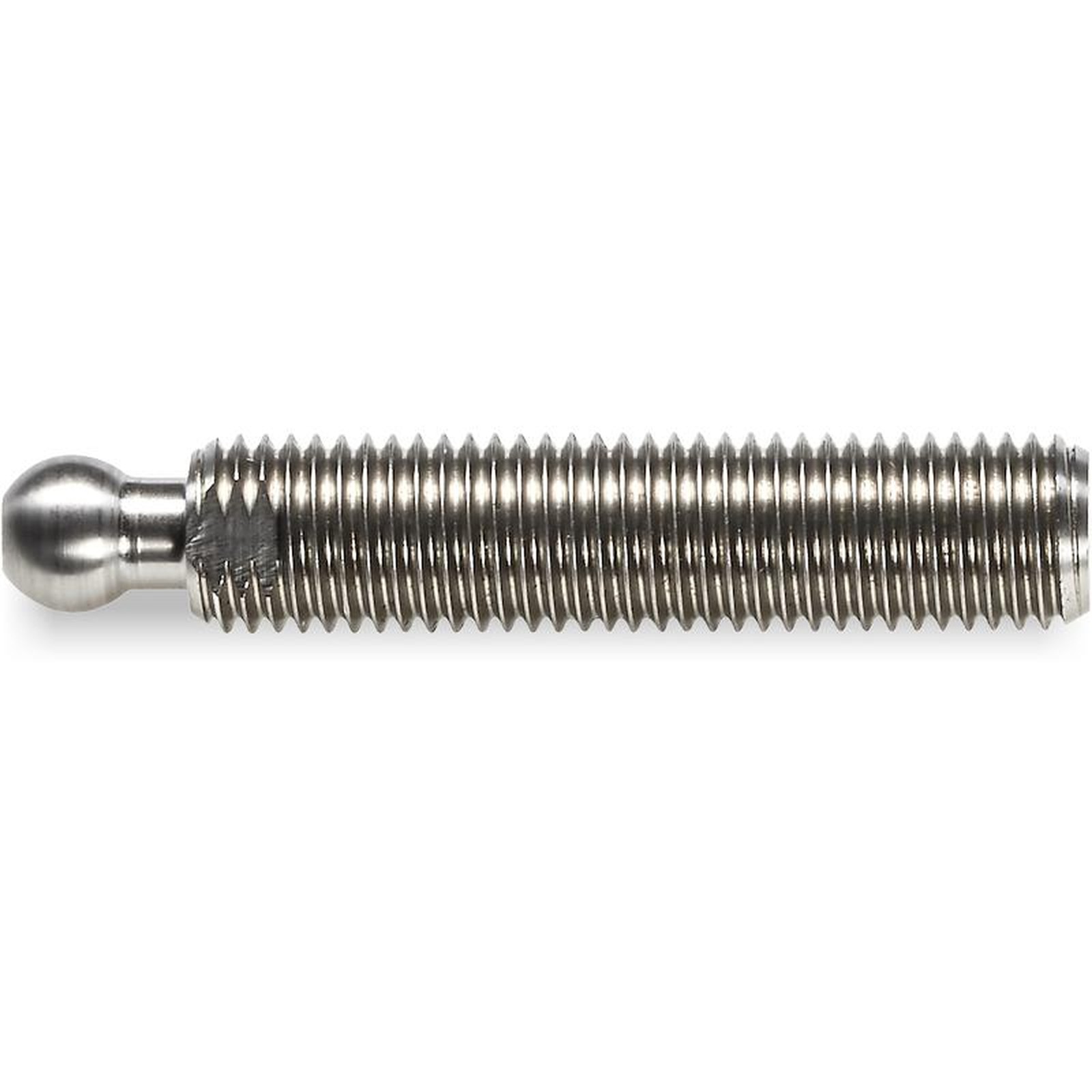

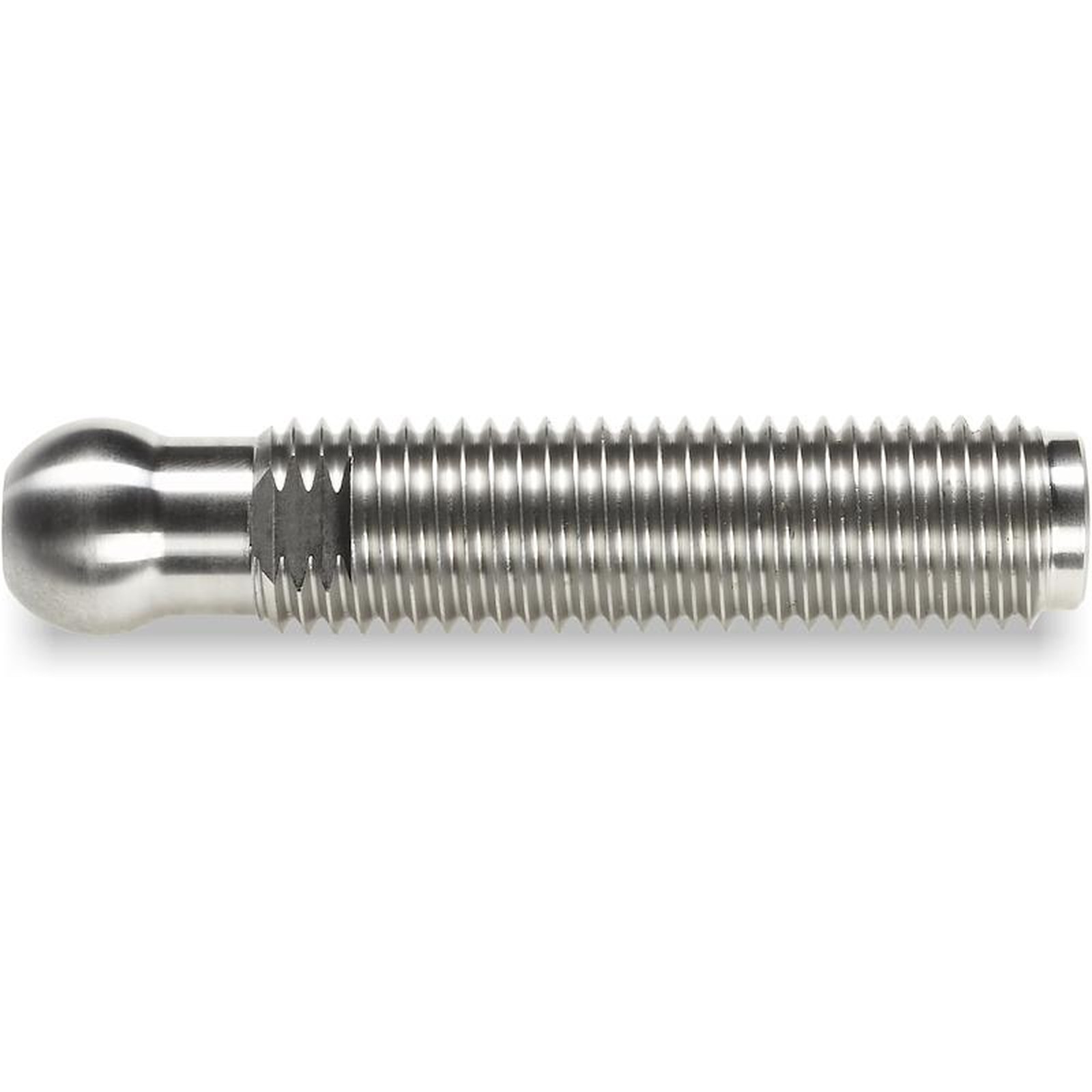

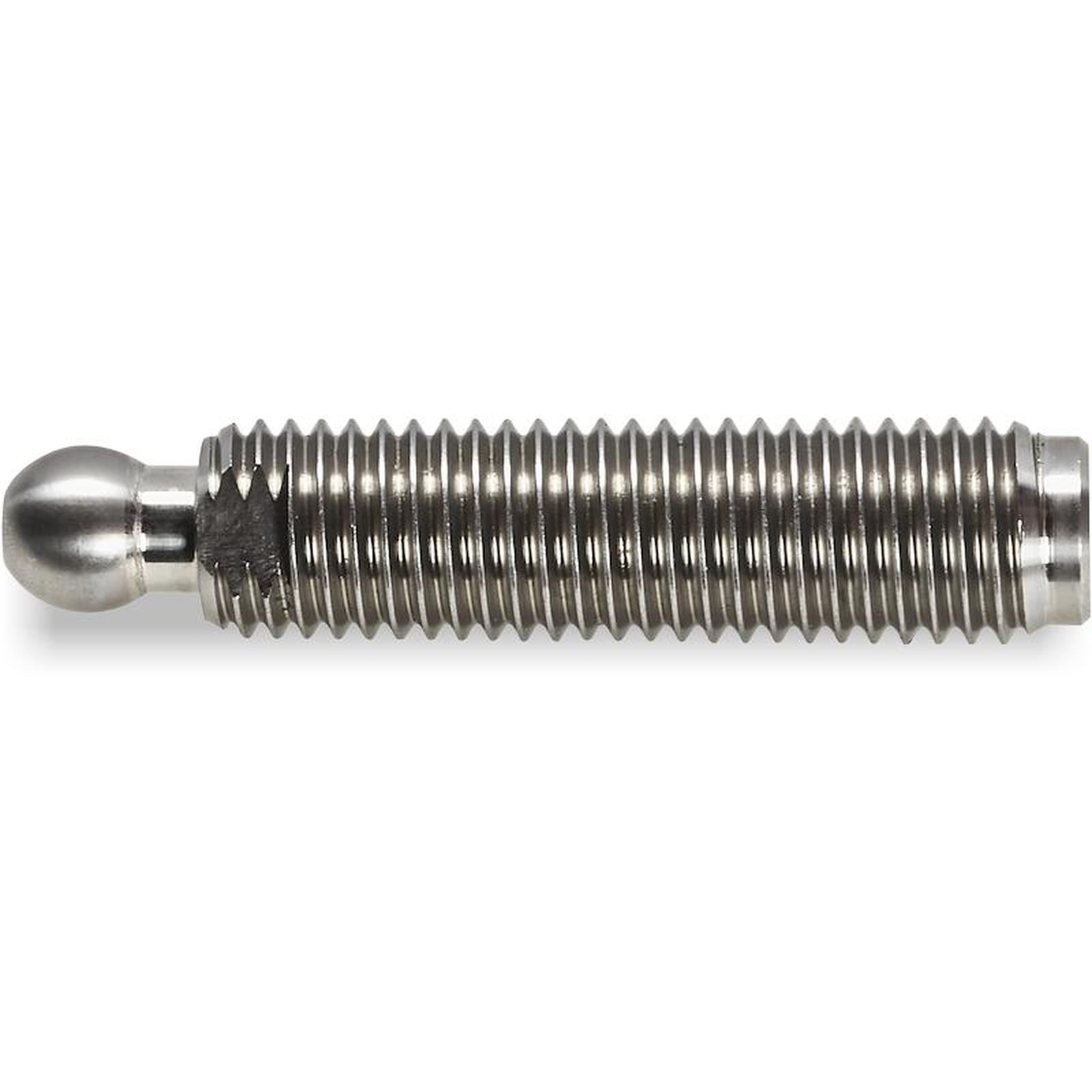

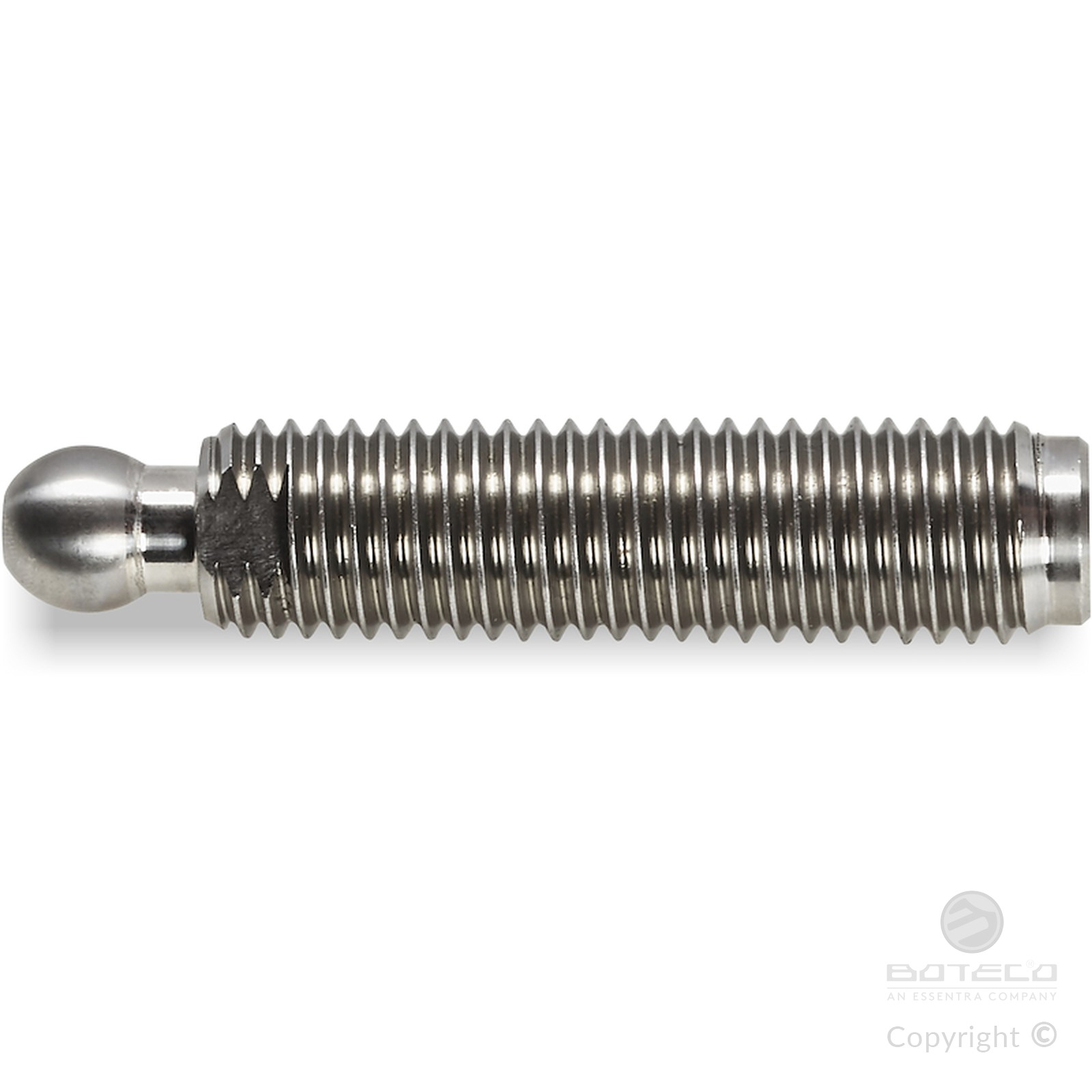

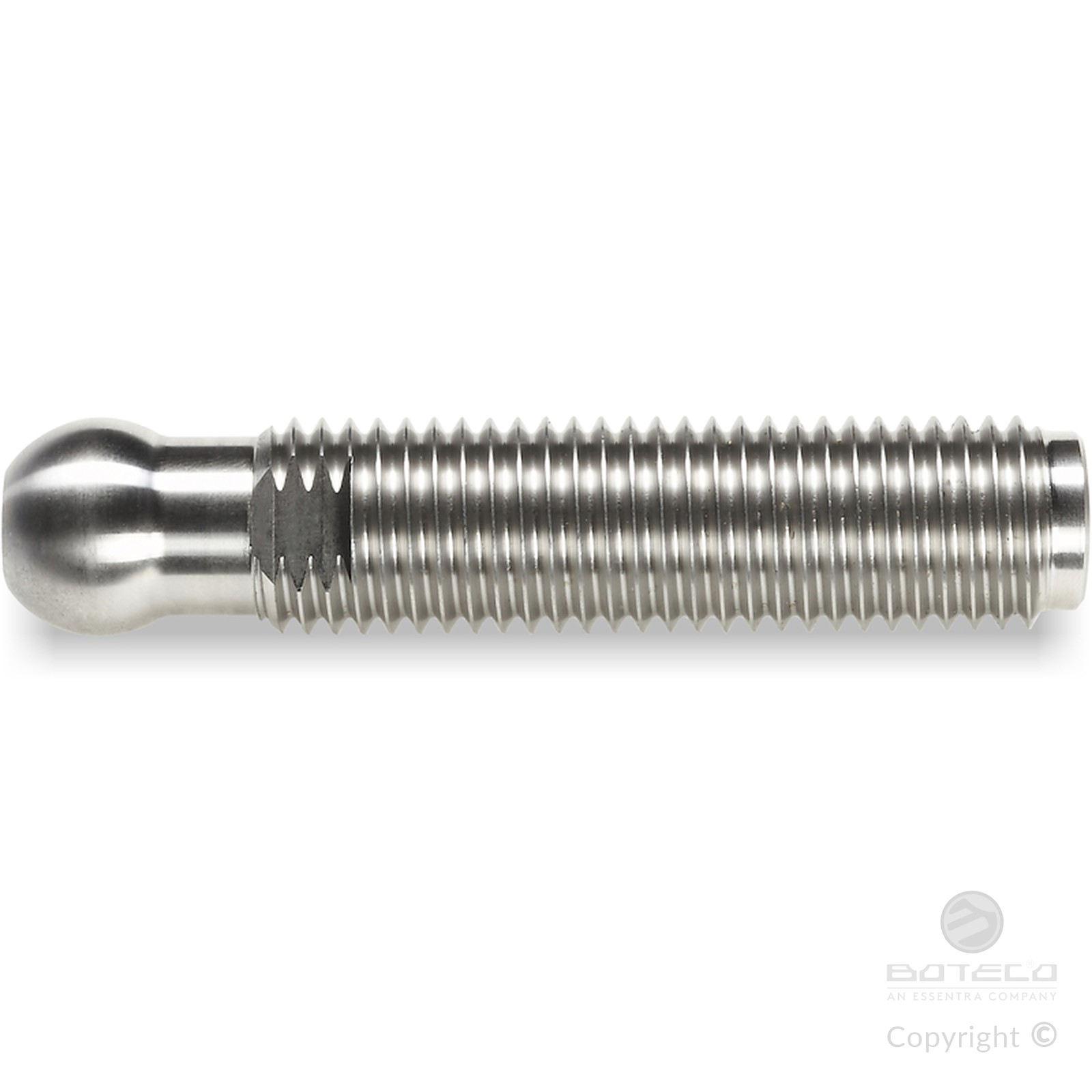

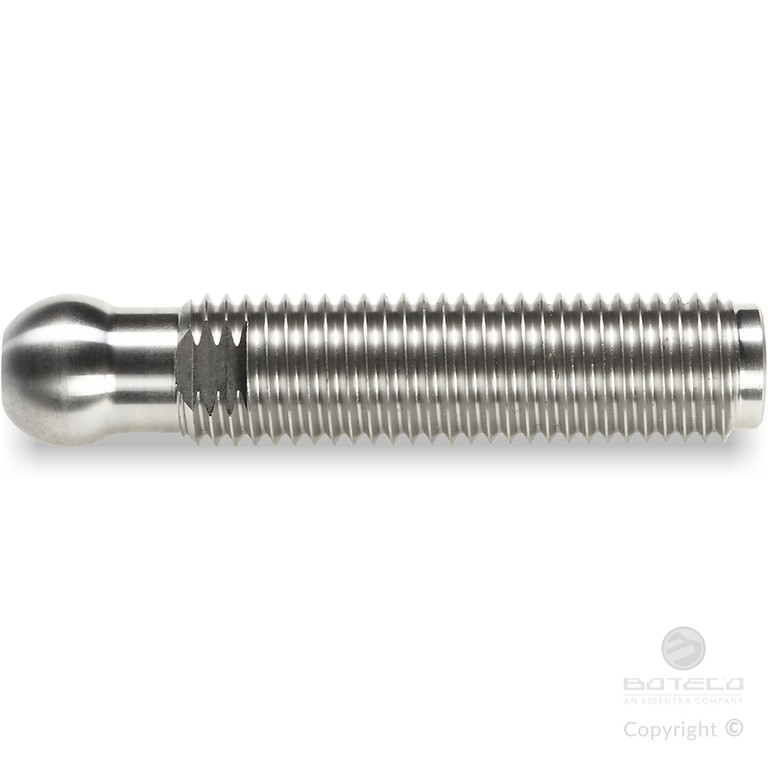

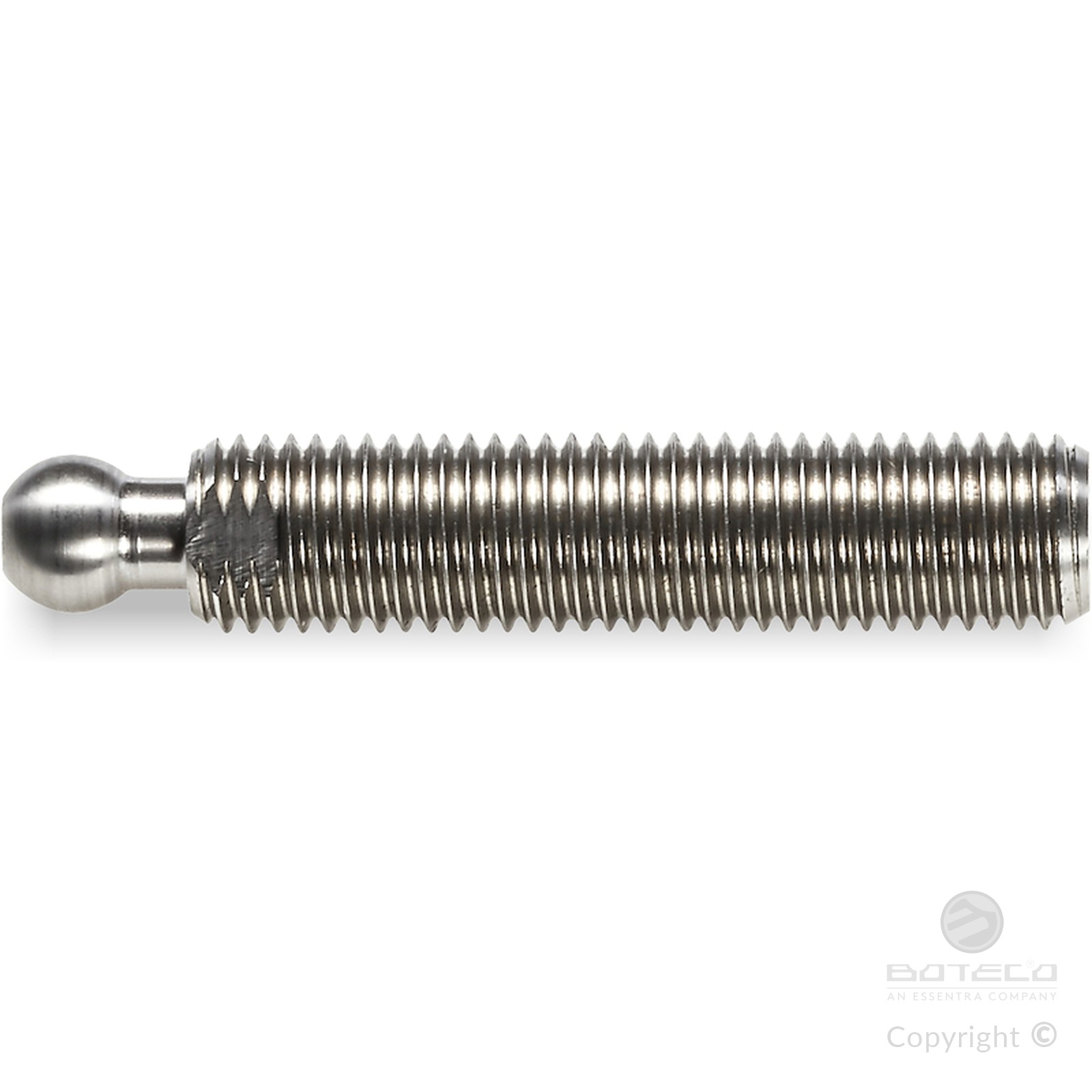

STAINLESS STEEL THREADED STEM TYPE B - WITH MILLED SEAT FOR WRENCH - TURNED
Threaded stems
Materials:
Stainless steel:
M16 R.12.4 - M24 R.24:
Aisi 303
M20 R.15 - M24 R.15 - M30 R.24:
Aisi 304
Surface finish:
Smooth.
Colour:
Natural.
Thread:
Turned stem with milled seat for wrench (type B) with rolled thread (thread tolerance 6g).
Special requests:
Upon request and for special quantities the length and geometry of the inserts can be supplied to customer’s drawing.
Version M16 with ball 12.4

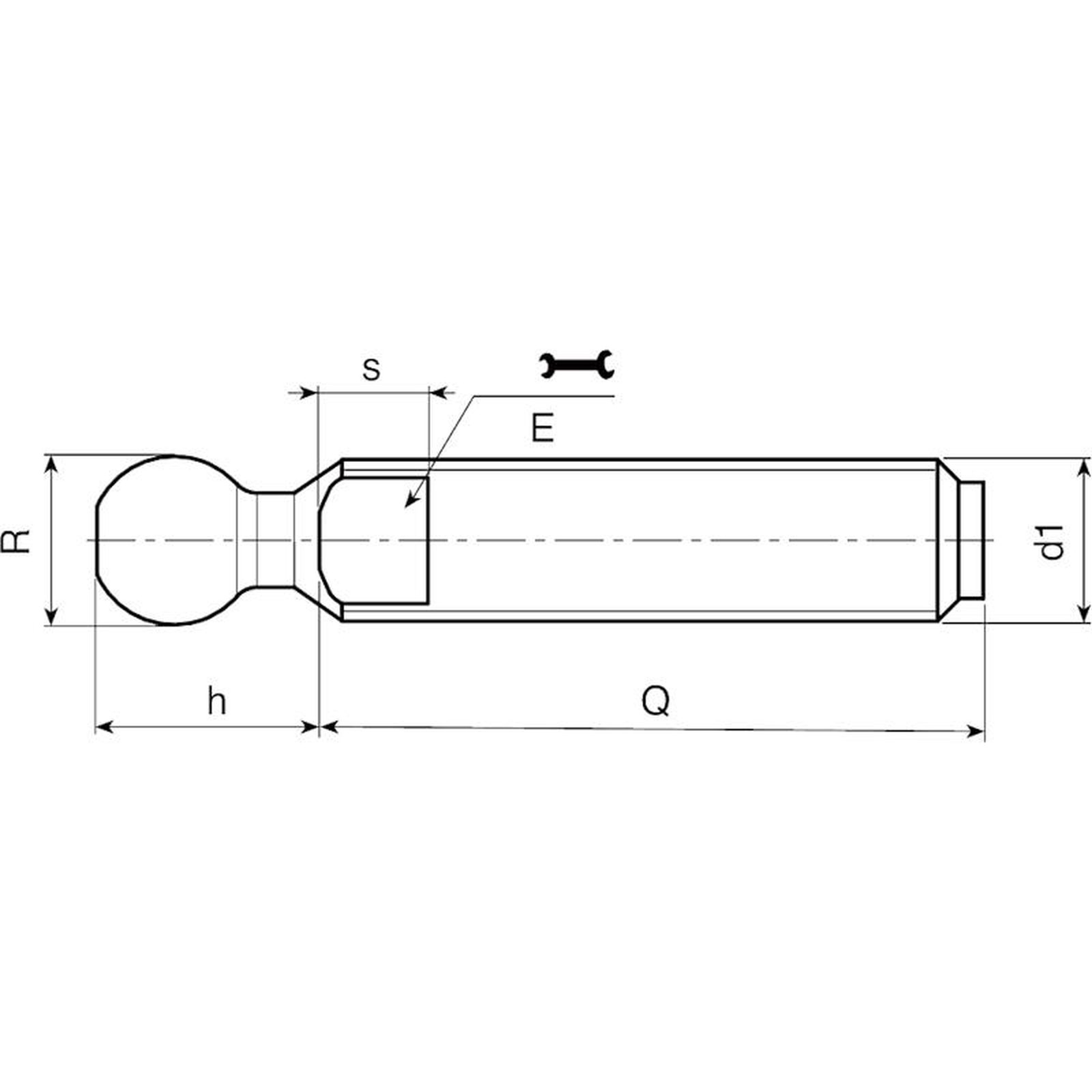

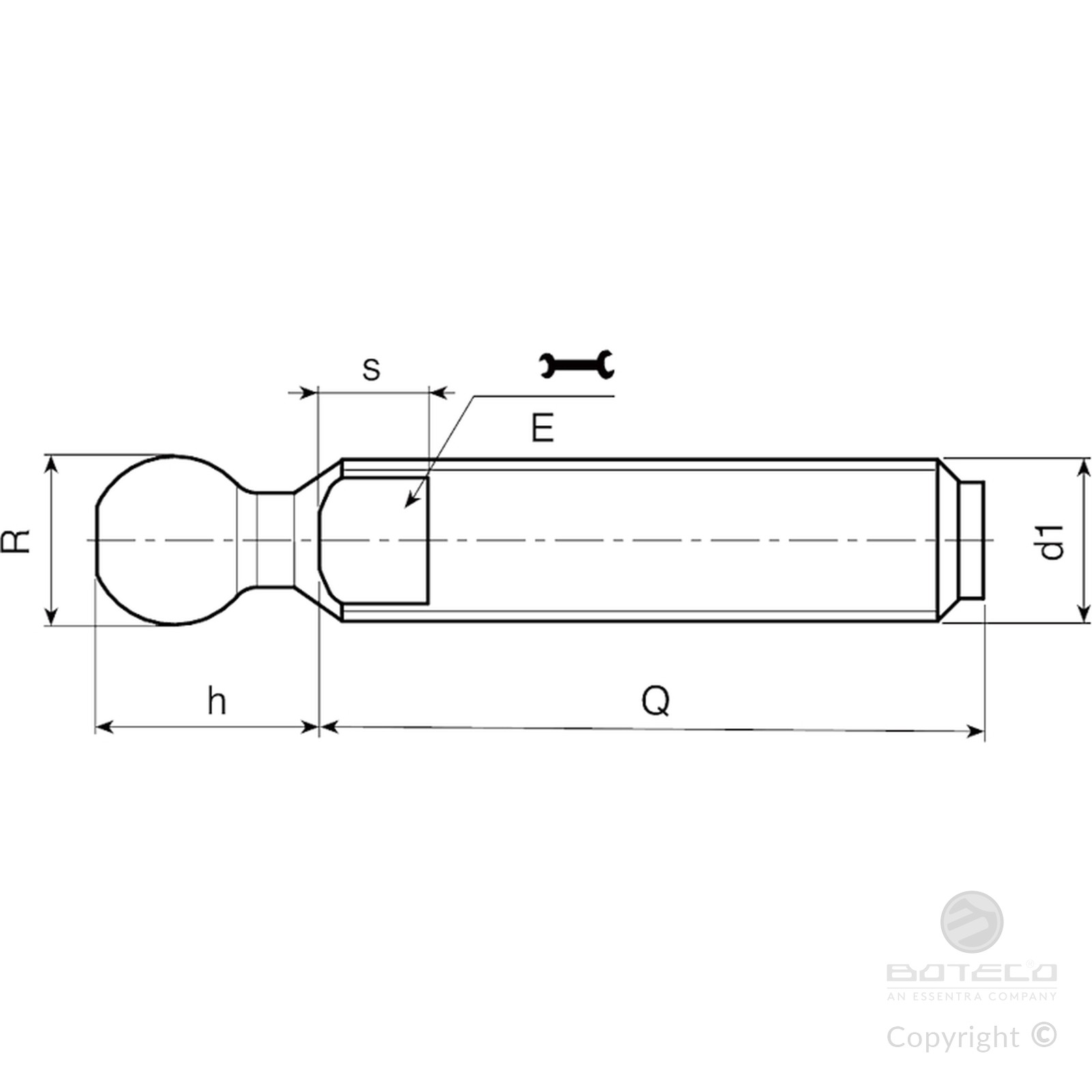

| Code | Art. | E | h | s | R ±0,1 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PEP.INTM16X110Z3 | PEP.INTM16X110Z3 | 13 | 15 | 7 | 12.4 | M16 | 110 | 150 |
| PEP.INTM16X130Z3 | PEP.INTM16X130Z3 | 13 | 15 | 7 | 12.4 | M16 | 130 | 176 |
| PEP.INTM16X150Z3 | PEP.INTM16X150Z3 | 13 | 15 | 7 | 12.4 | M16 | 150 | 202 |
| PEP.INTM16X170Z3 | PEP.INTM16X170Z3 | 13 | 15 | 7 | 12.4 | M16 | 170 | 228 |
These stems are compatible with the following foot bases: • PIE.040S12,4 • PIE.050S12,4 • PIE.060S12,4 • PIE.080S12,4 • PIE.700080S125
Customised stud length available for a minimum of 100 pieces.
Version M20-M24 with ball 15
| Code | Art. | E | h | s | R | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PEP.HNTM20X70Z3 | PEP.HNTM20X70Z3 | 16 | 17 | 7 | 15 | M20 | 70 | 174 |
| PEP.HNTM20X90Z3 | PEP.HNTM20X90Z3 | 16 | 17 | 7 | 15 | M20 | 90 | 206 |
| PEP.HNTM20X130Z3 | PEP.HNTM20X130Z3 | 16 | 17 | 7 | 15 | M20 | 130 | 270 |
| PEP.HNTM20X150Z3 | PEP.HNTM20X150Z3 | 16 | 17 | 7 | 15 | M20 | 150 | 305 |
| PEP.HNTM20X190Z3 | PEP.HNTM20X190Z3 | 16 | 17 | 7 | 15 | M20 | 190 | 370 |
| PEP.HNTM20X210Z3 | PEP.HNTM20X210Z3 | 16 | 17 | 7 | 15 | M20 | 210 | 405 |
| PEP.HNTM24X110Z3 | PEP.HNTM24X110Z3 | 19 | 17 | 8 | 15 | M24 | 110 | 390 |
| PEP.HNTM24X150Z3 | PEP.HNTM24X150Z3 | 19 | 17 | 8 | 15 | M24 | 150 | 510 |
| PEP.HNTM24X190Z3 | PEP.HNTM24X190Z3 | 19 | 17 | 8 | 15 | M24 | 190 | 630 |
These stems are compatible with the following foot bases: • PIE.060S15 • PIE.080S15 • PIE.105S15 • PIE.130S15 • PIE.700080S15
Customised stud length available for a minimum of 100 pieces.
Version M24-M30 with ball 24
| Code | Art. | E | h | s | R | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PEP.INTM24X110Z5 | PEP.INTM24X110Z5 | 19 | 27 | 10 | 24 | M24 | 110 | 390 |
| PEP.INTM24X130Z5 | PEP.INTM24X130Z5 | 19 | 27 | 10 | 24 | M24 | 130 | 450 |
| PEP.INTM24X150Z5 | PEP.INTM24X150Z5 | 19 | 27 | 10 | 24 | M24 | 150 | 510 |
| PEP.INTM24X190Z5 | PEP.INTM24X190Z5 | 19 | 27 | 10 | 24 | M24 | 190 | 630 |
| PEP.HNTM30X130Z5 | PEP.HNTM30X130Z5 | 27 | 27 | 12 | 24 | M30 | 130 | 637 |
| PEP.HNTM30X170Z5 | PEP.HNTM30X170Z5 | 27 | 27 | 12 | 24 | M30 | 170 | 813 |
| PEP.HNTM30X210Z5 | PEP.HNTM30X210Z5 | 27 | 27 | 12 | 24 | M30 | 210 | 990 |
These stems are compatible with the following foot bases: • PIE.080S24 • PIE.105S24 • PIE.130S24 • PIE.700080S24
Customised stud length available for a minimum of 100 pieces.
