PEPFZE13-R12,4

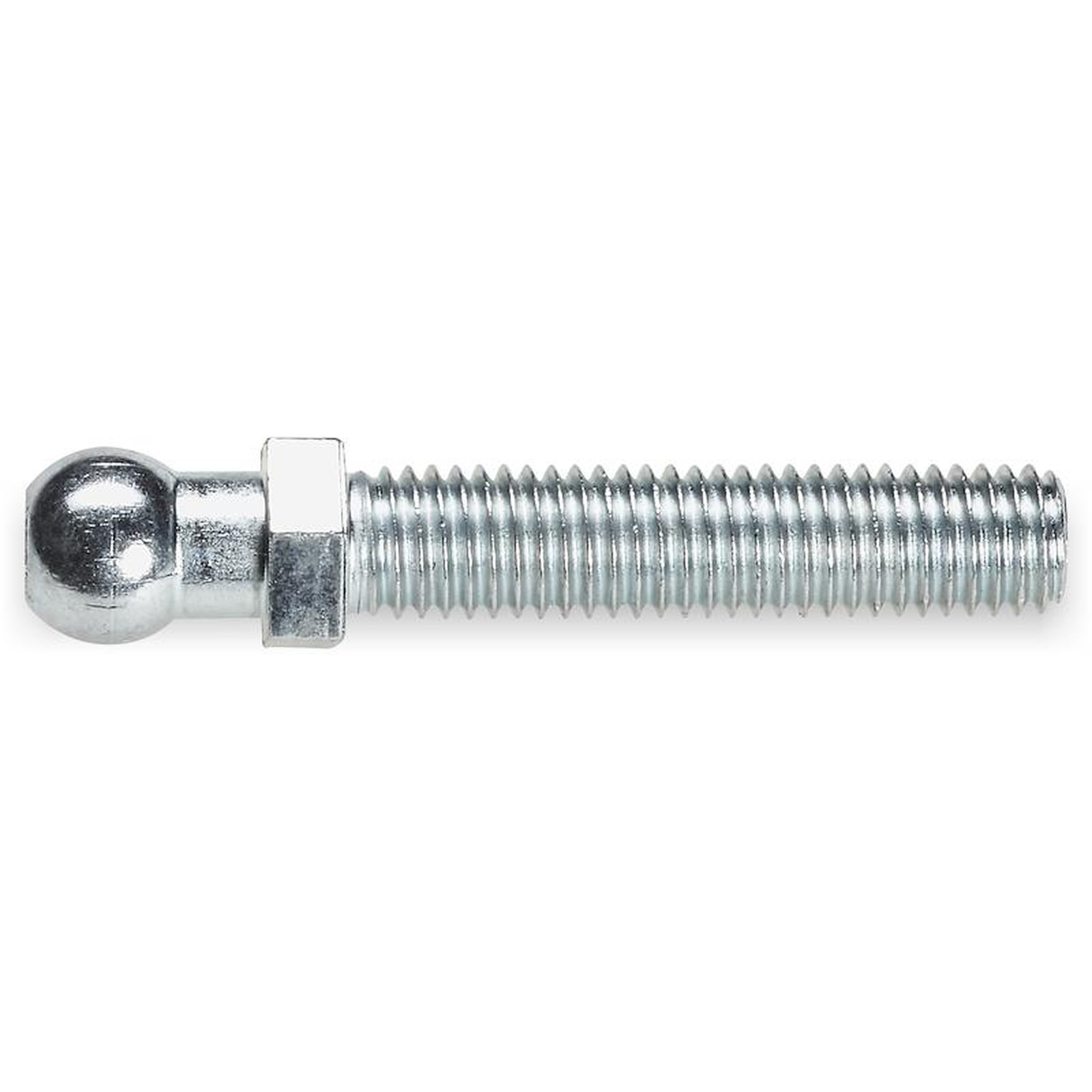

GALVANISED STEEL THREADED STEM TYPE A - WITH JOINT 12.4 AND HEXAGONAL BASE 13 - OBTAINED BY COLD MOULDING
Threaded stems
Materials:
Steel with strength class 4.8.
Surface finish:
Smooth.
Colour:
Blue galvanising.
Thread:
Moulded stem with hexagonal base (type A) with rolled thread (thread tolerance 6g).
Special requests:
Upon request and for a minimum quantity of 30,000 pieces, inserts can be supplied with length to customer’s drawing.
Compatibility with bases:
These stems are compatible with the following foot bases:
PIE.040S12,4 • PIE.050S12,4 • PIE.060S12,4 • PIE.080S12,4 • PIE.700080S12,4
| Code | Art. | E | s | h | R ±0,1 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| PEP.FZE13X5M08X45 | PEP.FZE13X5M08X45 | 13 | 5 | 20 | 12.4 | M8 | 45 | 29 |
| PEP.FZE13X5M08X70 | PEP.FZE13X5M08X70 | 13 | 5 | 20 | 12.4 | M8 | 70 | 36 |
| PEP.FZE13X5M10X45 | PEP.FZE13X5M10X45 | 13 | 5 | 20 | 12.4 | M10 | 45 | 37 |
| PEP.FZE13X5M10X70 | PEP.FZE13X5M10X70 | 13 | 5 | 20 | 12.4 | M10 | 70 | 49 |
| PEP.FZE13X5M10X100 | PEP.FZE13X5M10X100 | 13 | 5 | 20 | 12.4 | M10 | 100 | 85 |
| PEP.FZE13X5M12X45 | PEP.FZE13X5M12X45 | 13 | 5 | 20 | 12.4 | M12 | 45 | 46 |
| PEP.FZE13X5M12X70 | PEP.FZE13X5M12X70 | 13 | 5 | 20 | 12.4 | M12 | 70 | 65 |
| PEP.FZE13X5M12X100 | PEP.FZE13X5M12X100 | 13 | 5 | 20 | 12.4 | M12 | 100 | 85 |
