P916
MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 12.4 AND NON-SLIP BASE
Plastic feet with floor-anchoring - articulated stem + non-slip base
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
P916:

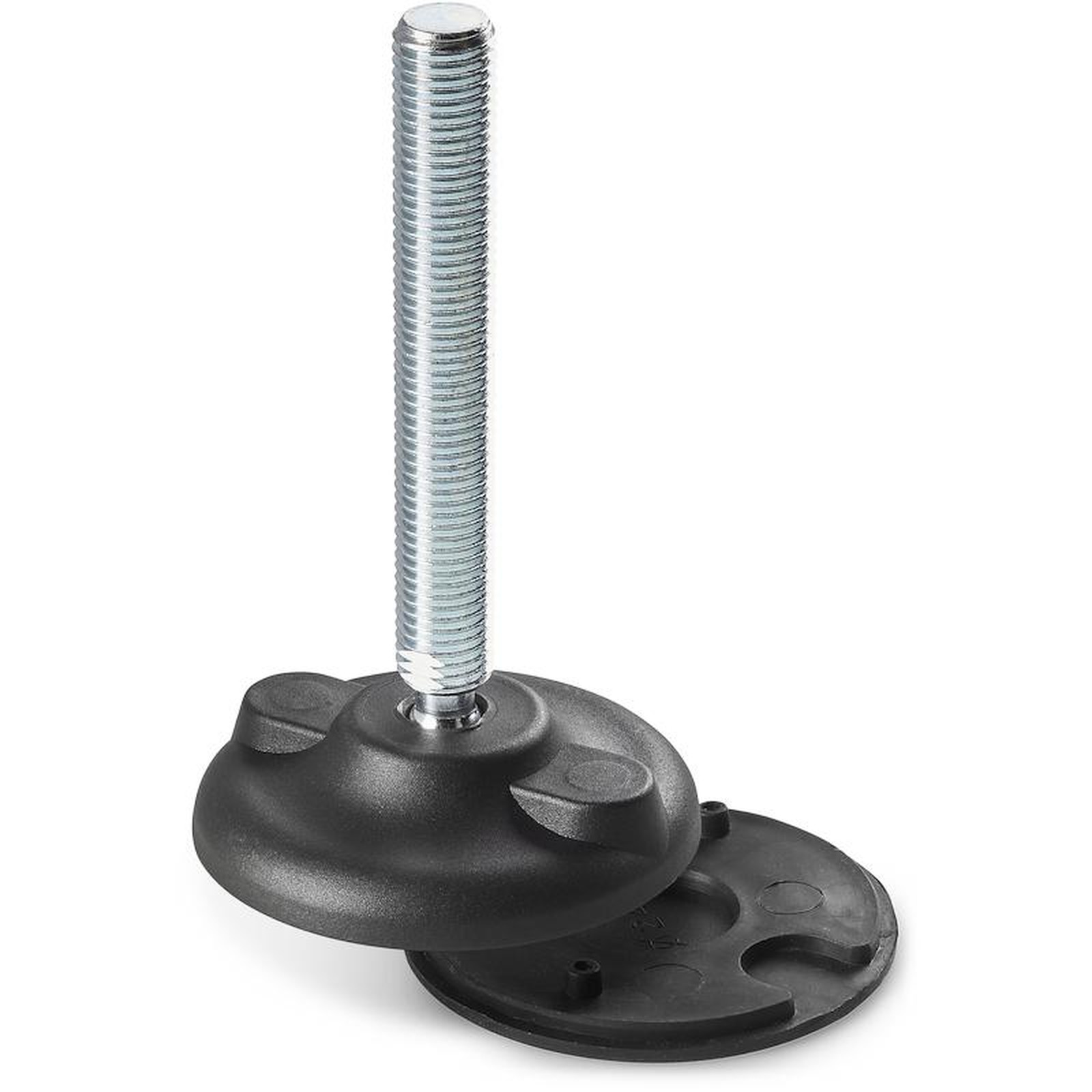

Galvanised steel threaded and articulated stem (ball 12.4) with milled seat for wrench (type B) (thread tolerance 6g).
P916CIN:

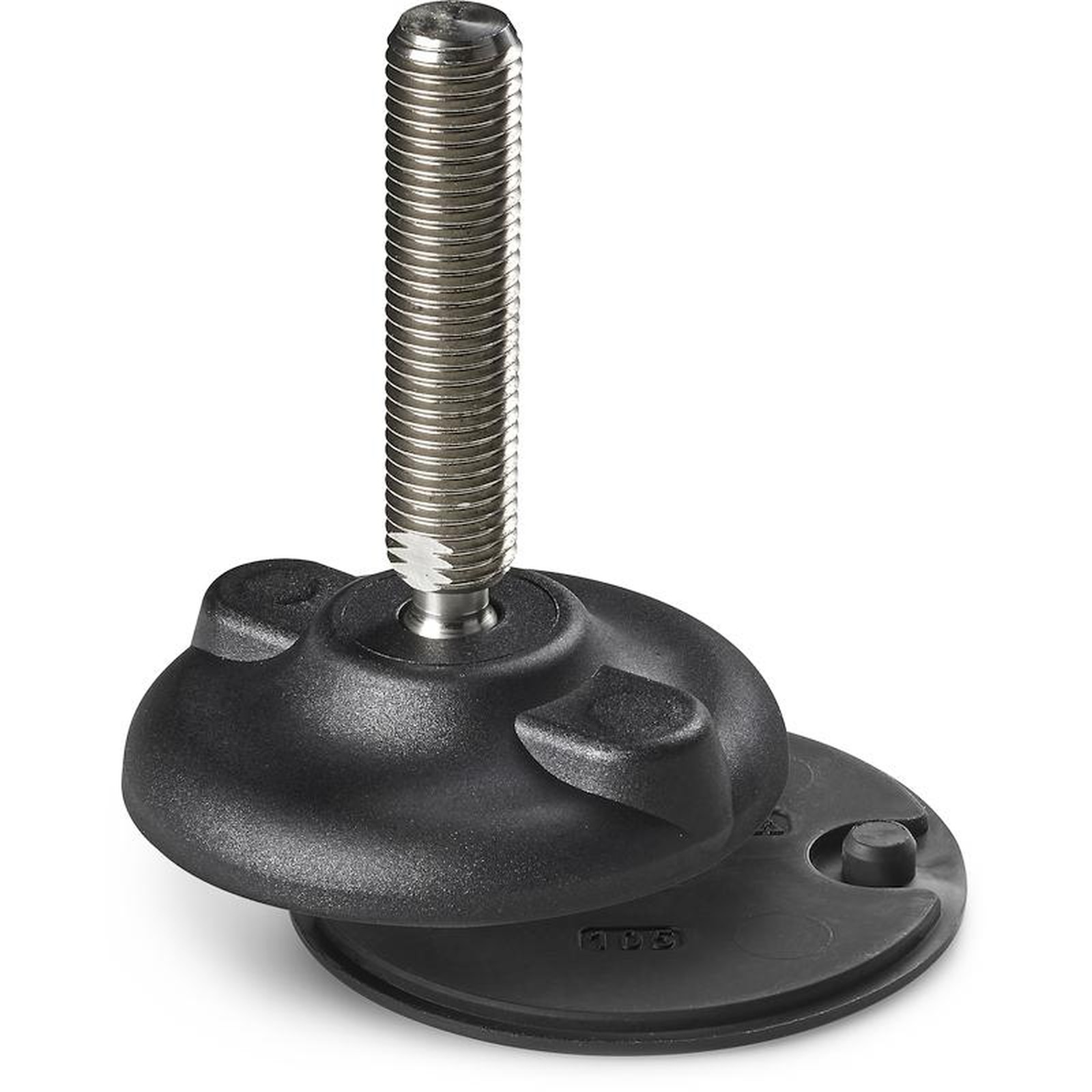

Stainless steel threaded and articulated stem (ball 12.4) with milled seat for wrench (type B) (Aisi 303) (thread tolerance 6g).
Non-slip base:
Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.
Ground fixing:

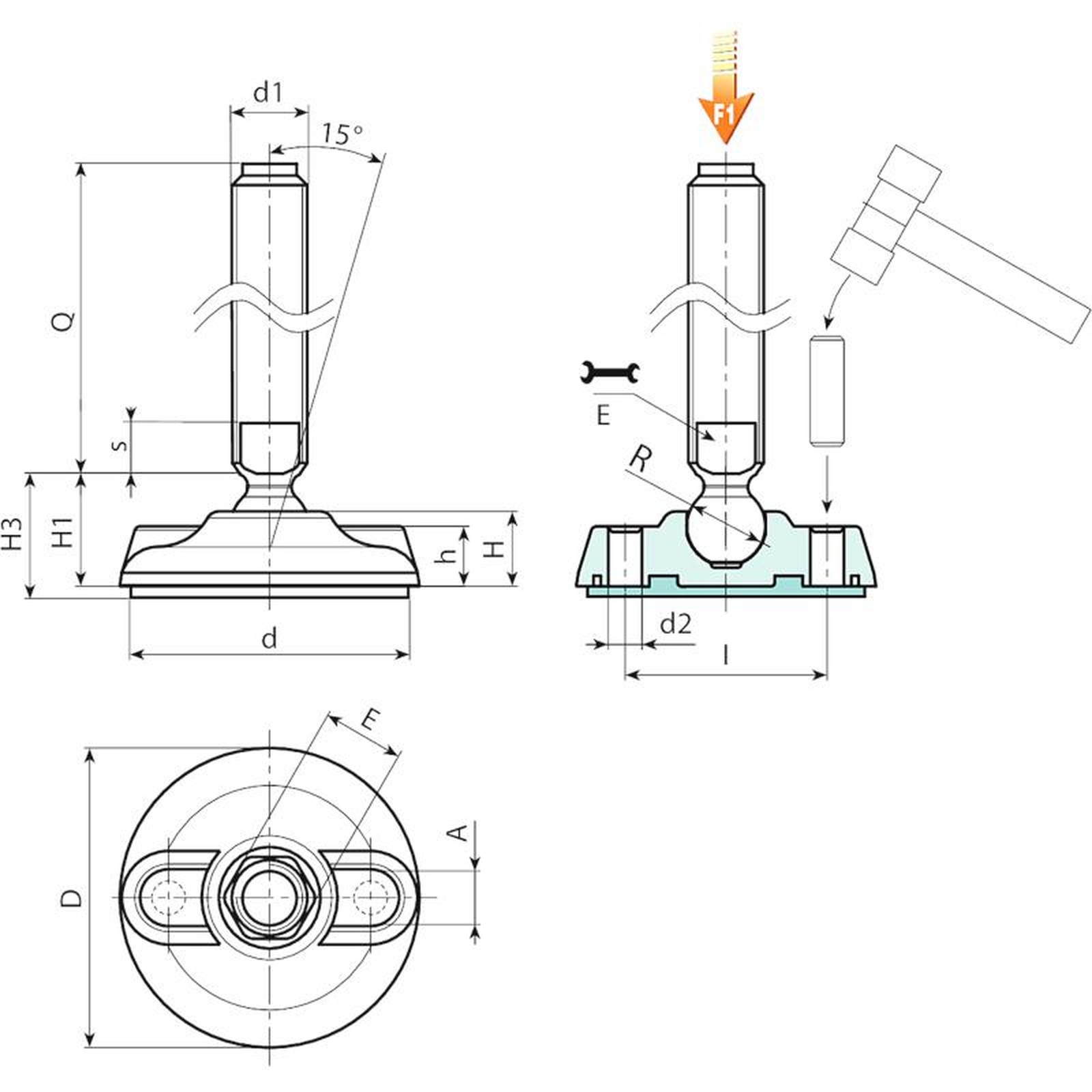

The mounting foot is supplied with closed holes for anchoring to the ground. To open them pierce the plastic membrane (see drawing).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P916: Mounting foot with stem type B (with milled seat for wrench) and ball 12.4 - with SBS non-slip base
| Code | Art. | D | H | I | H1 | H3 | h | A | E | s | d2 | d | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P916080.0012 | P916080.TM16X7001 | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 70 | 171 | 10 |
| P916080.0014 | P916080.TM16X9001 | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 90 | 194 | 10 |
| P916080.0001 | P916080.TM16X11001 | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 110 | 217 | 10 |
| P916080.0003 | P916080.TM16X13001 | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 130 | 240 | 10 |
| P916080.0006 | P916080.TM16X15001 | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 150 | 263 | 10 |
| P916080.0009 | P916080.TM16X17001 | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 170 | 286 | 10 |
Version P916CIN: Mounting foot with stem type B - stainless steel - (with milled seat for wrench) and ball 12.4 - with SBS non-slip base
| Code | Art. | D | H | I | H1 | H3 | h | A | E | s | d2 | d | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P916080.0002 | P916080.TM16X11001CIN | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 110 | 217 | 10 |
| P916080.0004 | P916080.TM16X13001CIN | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 130 | 240 | 10 |
| P916080.0007 | P916080.TM16X15001CIN | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 150 | 263 | 10 |
| P916080.0011 | P916080.TM16X17001CIN | 80 | 20 | 54 | 25.5 | 28.5 | 16 | 20 | 13 | 7 | 9 | 75 | 12.5 | M16 | 170 | 286 | 10 |
