P911
MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE A - BALL 12.4
Plastic feet with floor-anchoring - articulated stem
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
P911:

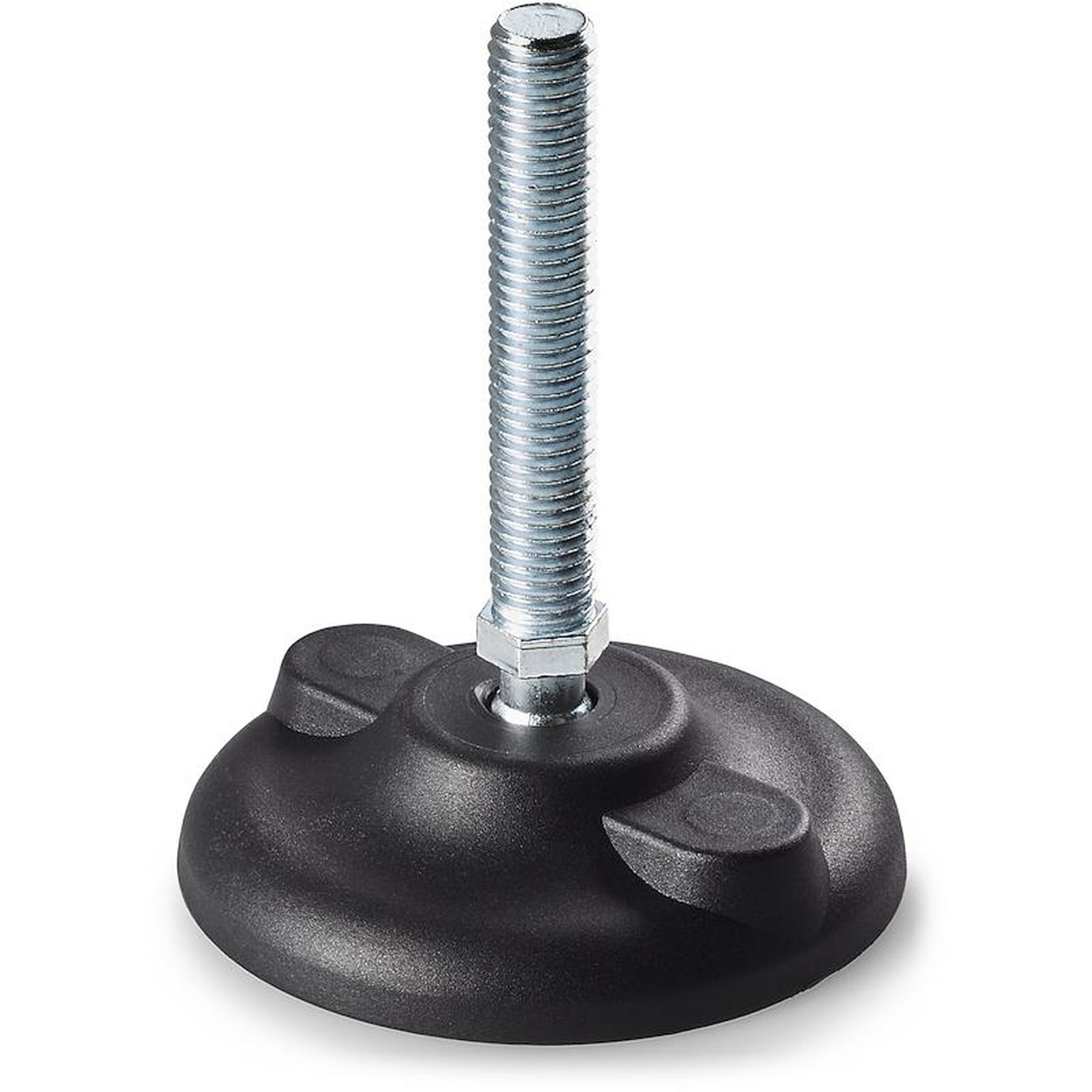

Galvanised steel threaded and articulated stem (ball 12.4) with hexagonal base (thread tolerance 6g).
P911CIN:

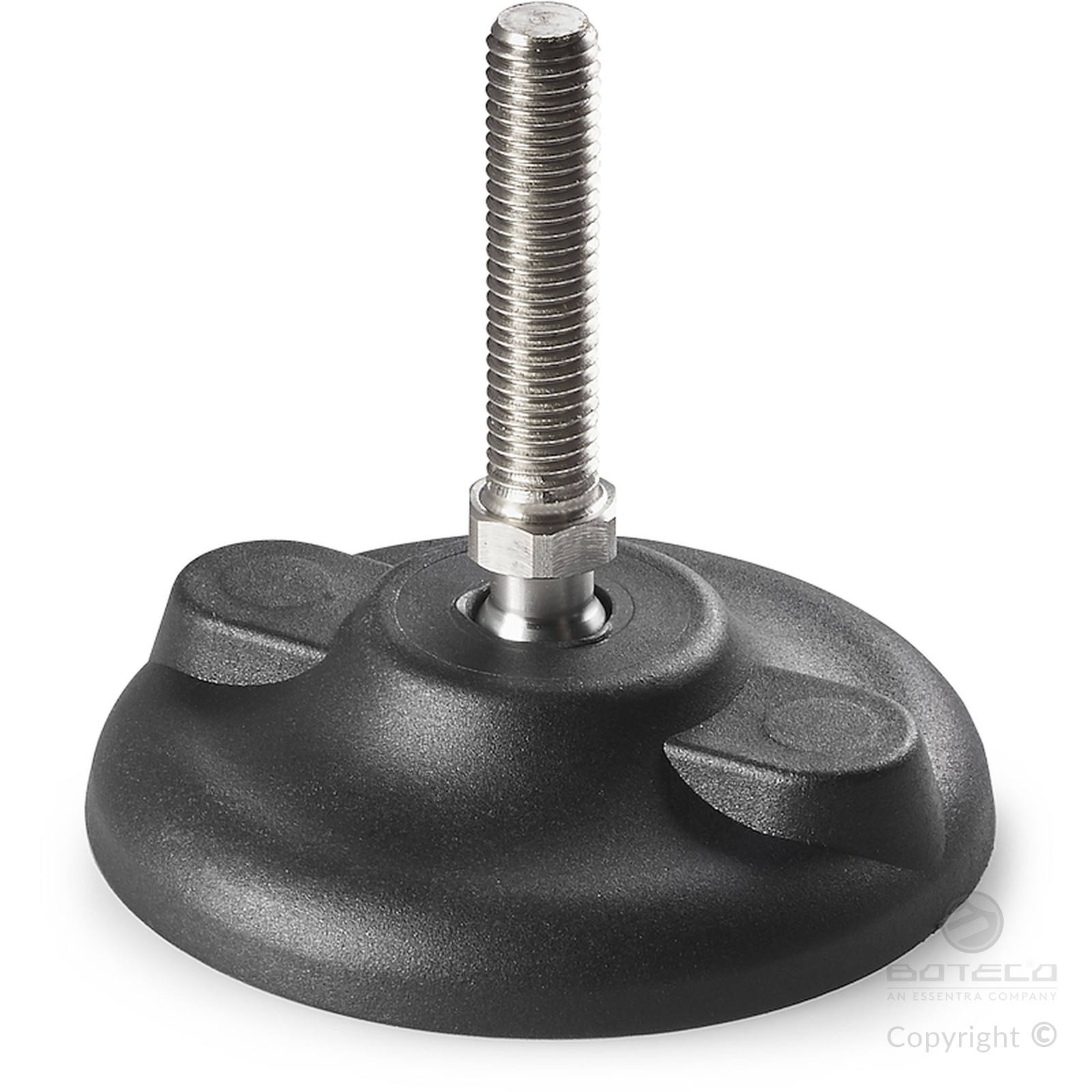

Stainless steel threaded and articulated stem (ball 12.4) with hexagonal base (Aisi 303) (thread tolerance 6g).
Ground fixing:

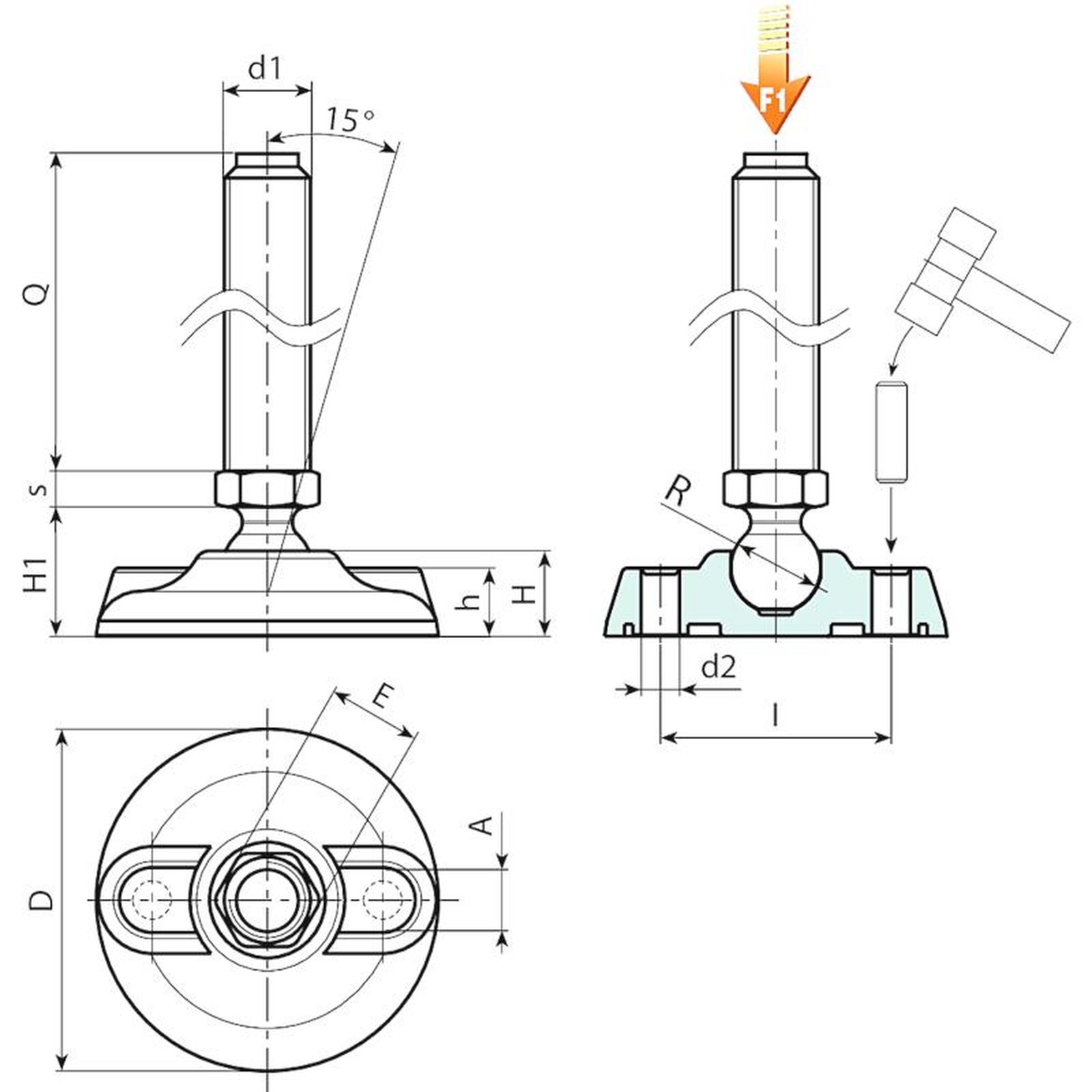

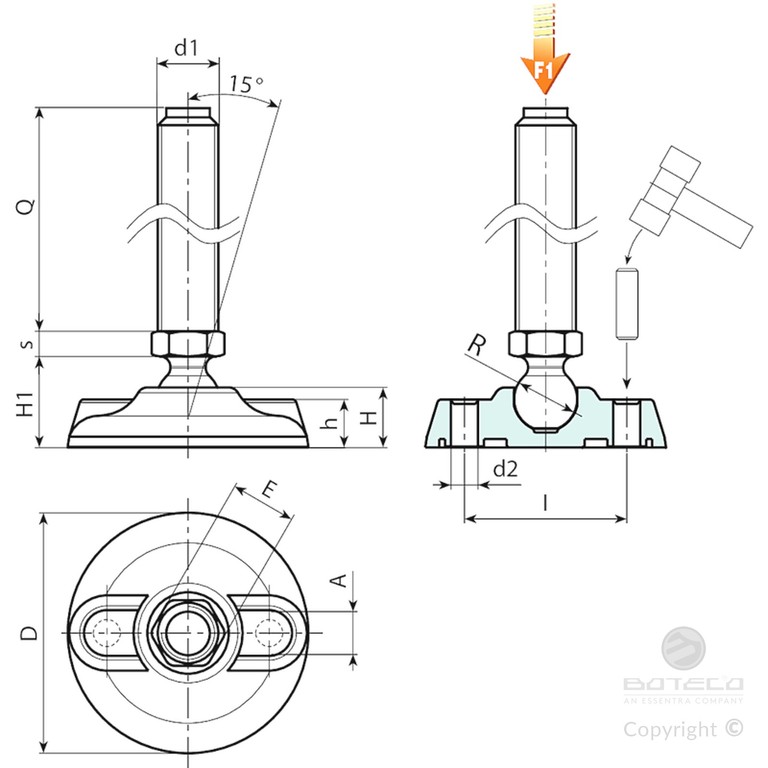

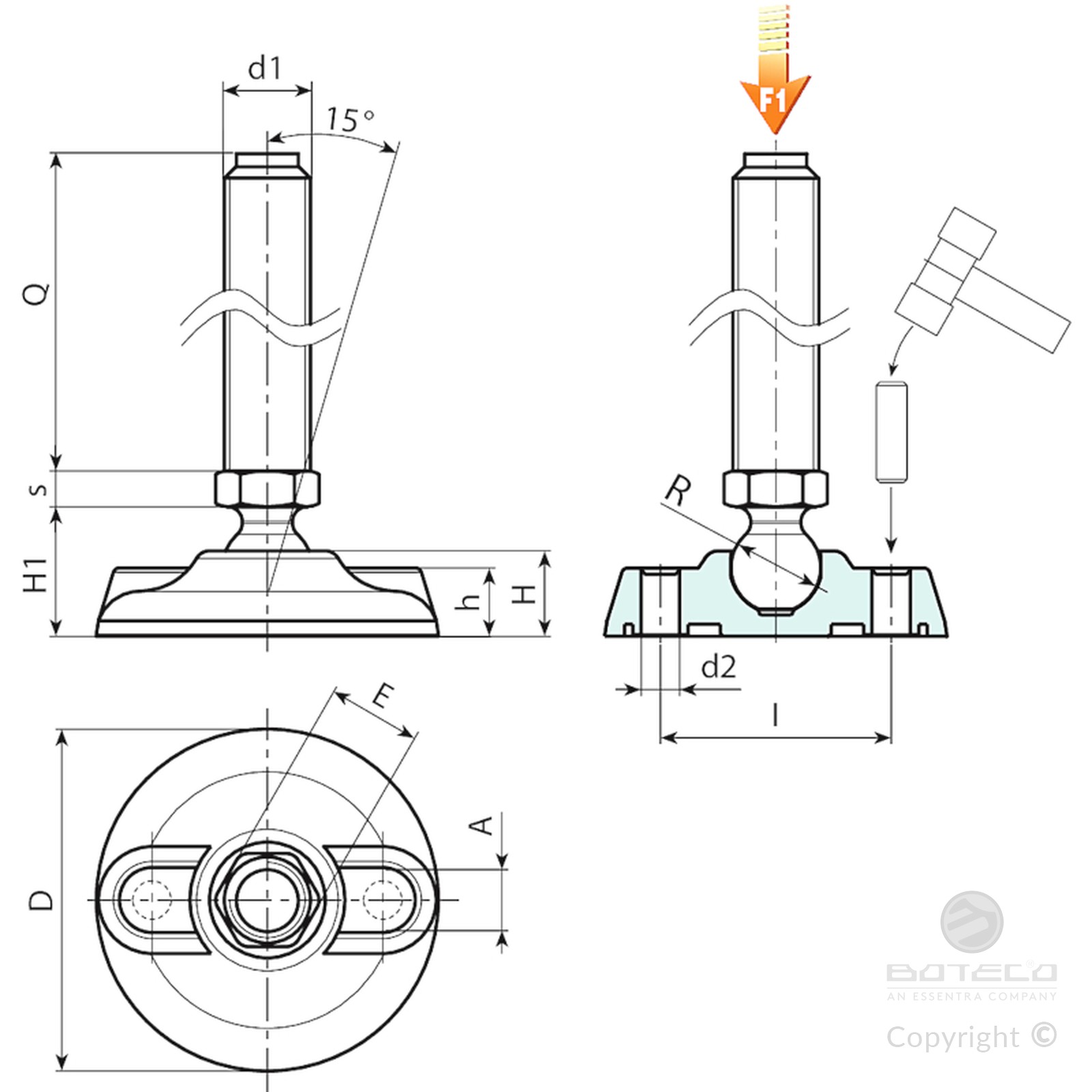

The mounting foot is supplied with closed holes for anchoring to the ground. To open them pierce the plastic membrane (see drawing).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P911: Mounting foot with stem type A (with hexagonal base) and ball 12.4
| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P911080.0001 | P911080.TM08X4501 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M8 | 45 | 66 | 10 |
| P911080.0003 | P911080.TM08X7001 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M8 | 70 | 73 | 10 |
| P911080.0010 | P911080.TM10X4501 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M10 | 45 | 74 | 10 |
| P911080.0012 | P911080.TM10X7001 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M10 | 70 | 86 | 10 |
| P911080.0005 | P911080.TM10X10001 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M10 | 100 | 123 | 10 |
| P911080.0018 | P911080.TM12X4501 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M12 | 45 | 84 | 10 |
| P911080.0021 | P911080.TM12X7001 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M12 | 70 | 101 | 10 |
| P911080.0016 | P911080.TM12X10001 | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M12 | 100 | 145 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
Version P911CIN: Mounting foot with stem type A (with hexagonal base) and ball 12.4 - stainless steel
| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P911080.0002 | P911080.TM08X4501CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M8 | 45 | 66 | 10 |
| P911080.0004 | P911080.TM08X7001CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M8 | 70 | 73 | 10 |
| P911080.0011 | P911080.TM10X4501CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M10 | 45 | 74 | 10 |
| P911080.0013 | P911080.TM10X7001CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M10 | 70 | 86 | 10 |
| P911080.0019 | P911080.TM12X4501CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M12 | 45 | 84 | 10 |
| P911080.0022 | P911080.TM12X7001CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M12 | 70 | 101 | 10 |
| P911080.0017 | P911080.TM12X10001CIN | 80 | 20 | 54 | 25.5 | 16 | 20 | 13 | 5 | 9 | 12.5 | M12 | 100 | 145 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
