P910

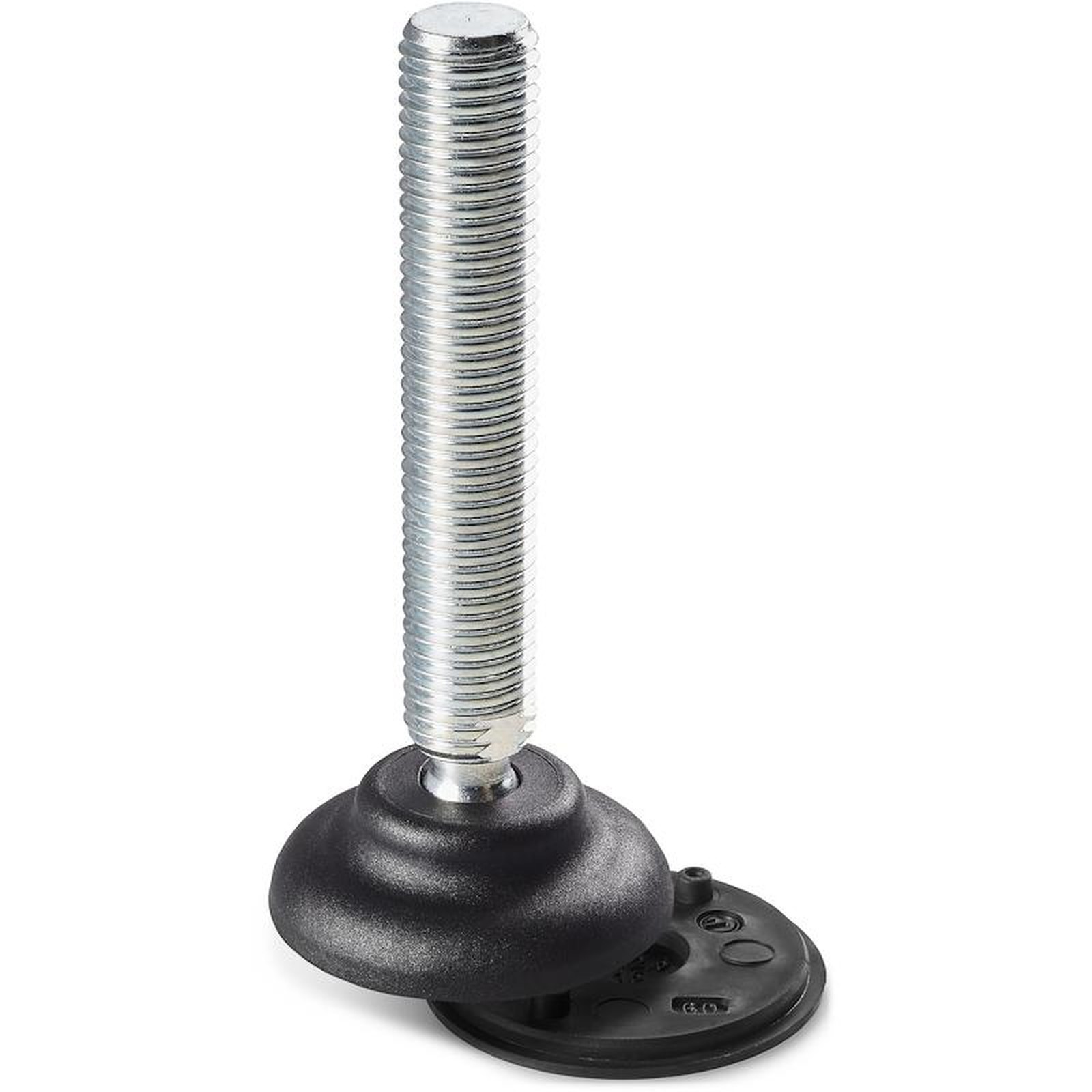

SMALL MOUNTING FOOT WITH STEEL ARTICULATED STEM TYPE B - BALL 15 AND NON-SLIP BASE
Plastic feet - articulated stem + non-slip base
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanised steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (thread tolerance 6g).
Non-slip base:
Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P910: Mounting foot with stem type B (with milled seat for wrench) and ball 15 - with SBS non-slip base

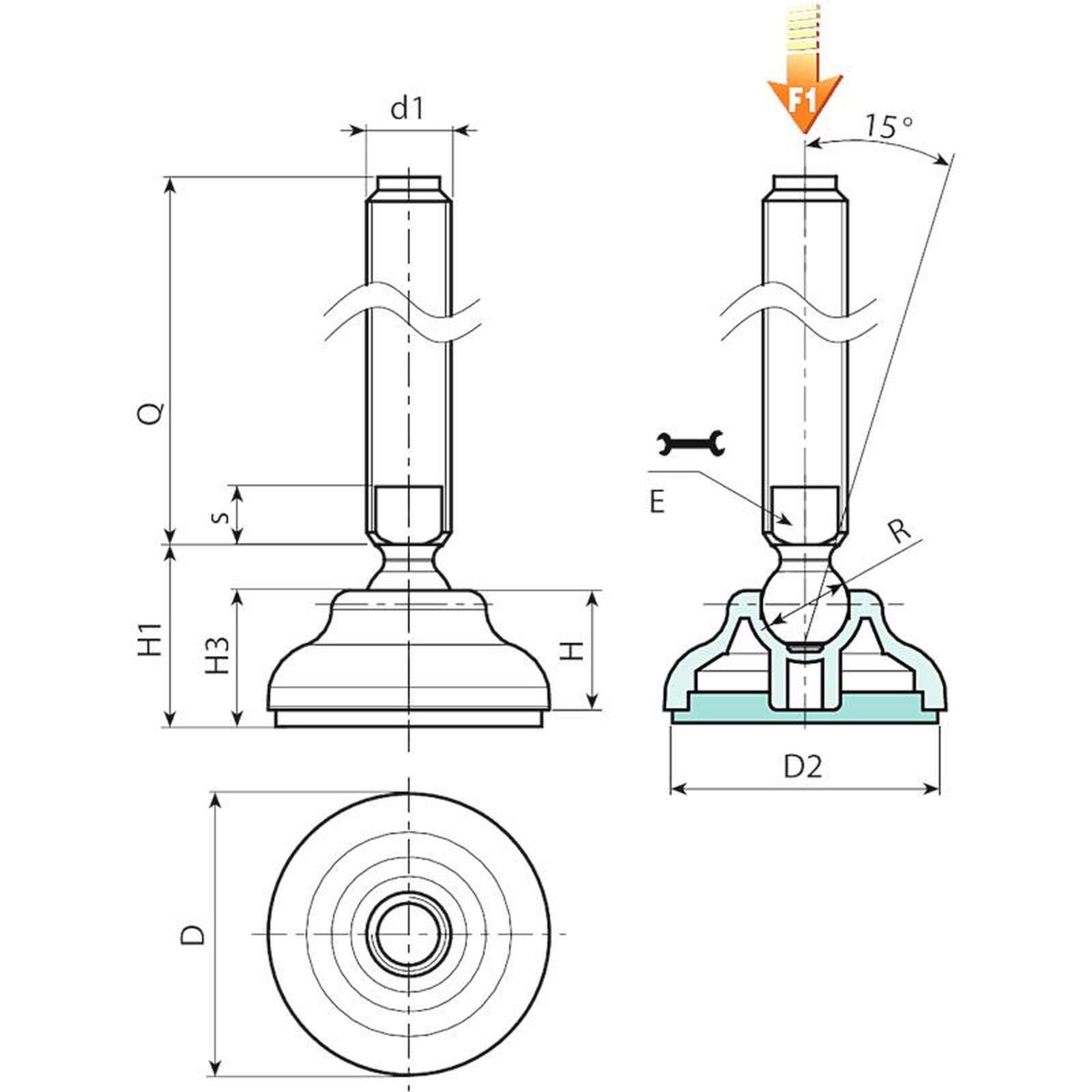

| Code | Art. | D | D2 | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P91060.0007 | P91060.TM20X5001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 50 | 158 | 13 |
| P91060.0008 | P91060.TM20X7001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 70 | 198 | 13 |
| P91060.0009 | P91060.TM20X9001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 90 | 238 | 13 |
| P91060.0001 | P91060.TM20X11001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 110 | 280 | 13 |
| P91060.0002 | P91060.TM20X13001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 130 | 320 | 13 |
| P91060.0003 | P91060.TM20X15001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 150 | 360 | 13 |
| P91060.0004 | P91060.TM20X17001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 170 | 400 | 13 |
| P91060.0005 | P91060.TM20X19001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 190 | 440 | 13 |
| P91060.0006 | P91060.TM20X21001 | 60 | 59 | 20 | 29 | 22 | 16 | 7 | 15 | M20 | 210 | 480 | 13 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
