P909

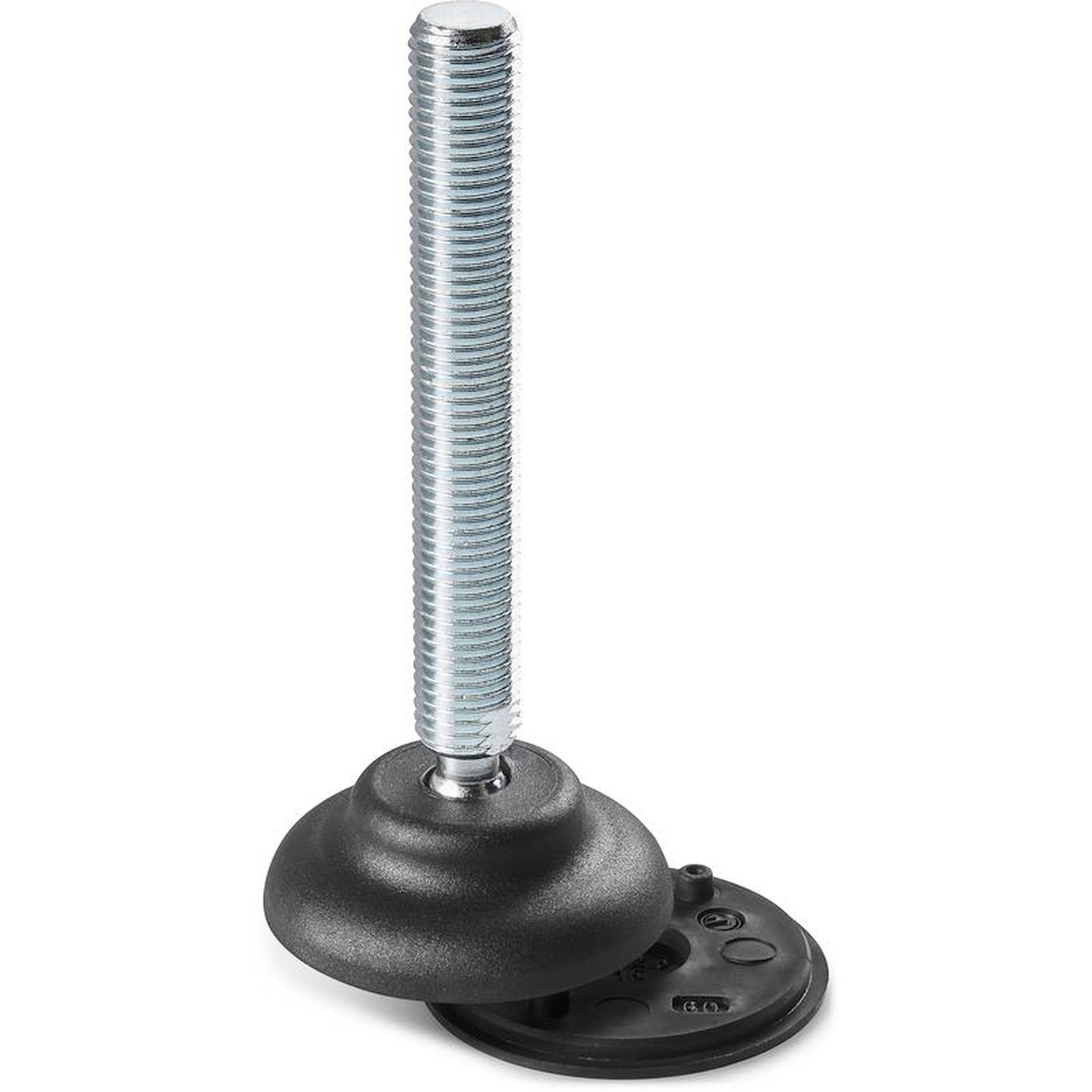

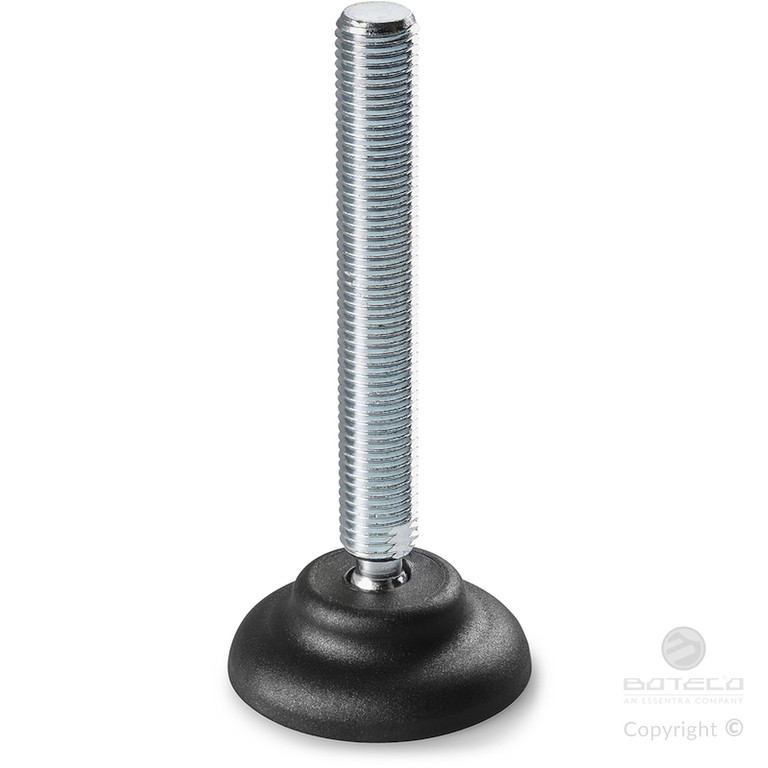

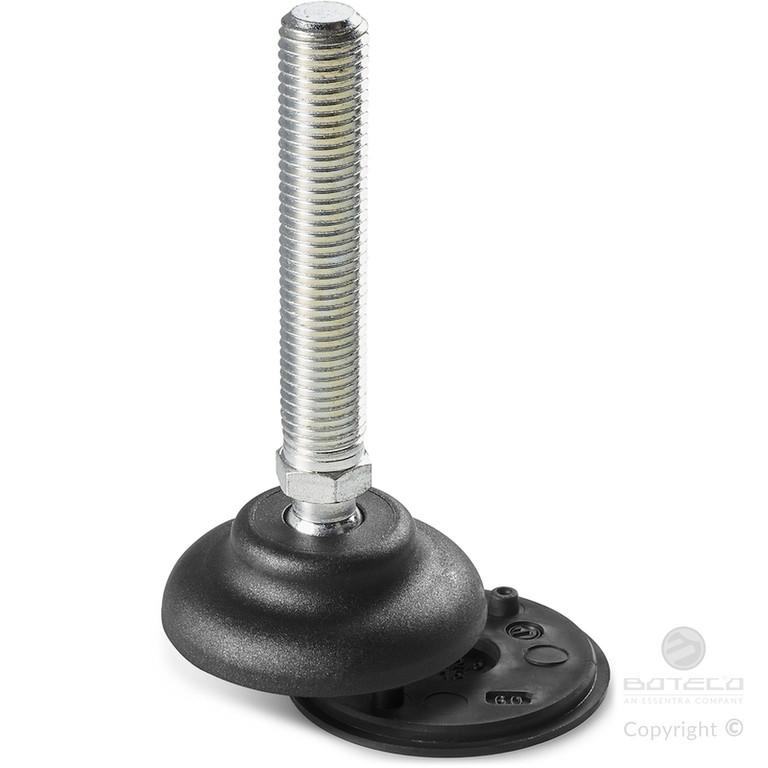

SMALL MOUNTING FOOT WITH STEEL ARTICULATED STEM TYPE B - BALL 12.4 AND NON-SLIP BASE
Plastic feet - articulated stem + non-slip base
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
Galvanised steel threaded and articulated stem (ball 12.4) with milled seat for wrench (type B) (thread tolerance 6g).
Non-slip base:
Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P909: Mounting foot with stem type B (with milled seat for wrench) and ball 12.4 - with SBS non-slip base

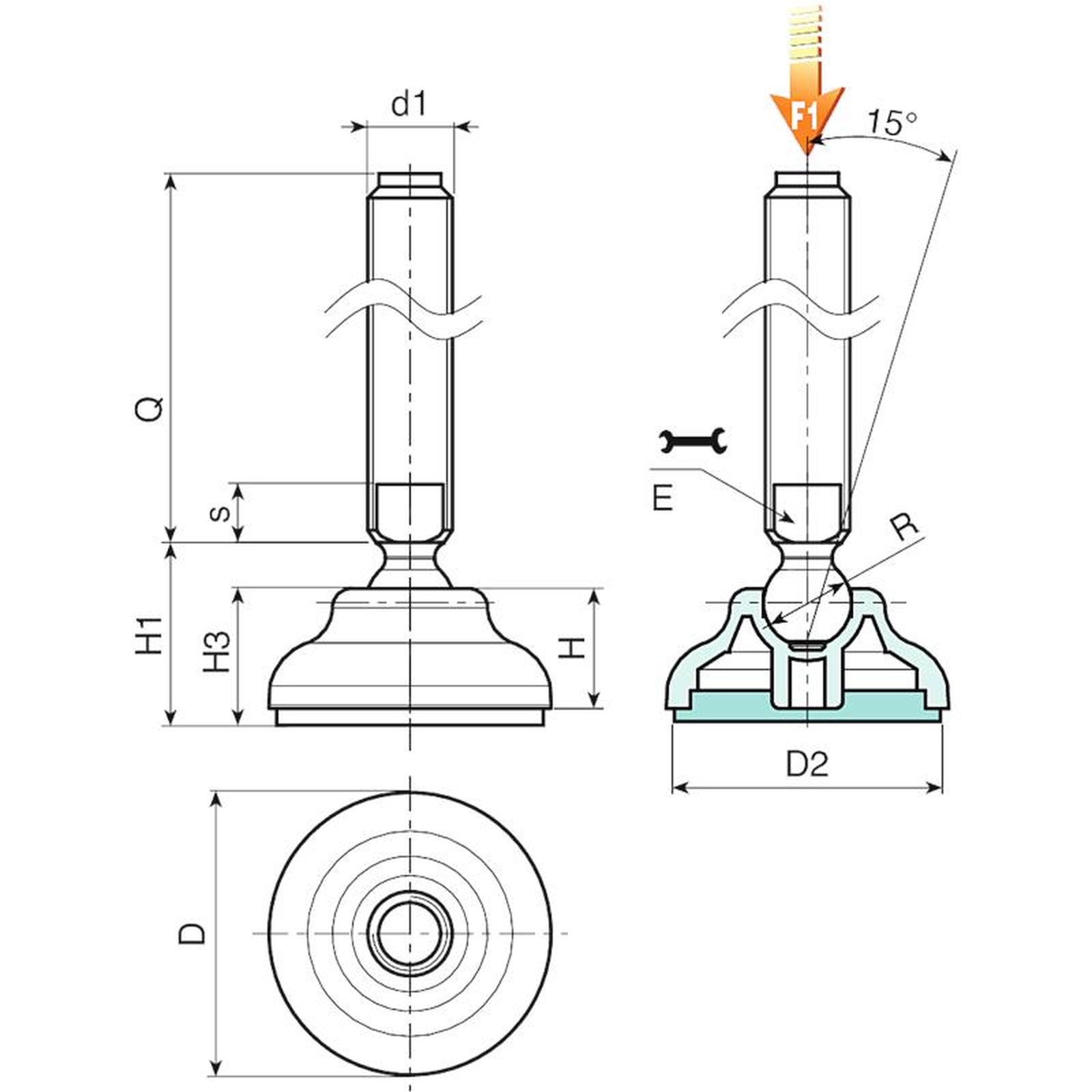

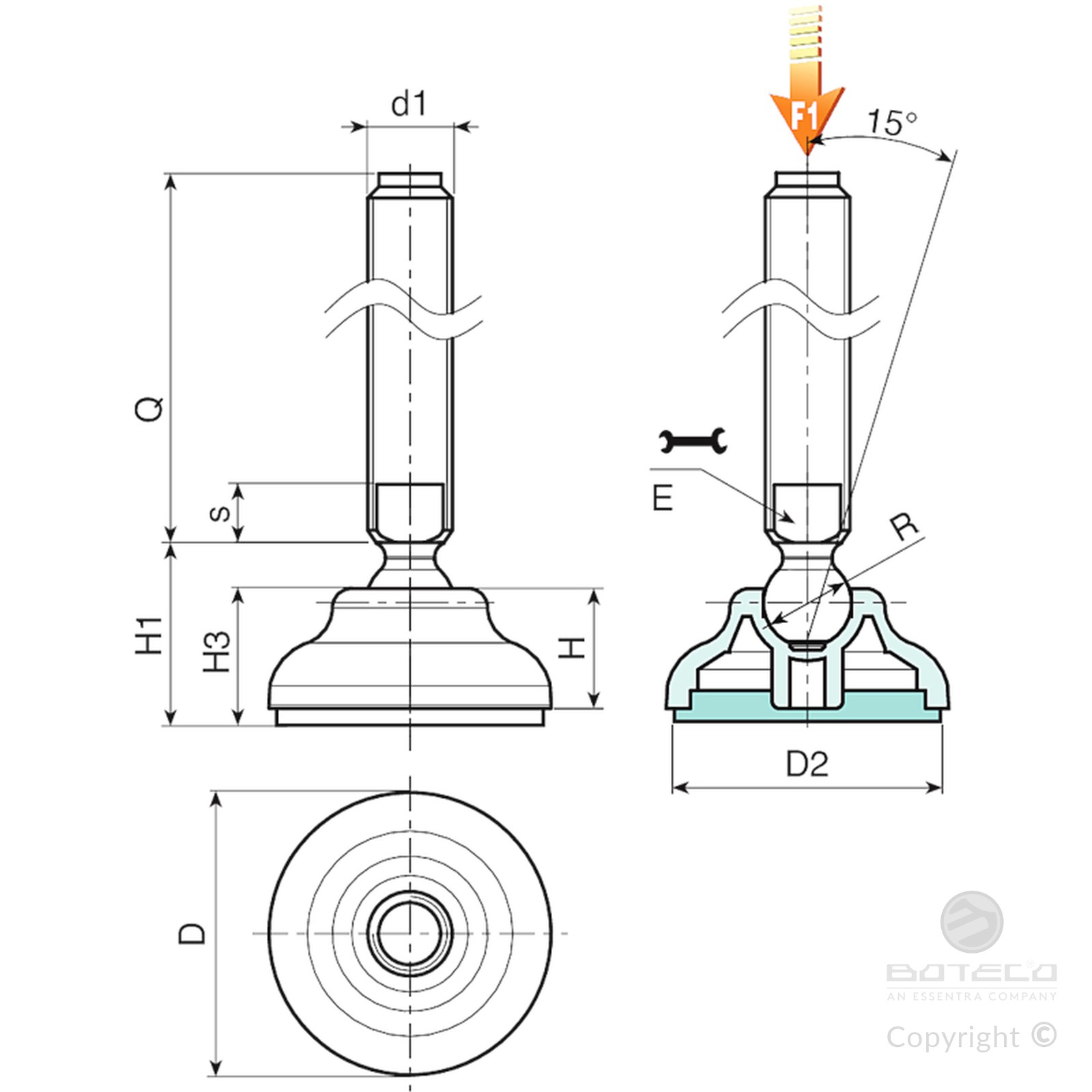

| Code | Art. | D | D2 | H | H1 | H3 | E | s | R | d1 6g | Q | Weight (g) | F1 k(N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P90960.0005 | P90960.TM16X7001 | 60 | 59 | 20 | 29 | 22 | 13 | 7 | 12,5 | M16 | 70 | 139 | 13 |
| P90960.0006 | P90960.TM16X9001 | 60 | 59 | 20 | 29 | 22 | 13 | 7 | 12,5 | M16 | 90 | 165 | 13 |
| P90960.0001 | P90960.TM16X11001 | 60 | 59 | 20 | 29 | 22 | 13 | 7 | 12,5 | M16 | 110 | 191 | 13 |
| P90960.0002 | P90960.TM16X13001 | 60 | 59 | 20 | 29 | 22 | 13 | 7 | 12,5 | M16 | 130 | 217 | 13 |
| P90960.0003 | P90960.TM16X15001 | 60 | 59 | 20 | 29 | 22 | 13 | 7 | 12,5 | M16 | 150 | 243 | 13 |
| P90960.0004 | P90960.TM16X17001 | 60 | 59 | 20 | 29 | 22 | 13 | 7 | 12,5 | M16 | 170 | 270 | 13 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
