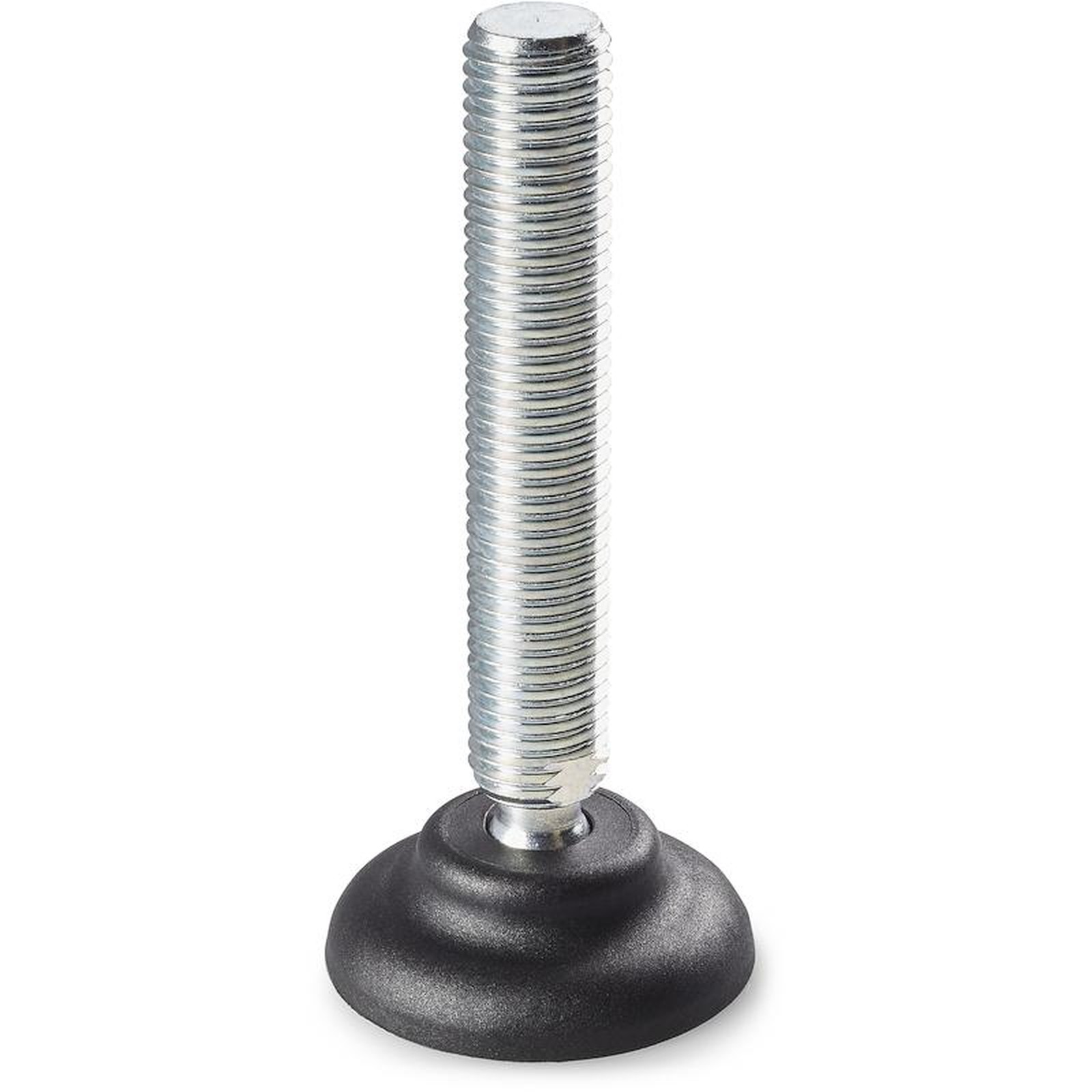

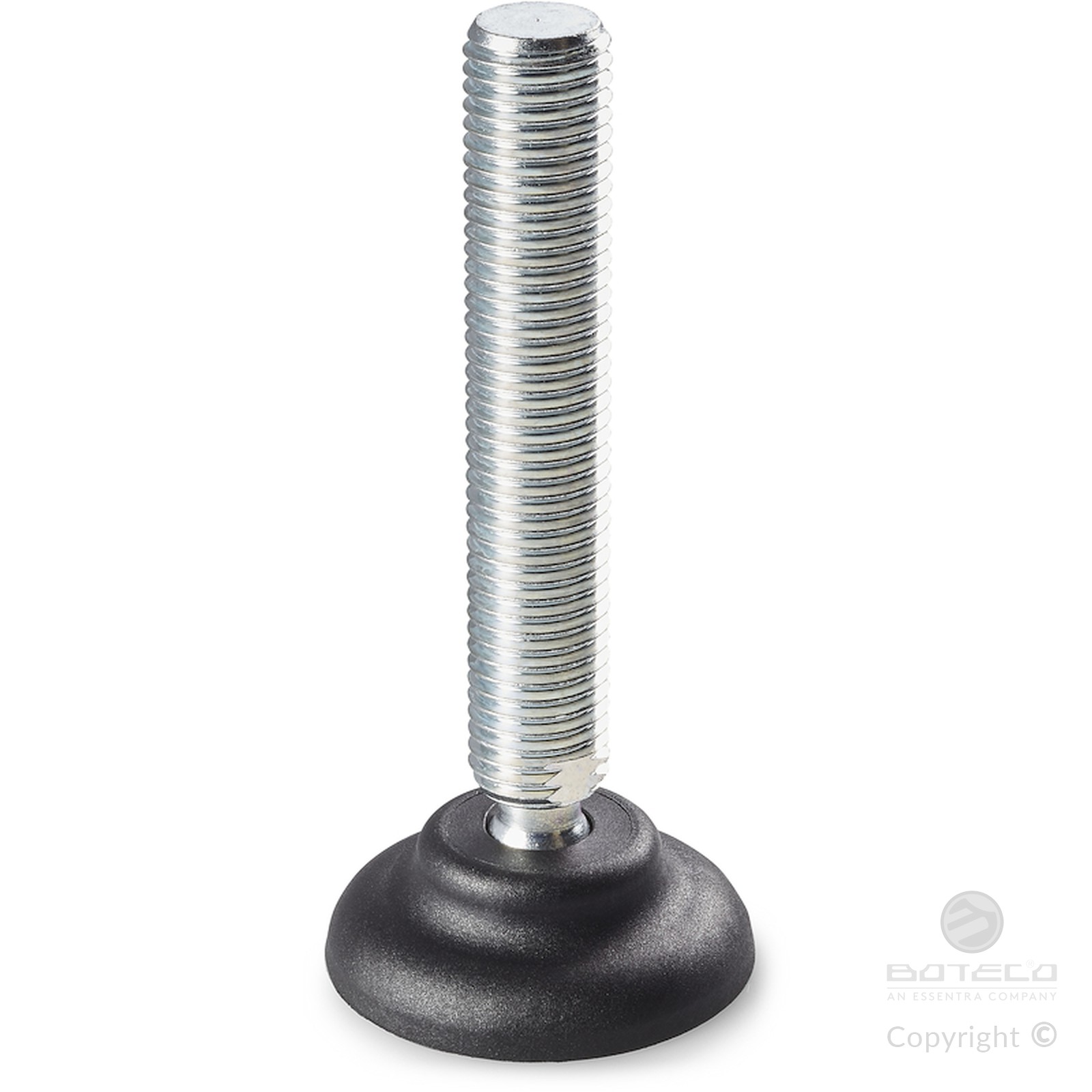

SMALL MOUNTING FOOT WITH STEEL ARTICULATED STEM TYPE B - BALL 15
16
P907
Piedi in plastica - stelo snodato
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded and articulated stem (ball 15) with milled seat for wrench (type B) (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P907: Mounting foot with stem type B (with milled seat for wrench) and ball 15

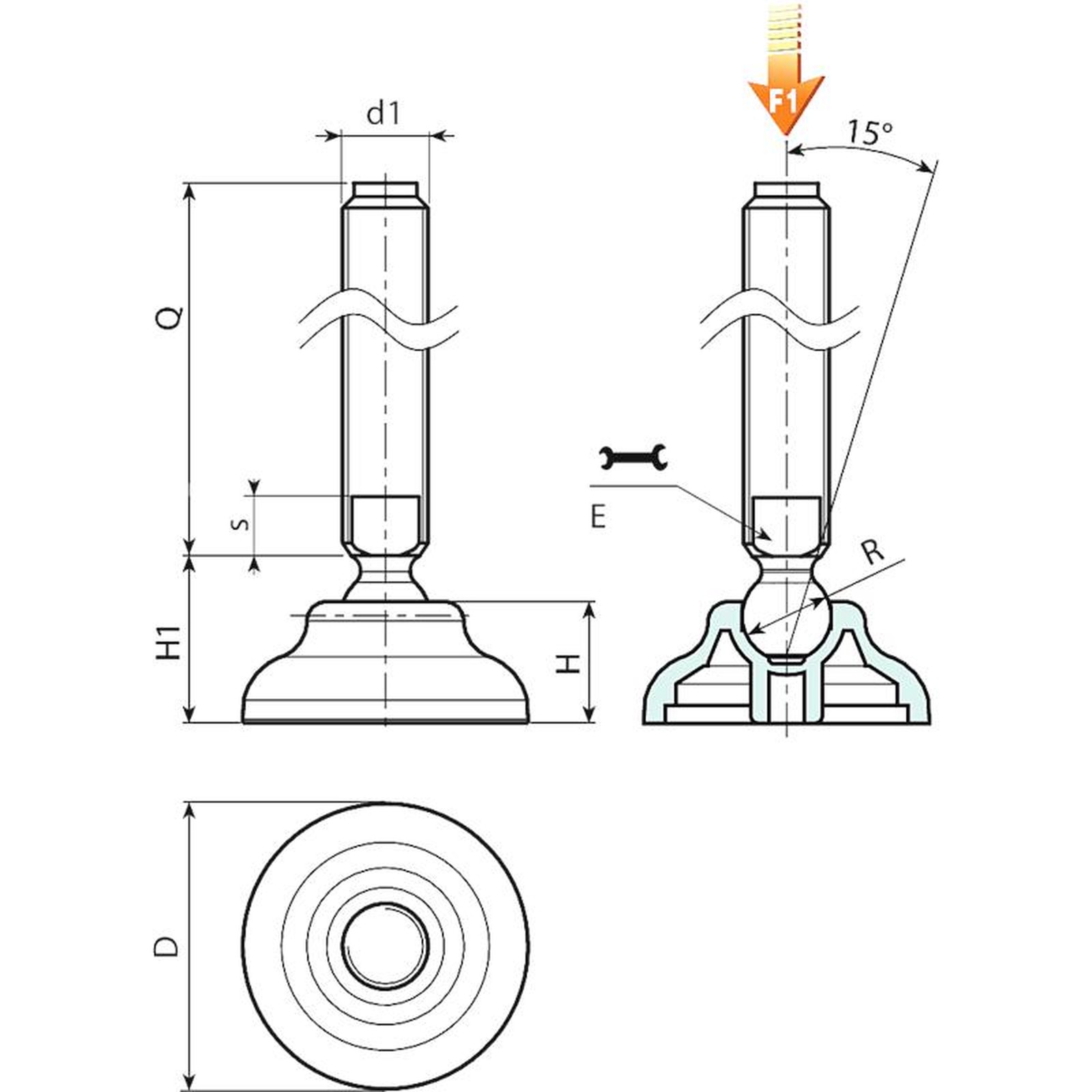

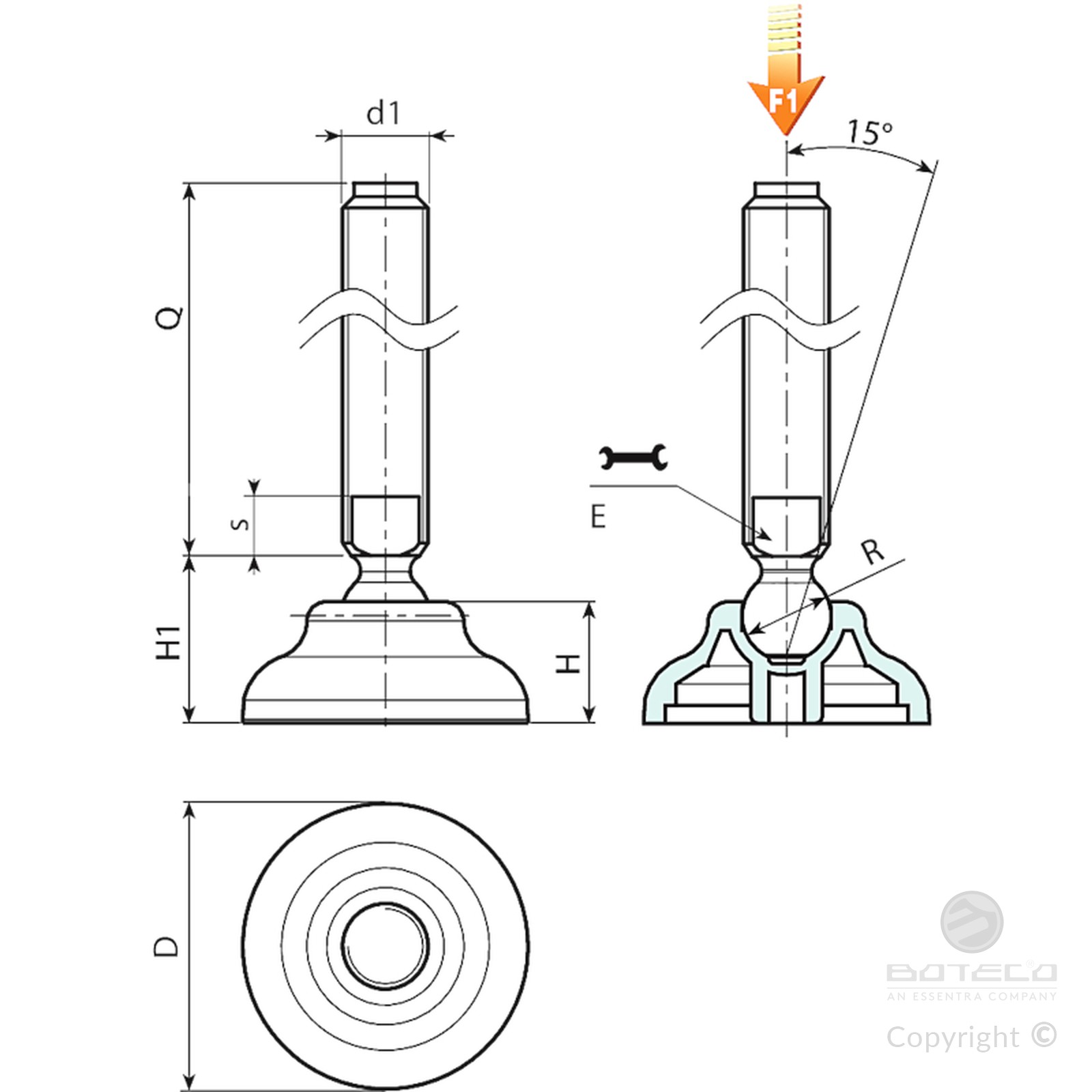

| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P90760.0007 | P90760.TM20X5001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 50 | 145 | 13 |
| P90760.0008 | P90760.TM20X7001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 70 | 185 | 13 |
| P90760.0009 | P90760.TM20X9001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 90 | 225 | 13 |
| P90760.0001 | P90760.TM20X11001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 110 | 267 | 13 |
| P90760.0002 | P90760.TM20X13001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 130 | 306 | 13 |
| P90760.0003 | P90760.TM20X15001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 150 | 346 | 13 |
| P90760.0004 | P90760.TM20X17001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 170 | 386 | 13 |
| P90760.0005 | P90760.TM20X19001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 190 | 426 | 13 |
| P90760.0006 | P90760.TM20X21001 | 60 | 20 | 26 | 16 | 7 | 15 | M20 | 210 | 466 | 13 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
