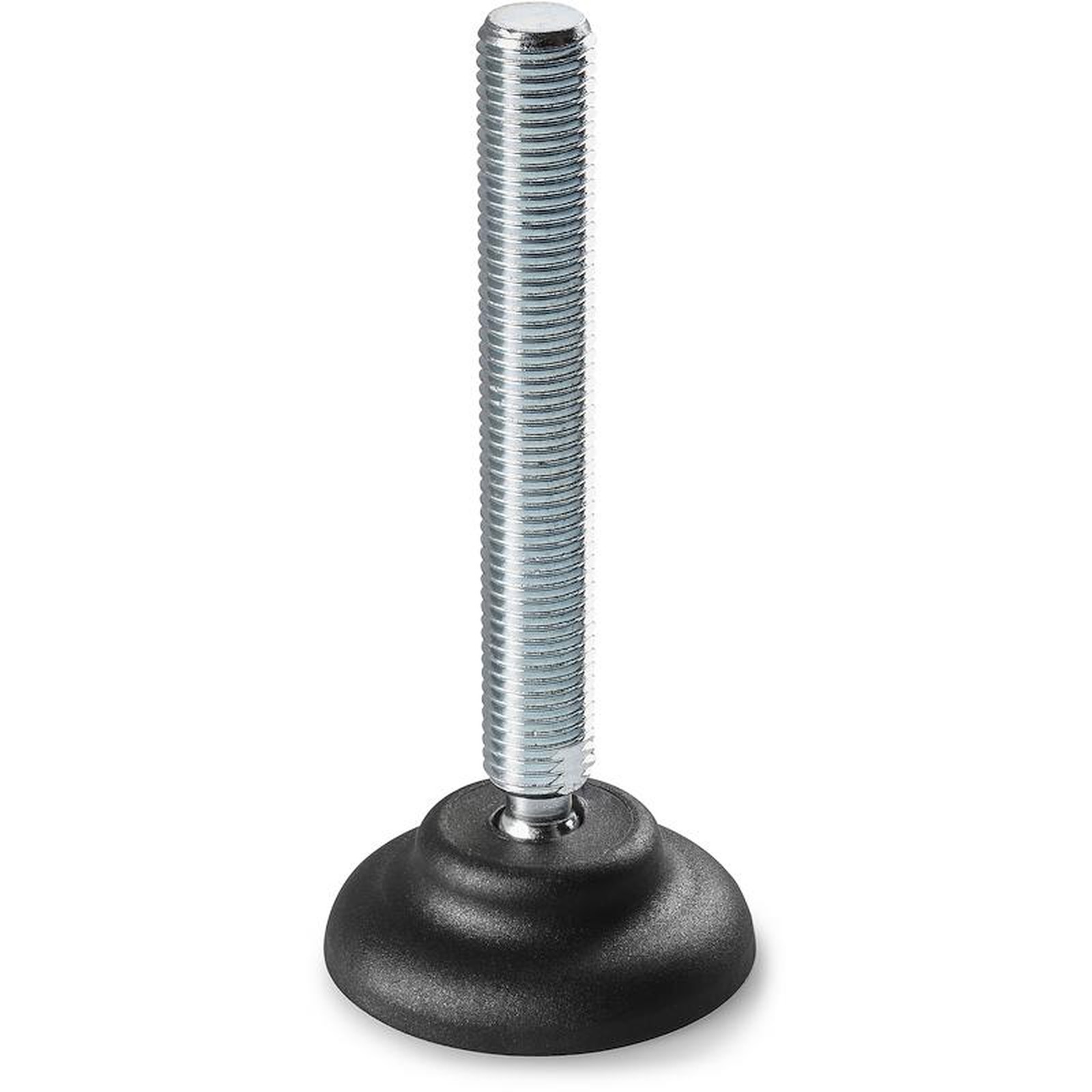

SMALL MOUNTING FOOT WITH STEEL ARTICULATED STEM TYPE B - BALL 12.4
16
P906
Piedi in plastica - stelo snodato
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel threaded and articulated stem (ball 12.4) with milled seat for wrench (type B) (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P906: Mounting foot with stem type B (with milled seat for wrench) and ball 12.4

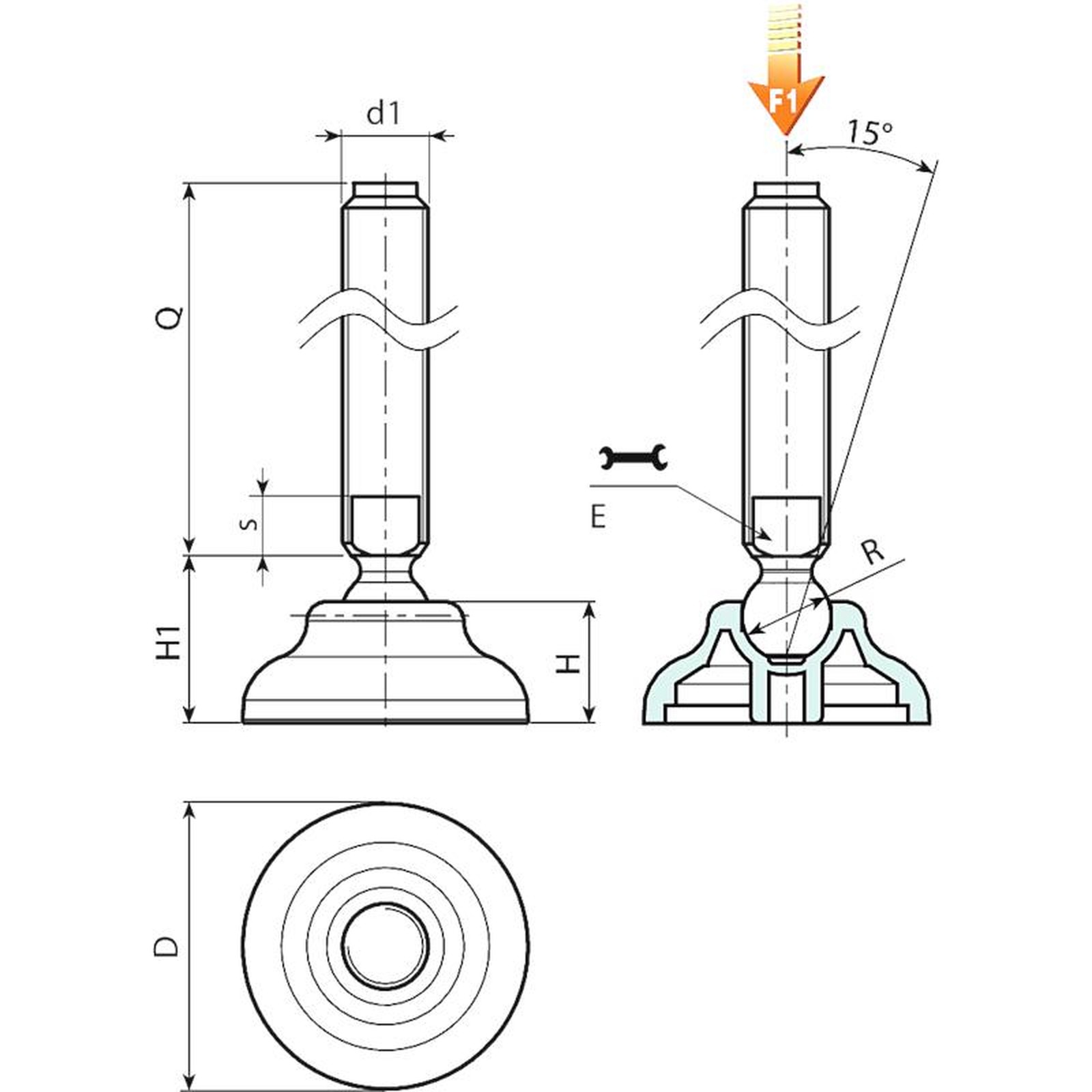

| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P90660.0005 | P90660.TM16X7001 | 60 | 20 | 26 | 13 | 7 | 12.4 | M16 | 70 | 126 | 10 |
| P90660.0006 | P90660.TM16X9001 | 60 | 20 | 26 | 13 | 7 | 12.4 | M16 | 90 | 152 | 10 |
| P90660.0001 | P90660.TM16X11001 | 60 | 20 | 26 | 13 | 7 | 12.4 | M16 | 110 | 178 | 10 |
| P90660.0002 | P90660.TM16X13001 | 60 | 20 | 26 | 13 | 7 | 12.4 | M16 | 130 | 204 | 10 |
| P90660.0003 | P90660.TM16X15001 | 60 | 20 | 26 | 13 | 7 | 12.4 | M16 | 150 | 230 | 10 |
| P90660.0004 | P90660.TM16X17001 | 60 | 20 | 26 | 13 | 7 | 12.4 | M16 | 170 | 256 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
