SMALL MOUNTING FOOT - IN ESD MATERIAL - WITH STEEL ARTICULATED STEM TYPE A - BALL 12.4
16
P900ESD
Piedi in plastica - stelo snodato
Description

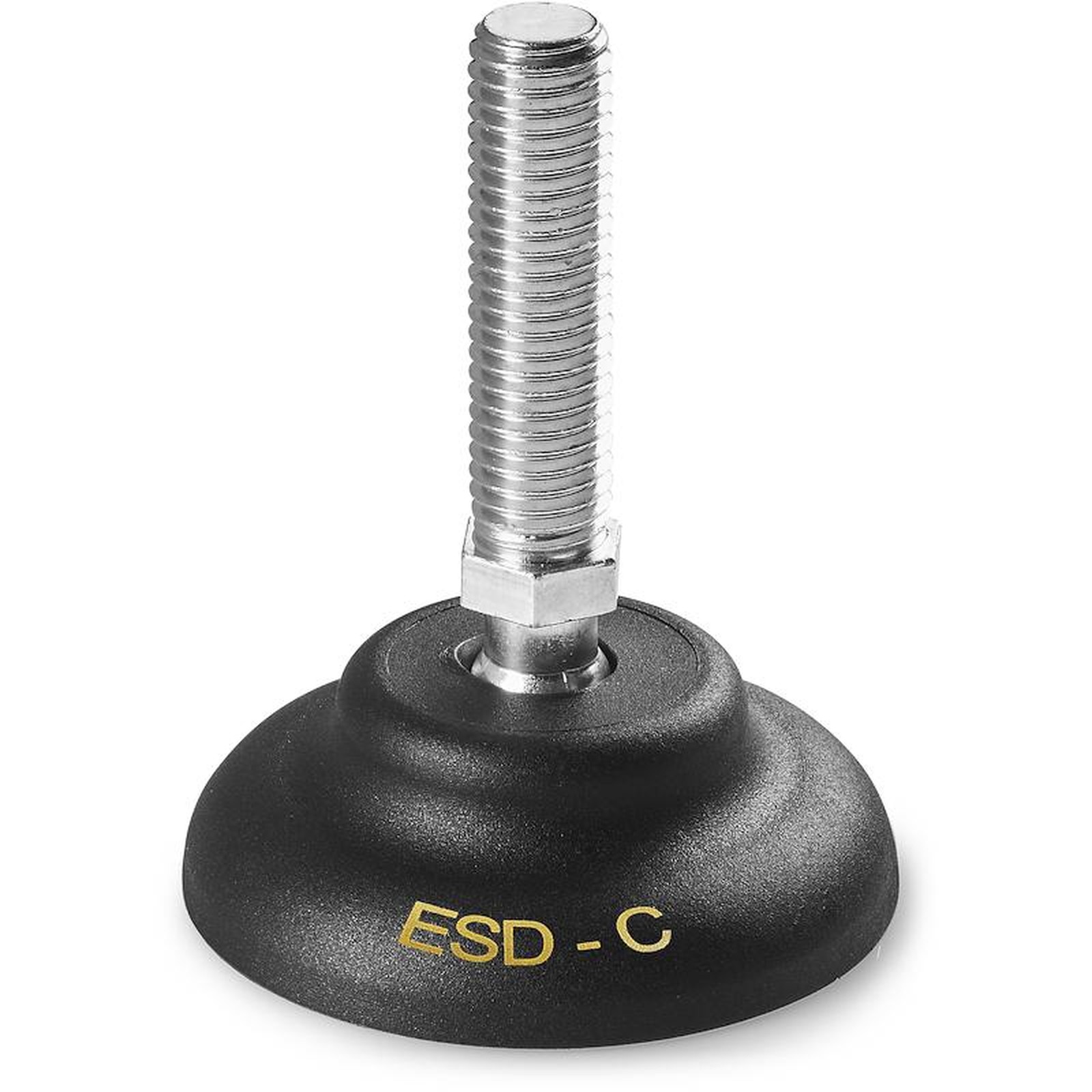

Notes: This item is made from ESD-C (Electro Static Discharge – Conductive) material with fillers in compliance with standards EN IEC 61340-5-1. The product is conductive and prevents the formation of electrostatic discharges by facilitating its grounding. A yellow pad-printed symbol (ESD-C) enables correct identification of the product. Product suitable for the production of electronic material and for use in explosive atmospheres.
Materials:
Reinforced polyamide, with conductive fillers (ESD-C).
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
P900ESD:
Galvanised steel threaded and articulated stem (ball 12.4) with hexagonal base (thread tolerance 6g).
P900CINESD:

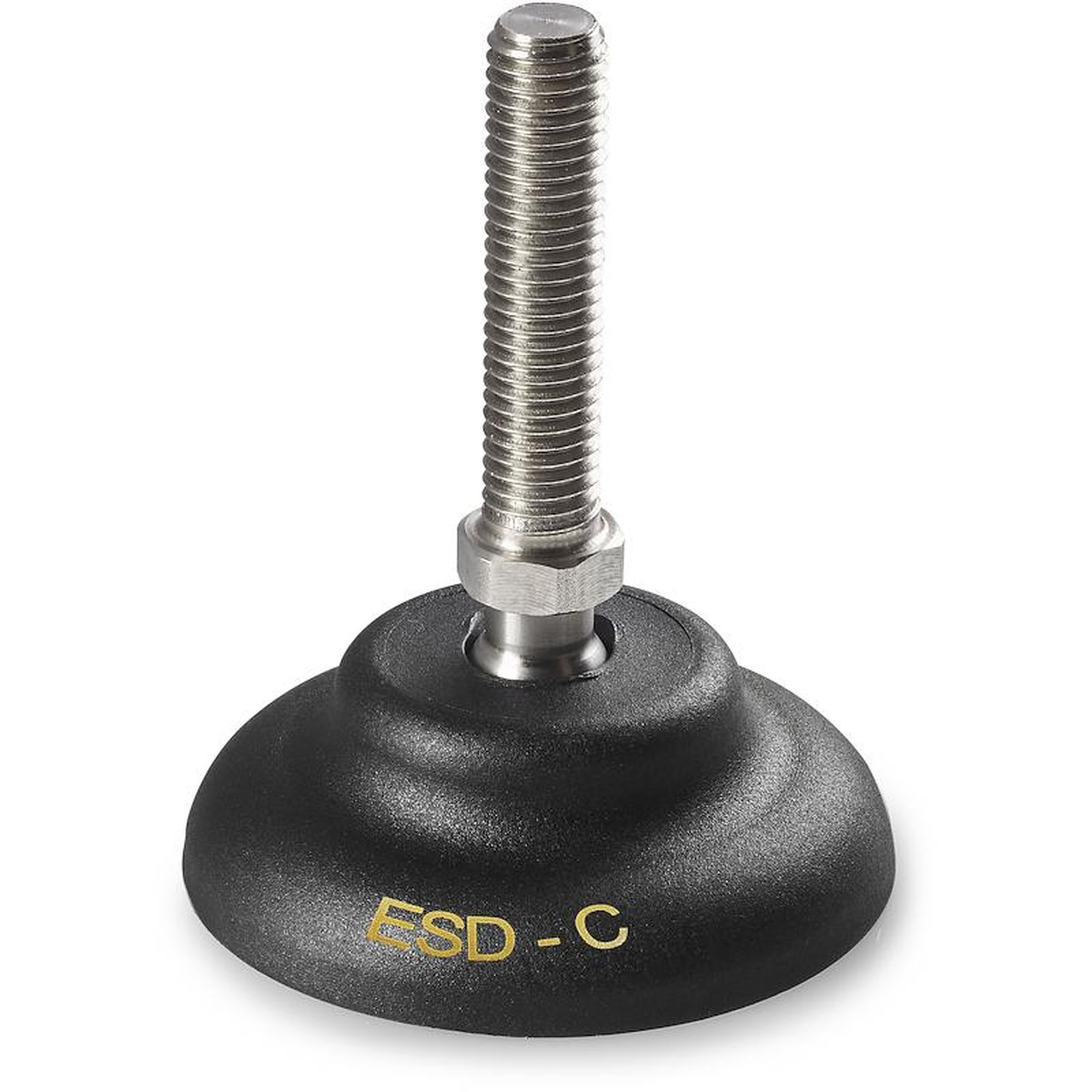

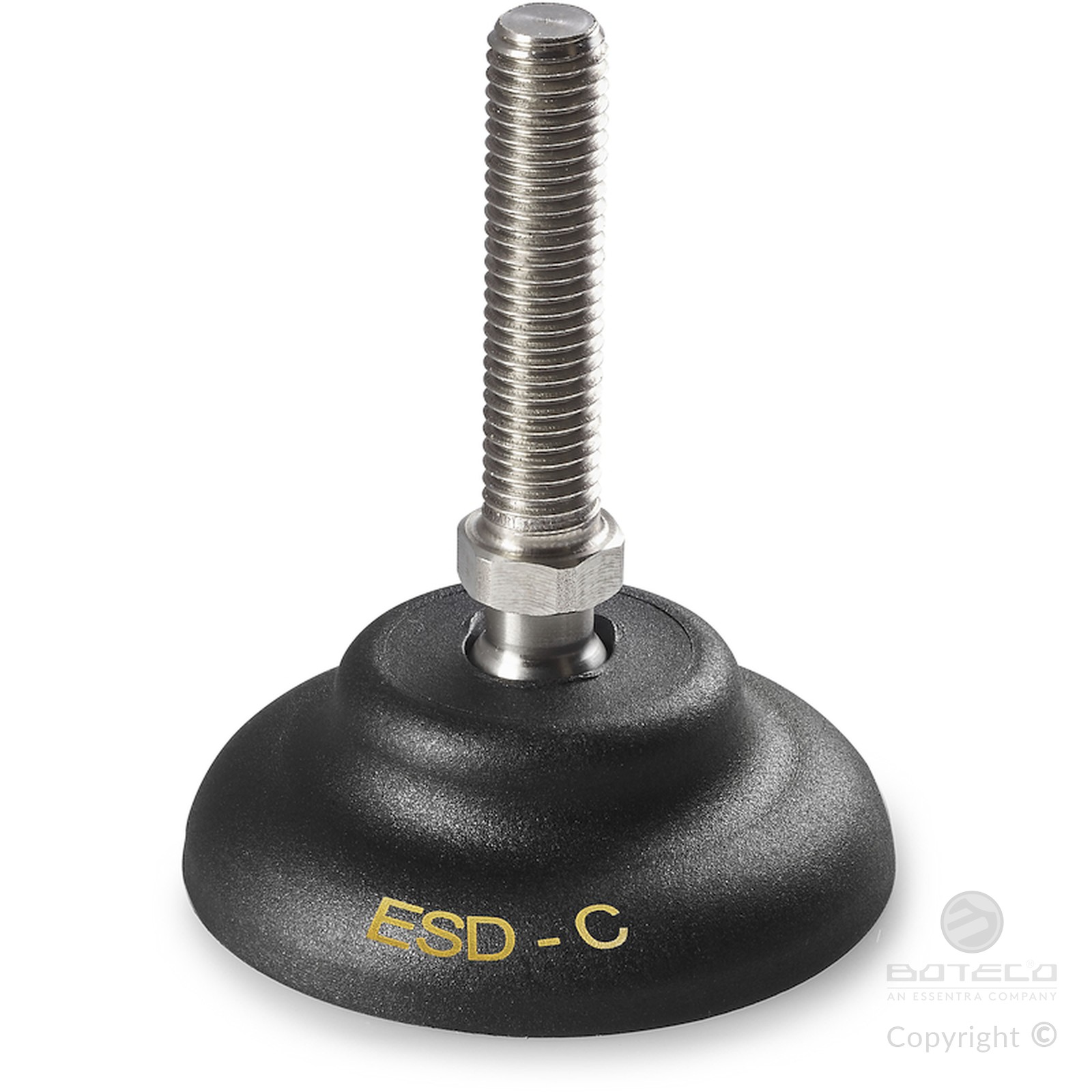

Stainless steel threaded and articulated stem (ball 12.4) with hexagonal base (Aisi 303) (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Version P900ESD: Mounting foot with stem type A (with hexagonal base) and ball 12.4

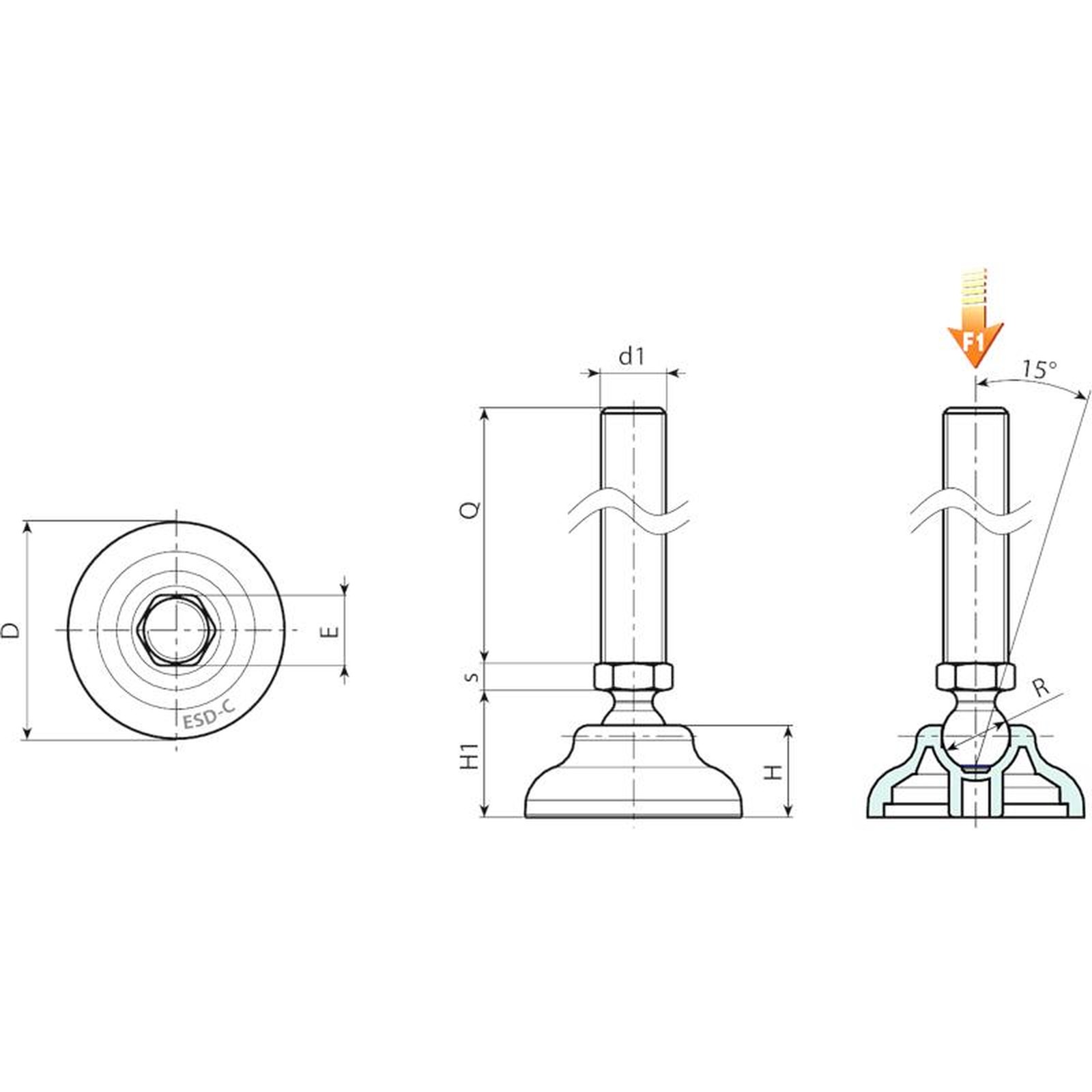

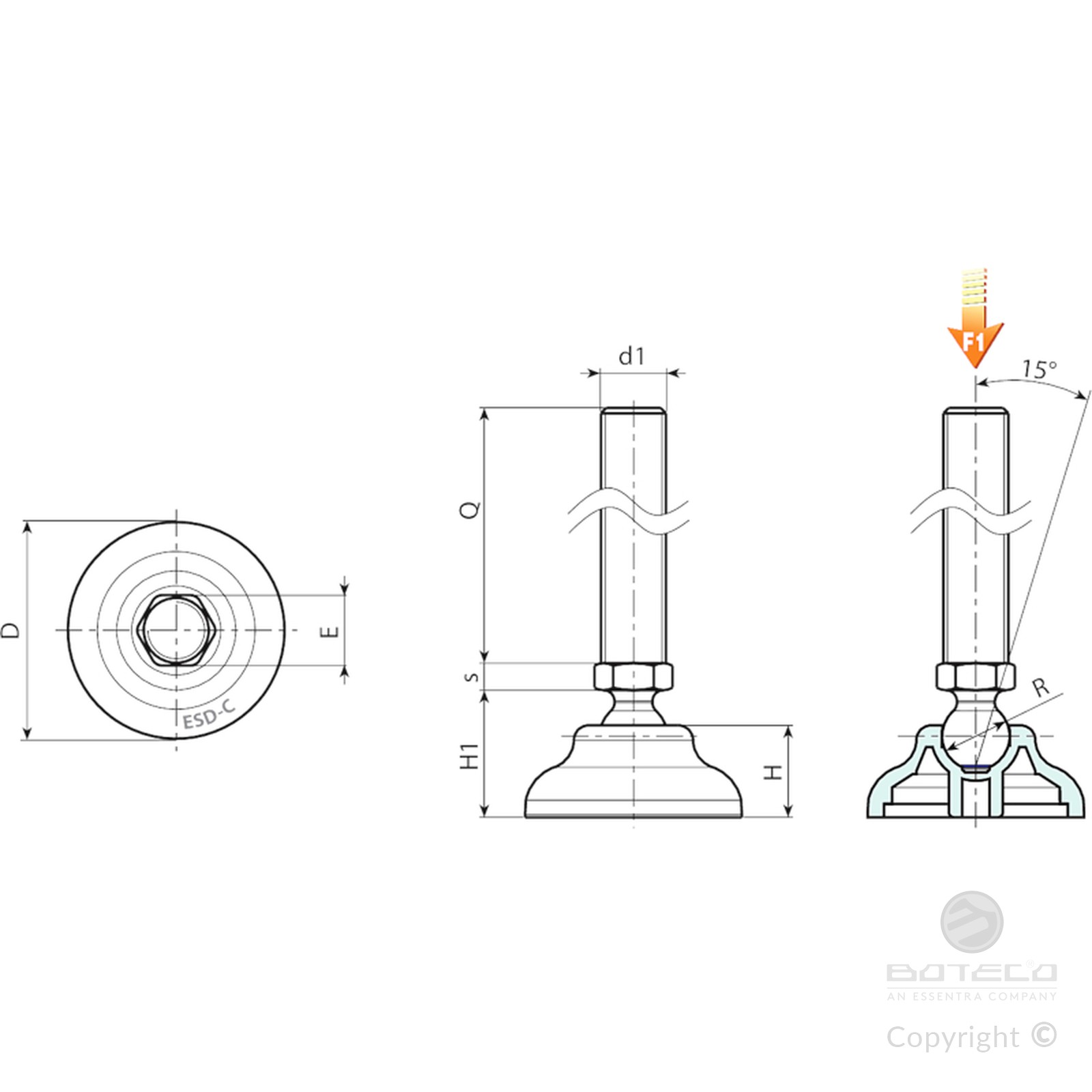

| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P90040.0027 | P90040.TM08X4501ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 45 | 40 | 10 |
| P90040.0028 | P90040.TM08X7001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 70 | 47 | 10 |
| P90040.0029 | P90040.TM10X4501ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 45 | 48 | 10 |
| P90040.0030 | P90040.TM10X7001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 70 | 60 | 10 |
| P90040.0031 | P90040.TM10X10001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 100 | 75 | 10 |
| P90040.0032 | P90040.TM12X4501ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 45 | 58 | 10 |
| P90040.0033 | P90040.TM12X7001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 70 | 75 | 10 |
| P90040.0034 | P90040.TM12X10001ESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 100 | 97 | 10 |
| P90050.0025 | P90050.TM08X4501ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 45 | 46 | 10 |
| P90050.0026 | P90050.TM08X7001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 70 | 53 | 10 |
| P90050.0027 | P90050.TM10X4501ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 45 | 54 | 10 |
| P90050.0028 | P90050.TM10X7001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 70 | 63 | 10 |
| P90050.0029 | P90050.TM10X10001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 100 | 77 | 10 |
| P90050.0030 | P90050.TM12X4501ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 45 | 64 | 10 |
| P90050.0031 | P90050.TM12X7001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 70 | 78 | 10 |
| P90050.0032 | P90050.TM12X10001ESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 100 | 99 | 10 |
| P90060.0030 | P90060.TM08X4501ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 45 | 58 | 10 |
| P90060.0031 | P90060.TM08X7001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 70 | 66 | 10 |
| P90060.0032 | P90060.TM10X4501ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 45 | 68 | 10 |
| P90060.0033 | P90060.TM10X7001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 70 | 80 | 10 |
| P90060.0034 | P90060.TM10X10001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 100 | 95 | 10 |
| P90060.0035 | P90060.TM12X4501ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 45 | 78 | 10 |
| P90060.0036 | P90060.TM12X7001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 70 | 96 | 10 |
| P90060.0037 | P90060.TM12X10001ESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 100 | 117 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
Version P900CINESD: Mounting foot with stem type A (with hexagonal base) and ball 12.4 - stainless steel
| Code | Art. | D | H | H1 | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P90040.0035 | P90040.TM08X4501CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 45 | 40 | 10 |
| P90040.0036 | P90040.TM08X7001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M8 | 70 | 47 | 10 |
| P90040.0037 | P90040.TM10X4501CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 45 | 48 | 10 |
| P90040.0038 | P90040.TM10X7001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M10 | 70 | 60 | 10 |
| P90040.0039 | P90040.TM12X4501CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 45 | 58 | 10 |
| P90040.0040 | P90040.TM12X7001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 70 | 75 | 10 |
| P90040.0041 | P90040.TM12X10001CINESD | 40 | 17 | 23 | 13 | 5 | 12.4 | M12 | 100 | 99 | 10 |
| P90050.0033 | P90050.TM08X4501CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 45 | 46 | 10 |
| P90050.0034 | P90050.TM08X7001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M8 | 70 | 53 | 10 |
| P90050.0035 | P90050.TM10X4501CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 45 | 54 | 10 |
| P90050.0036 | P90050.TM10X7001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M10 | 70 | 63 | 10 |
| P90050.0037 | P90050.TM12X4501CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 45 | 64 | 10 |
| P90050.0038 | P90050.TM12X7001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 70 | 78 | 10 |
| P90050.0039 | P90050.TM12X10001CINESD | 50 | 18 | 24 | 13 | 5 | 12.4 | M12 | 100 | 102 | 10 |
| P90060.0038 | P90060.TM08X4501CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 45 | 58 | 10 |
| P90060.0039 | P90060.TM08X7001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M8 | 70 | 66 | 10 |
| P90060.0040 | P90060.TM10X4501CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 45 | 68 | 10 |
| P90060.0041 | P90060.TM10X7001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M10 | 70 | 80 | 10 |
| P90060.0042 | P90060.TM12X4501CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 45 | 78 | 10 |
| P90060.0043 | P90060.TM12X7001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 70 | 96 | 10 |
| P90060.0044 | P90060.TM12X10001CINESD | 60 | 20 | 26 | 13 | 5 | 12.4 | M12 | 100 | 120 | 10 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
