P830

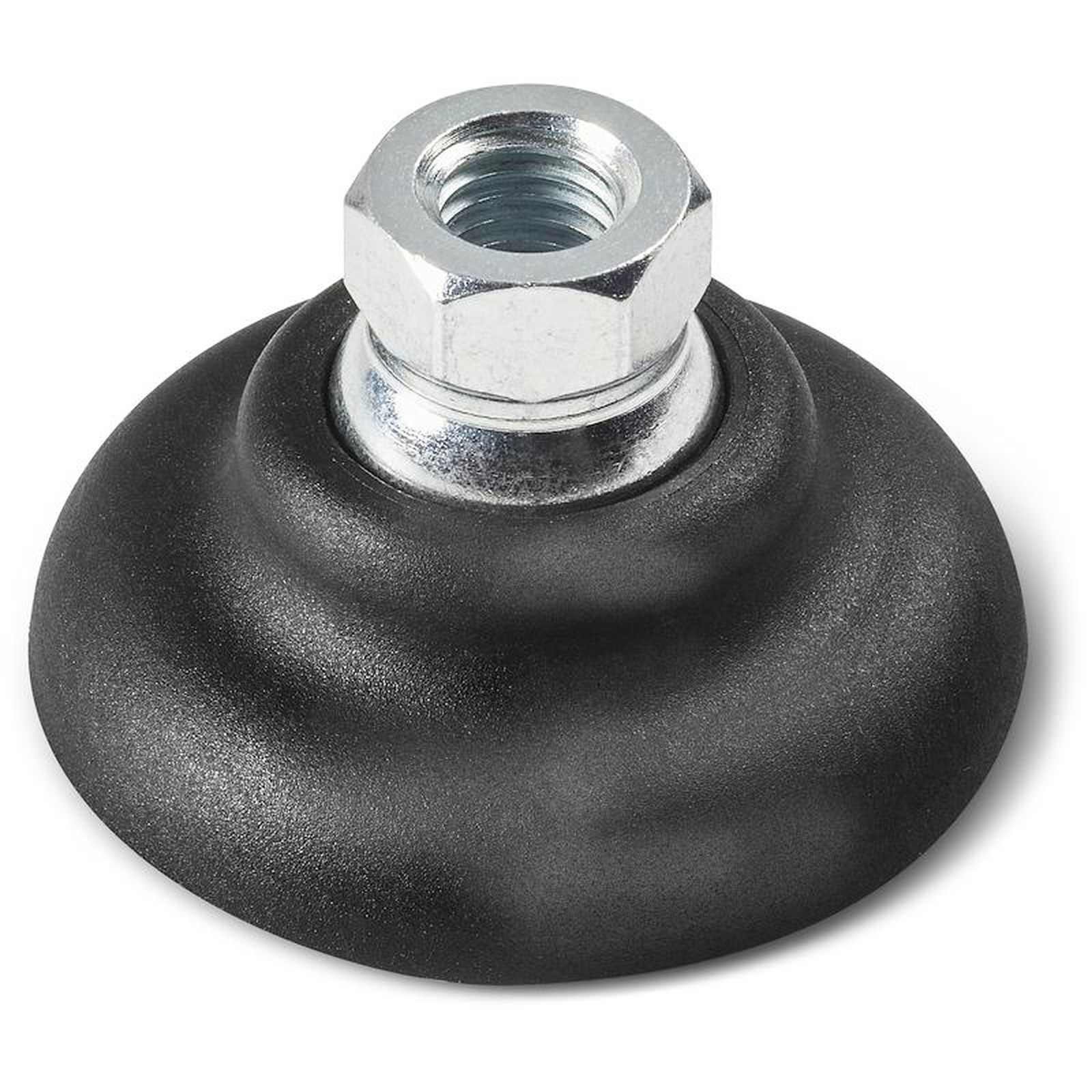

MOUNTING FOOT WITH BALL JOINT (24), HEXAGONAL BASE AND THREADED HOLE
Plastic feet - articulated stem
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
P830:
Galvanised steel ball joint with threaded hole (ball R.24) with hexagonal base (thread tolerance 6H).
P830CIN:
Stainless steel (Aisi 303) ball joint with threaded hole (ball R.24) with hexagonal base (thread tolerance 6H).
Special requests:
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).
Version P830: with galvanised steel insert

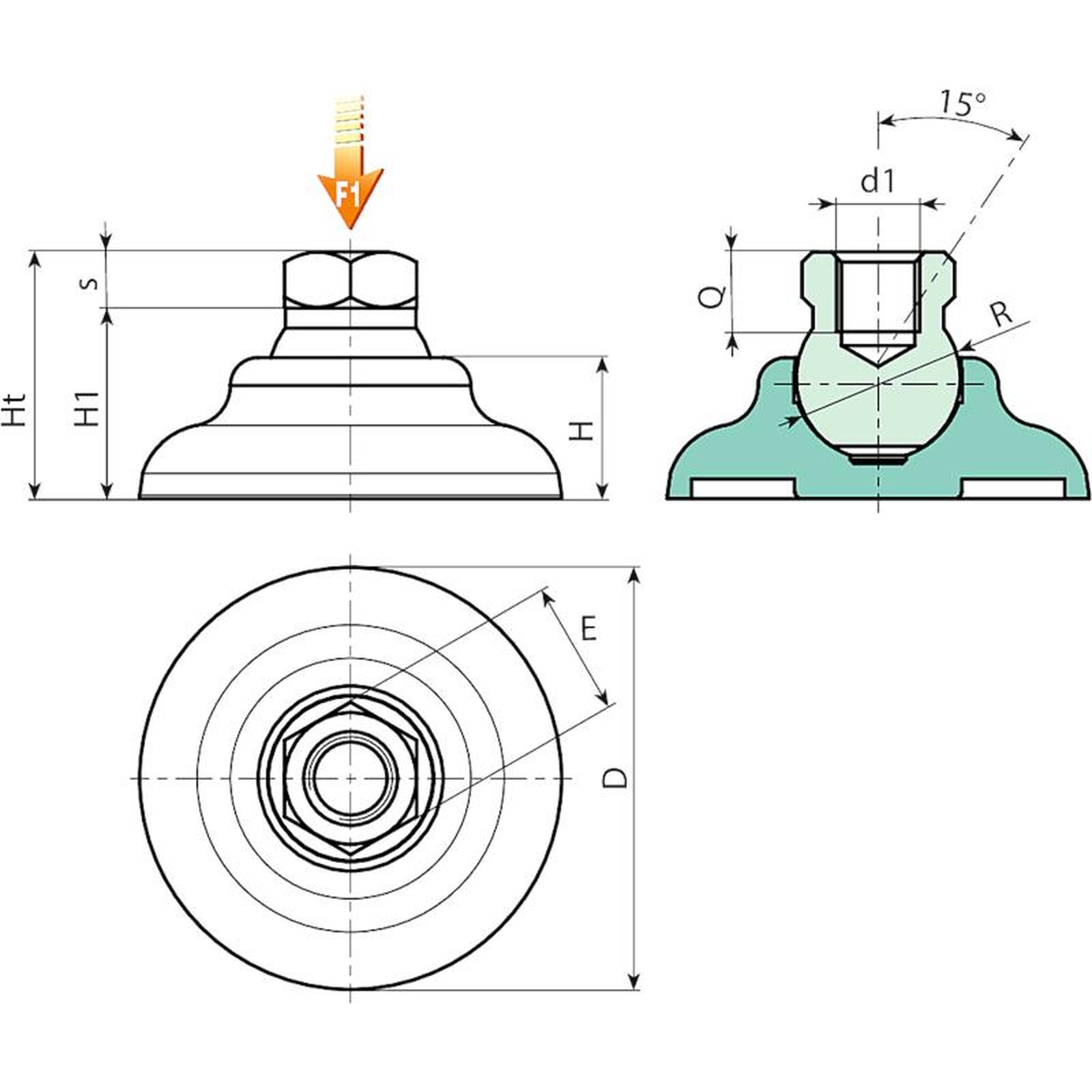

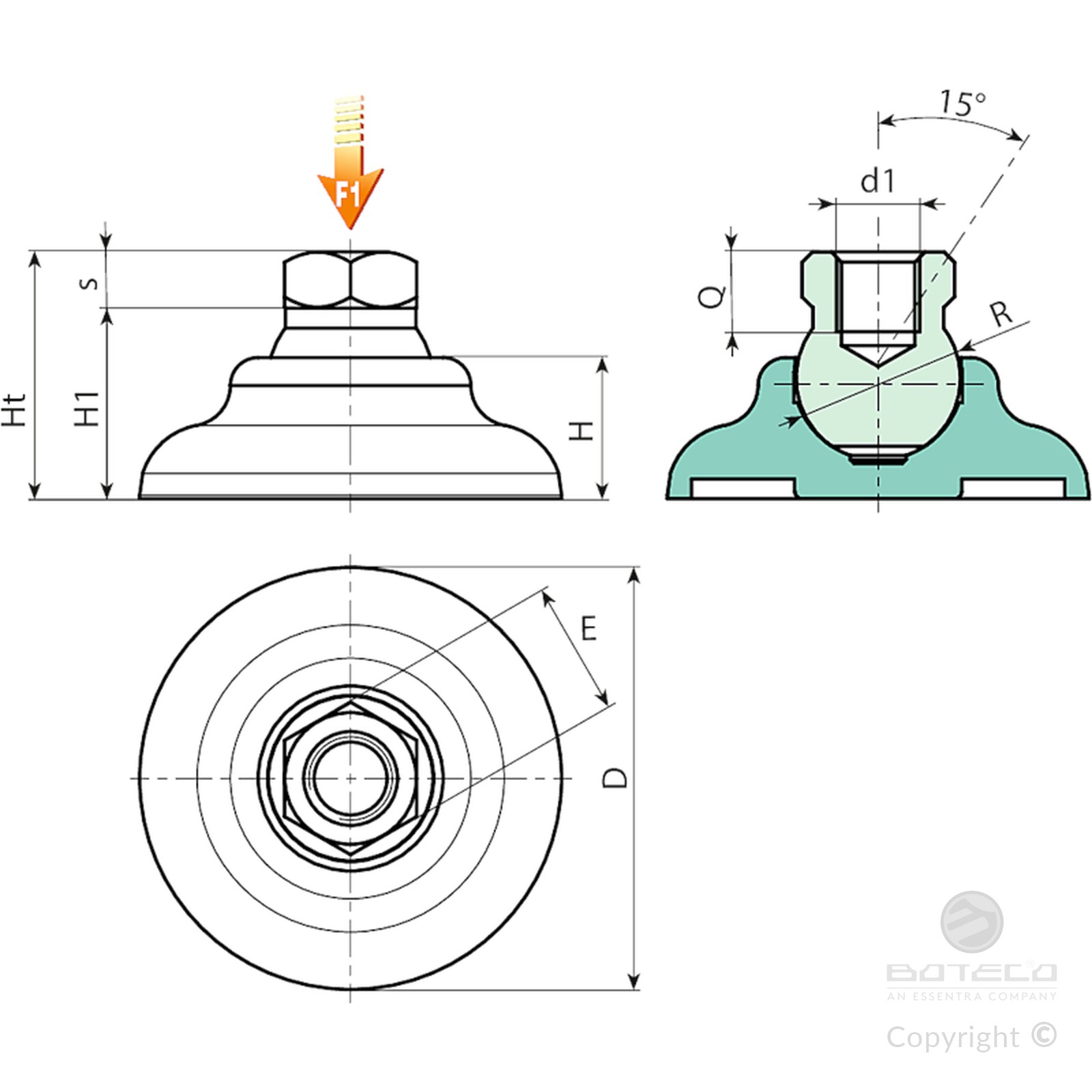

| Code | Art. | D | H | H1 | Ht | E | s | R | d1 6H | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P830060.0001 | P830060.TM1201 | 60 | 20 | 27,5 | 35,5 | 19 | 8 | 24 | M12 | 11,5 | 85 | 17 |
| P830060.0003 | P830060.TM1601 | 60 | 20 | 27,5 | 35,5 | 24 | 8 | 24 | M16 | 11,5 | 85 | 17 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Version P830CIN: with stainless steel insert (Aisi 303)
| Code | Art. | D | H | H1 | Ht | E | s | R | d1 6H | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P830060.0002 | P830060.TM1201CIN | 60 | 20 | 27,5 | 35,5 | 19 | 8 | 24 | M12 | 11,5 | 85 | 17 |
| P830060.0004 | P830060.TM1601CIN | 60 | 20 | 27,5 | 35,5 | 24 | 8 | 24 | M16 | 11,5 | 85 | 17 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
