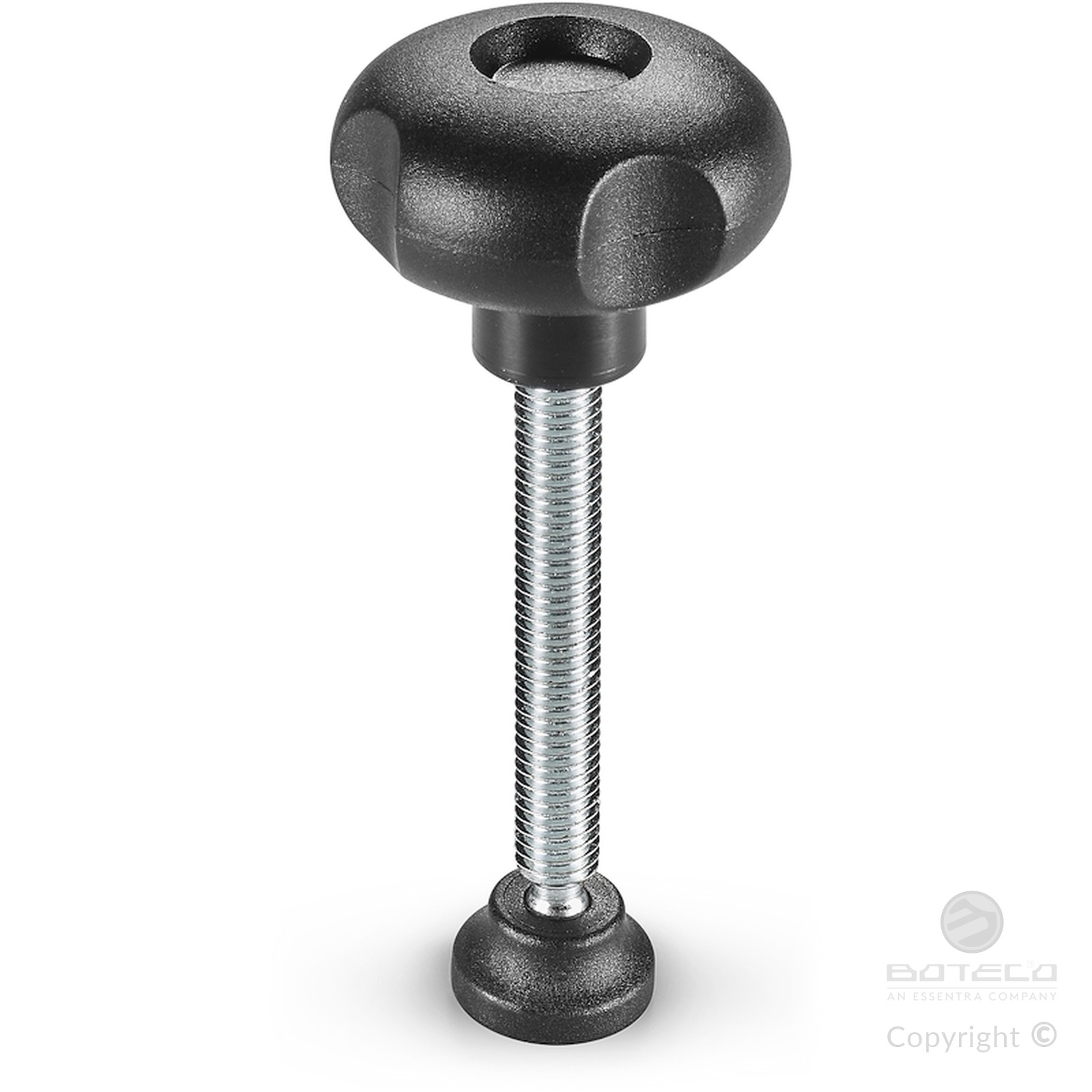

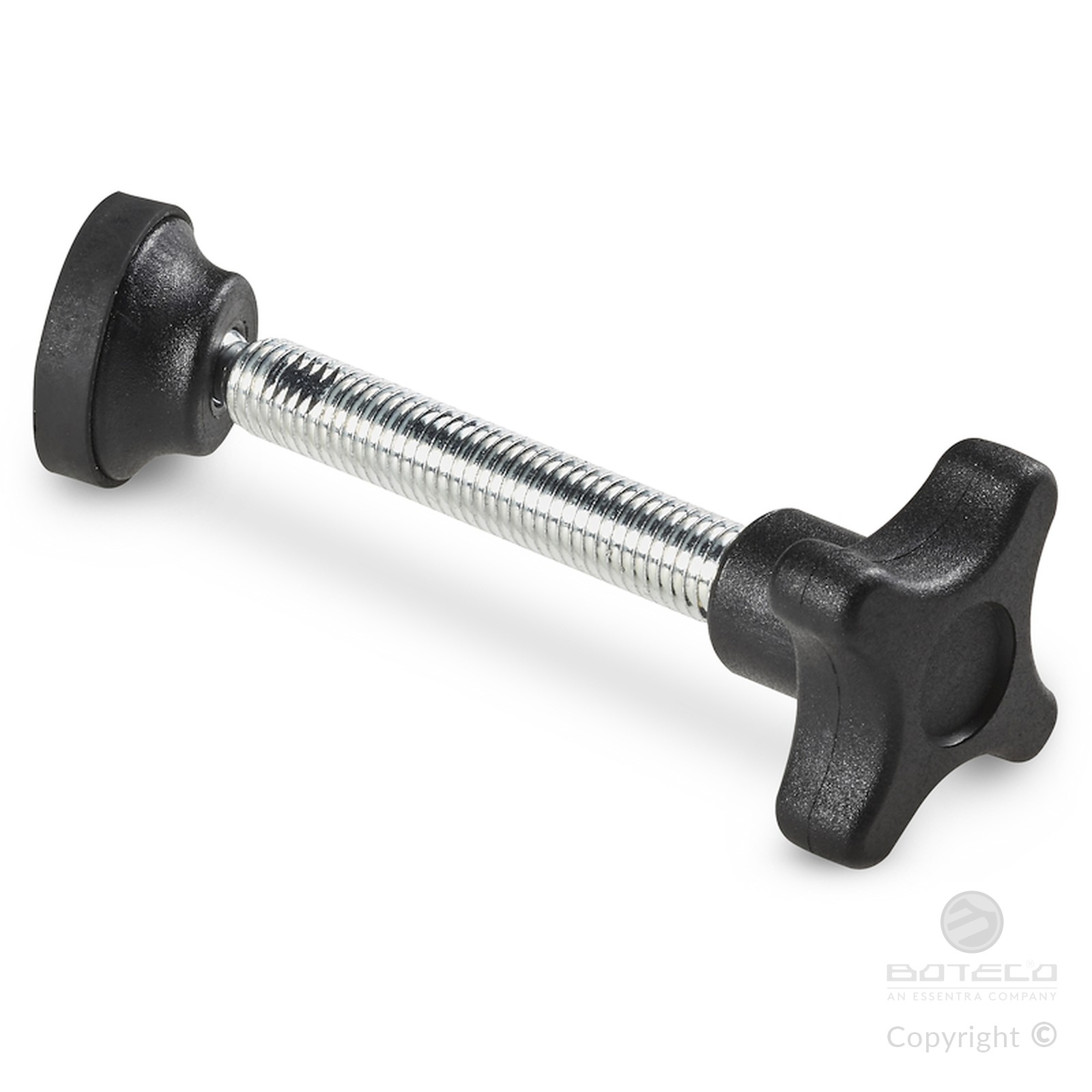

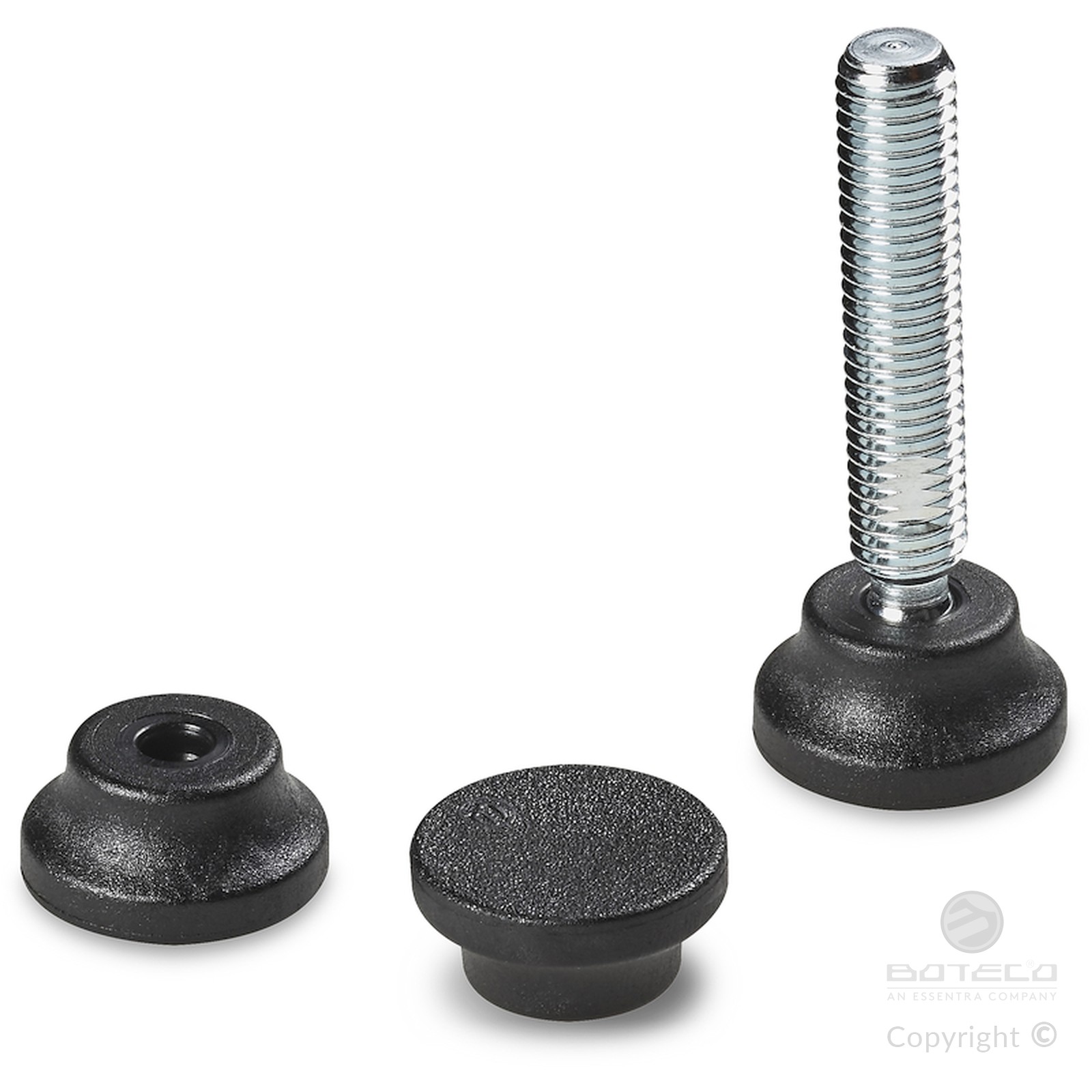

MOUNTING AND THRUST FOOT WITH THREADED AND ARTICULATED STEM
16
P820
Piedi in plastica - stelo snodato
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanized steel threaded stem with ball joint (thread tolerance 6g), with milled seat for adjustment wrench.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

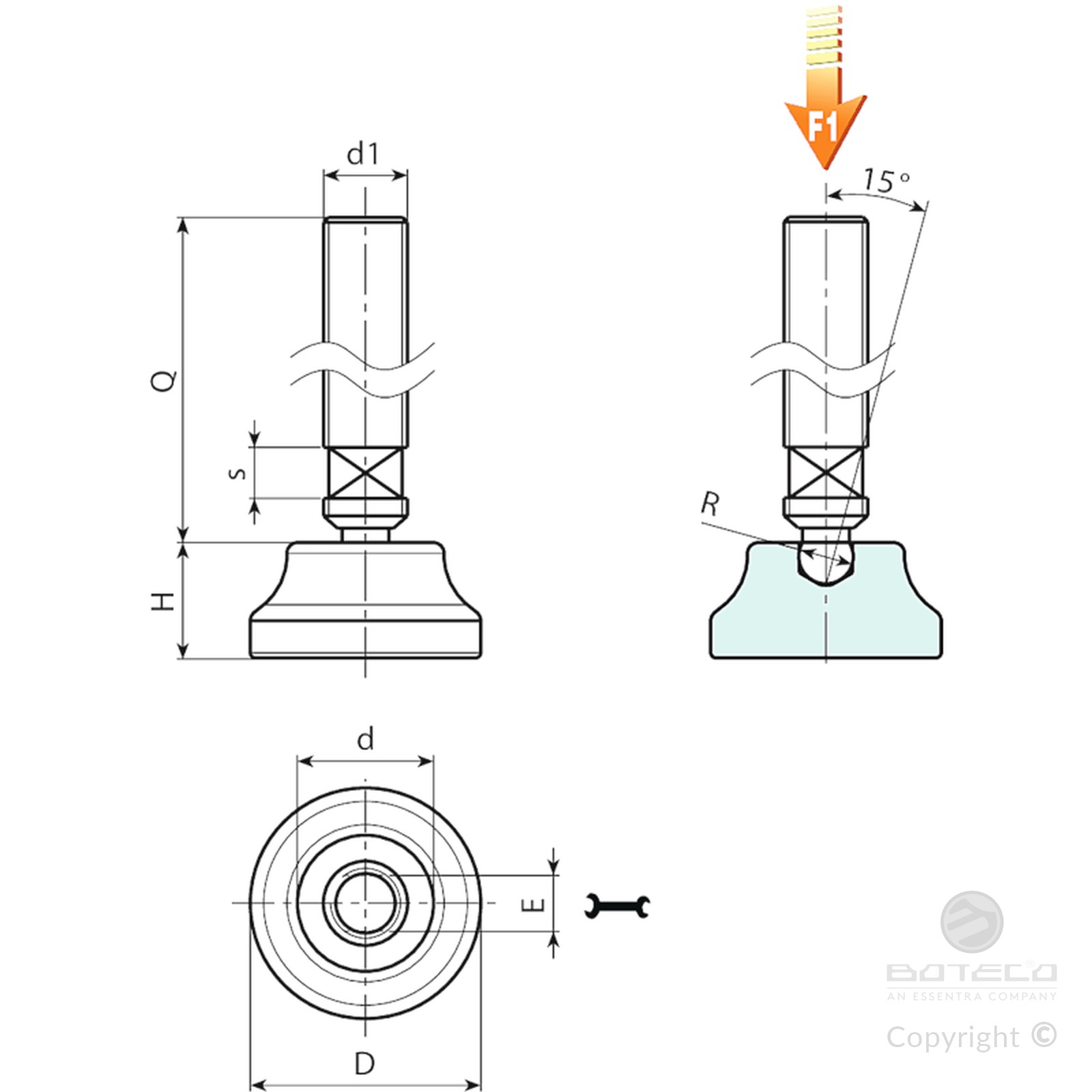

| Code | Art. | D | H | d | E | s | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P820019.0003 | P820019.TM08X5001 | 19 | 10 | 13 | 6 | 6 | 6.1 | M8 | 50 | 20 | 4 |
| P820019.0005 | P820019.TM08X9001 | 19 | 10 | 13 | 6 | 6 | 6.1 | M8 | 90 | 32 | 4 |
| P820022.0001 | P820022.TM08X5001 | 22 | 11 | 15 | 6 | 6 | 6.1 | M8 | 50 | 21 | 4 |
| P820022.0003 | P820022.TM08X9001 | 22 | 11 | 15 | 6 | 6 | 6.1 | M8 | 90 | 33 | 4 |
| P820022.0004 | P820022.TM10X5001 | 22 | 11 | 15 | 8 | 6 | 7.8 | M10 | 50 | 31 | 4 |
| P820022.0007 | P820022.TM10X9001 | 22 | 11 | 15 | 8 | 6 | 7.8 | M10 | 90 | 50 | 4 |
| P820026.0002 | P820026.TM08X5001 | 26 | 12.5 | 18 | 6 | 6 | 6.1 | M8 | 50 | 24 | 4 |
| P820026.0003 | P820026.TM08X9001 | 26 | 12.5 | 18 | 6 | 6 | 6.1 | M8 | 90 | 36 | 4 |
| P820026.0004 | P820026.TM10X5001 | 26 | 12.5 | 18 | 8 | 6 | 7.8 | M10 | 50 | 34 | 4 |
| P820026.0005 | P820026.TM10X9001 | 26 | 12.5 | 18 | 8 | 6 | 7.8 | M10 | 90 | 53 | 4 |
| P820026.0006 | P820026.TM12X5001 | 26 | 12.5 | 18 | 10 | 6 | 9.4 | M12 | 50 | 46 | 4 |
| P820026.0007 | P820026.TM12X9001 | 26 | 12.5 | 18 | 10 | 6 | 9.4 | M12 | 90 | 73 | 4 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 150 pieces.
