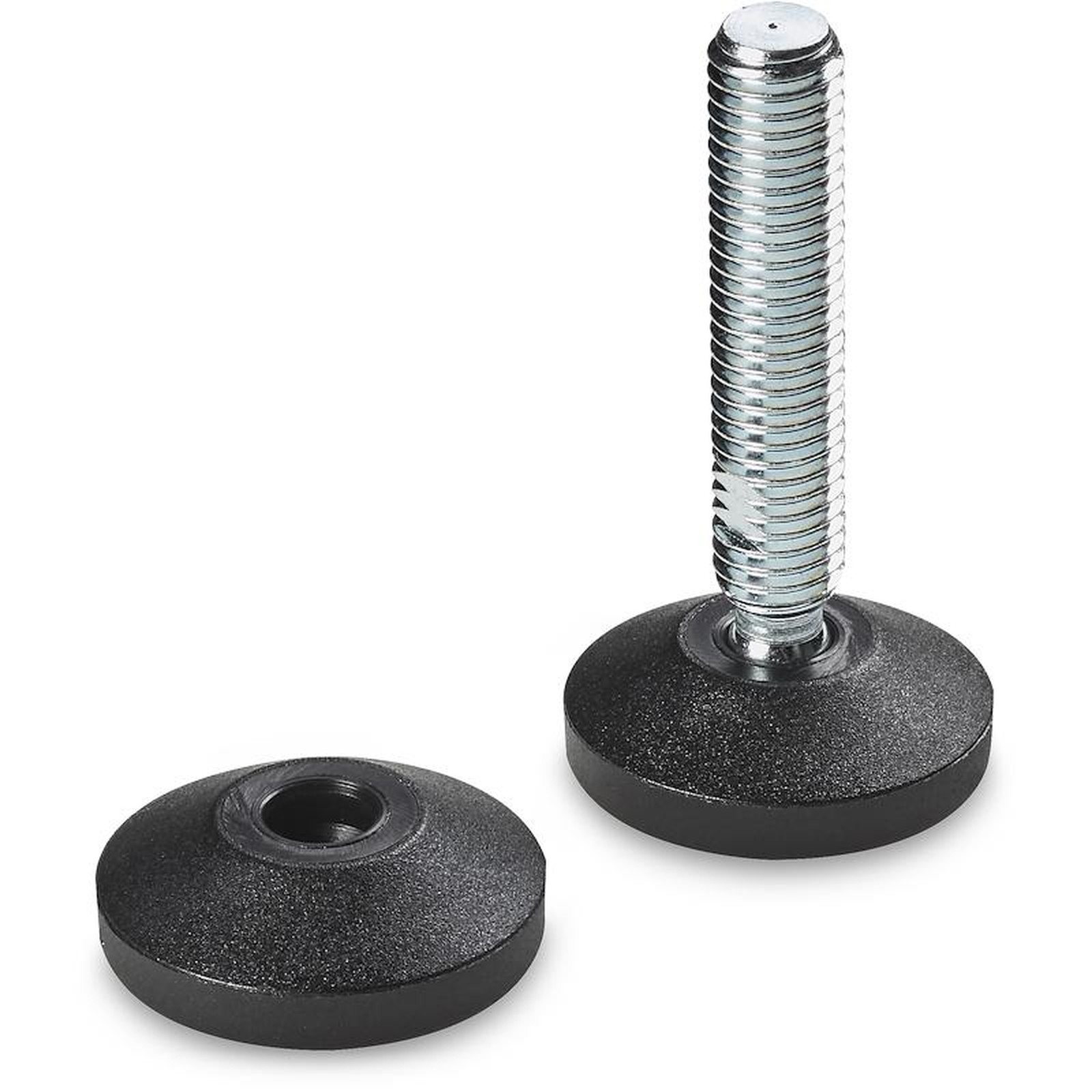

SOLID MOUNTING FOOT WITH THREADED AND ARTICULATED STEM

16

P814


Piedi in plastica - stelo snodato

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black (RAL 9011).

Inserts:

Galvanized steel threaded stem with ball joint (thread tolerance 6g), with milled seat for adjustment wrench.

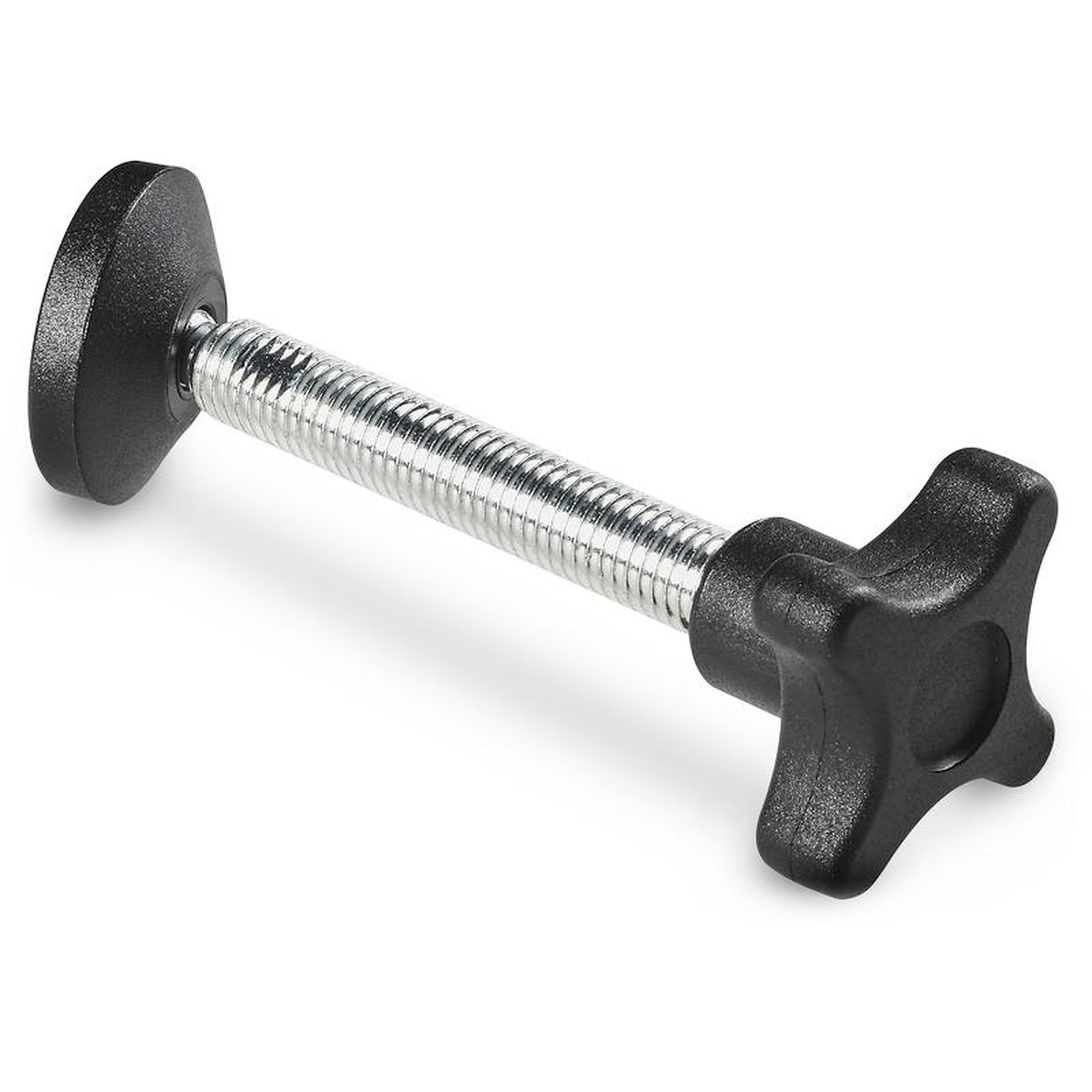

Notes: The base of mounting foot P814 can be used in combination with other handgrips in order to obtain a greater closing surface or thrust.

Special requests:

Data sheet

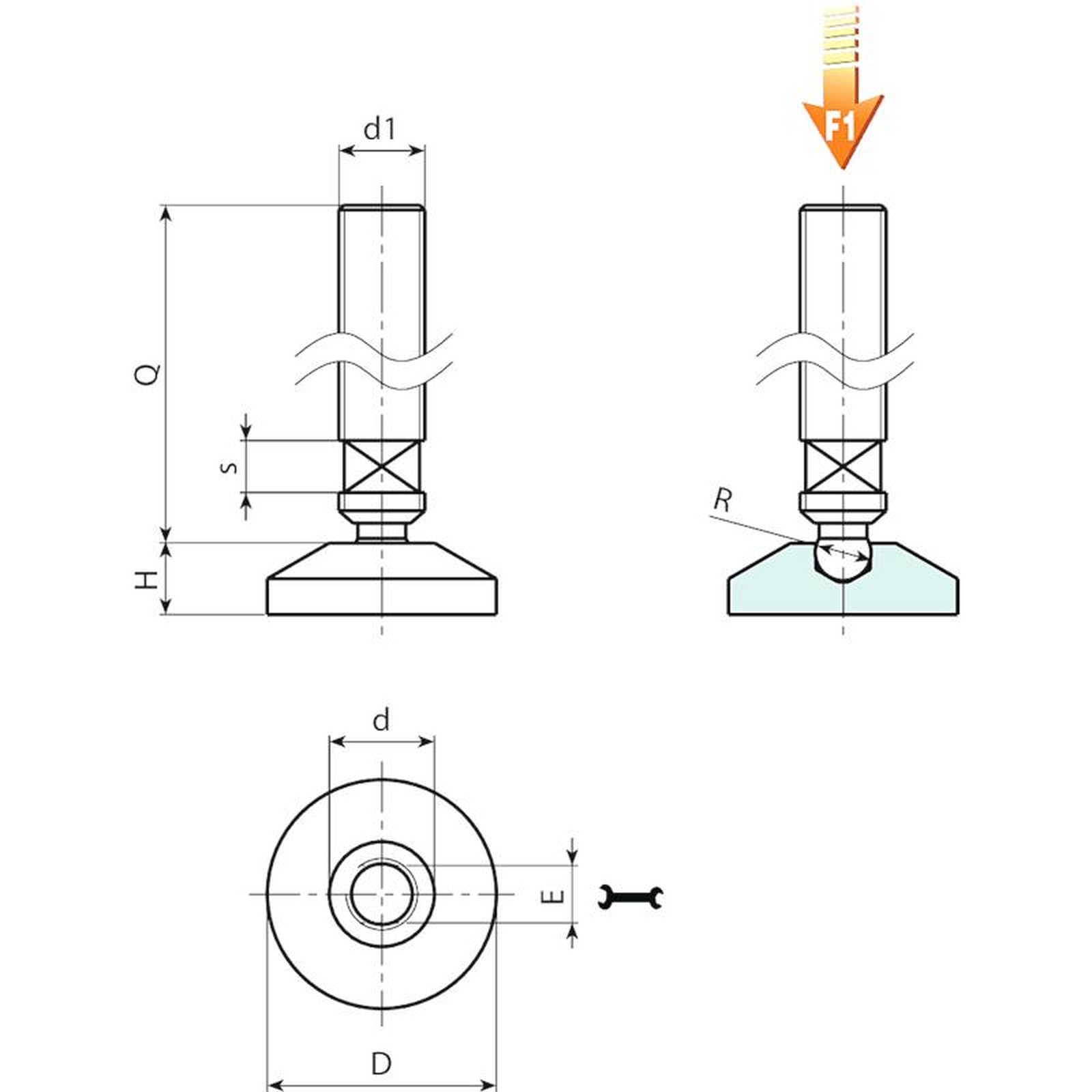

Code Art. D H d E s R d1 Q Weight (g) F1 (N)
P814032.0001 P814032.TM10X5001 32 10 15.5 6 6 8 M10 50 32 4000
P814032.0002 P814032.TM10X9001 32 10 15.5 6 6 8 M10 90 53 4000
P814032.0004 P814032.TM12X5001 32 10 15.5 6 6 8 M12 50 50 4000
P814032.0005 P814032.TM12X9001 32 10 15.5 6 6 8 M12 90 90 4000
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 150 pieces.
