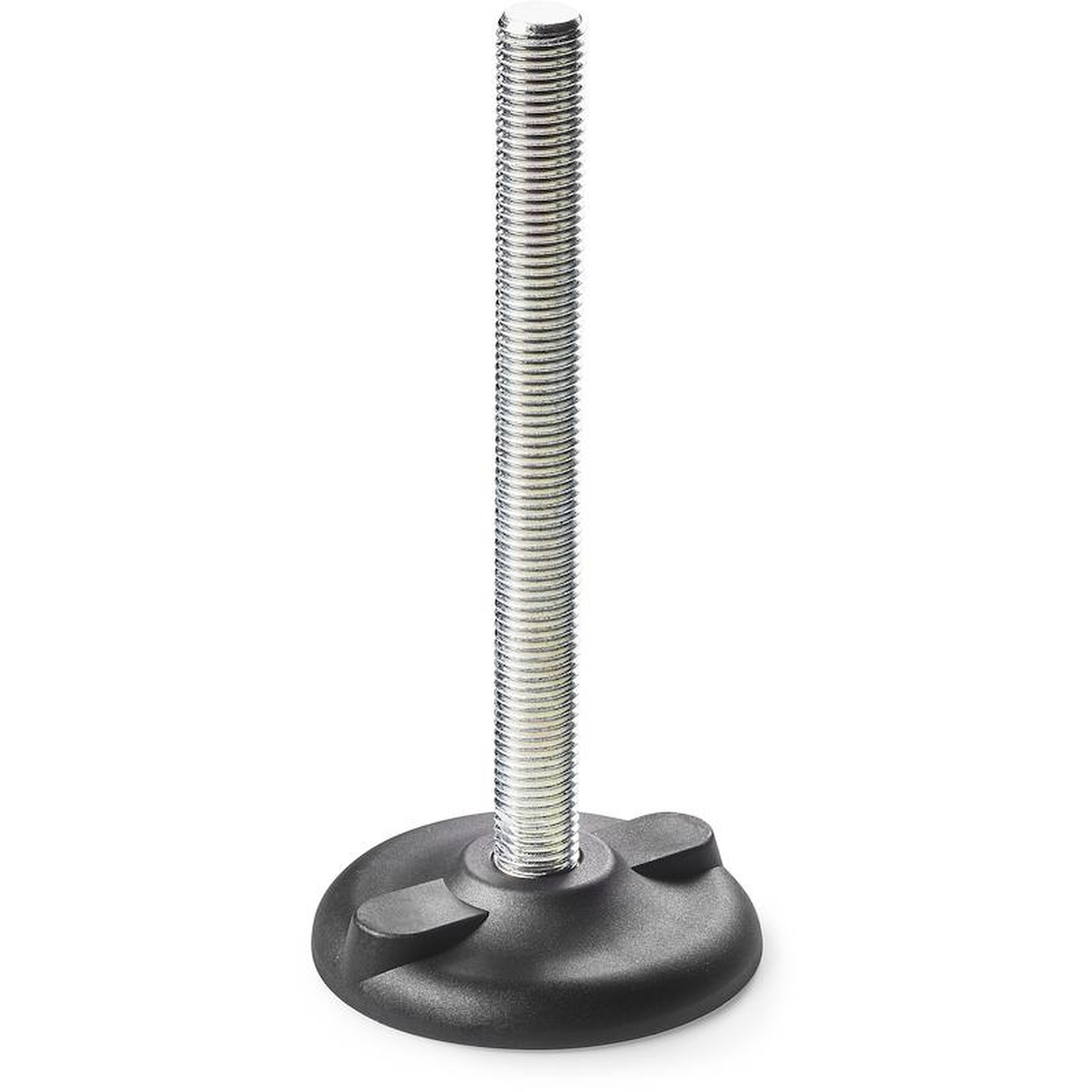

MOUNTING FOOT WITH REVOLVING STEM AND GROUND FIXING

16

P800


Piedi con stelo girevole

    Materials:

    Reinforced polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Inserts:

    Galvanised steel non-articulated revolving threaded stem, fixed with a nut.

    (1) Stainless steel self-locking nut (Aisi 304) thin series UNI 7474.

    (2) Stainless steel washer (Aisi 304).

    Ground fixing:

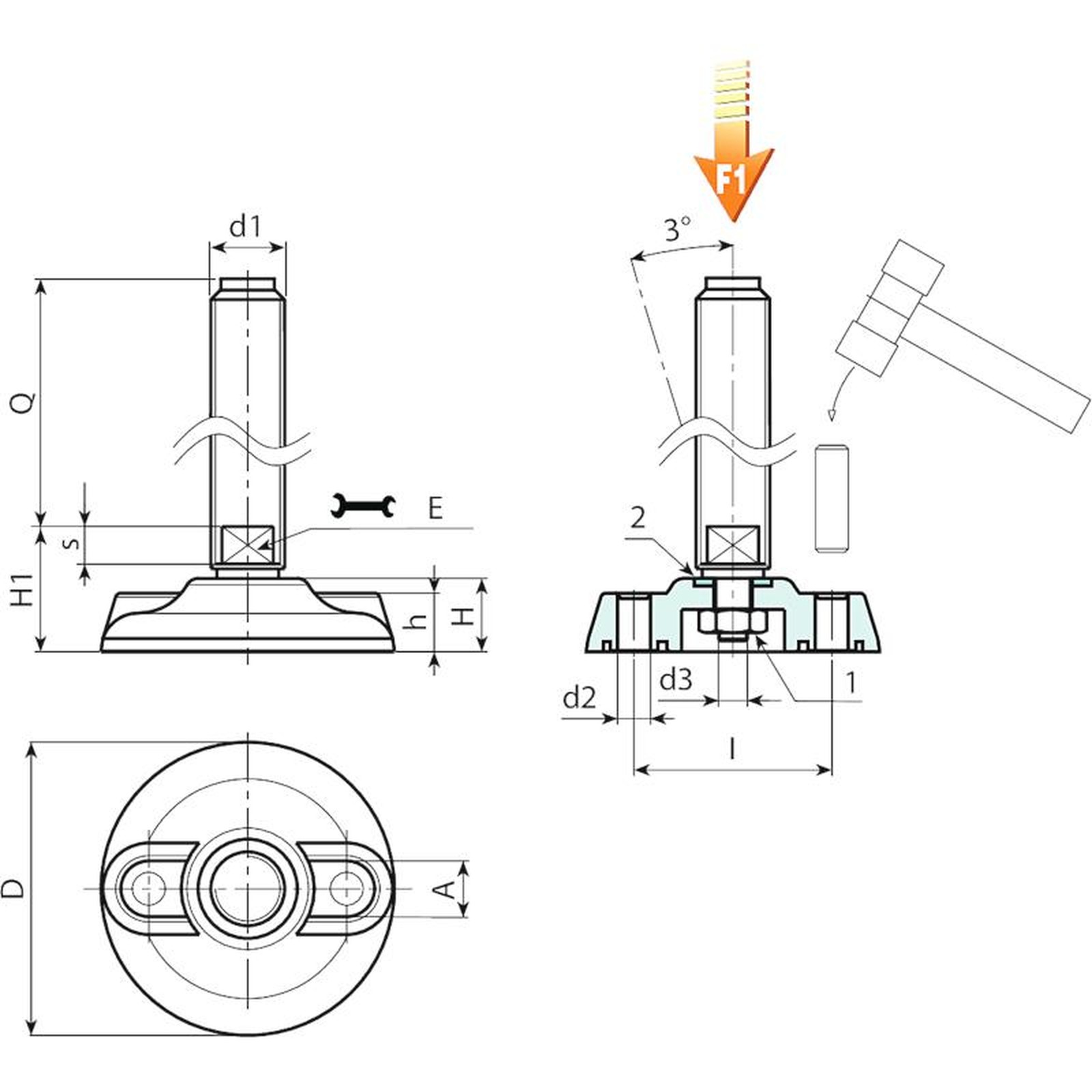

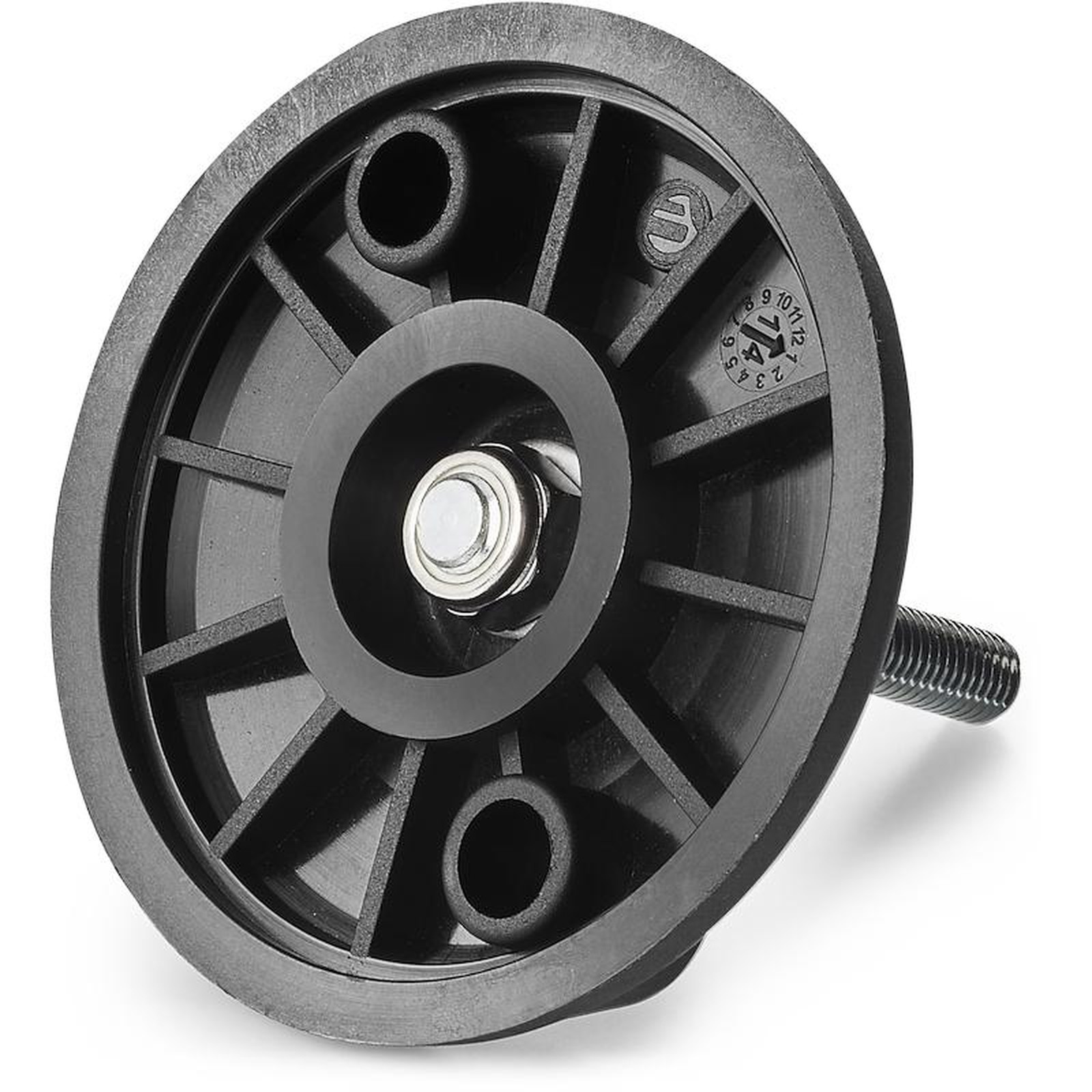

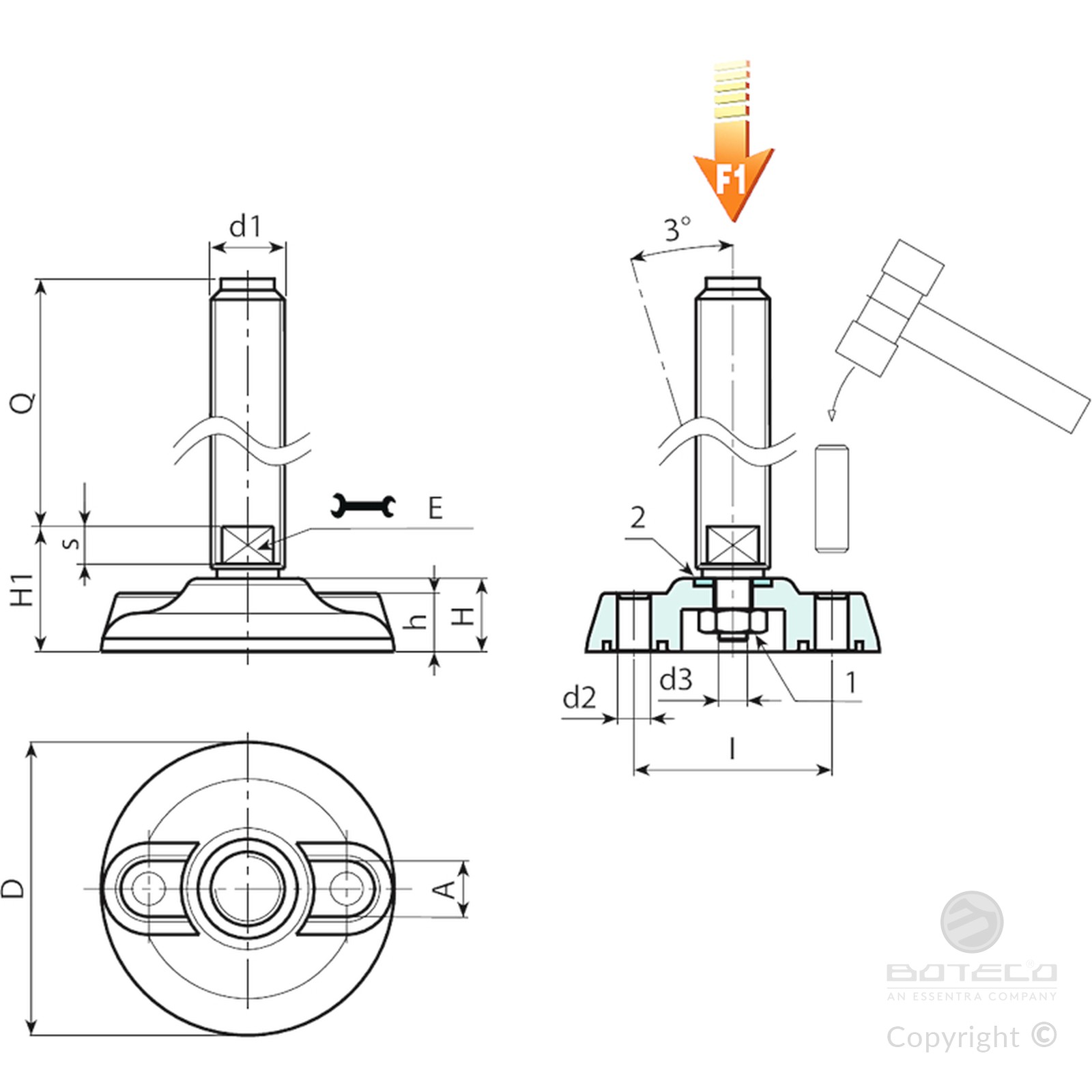

    The mounting foot is supplied with closed holes for anchoring to the ground. To open them pierce the plastic membrane (see drawing).

    Special requests:

    Upon request and for special quantities inserts can be supplied with customised lengths.

    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

    Data sheet

    Version P800: Mounting foot with revolving stem and fixed with a nut.

    Code Art. D H I H1 h A s d2 d3 E d1 6g Q Weight (g) F1 (kN)
    P800080.0006 P800080.TM12X5001 80 20 54 32 16 18,5 8 9 M8 10 M12 50 130 13
    P800080.0007 P800080.TM12X9001 80 20 54 32 16 18,5 8 9 M8 10 M12 90 143 13
    P800080.0008 P800080.TM14X11001 80 20 54 32 16 18,5 8 9 M8 12 M14 110 181 13
    P800080.0016 P800080.TM16X15001 80 20 54 32 16 18,5 8 9 M8 13 M16 150 274 13
    P800105.0016 P800105.TM16X15001 105 22 74 36 18 22 10 11 M10 13 M16 150 324 15
    P800105.0025 P800105.TM20X15001 105 22 74 36 18 22 10 11 M10 17 M20 150 417 15
    P800105.0027 P800105.TM20X19001 105 22 74 36 18 22 10 11 M10 17 M20 190 500 15
    P800105.0031 P800105.TM24X15001 105 22 74 36 18 22 10 11 M10 19 M24 150 553 15
    P800105.0033 P800105.TM24X19001 105 22 74 36 18 22 10 11 M10 19 M24 190 673 15
    P800105.0037 P800105.TM30X15001 105 22 74 36 18 22 10 11 M10 24 M30 150 866 15
    P800105.0039 P800105.TM30X19001 105 22 74 36 18 22 10 11 M10 24 M30 190 1055 15
    P800130.0007 P800130.TM16X9001 130 24 99 36 20 21 10 13 M10 13 M16 90 243 17
    P800130.0004 P800130.TM16X15001 130 24 99 36 20 21 10 13 M10 13 M16 150 324 17
    P800130.0008 P800130.TM20X11001 130 24 99 36 20 21 10 13 M10 17 M20 110 404 17
    P800130.0010 P800130.TM20X15001 130 24 99 36 20 21 10 13 M10 17 M20 150 485 17
    P800130.0012 P800130.TM20X19001 130 24 99 36 20 21 10 13 M10 17 M20 190 565 17
    P800130.0016 P800130.TM24X15001 130 24 99 36 20 21 10 13 M10 19 M24 150 618 17
    P800130.0018 P800130.TM24X19001 130 24 99 36 20 21 10 13 M10 19 M24 190 738 17
    P800130.0022 P800130.TM30X15001 130 24 99 36 20 21 10 13 M10 24 M30 150 931 17
    P800130.0024 P800130.TM30X19001 130 24 99 36 20 21 10 13 M10 24 M30 190 1120 17
    Customised stud length available for a minimum of 100 pieces.
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
