TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 24 AND NON-SLIP BASE

16

P709


Piedi plastica con fissaggio laterale-stelo snodato+antiscivolo

    Materials:

    Reinforced polyamide.

    Resistant to oils and greases.

    Surface finish:

    Satin.

    Colour:

    Black (RAL 9011).

    Inserts:

    P709:

    Galvanised steel threaded and articulated stem (ball 24) with milled seat for wrench (type B) (thread tolerance 6g).

    P709CIN:

    Stainless steel threaded and articulated stem (ball 24) with milled seat for wrench (type B) (Aisi 304) (thread tolerance 6g).

    Non-slip base:

    Non-slip base in thermoplastic rubber SBS 75 Shore, black RAL 9011. Resistant to oils and greases. Push-fit assembly.

    Ground fixing:

    Through hole obtained by moulding the plastic.

    Special requests:

    Upon request and for special quantities inserts can be supplied with customised lengths.

    Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

    Data sheet

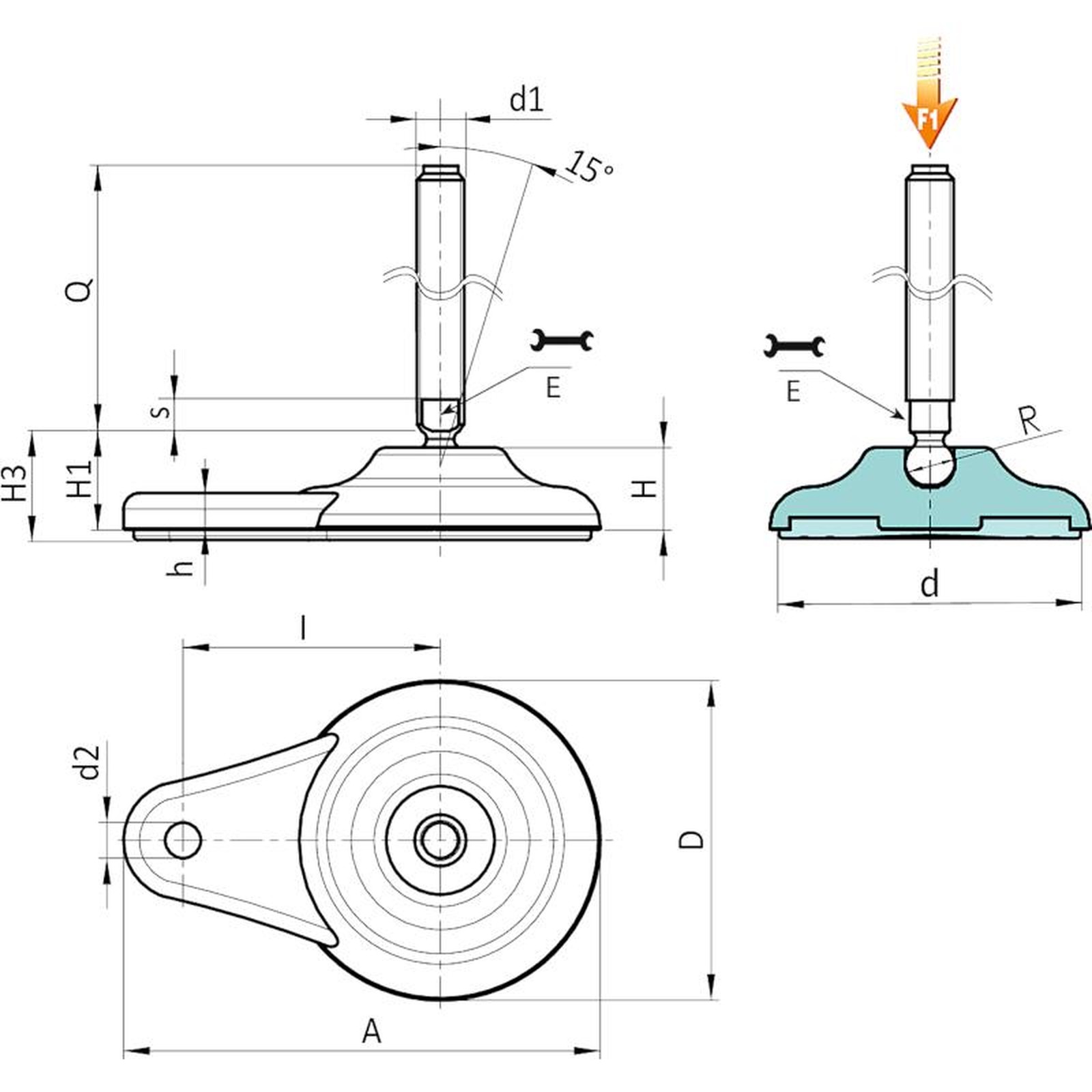

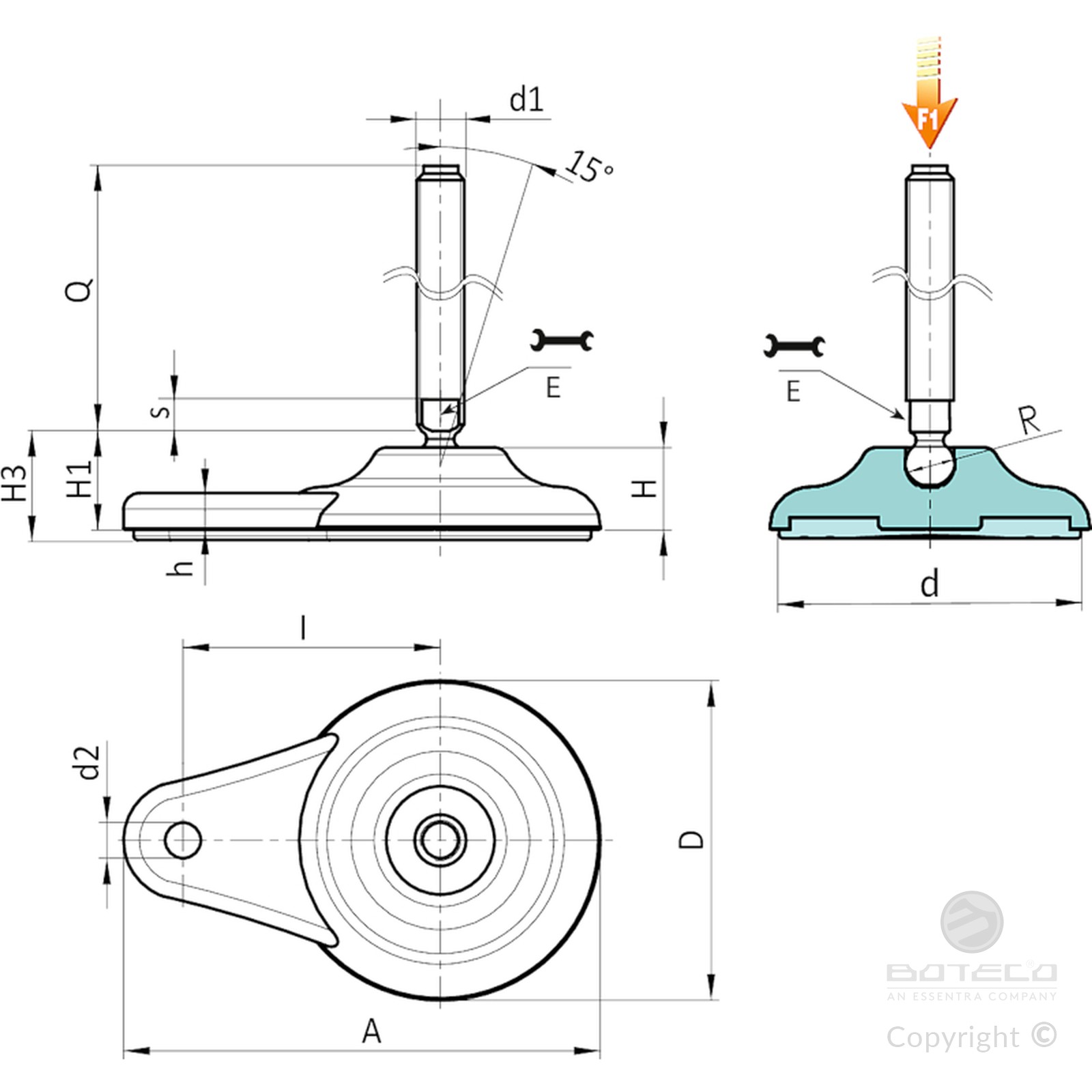

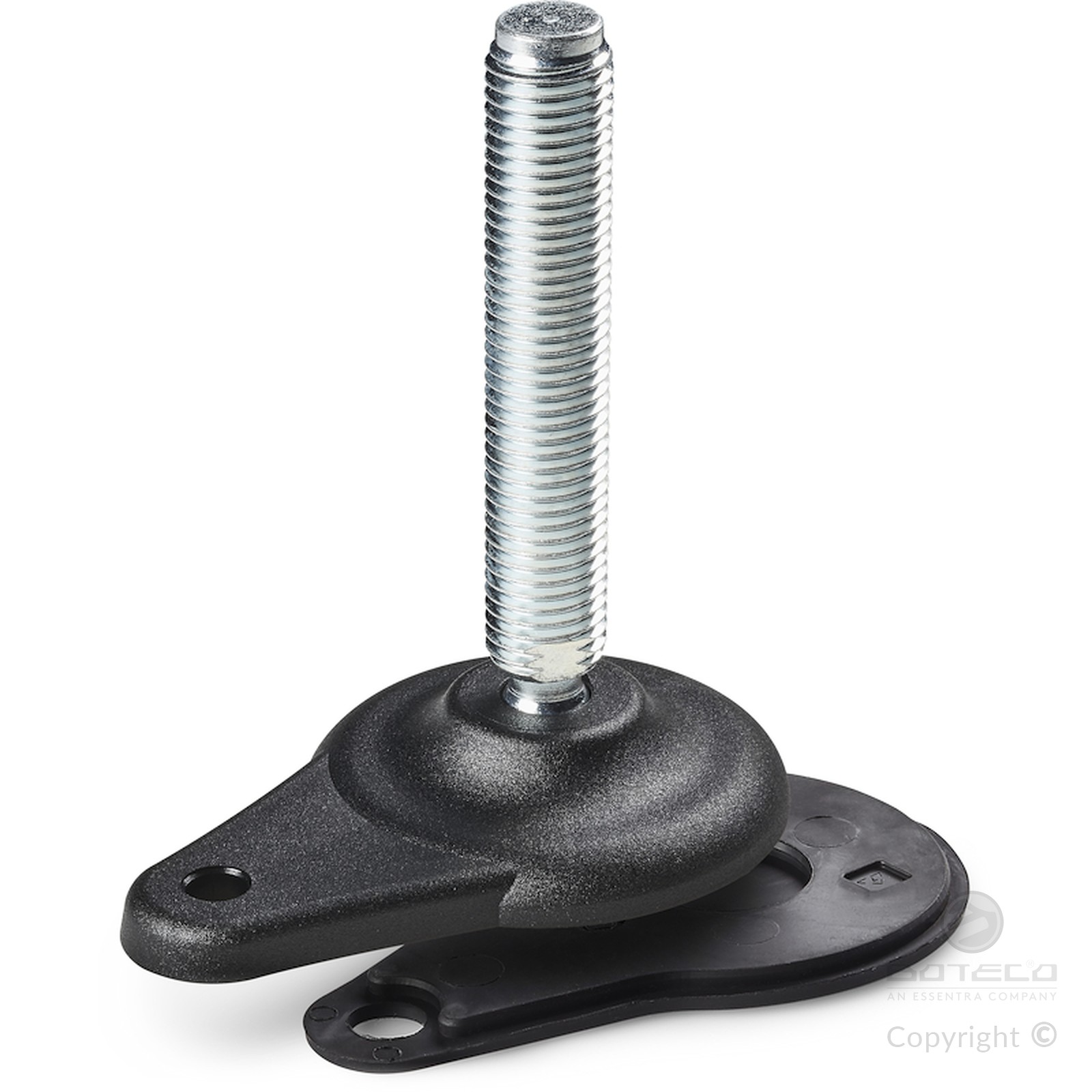

    Version P709: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 24 - with SBS non-slip base

    Code Art. D H I H1 H3 h A E s d2 d R d1 6g Q Weight (g) F1 (kN)
    P709080.0001 P709080.TM24X11001 80 20 65 32 35 9 120 19 10 9 70 24 M24 110 469 25
    P709080.0003 P709080.TM24X13001 80 20 65 32 35 9 120 19 10 9 70 24 M24 130 529 25
    P709080.0005 P709080.TM24X15001 80 20 65 32 35 9 120 19 10 9 70 24 M24 150 589 25
    P709080.0007 P709080.TM24X17001 80 20 65 32 35 9 120 19 10 9 70 24 M24 170 649 25
    P709080.0008 P709080.TM30X11001 80 20 65 32 35 9 120 27 12 9 70 24 M30 110 629 25
    P709080.0009 P709080.TM30X13001 80 20 65 32 35 9 120 27 12 9 70 24 M30 130 716 25
    P709080.0011 P709080.TM30X15001 80 20 65 32 35 9 120 27 12 9 70 24 M30 150 804 25
    P709080.0012 P709080.TM30X17001 80 20 65 32 35 9 120 27 12 9 70 24 M30 170 892 25
    P709080.0014 P709080.TM30X19001 80 20 65 32 35 9 120 27 12 9 70 24 M30 190 979 25
    P709080.0015 P709080.TM30X21001 80 20 65 32 35 9 120 27 12 9 70 24 M30 210 1069 25
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
    Customised stud length available for a minimum of 100 pieces.

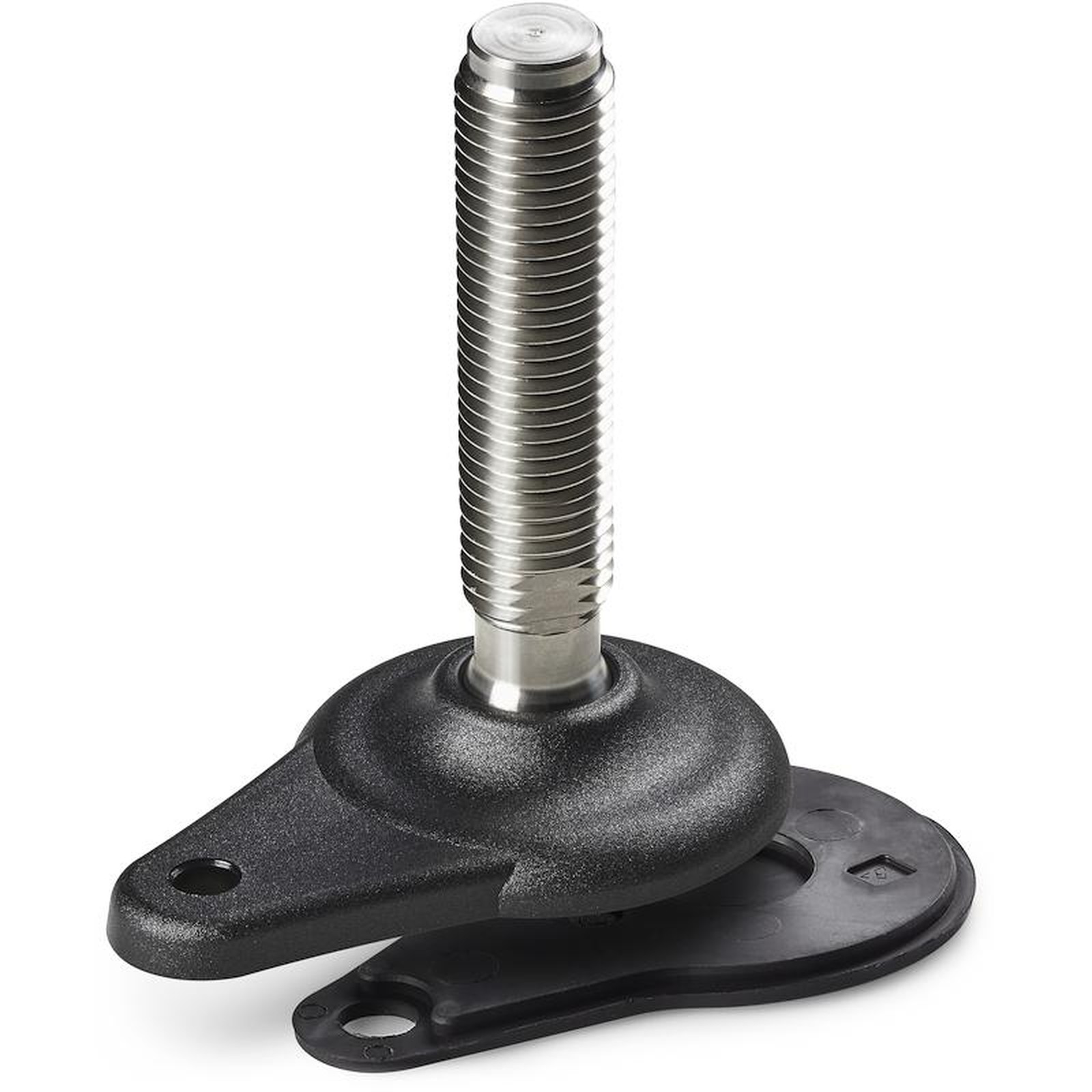

    Version P709CIN: Foot with lateral ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 24 - with SBS non-slip base

    Code Art. D H I H1 H3 h A E s d2 d R d1 6g Q Weight (g) F1 (kN)
    P709080.0002 P709080.TM24X11001CIN 80 20 65 32 35 9 120 19 10 9 70 24 M24 110 469 25
    P709080.0004 P709080.TM24X13001CIN 80 20 65 32 35 9 120 19 10 9 70 24 M24 130 529 25
    P709080.0006 P709080.TM24X15001CIN 80 20 65 32 35 9 120 19 10 9 70 24 M24 150 589 25
    - P709080.TM24X19001CIN 80 20 65 32 35 9 120 19 10 9 70 24 M24 190 709 25
    P709080.0010 P709080.TM30X13001CIN 80 20 65 32 35 9 120 27 12 9 70 24 M30 130 716 25
    P709080.0013 P709080.TM30X17001CIN 80 20 65 32 35 9 120 27 12 9 70 24 M30 170 892 25
    P709080.0016 P709080.TM30X21001CIN 80 20 65 32 35 9 120 27 12 9 70 24 M30 210 1069 25
    Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
    Customised stud length available for a minimum of 100 pieces.
