P708
TEARDROP MOUNTING FOOT WITH GROUND FIXING AND STEEL ARTICULATED STEM TYPE B - BALL 24
Teardrop floor-anchor feet - articulated stem
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
P708:
Galvanised steel threaded and articulated stem (ball 24) with milled seat for wrench (type B) (thread tolerance 6g).
P708CIN:
Stainless steel threaded and articulated stem (ball 24) with milled seat for wrench (type B) (Aisi 304) (thread tolerance 6g).
Ground fixing:
Through hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities the foot can be supplied in Orange (RAL 2004).

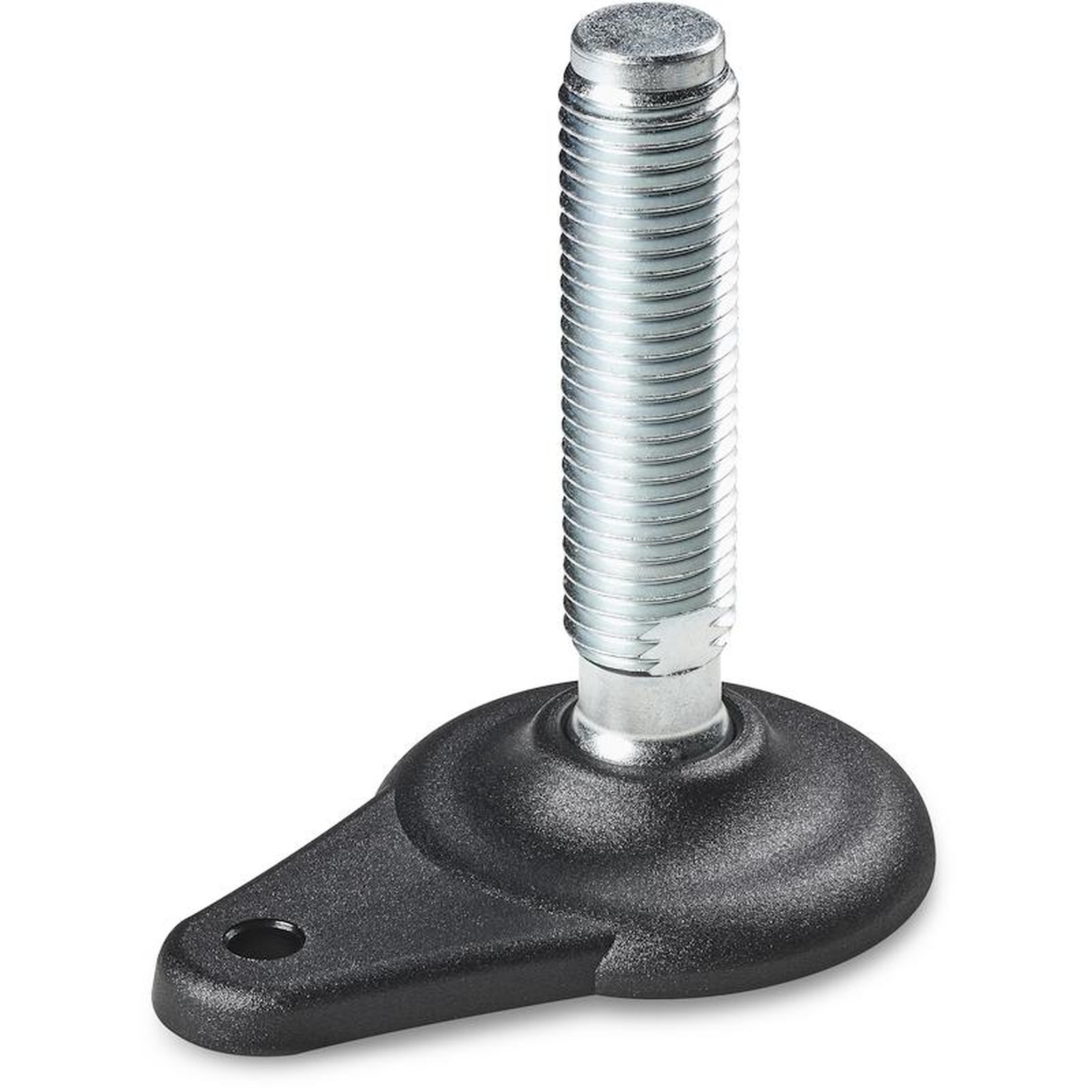

Version P708: Teardrop mounting foot with ground fixing - stem type B (with milled seat for wrench) and ball 24

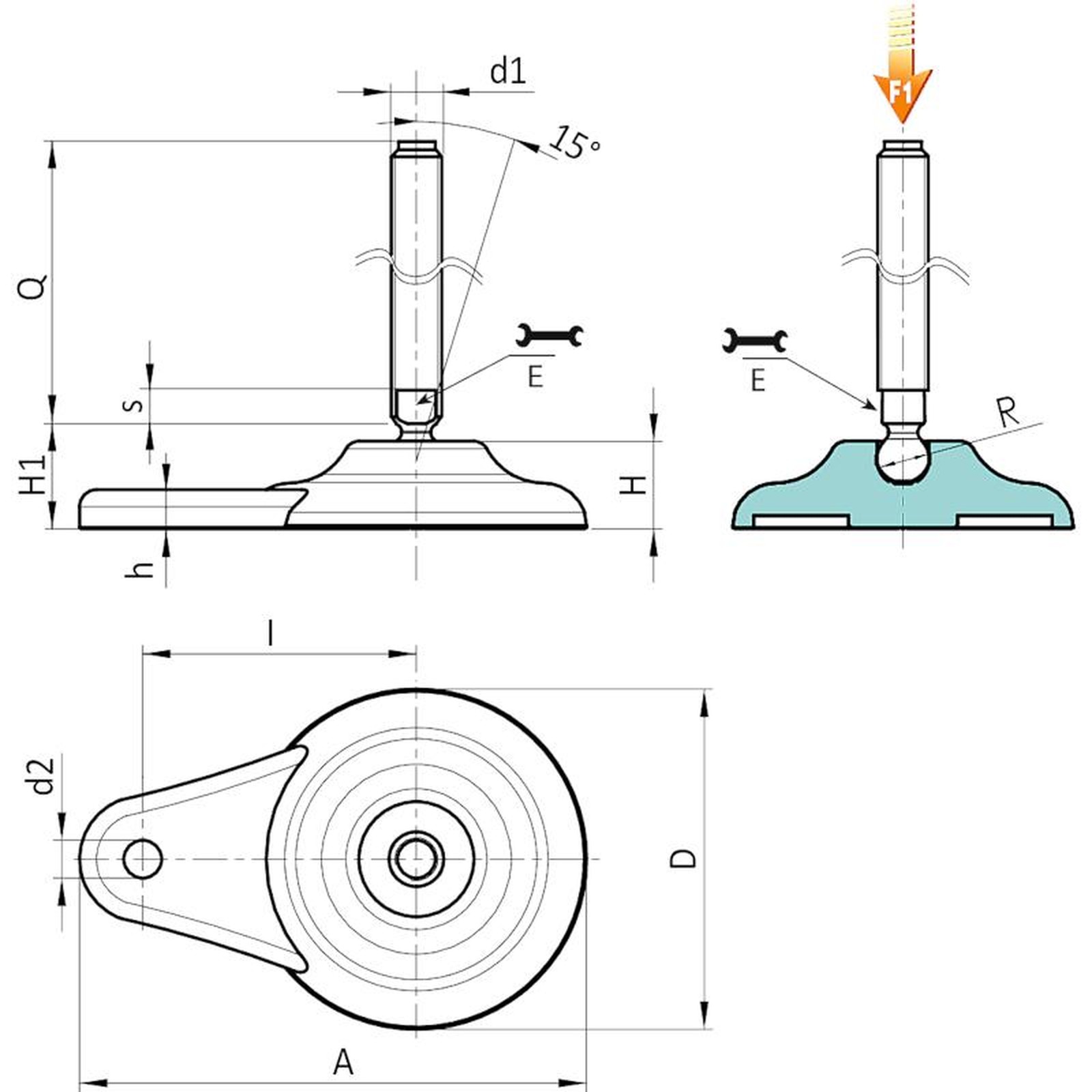

| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P708080.0001 | P708080.TM24X11001 | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 110 | 446 | 25 |
| P708080.0003 | P708080.TM24X13001 | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 130 | 506 | 25 |
| P708080.0005 | P708080.TM24X15001 | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 150 | 566 | 25 |
| P708080.0007 | P708080.TM24X17001 | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 170 | 626 | 25 |
| P708080.0010 | P708080.TM30X11001 | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 110 | 606 | 25 |
| P708080.0011 | P708080.TM30X13001 | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 130 | 693 | 25 |
| P708080.0013 | P708080.TM30X15001 | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 150 | 781 | 25 |
| P708080.0014 | P708080.TM30X17001 | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 170 | 869 | 25 |
| P708080.0016 | P708080.TM30X19001 | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 190 | 956 | 25 |
| P708080.0017 | P708080.TM30X21001 | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 210 | 1046 | 25 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.

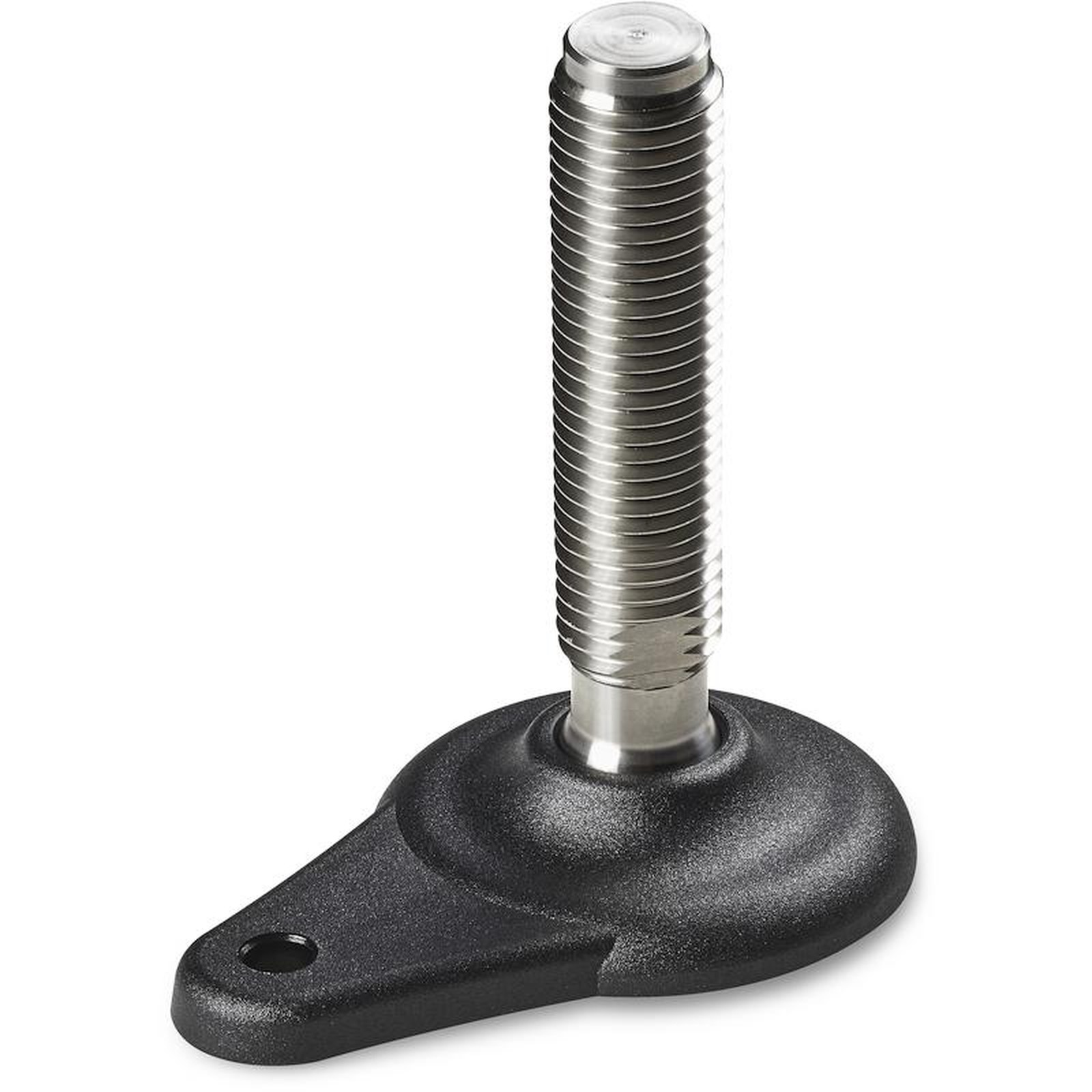

Version P708CIN: Teardrop mounting foot with ground fixing - stem type B - stainless steel - (with milled seat for wrench) and ball 24

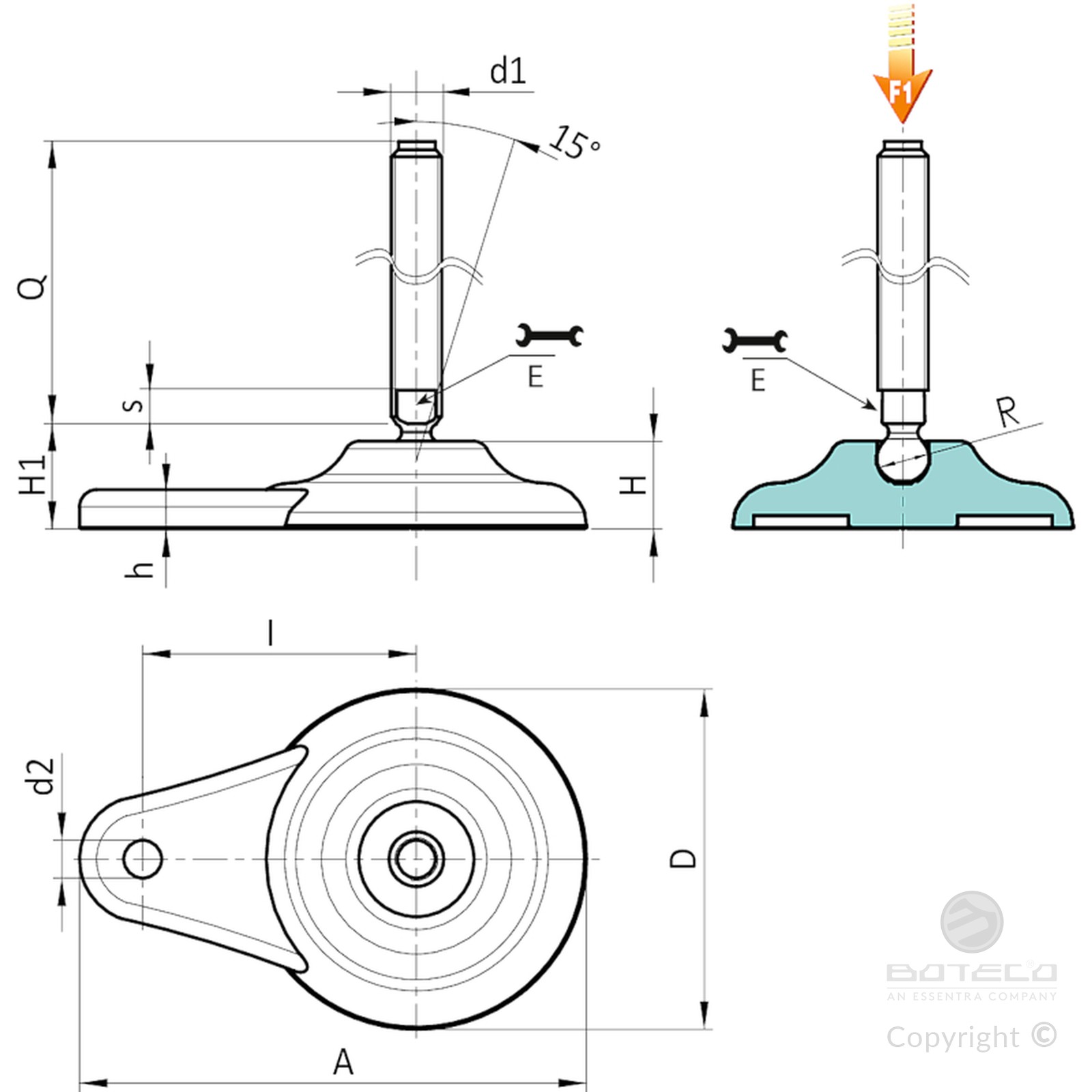

| Code | Art. | D | H | I | H1 | h | A | E | s | d2 | R | d1 6g | Q | Weight (g) | F1 (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P708080.0002 | P708080.TM24X11001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 110 | 446 | 25 |
| P708080.0004 | P708080.TM24X13001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 130 | 506 | 25 |
| P708080.0006 | P708080.TM24X15001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 150 | 566 | 25 |
| P708080.0009 | P708080.TM24X19001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 19 | 10 | 9 | 24 | M24 | 190 | 686 | 25 |
| P708080.0012 | P708080.TM30X13001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 130 | 693 | 25 |
| P708080.0015 | P708080.TM30X17001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 170 | 869 | 25 |
| P708080.0018 | P708080.TM30X21001CIN | 80 | 20 | 65 | 32 | 9 | 120 | 27 | 12 | 9 | 24 | M30 | 210 | 1046 | 25 |
Attention: The expressed load limit F1 is lower than the break load by 30% and is intended as static.
Customised stud length available for a minimum of 100 pieces.
